 Posted: Mon Nov 07, 2011 1:00 pm Post subject: Correct ragtop for '50 splitwindow? |
 |
|
Hey guys,
Can anyone tell me if this is the correct ragtop for a '50 splitwindow?
Thanks in advance!
|
|
| Back to top |
|
 |
Emiel
Samba Member
Joined: June 12, 2004
Posts: 120
Location: the netherlands
|
|
| Back to top |
|
|
kkb
Samba Member
Joined: October 08, 2008
Posts: 44
Location: Meijel, the netherlands
|
| Posted: Mon Nov 07, 2011 2:10 pm Post subject: |
|
|
| It is a 3 fold, but i thought that there were differences in 50-55 ragtops like the rubber insert in the side rails and the center support above the mirror? correct me if i'm wrong |
|
| Back to top |
|
|
buggen
Samba Member
Joined: June 09, 2003
Posts: 604
|
| Posted: Mon Nov 07, 2011 8:11 pm Post subject: Re: Correct ragtop for '50 splitwindow? |
|
|
| kkb wrote: |
Hey guys,
Can anyone tell me if this is the correct ragtop for a '50 splitwindow?
Thanks in advance!
|
The bus rag top mechanisms are dated so I would think the bug ones would be as well. In the above picture on the bars that come out from the handle and twist there should be a date stamped in one of them. |
|
| Back to top |
|
|
kkb
Samba Member
Joined: October 08, 2008
Posts: 44
Location: Meijel, the netherlands
|
| Posted: Tue Nov 08, 2011 3:06 pm Post subject: |
|
|
Thanks!, i will check for a date stamp  |
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1549
Location: Garden grove ca
|
| Posted: Tue Nov 08, 2011 6:52 pm Post subject: |
|
|
it has 53-55 aluminum rails, you can have the groove for the rubber strip machined off and they will look like the correct rails. otherwise nobody will probably never notice the other stuff after its installed
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
kkb
Samba Member
Joined: October 08, 2008
Posts: 44
Location: Meijel, the netherlands
|
| Posted: Wed Nov 16, 2011 11:45 am Post subject: |
|
|
| No date stamp on this baby..... |
|
| Back to top |
|
|
vw-vintage
Samba Member
Joined: December 19, 2004
Posts: 83
|
| Posted: Wed Nov 16, 2011 4:48 pm Post subject: |
|
|
No correct 50-52 aluminum rails  |
|
| Back to top |
|
|
1953Volks
Samba Member
Joined: March 30, 2004
Posts: 243
Location: SO. CAL
|
| Posted: Wed Nov 16, 2011 8:16 pm Post subject: |
|
|
Here are pictures of my '50 ragtop on the body and the assembly. the rails on my '50 are different than yours. It looks like the assembly you have came off '53. I hasd a '53 for along time and the ragtop looks the same as yours.Hope this helps.
_________________
1950 Hoffman 11 G 1-0174999
1953 11G( In Japan)
1955-6 GHIA 1-0925660
1963 Ragtop
1959 Ragtop 2226460 (in Japan)
1964 Cadillac coupe De Ville (a.k.a. Husslah)
1963 Ss chevy Nova |
|
| Back to top |
|
|
1953Volks
Samba Member
Joined: March 30, 2004
Posts: 243
Location: SO. CAL
|
| Posted: Wed Nov 16, 2011 8:26 pm Post subject: |
|
|
| 1953Volks wrote: |
Here are pictures of my '50 ragtop on the body and the assembly. the rails on my '50 are different than yours. It looks like the assembly you have came off '53. I hasd a '53 for along time and the ragtop looks the same as yours.Hope this helps.
|
also i checked for a date stamp, i didnt find one on the twisted metal rod as stated above on the bus ones.
_________________
1950 Hoffman 11 G 1-0174999
1953 11G( In Japan)
1955-6 GHIA 1-0925660
1963 Ragtop
1959 Ragtop 2226460 (in Japan)
1964 Cadillac coupe De Ville (a.k.a. Husslah)
1963 Ss chevy Nova |
|
| Back to top |
|
|
kkb
Samba Member
Joined: October 08, 2008
Posts: 44
Location: Meijel, the netherlands
|
| Posted: Thu Apr 05, 2012 10:43 am Post subject: |
|
|
| Thanks for the detailed pictures volks! |
|
| Back to top |
|
|
1953Volks
Samba Member
Joined: March 30, 2004
Posts: 243
Location: SO. CAL
|
| Posted: Wed Apr 11, 2012 7:35 am Post subject: |
|
|
| kkb wrote: |
| Thanks for the detailed pictures volks! |
your welcome anytime
_________________
1950 Hoffman 11 G 1-0174999
1953 11G( In Japan)
1955-6 GHIA 1-0925660
1963 Ragtop
1959 Ragtop 2226460 (in Japan)
1964 Cadillac coupe De Ville (a.k.a. Husslah)
1963 Ss chevy Nova |
|
| Back to top |
|
|
René Holtrop
Samba Member
Joined: March 19, 2025
Posts: 3
Location: Oudega (Netherlands)
|
| Posted: Fri Apr 04, 2025 10:54 pm Post subject: |
|
|
| 1953Volks wrote: |
Here are pictures of my '50 ragtop on the body and the assembly. the rails on my '50 are different than yours. It looks like the assembly you have came off '53. I hasd a '53 for along time and the ragtop looks the same as yours.Hope this helps.
|
Could someone provide me with more information about this type of sunroof?
Is it an original or an aftermarket version? And is it true that this type was only used in the first 50 Beetles?
I happen to have an identical, complete roof here, but so far no one has been able to tell me exactly what it is. |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17583
Location: Left coast, Canada
|
| Posted: Sun Apr 06, 2025 4:56 am Post subject: Re: Correct ragtop for '50 splitwindow? |
|
|
The sunroof pics shown are genuine VW Golde sunroofs as installed in Wolfsburg.
I've never heard that the first 50 Beetles had anything different from later production cars. Sounds fishy to me. Could it be you heard that this was the type to be installed in the 1950 Beetles instead?
The big difference between the first version of 3 fold sunroof and the later ones is the aluminum rails. Later ones from around 53 up to 55 have an extra dove-tail groove to accept a vinyl strip like you find in the aluminum trim of a Deluxe Microbus.
Post pics of what you have.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
René Holtrop
Samba Member
Joined: March 19, 2025
Posts: 3
Location: Oudega (Netherlands)
|
| Posted: Sun Apr 06, 2025 11:43 am Post subject: Re: Correct ragtop for '50 splitwindow? |
|
|
| Bruce wrote: |
The sunroof pics shown are genuine VW Golde sunroofs as installed in Wolfsburg.
I've never heard that the first 50 Beetles had anything different from later production cars. Sounds fishy to me. Could it be you heard that this was the type to be installed in the 1950 Beetles instead?
The big difference between the first version of 3 fold sunroof and the later ones is the aluminum rails. Later ones from around 53 up to 55 have an extra dove-tail groove to accept a vinyl strip like you find in the aluminum trim of a Deluxe Microbus.
Post pics of what you have. |
Apologies for the confusion — this is not related to the first 50 Beetles, but rather to the first type of sunroof introduced in the 1950 model year.
As far as I know, 1950 was also the first production year in which the Beetle was available with a sunroof.

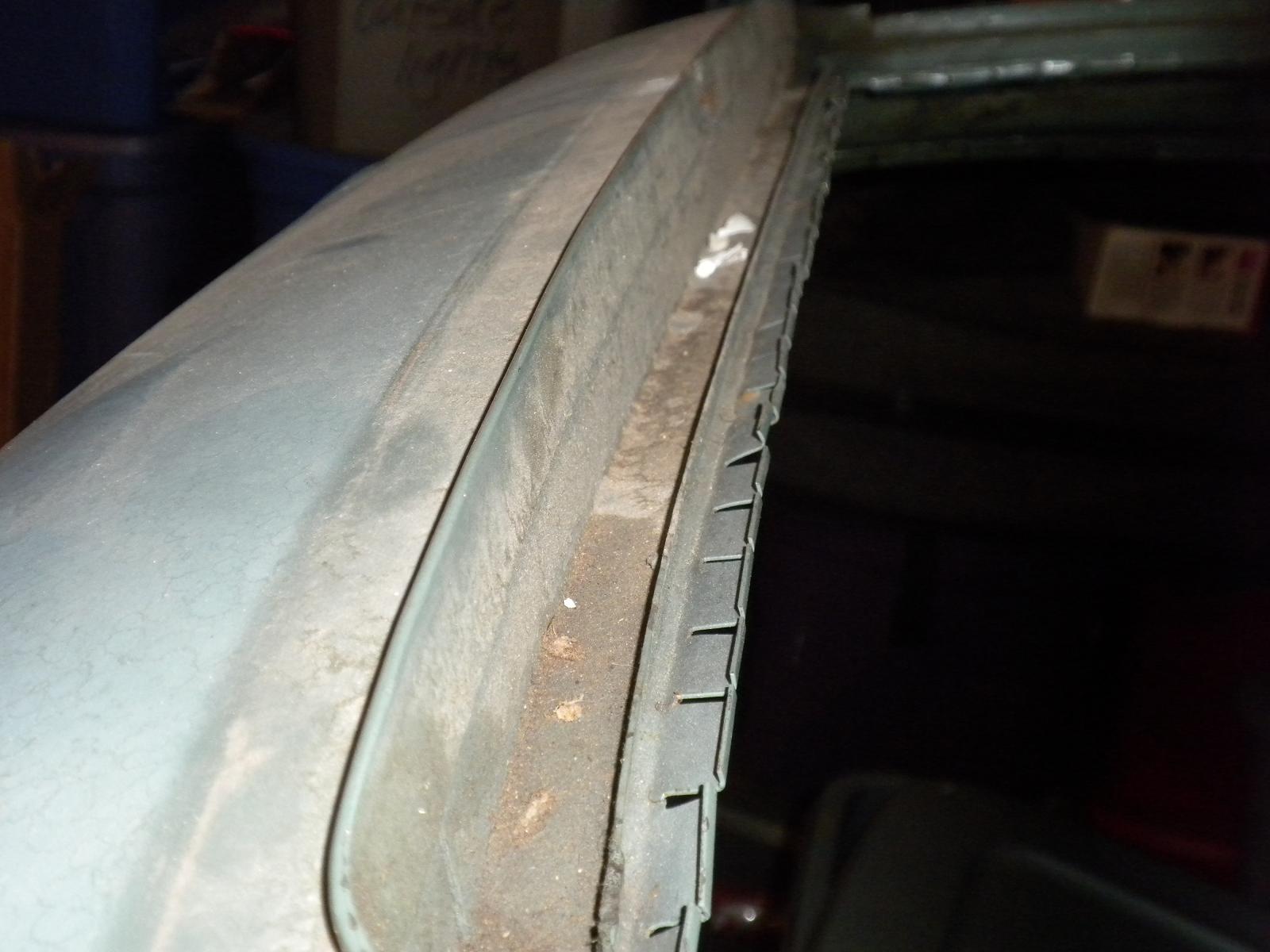

Interestingly, this roof cutout differs from later versions, featuring a much sharper wind deflector edge than the ones that came afterwards.
I’ll upload the photos sometime next week, and I’ll take some time to carefully review the manual as well. |
|
| Back to top |
|
|
Bruce
Samba Member
Joined: May 16, 2003
Posts: 17583
Location: Left coast, Canada
|
| Posted: Sun Apr 06, 2025 4:49 pm Post subject: Re: Correct ragtop for '50 splitwindow? |
|
|
You are correct, the first year for the folding sunroof was 1950.
The square front leading edge is the same for all sunroofs from 50 to 55. The 56 and later 2 fold sunroof had a rounded bump at the front.
_________________
| overheard at the portland Swap Meet... wrote: |
| ..... a steering wheel made from a mastadon tusk..... |
|
|
| Back to top |
|
|
René Holtrop
Samba Member
Joined: March 19, 2025
Posts: 3
Location: Oudega (Netherlands)
|
| Posted: Mon Apr 07, 2025 10:34 am Post subject: Re: Correct ragtop for '50 splitwindow? |
|
|
| Bruce wrote: |
You are correct, the first year for the folding sunroof was 1950.
The square front leading edge is the same for all sunroofs from 50 to 55. The 56 and later 2 fold sunroof had a rounded bump at the front. |
Thanks that's where I was looking for. |
|
