DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
 Posted: Mon Feb 24, 2025 12:21 pm Post subject: Possible Engine Rebuild |
 |
|

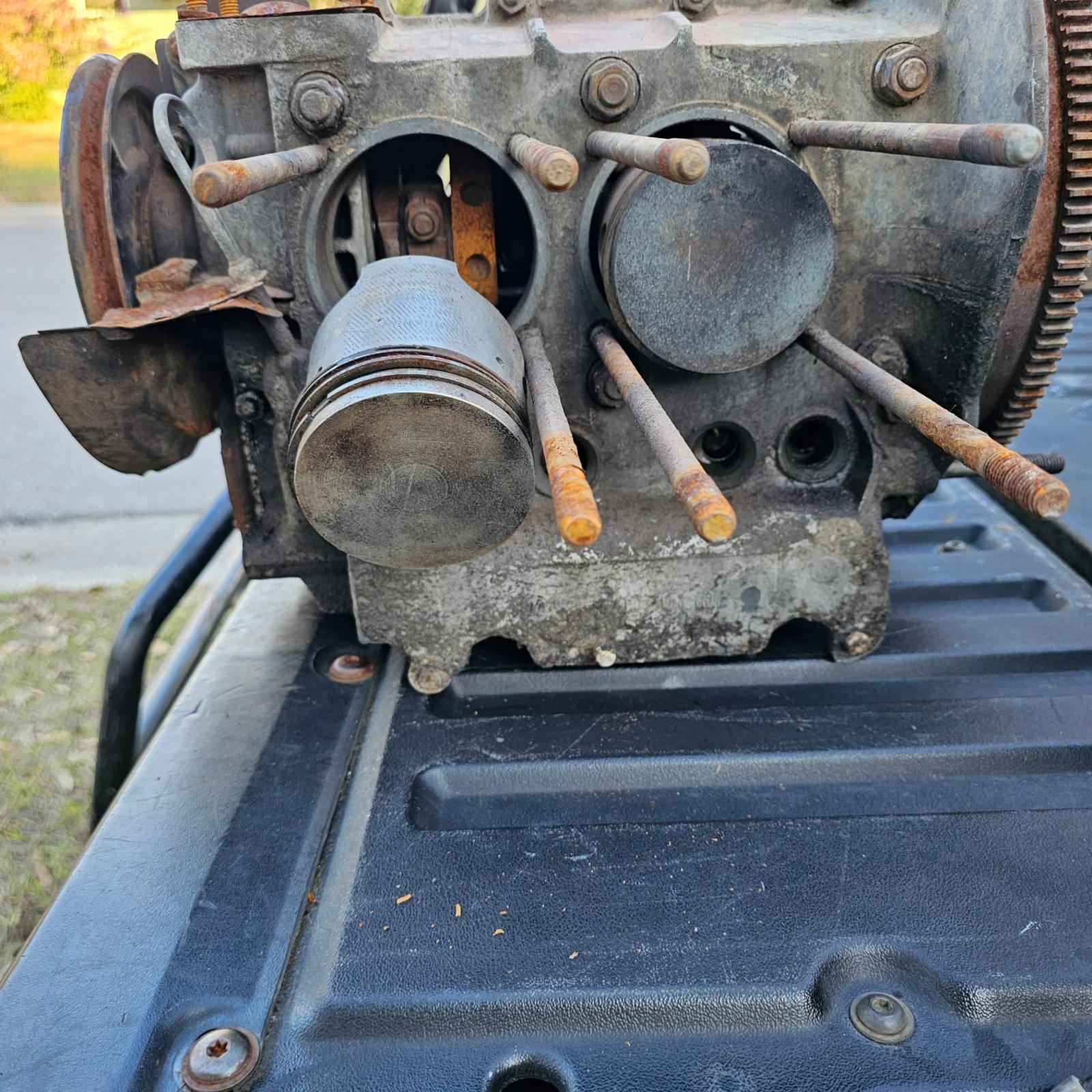

Trying to rebound after an engine lock up from oil starvation (short story) lol. Have not pulled the engine but started looking around for possibilities in the worst-case scenario, because I am thinking there is no hope for an engine being ran with no oil bearings being stuck to the case etc. As of right now it's just fingers cross hoping for the best. I found an old case from my 67 back in the day. I pulled the cylinders an found these markings on the pistons and was wondering has anyone seen these marks and what do they mean? .
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY
Last edited by DAWGNME on Sat Apr 05, 2025 8:58 am; edited 1 time in total |
|
| Back to top |
|
 |
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 35871
Location: Conejo Valley, CA
|
| Posted: Mon Feb 24, 2025 12:38 pm Post subject: Re: Possible Engine Rebuild |
|
|
It is common to mark cylinder number on the top of pistons if they are to be removed.
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Mon Feb 24, 2025 1:24 pm Post subject: Re: Possible Engine Rebuild |
|
|
| KTPhil wrote: |
| It is common to mark cylinder number on the top of pistons if they are to be removed. |
Sorry, if I was not making myself clear those little //////// don't know if that area is called the piston skirts. I thought that area was all smooth from the ones I have seen.
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
wdfifteen
Samba Member
Joined: January 26, 2019
Posts: 696
Location: Ohio
|
| Posted: Mon Feb 24, 2025 1:25 pm Post subject: Re: Possible Engine Rebuild |
|
|
| If you are talking about the knurling on the skirts, they have been knurled. When a piston gets worn, but the ring lands are OK we used to send them out to be knurled. It increased the diameter so the pistons didn't rock and slap in the bores. Never did it to a VW though. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79445
Location: Sneaking up behind you
|
| Posted: Mon Feb 24, 2025 1:38 pm Post subject: Re: Possible Engine Rebuild |
|
|
Doesn't really matter since I doubt you'll be reusing them.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Mon Feb 24, 2025 3:55 pm Post subject: Re: Possible Engine Rebuild |
|
|
Knowledge is key! It's all a learning experience to me, so moving forward is there anything or other stamps that I should be looking for on any reuseable parts. Like I said in the beginning I am here because My engine is locked up so when I get to take it apart, I will have some idea of what's reuseable or not. Next on the list is taking the engine out the car
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Wed Mar 12, 2025 2:00 pm Post subject: Re: Possible Engine Rebuild |
|
|
I found an engine that has these numbers stamped on it 8998257 that tell me it's a 1200cc 40HP per Eng Code look-up. I took a scope to look at the cylinder walls to see if there was any damage done while looking around, I noticed stamped on the pistons 82.95. So, question is Eng still a 1200cc or is it a 1500cc? I read that 1500cc engines have a H code, but this engine doesn't. I am confused please help me understand what engine I do have.
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Wed Mar 12, 2025 3:12 pm Post subject: Re: Possible Engine Rebuild |
|
|
| DAWGNME wrote: |
| I found an engine that has these numbers stamped on it 8998257 that tell me it's a 1200cc 40HP per Eng Code look-up. I took a scope to look at the cylinder walls to see if there was any damage done while looking around, I noticed stamped on the pistons 82.95. So, question is Eng still a 1200cc or is it a 1500cc? I read that 1500cc engines have a H code, but this engine doesn't. I am confused please help me understand what engine I do have. |
Part number 113101371B '62-'64 40hp heads, plus 83mm piston/cylinders, means that most likely you're looking at a 1385cc "Big Bore" 40 horse engine.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Wed Mar 12, 2025 4:19 pm Post subject: Re: Possible Engine Rebuild |
|
|
Part number 113101371B '62-'64 40hp heads, plus 83mm piston/cylinders, means that most likely you're looking at a 1385cc "Big Bore" 40 horse engine.[/quote]
Thanks for clearing that up for me. I am wanting to run this engine in the car till I figure out the damage in the other engine... What top speed would I able to get out of this 1385 engine. It's gonna be a daily for me....
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Wed Mar 12, 2025 5:34 pm Post subject: Re: Possible Engine Rebuild |
|
|
| DAWGNME wrote: |
| Thanks for clearing that up for me. I am wanting to run this engine in the car till I figure out the damage in the other engine... What top speed would I able to get out of this 1385 engine. It's gonna be a daily for me.... |
That depends on how well you can tune it, what elevation you live at, how hilly it is, how strong is the headwind you're bucking, how good (or bad) your car's aerodynamics are, rolling resistance......
For a rough estimate, figure on performance similar to a '66 Bug.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Wed Mar 12, 2025 6:00 pm Post subject: Re: Possible Engine Rebuild |
|
|
| mukluk wrote: |
| DAWGNME wrote: |
| Thanks for clearing that up for me. I am wanting to run this engine in the car till I figure out the damage in the other engine... What top speed would I able to get out of this 1385 engine. It's gonna be a daily for me.... |
That depends on how well you can tune it, what elevation you live at, how hilly it is, how strong is the headwind you're bucking, how good (or bad) your car's aerodynamics are, rolling resistance......
For a rough estimate, figure on performance similar to a '66 Bug. |
Well, I was running a stock 1970 1600cc dual relief and I thought it did pretty good in my 63 bug not that many hills little incline on ramps at the toll roads got 55 to 60 on flat. Don't know to much about turning just whatever I have learned from the Samba and my book
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
|
| Posted: Wed Mar 12, 2025 6:13 pm Post subject: Re: Possible Engine Rebuild |
|
|
| DAWGNME wrote: |
| Well, I was running a stock 1970 1600cc dual relief and I thought it did pretty good in my 63 bug not that many hills little incline on ramps at the toll roads got 55 to 60 on flat. Don't know to much about turning just whatever I have learned from the Samba and my book |
If you only got 55-60mph out of a stock '70 1600SP then ya got problems. Same engine in my '60 was good for over 80mph in flat Texas.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Wed Mar 12, 2025 7:10 pm Post subject: Re: Possible Engine Rebuild |
|
|
I just drove it around town never really got a chance to try running it strong, before I blew the oil filter rubber seal and locked up the engine. Any advice on tuning and on other things I should be doing before I install and after install of new engine to get the most out of it as she sits. I know the basics oil plugs valves timing and carb adjustment anything else
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Fri Mar 14, 2025 5:23 am Post subject: Re: Possible Engine Rebuild |
|
|
Removing Gen installing ALT
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Fri Mar 14, 2025 9:35 am Post subject: Re: Possible Engine Rebuild |
|
|
Wow that was easier than I thought for a rookie like me. Don't know the belt looks a little tight... If anyone see anything that was missed let me know
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
67rustavenger
Samba Member
Joined: February 24, 2015
Posts: 11041
Location: Oregon
|
| Posted: Fri Mar 14, 2025 9:52 am Post subject: Re: Possible Engine Rebuild |
|
|

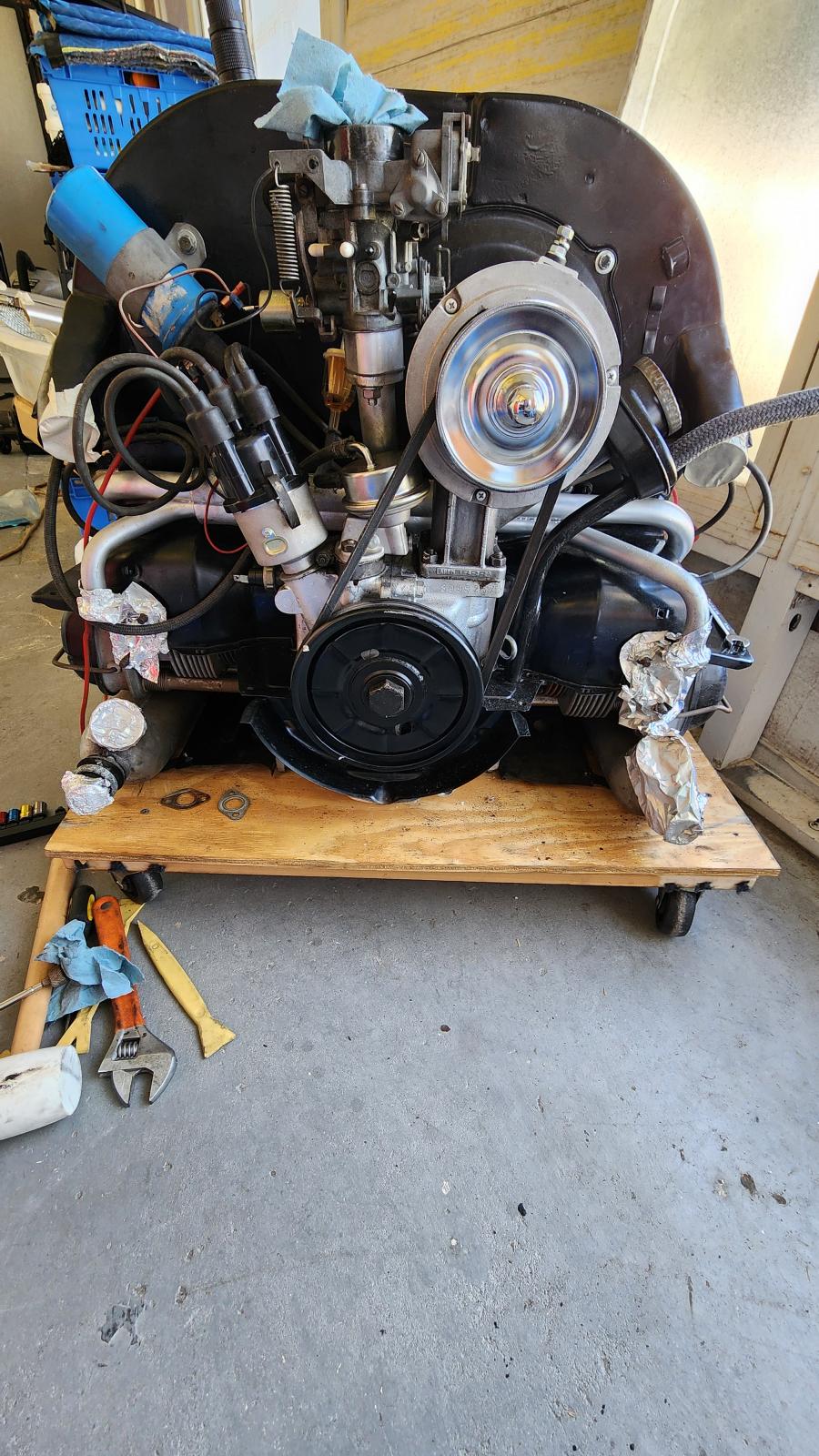

From the pic, the belt does look a little tight. There should be about 1/2" of deflection between the pullies.
The throttle cable tube should pass through the forward (clutch end) tin, not sit on top of it.
If you leave it like that, the engine is gonna fight you upon installation.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!
There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas! |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10529
Location: Pearl River, NY
|
| Posted: Mon Mar 17, 2025 7:26 pm Post subject: Re: Possible Engine Rebuild |
|
|
The engine is missing the small air deflector tins that fit to the rear of the cylinders and fasten to the rear flange of the cylinder tins. They'd look similar to these (Jeckler gallery):
|
|
| Back to top |
|
|
DAWGNME
Samba Member
Joined: November 14, 2012
Posts: 192
|
| Posted: Wed Mar 19, 2025 2:06 pm Post subject: Re: Possible Engine Rebuild |
|
|
| Rome wrote: |
| The engine is missing the small air deflector tins that fit to the rear of the cylinders and fasten to the rear flange of the cylinder tins. They'd look similar to these (Jeckler gallery) |
Rome not sure of how these tins look installed. Do you or anyone else have a picture of those tins installed on an engine and can you point them out thank you so much
_________________
Having Fun While Learning With My Build/Refresh/Just get it Driving already S*YTTT!
http://www.thesamba.com/vw/forum/viewtopic.php?t=648483&highlight=
The Rich Can Buy What Ever They Want.
But!
They Have To Beg For What They Really Need.
Now 1963, 69 BUG, Blue 67, 74 FATTY |
|
| Back to top |
|
|
67rustavenger
Samba Member
Joined: February 24, 2015
Posts: 11041
Location: Oregon
|
| Posted: Wed Mar 19, 2025 2:46 pm Post subject: Re: Possible Engine Rebuild |
|
|
| DAWGNME wrote: |
| Rome wrote: |
| The engine is missing the small air deflector tins that fit to the rear of the cylinders and fasten to the rear flange of the cylinder tins. They'd look similar to these (Jeckler gallery) |
Rome not sure of how these tins look installed. Do you or anyone else have a picture of those tins installed on an engine and can you point them out thank you so much |

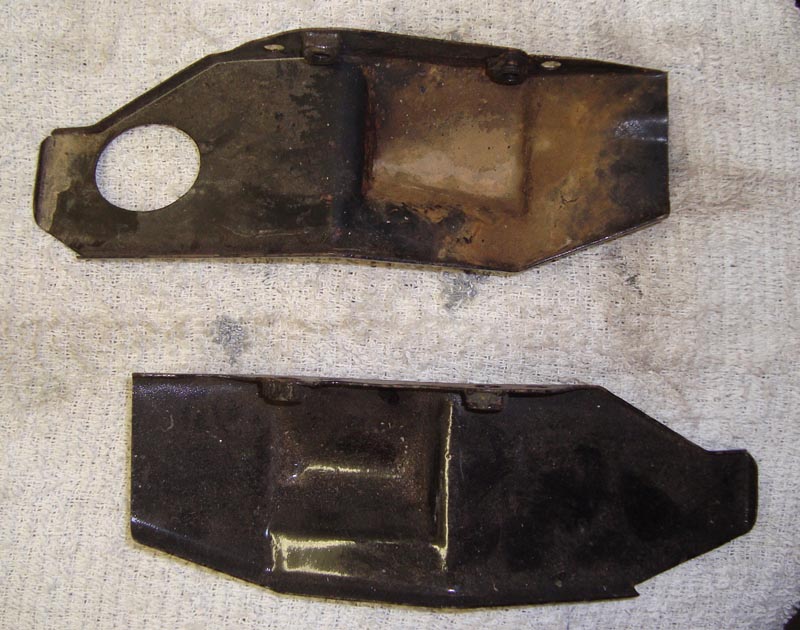

I found one from one of my engines. Click on the pic to see where the lower tins are mounted left and right of the crank pulley.
