 Posted: Thu Mar 27, 2025 5:54 pm Post subject: How to make the engine tin seal stay sealed |
 |
|
New seal, original tin, but in a few spots it will not seal

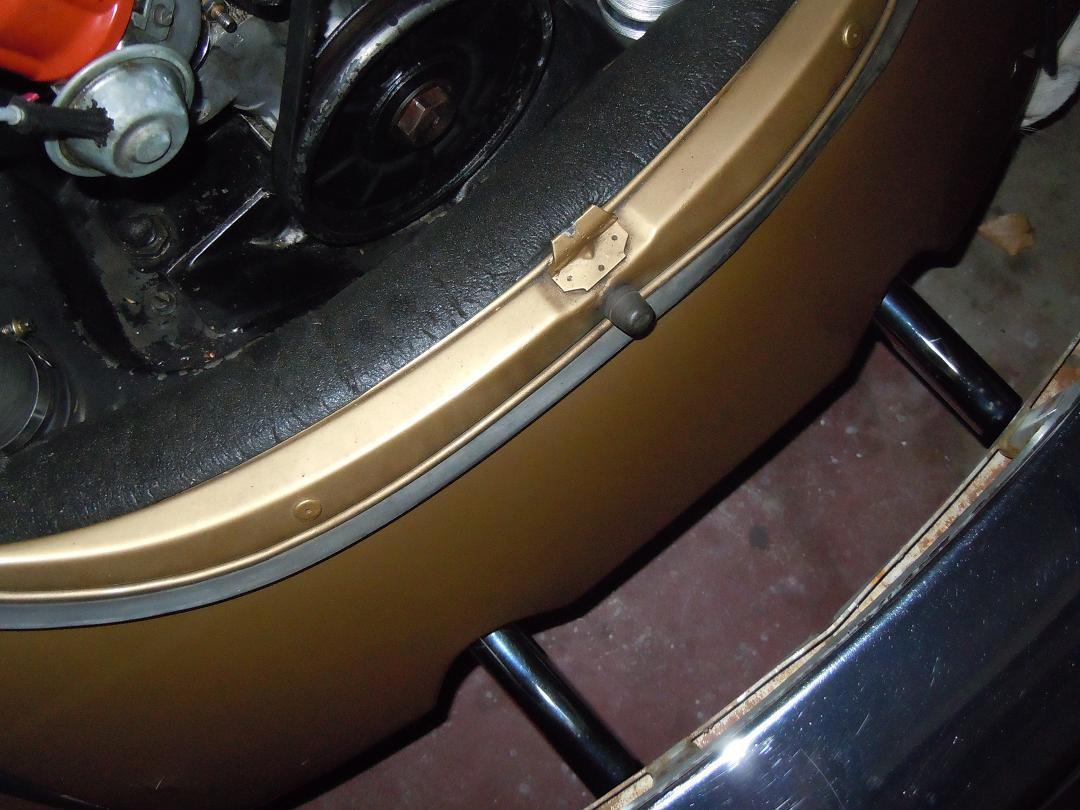

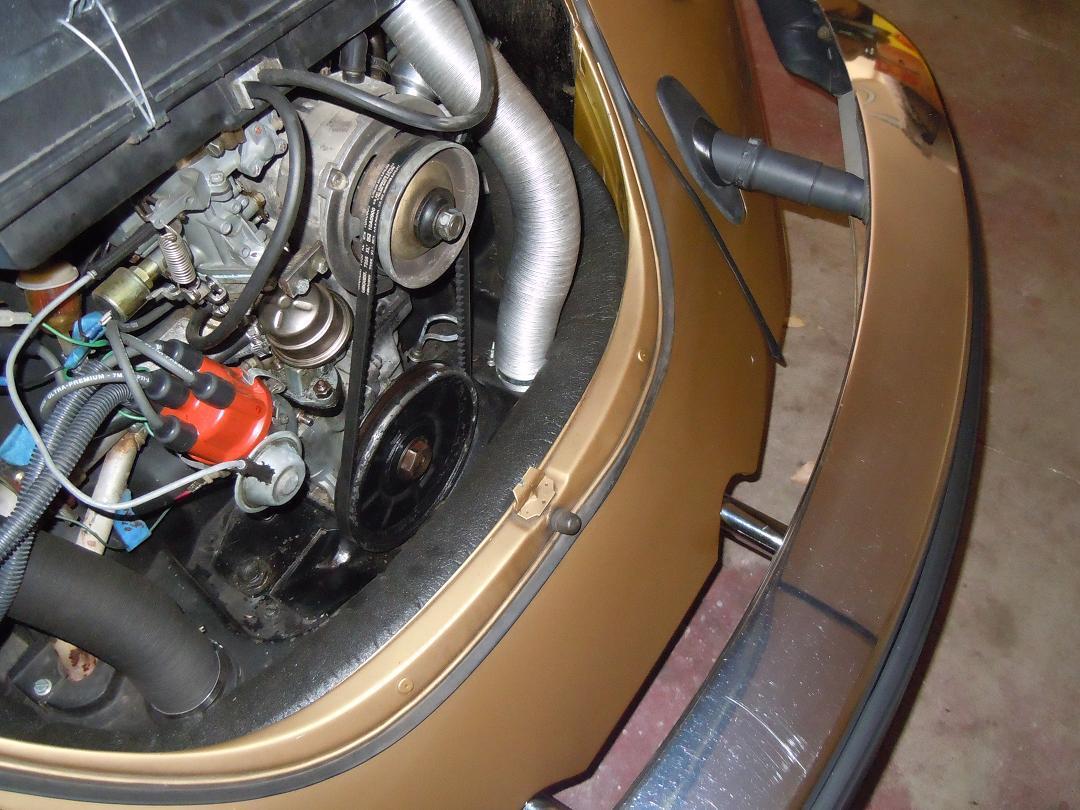

Any tricks to make it stay? I’ve worked with it for hours now, can get it in place but in no time it pops back like in the pictures.
_________________
Wayne
71 Super Beetle (in the states)
72 Super Beetle (european)
73 euro Bay camper (type 1 engine) |
|
| Back to top |
|
 |
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79791
Location: Sneaking up behind you
|
| Posted: Thu Mar 27, 2025 6:01 pm Post subject: Re: How to make the engine tin seal stay sealed |
|
|
Aftermarket rubber that been folded for a long time will not hold it's shape.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52933
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Mar 27, 2025 6:19 pm Post subject: Re: How to make the engine tin seal stay sealed |
|
|
Or pulled too tight, if you stretch it as you pull it in it sometimes does that.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
OldSchoolVW's
Samba Member
Joined: July 03, 2020
Posts: 1489
Location: San Diego
|
| Posted: Thu Mar 27, 2025 7:41 pm Post subject: Re: How to make the engine tin seal stay sealed |
|
|
Lower the engine, remove the stock seal, raise engine and use a late bus seal.
https://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=411813225
Easy to install, seals much better IMO.
From Tim Donahoe's gallery:
_________________
Tom
"Following distance is proportional to IQ."
"It's okay to think."
"If you don't do it this year, you'll be one year older when you do." Warren Miller
'63 Beetle Sedan
'69 Beetle Sunroof
'70 Beetle Sedan
'73 Type 3 Fastback |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33200
Location: Hot Arizona
|
| Posted: Thu Mar 27, 2025 8:12 pm Post subject: Re: How to make the engine tin seal stay sealed |
|
|
In 2017 I installed JBugs #111-705D, VW Rear Engine Seal, Each, Beetle, Super Beetle, Karmann Ghia & Thing 1967-1974 in my 1970 sedan, was fine.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
BIGMIKEY
Samba Member
Joined: September 24, 2007
Posts: 1142
Location: North East Pennsylvania
|
| Posted: Fri Mar 28, 2025 8:47 am Post subject: Re: How to make the engine tin seal stay sealed |
|
|
Stuff a length of fuel hose up under the seal. It will spread the seal open and push the lip out so it will hook under the tin lip. Taking the rear tin off makes it easier. I may have used some upholstery glue to hold it in there. Worked for me when mine had that same gap.
Mike T
_________________
BIGMIKEY
Deserter Series 1 project.
https://www.thesamba.com/vw/forum/viewtopic.php?t=787047&highlight=
1973 Beetle Driver, Marina Blue.
Last edited by BIGMIKEY on Sat Mar 29, 2025 11:23 am; edited 1 time in total |
|
| Back to top |
|
|
Root_Werks
Samba Member
Joined: December 31, 2007
Posts: 1062
Location: San Juan Islands
|
| Posted: Fri Mar 28, 2025 10:42 am Post subject: Re: How to make the engine tin seal stay sealed |
|
|
| Glenn wrote: |
| Aftermarket rubber that been folded for a long time will not hold it's shape. |
I agree, some of the aftermarket seals don't have quite the same dimensions or fit of originals.
It's already been mentioned the seal might have been pulled too tight when installed. If you can sort of bunch it or squish it, it gives more "length" to the "J" part that hooks under the tin.
_________________
When I set my timing, why do I flush, then take a pee? |
|
| Back to top |
|
|
lewis71bug
Samba Member
Joined: November 01, 2006
Posts: 489
Location: Dayton, Ohio
|
| Posted: Sat Mar 29, 2025 6:33 pm Post subject: Re: How to make the engine tin seal stay sealed |
|
|
| BIGMIKEY wrote: |
Stuff a length of fuel hose up under the seal. It will spread the seal open and push the lip out so it will hook under the tin lip. Taking the rear tin off makes it easier. I may have used some upholstery glue to hold it in there. Worked for me when mine had that same gap.
Mike T |
I might try this. I'm also trying to warm it up some to see if it will "relax" a little.
