Can anyone confirm these engine tins

[poundman]

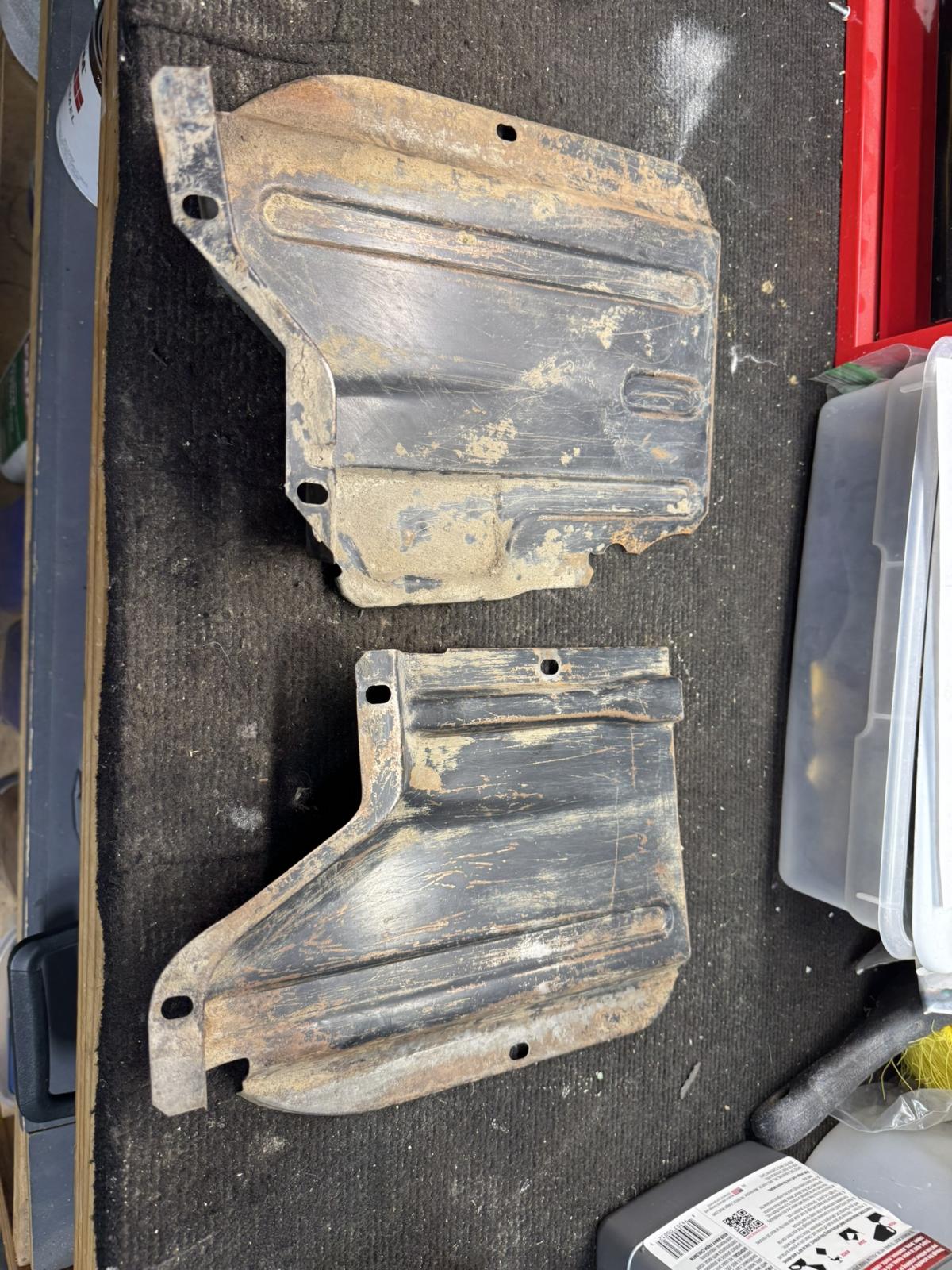

This tins were inside my bus when I purchased. They look like the bottom left and right tins. Can anyone confirm? Do they go over the push rod tubes? There is some other small tins between the rods and the jugs but they are smaller.

Thank you.

_________________
-----------------------------------------
Restoring a 1972 Bay Window Bus that has not be registered for the road since 1981.
Sugar Land, Texas

[busdaddy]

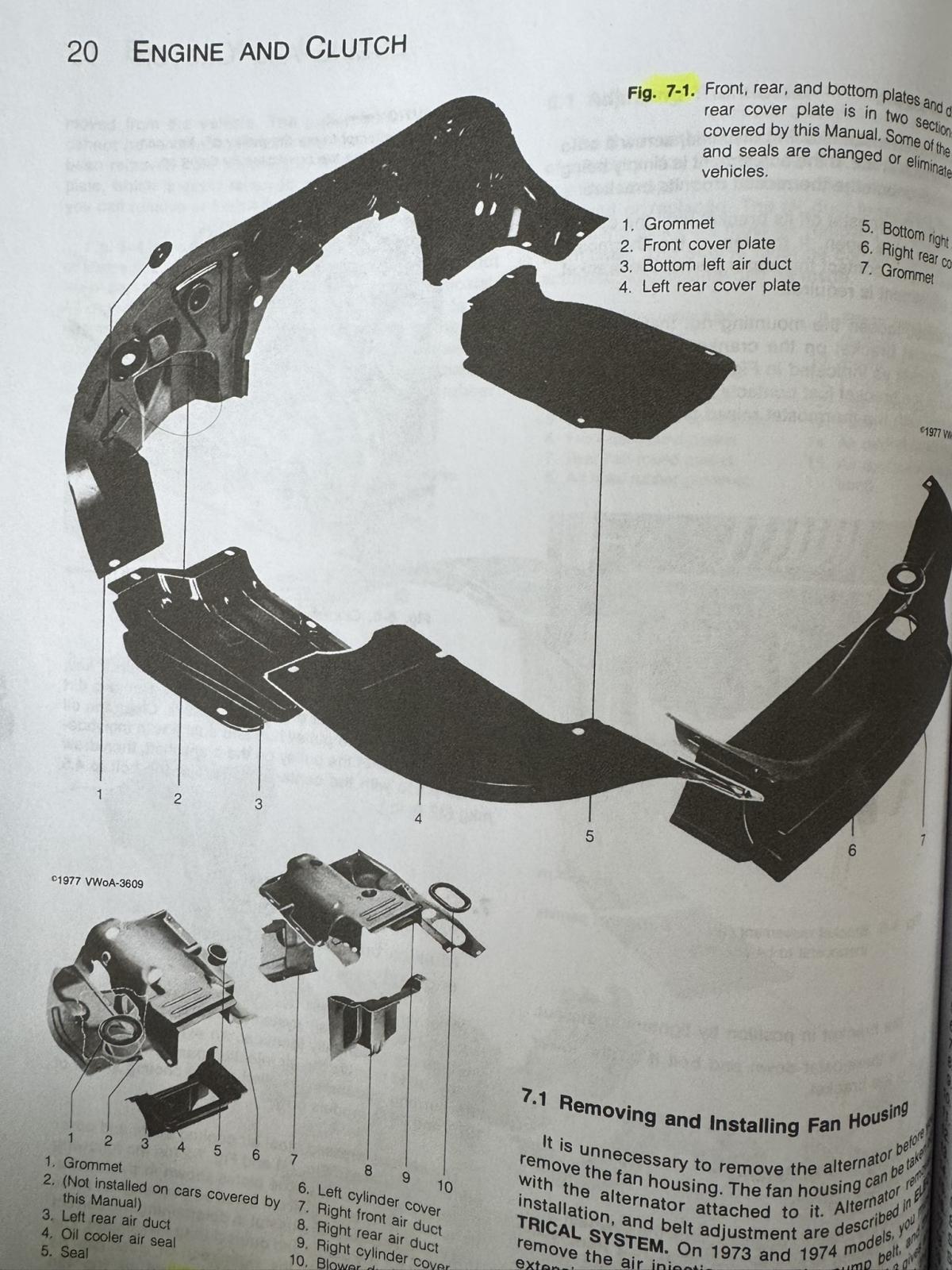

Those are #3 & #5 in the diagram, sled tins for a 72-74 bus.

They go between the pushrod tubes and the road.
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[Wasted youth]

And they are often erroneously discarded, like the middle seat and the rear bumper (1972 and earlier)

Save those / install them but whatever you do, don’t discard them.
