| Author |
Message |
Skip2MyLou
Samba Member
Joined: March 06, 2012
Posts: 13
Location: Austin, TX
|

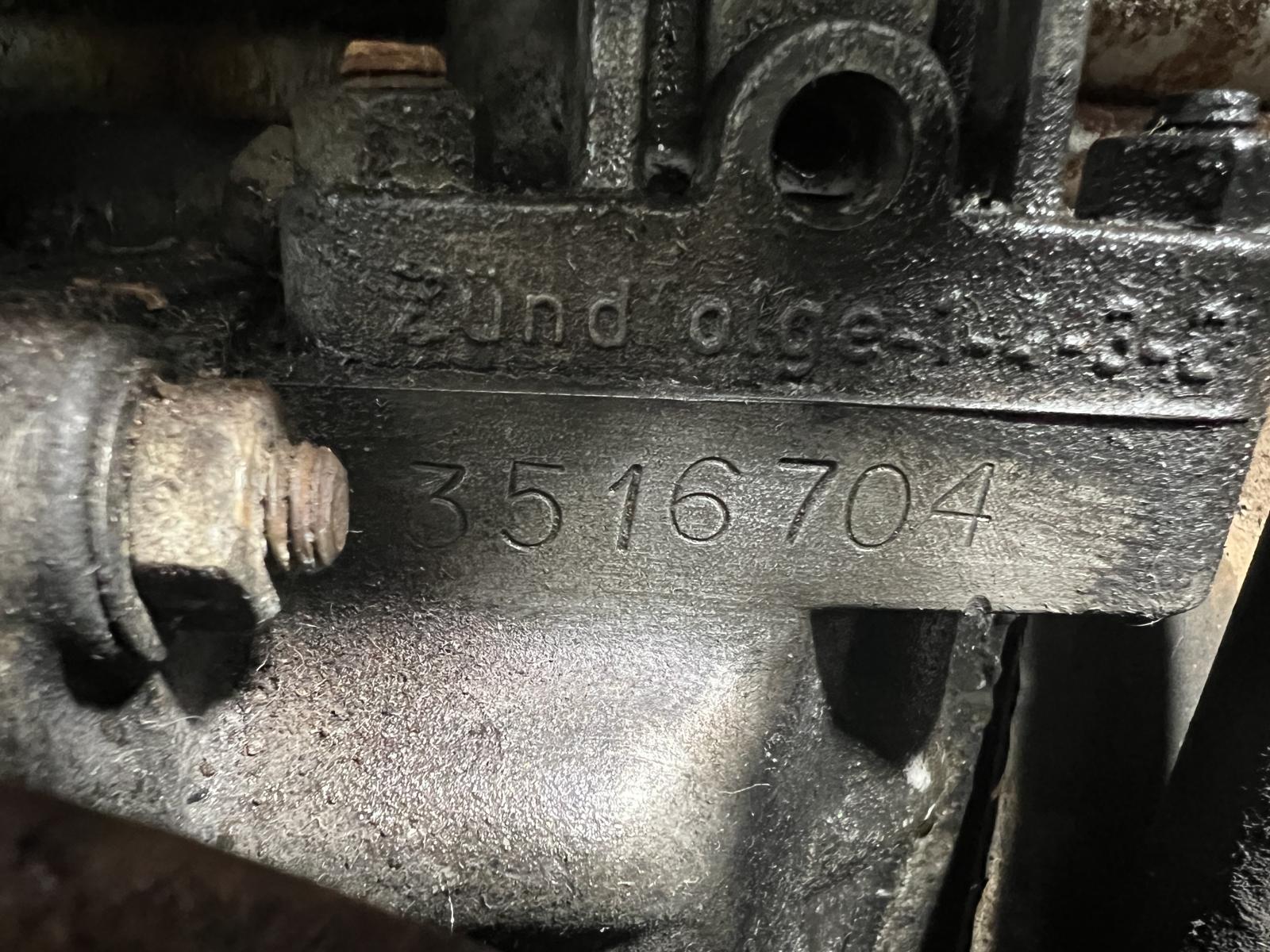

 Posted: Sun May 04, 2025 7:33 pm Post subject: Help identifying this engine number |
 |
|
|
|
| Back to top |
|
 |
mukluk
Samba Member
Joined: October 18, 2012
Posts: 7405
Location: Clyde, TX
|
| Posted: Sun May 04, 2025 8:05 pm Post subject: Re: Help identifying this engine number |
|
|
Something isn't right because that number would be for a 36 horse engine, and that sure isn't a 36 horse. It appears there may be something else stamped into the case that's hiding behind the nut and stud at center left. Move the camera to the right a bit and snap another picture so we can see what's in front of (to the left of) the visible number.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
|
Skip2MyLou
Samba Member
Joined: March 06, 2012
Posts: 13
Location: Austin, TX
|
| Posted: Sun May 04, 2025 8:26 pm Post subject: Re: Help identifying this engine number |
|
|

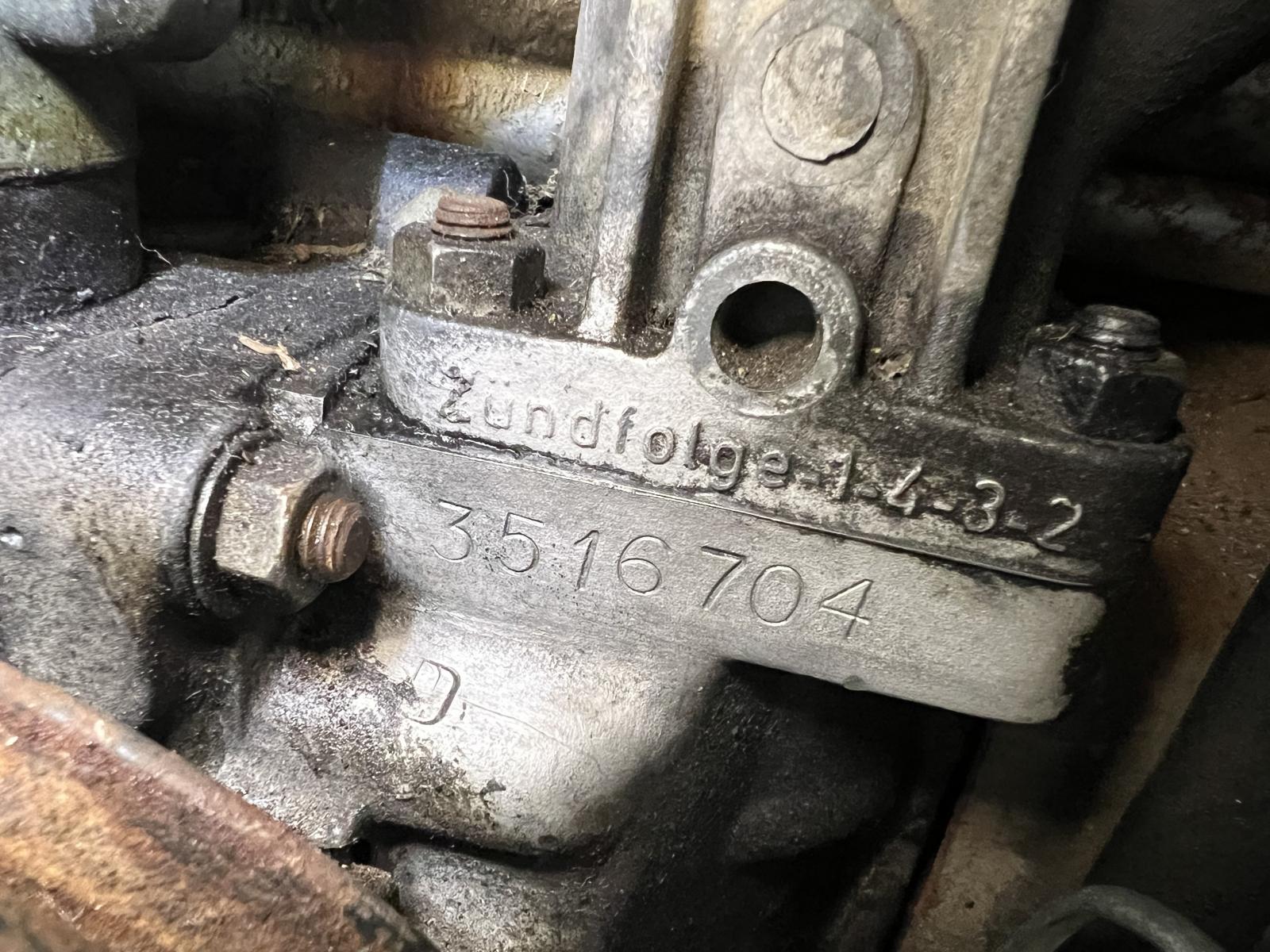

Exactly what I was thinking. I did a little bit more clean up and took a better angle. |
|
| Back to top |
|
|
wagen19
Samba Member
Joined: November 16, 2007
Posts: 543
Location: germany
|
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26495
Location: Douglas, WY
|
| Posted: Sun May 04, 2025 10:22 pm Post subject: Re: Help identifying this engine number |
|
|
One thing, is the typeface of the letter stamps does not look right for the Bastard era. There is a dedicated thread:
https://www.thesamba.com/vw/forum/viewtopic.php?t=187275&

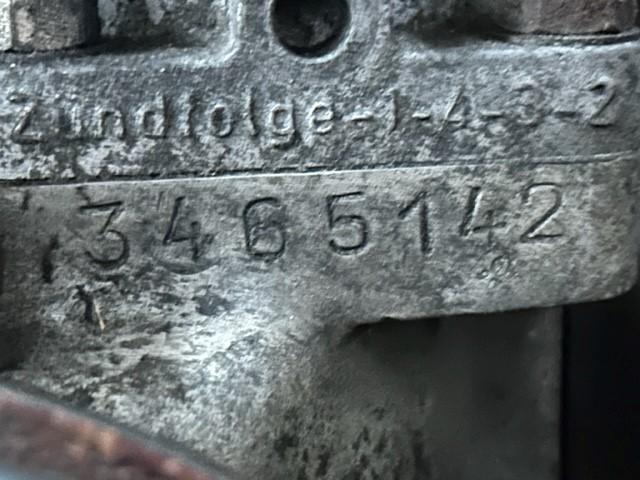

And from that thread, was this image of the serial number stamp from such an engine... note the typeface of the lettering is not the same as the one above.

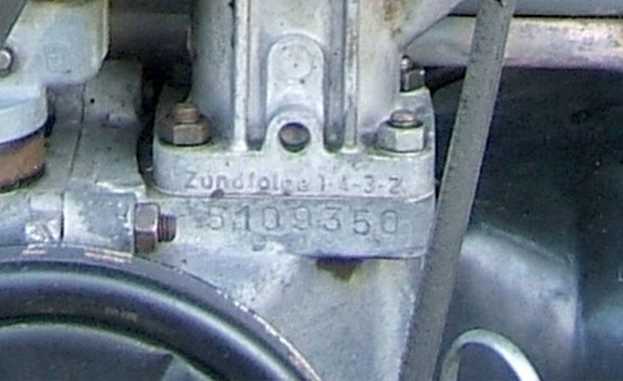

(also, I have an early 61 model year normal 40HP block, from 9/60, that uses the same lettering as seen below:
_________________
Andy T.
"What is Glutamodo, Horror of Toyko, besides total, fiendish, quality-a-you brain!" |
|
| Back to top |
|
|
wagen19
Samba Member
Joined: November 16, 2007
Posts: 543
Location: germany
|
| Posted: Mon May 05, 2025 12:48 am Post subject: Re: Help identifying this engine number |
|
|
| glutamodo wrote: |
One thing, is the typeface of the letter stamps does not look right for the Bastard era. There is a dedicated thread:
https://www.thesamba.com/vw/forum/viewtopic.php?t=187275&
And from that thread, was this image of the serial number stamp from such an engine... note the typeface of the lettering is not the same as the one above.
(also, I have an early 61 model year normal 40HP block, from 9/60, that uses the same lettering as seen below:
|
Think about the possibility that a new case (without number) was used and the engine number of old (replaced) engine case was individually punched in by dealer or private owner in new spare case.
The bastard engines and also the early 34 hp engines had originally a generator stand without the 4 vertical ribs. So most probably on many engines has been worked on, from whom ever.
As far as I know, there were many kind of problems with that early "new style" engines till around end of model year 1964. (for all types of type 1, 2 and 3) |
|
| Back to top |
|
|
Skip2MyLou
Samba Member
Joined: March 06, 2012
Posts: 13
Location: Austin, TX
|
| Posted: Mon May 05, 2025 6:45 am Post subject: Re: Help identifying this engine number |
|
|
| Thanks for the info |
|
| Back to top |
|
|
|
