 Posted: Sun Jun 01, 2025 8:45 am Post subject: Reference List of ELECTRICAL WIRING DIAGRAMS, 1972 |
 |
|

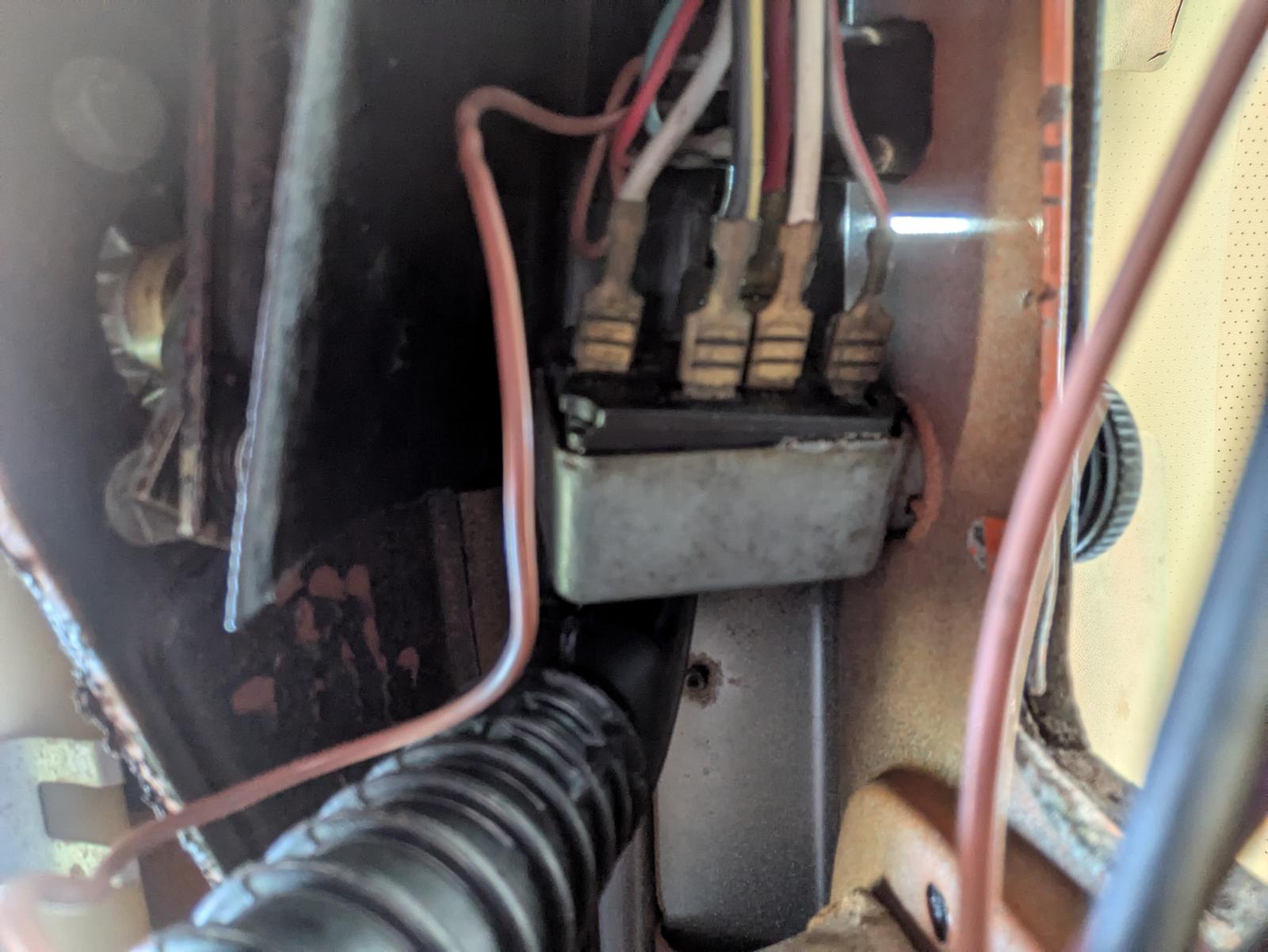

I had some time, and I've recently been working to put my beetle back together. It helped immensely to have my husband involved when reading a wiring diagram because I have a lot of trouble keeping my place in the drawing. I decided to make a written list that might help me in the future if I'm investigating a spaghetti mess of wiring on my own later. Maybe it could help you too?
1972 Super Beetle with autostick Reference List of ELECTRICAL WIRING DIAGRAMS for VW Type 1/Sedan 111 and 113 - from August 1971 (1972 models)
A - Battery (-) out, br 0,5 =>, T20 - test network central plug in
A - Battery (-) out, sw (1) ground strap =>, frame in
A - Battery (-) out, sw (1) ground strap out, br/ws 0,5 =>, T20 - test network central plug in
A - Battery (+) out, ro 6,0 =>, C01 - Regulator (B+) in
A - Battery (+) out, sw 25,0 =>, B - Starter (30) in
A - Battery out, ge/ro 0,5 =>, T20 - test network central plug in
B - Starter (30) in, sw 25,0 <=, A - Battery (+) out
B - Starter (30) out, ro/ws 6,0 =>, T20 - test network central plug in
B - Starter (50) in, ro 4,0 <=, T1 - cable connector, single, ro 4,0 <=, T1 - cable connector, single, ro 4,0 <=, T1 - cable connector, single, ro/sw 4,0 <=, D - Ignition / starter switch (50) out
B - Starter (50) in, ro 4,0 <=, E17 - Starter cut-out switch (50) out
B - Starter (50) out, ro 4,0 =>, T20 - test network central plug in
B - Starter out, grounded
C - Generator (D-), br 1,0 <?>, C01 - Regulator
C - Generator (D+) out, ro/sw 6,0 => ?, C01 - Regulator (D+) in
C - Generator (D+) out, sw 0,5, T20 - test network central plug in
C - Generator (DF), gn 1,0 <?>, C01 - Regulator (DF)
C01 – Regulator, br 1,0 <?>, C - Generator (D-)
C01 - Regulator (61) =>, bl 0,5 =>, T1 - cable connector, single, bl 0,5 =>, K02 -Generator charging warning light in
C01 - Regulator (61) out, bl 0,5 =>, T1 - cable connector, single, bl 0,5 =>, K07 -dual circuit brake warning light (61) in
C01 - Regulator (B+) in, ro 6,0 <=, A - Battery (+) out
C01 - Regulator (B+) out, ro 1,5 =>, S1 – fuses, so 1,5 =>, J09 - rear window defogger relay (30) (sedan 113 only) in
C01 - Regulator (B+) out, ro 6,0 =>, S - Fuse Box #09 in =>
C01 - Regulator (D+) in, ro/sw 6,0 <= ?, C - Generator (D+) out
C01 - Regulator (D+) out, gr 0,5 =>, T20 - test network central plug in
C01 - Regulator (DF), gn 1,0 <?>, C - Generator (DF)
D - Ignition / starter switch (15) out, sw 1,5 =>, S - Fuse Box #11 in <=
D - Ignition / starter switch (30) out, ro 4,0 =>, S - Fuse Box #08 in <=
D - Ignition / starter switch (31) out, br 0,5 =>, ground
D - Ignition / starter switch (49a) out, sw/ws/gn 1.5 =>, T1 - cable connector, single, bl 1,5 =>, J02 -emergency flasher relay (49a)
D - Ignition / starter switch (50) out, ro/sw 4,0 =>, T2 - cable connector, double, ro/sw 4,0 =>, E17 - Starter cut-out switch (50) in
D - Ignition / starter switch (S-) in, br 1,0 <=, T1 - cable connector, single, br 1,0 <=, H01 - Horn out
D - Ignition / starter switch (SU) out, gr/sw 0,5 =>, T1 - cable connector, single, br/bl 0,5 =>, F02 - Door contact and buzzer alarm switch,left in
D - Ignition / starter switch (X) out, sw/ge 4,0 =>, S - Fuse Box #10 in
E - windshield wiper switch (53) out, sw 1,0 =>, T4 - cable connector (four connections), sw 1,0 =>, V - Windshield wiper motor (53)
E - windshield wiper switch (53a) out, sw/gr 1,0 =>, T4 - cable connector (four connections), sw/gr 1,0 =>, V - Windshield wiper motor (53)
E - windshield wiper switch (53b) out, sw/ge 1,0 =>, T4 - cable connector (four connections), sw/ge 1,0 =>, V - Windshield wiper motor (53b)
E - windshield wiper switch (53e) out, gn 1,0 =>, T4 - cable connector (four connections), gn 1,0 =>, V - Windshield wiper motor (53e)
E01 - Light switch (30) in, ro 1,5 <=, S - Fuse Box #07 out
E01 - Light switch (56) out, ws/sw 2,5 =>, J - Dimmer relay (56) in
E01 - Light switch (58 ) out, gr 1,5 =>, S - Fuse Box #2 in
E01 - Light switch (58b) out, ws/ro 0,5 =>, L10 - Instrument panel light in
E01 - Light switch (X) in, sw/ge 4,0 <=, S - Fuse Box #10 out
E02 - turn signal and headlight dimmer switch (L) out, sw/ws 1,0 =>, T - cable adapter, sw/ws 1,0 =>, T2 - cable connector, double, sw/ws 1,5 =>, M05 -turn signal and parking light, front leftt (BL) in
E02 - turn signal and headlight dimmer switch (R) out, sw/gn 1,0 =>, T - cable adapter, sw/gn 1,5 =>, T2 - cable connector, double, sw/gn 2.5 =>, M07 -turn signal and parking light, front right (BL) in
E02 - turn signal and headlight dimmer switch (S) out, br/ws 0,5 =>, J - Dimmer relay (S) in
E03 - Emergency flasher switch (+) out, ws 2,5 =>, J02 -emergency flasher relay (+) in
E03 - Emergency flasher switch (15) in, gn 1,5 <=, S - Fuse Box #12 out
E03 - Emergency flasher switch (15) out, sw 0,5 =>, K07 -dual circuit brake warning light (15) in
E03 - Emergency flasher switch (30) in, ro 2,5 <=, S - Fuse Box #08 out
E03 - Emergency flasher switch (31) in, br/ge 0,5 <=, K07 -dual circuit brake warning light (V) out
E03 - Emergency flasher switch (31) out, br 0,5 =>, ground
E03 - Emergency flasher switch (49a) in, sw/ws/gn 1,5 <=, T1 - cable connector, single, bl 1,5 =>, J02 -emergency flasher relay (49a) in
E03 - Emergency flasher switch (L) out, sw/ws 1,5 =>, T - cable adapter, sw/ws 1,0 =>, T4 - cable connector (four connections), sw/ws 0.5 =>, T20 - test network central plug in
E03 - Emergency flasher switch (R) out, sw/gn 1,5 =>, T - cable adapter, sw/gn 1,0 =>, T3 - cable connector, triple, sw 1,5 =>, M08 - turn signal, rear right (BL) in
E03 - Emergency flasher switch (R) out, sw/gn 1,5 =>, T - cable adapter, sw/gn 1,0 =>, T3 - cable connector, triple, gn/sw 0,5 =>, T20 - test network central plug in
E03 - Emergency flasher switch & warning light (L) out, sw/ws 1,5 =>, T - cable adapter, sw/ws 1,0 =>, T4 - cable connector (four connections), sw 1,5 =>, M06 -turn signal, rear left (BL) in
E03 - Emergency flasher switch socket, K06 - emergency flasher [red] warning light bulb
E09 - fan motor switch (sedan 113 only) (15) in, sw 1,0 <=, S - Fuse Box #10 out
E09 - fan motor switch (sedan 113 only) (33b) out, sw/ge 1.0 =>, V02 -Fan motor (sedan 113 only) (33b) in
E09 - fan motor switch (sedan 113 only) (33f) out, sw/ro 1,0 =>, V02 -Fan motor (sedan 113 only) (33f) in
E15 - rear window defogger switch in, sw 0,5 <=, S - Fuse Box #10 out
E15 - rear window defogger switch out, bl/ws 0,5 =>, K10 rear window defogger warning light (sedan 113 only) in
E17 - Starter cut-out switch (31) in, br 0,5 <=, N7 - Automatic Stick Shift control valve out
E17 - Starter cut-out switch (31) out, br 0,5 =>, T1 - cable connector, single, br 0,5 =>, E21 - Contact at selector lever in
E17 - Starter cut-out switch (50) in, ro/sw 4,0 <=, T2 - cable connector, double, ro/sw 4,0 <=, D - Ignition / starter switch (50) out
E17 - Starter cut-out switch (50) out, ro 4,0 =>, B - STARTER (50) in
E17 - Starter cut-out switch out, grounded
E21 - Contact at selector lever in, br 0,5 <=, T1 - cable connector, single, br 0,5 <=, E17 - Starter cut-out switch (31) out
E21 - Contact at selector lever out, ground
F - brake light and dual circuit warning light switch in, sw 1,5 <=, T3 - cable connector, triple, sw 1,5, S - Fuse Box #11
F - brake light and dual circuit warning light switch in, sw 1,5 <=, T3 - cable connector, triple, sw 1,5, S - Fuse Box #11
F - brake light and dual circuit warning light switch out, ro 1,5 =>, T3 - cable connector, triple, ro 0,5 =>, K07 -dual circuit brake warning light (K) in
F - brake light and dual circuit warning light switch out, ro 1,5 =>, T3 - cable connector, triple, ro 0,5 =>, K07 -dual circuit brake warning light (K) in
F - brake light and dual circuit warning light switch out, sw/ro 1,5 =>, T3 - cable connector, triple, sw/ro 1,5 =>, T1 - cable connector, single, sw/ro 1,0 =>, T4 - cable connector (four connections), ro 1,5 =>, M04 -Tail / brake light, left (54) in
F - brake light and dual circuit warning light switch out, sw/ro 1,5 =>, T3 - cable connector, triple, sw/ro 1,5 =>, T1 - cable connector, single, sw/ro 1,0 =>, T4 - cable connector (four connections), ro 1,5 =>, M04 -Tail / brake light, left (54) in
F01 - oil pressure switch out, bl/gn 0,5 =>, K03 -oil pressure warning light in
F01 - oil pressure switch out, grounded
F02 - Door contact and buzzer alarm switch,left in, br/bl 0,5 <=, T1 - cable connector, single, gr/sw 0,5 <=, D - Ignition / starter switch (SU) out
F02 - Door contact and buzzer alarm switch,left in, br/ws 0,5 <=, W - Interior light out
F02 - Door contact and buzzer alarm switch,left in, gr 0,5 <=, H03 - ignition key warning buzzer (86) out
F02 - Door contact and buzzer alarm switch,left out, br 0,5 =>, ground
F02 - Door contact and buzzer alarm switch,left out, br/ws 0,5 =>, F03 - door contact switch, right in
F03 - door contact switch, right in, br/ws 0,5 <=, F02 - Door contact and buzzer alarm switch,left out
F03 - door contact switch, right out, grounded
F04 - back-up light switch in, sw 1,5 <=, S1 – fuses, sw 1,5 <=, N- ignition coil (15) out
F04 - back-up light switch out, sw 1,5 =>, T1 - cable connector, single, sw 1,5 =>, T4 - cable connector (four connections), bl 1,5 =>, X01 -back-up light, left (RF) in
F04 - back-up light switch out, sw 1,5 =>, T1 - cable connector, single, sw 1,5 =>, T3 - cable connector, triple, bl 1,5 =>, X02 -back-up light, right (RF) in
F13 - ATF temperature control switch in, bl/ro 0,5 <=, T2 - cable connector, double, bl/ro 0,5 <=, K9 - ATF temperature warning light out
F13 - ATF temperature control switch out, grounded
G - fuel gauge sending unit in, sw 0,5 <=, G01 - fuel gauge out
G - fuel gauge sending unit out, br 0,5 =>, L10 - Instrument panel light in
G01 - fuel gauge out, sw 0,5 =>, G - fuel gauge sending unit in
G04 - ignition timing sensor ??
H - horn button out, br (4) ground strap
H01 - Horn in, sw/ge 1,0 <=, T3 - cable connector, triple, sw 1,5 <=, S - Fuse Box #11 out
H01 - Horn out, br 1,0 =>, T1 - cable connector, single, br 1,0 =>, D - Ignition / starter switch (S-) in
H03 - ignition key warning buzzer (85) in, ro 0,5 <=, S - Fuse Box #09 out
H03 - ignition key warning buzzer (86) out, gr 0,5 =>, F02 - Door contact and buzzer alarm switch,left in
H05 - ignition warning buzzer, not found on drawing. H03?
J - Dimmer relay (56) in, ws/sw 2,5 <=, E01 - Light switch (56) out
J - Dimmer relay (56a) out, ws 2,5 =>, S - Fuse Box #06 in
J - Dimmer relay (56b) out, ge 2,5 =>, S - Fuse Box #04 in
J - Dimmer relay (S) in, br/ws 0,5 <=, E02 - turn signal and headlight dimmer switch (S) out
J02 -emergency flasher relay (+) out, ws 2,5 =>, E03 - Emergency flasher switch (+) in
J02 -emergency flasher relay (31) out, br 0,5 =>, L10 - Instrument panel light in
J02 -emergency flasher relay (49a) in, bl 1,5 <=, T1 - cable connector, single, sw/ws/gn 1.5 <=, D - Ignition / starter switch (49a) out
J02 -emergency flasher relay (49a) in, bl 1,5 <=, T1 - cable connector, single, sw/ws/gn 1,5 =>, E03 - Emergency flasher switch (49a) in
J02 -emergency flasher relay (49a) out, bl/ro 0,5 =>, K05 - Turn signal warning light in
J06 -fuel gauge vibrator in, sw 0,5 <=, S - Fuse Box #12 out
J06 -fuel gauge vibrator out, sw 0,5 =>, K02 -generator charging warning light in
J09 - rear window defogger relay (30) (sedan 113 only) in, sw 1,5 <=, S1 – fuses, ro 1,5 <=, C01 - Regulator (B+) out
J09 -rear window defogger relay (sedan 113 only) (85) out, br 0,5 =>, ground
J09 -rear window defogger relay (sedan 113 only) (86) out, sw 0,5 =>, K10 - rear window defogger warning light (sedan 113 only) in
J09 -rear window defogger relay (sedan 113 only) (87) out, bl/ws 0,5 =>, T20 - test network central plug in
J09 -rear window defogger relay (sedan 113 only) (87) out, ws 1,5 =>, Z01 -rear window defogger heating element (sedan 113 only) in
K01 -highbeam warning light in, bl/ws 0,5 <=, S - Fuse Box #05 out
K02 -Generator charging warning light in, bl 0,5 <=, T1 - cable connector, single, bl 0,5 <=, C01 - Regulator (61) out
K02 -generator charging warning light in, sw 0,5 <=, J06 -fuel gauge vibrator out
K03 -oil pressure [red] warning light in, bl/gn 0,5 <=, F01 - oil pressure switch out
K05 - Turn signal [green] warning light in, bl/ro 0,5 <=, J02 -emergency flasher relay (49a) out
K06 - emergency flasher [red] warning light bulb, E03 - Emergency flasher switch socket
K07 -dual circuit [red] brake warning light (15) in, sw 0,5 <=, E03 - Emergency flasher switch (15) out
K07 -dual circuit [red] brake warning light (V) in, br 0.5 <=, K07 -dual circuit brake warning light (31) out
K07 -dual circuit brake warning light (31) out, br 0.5 =>, K07 -dual circuit brake warning light (V) in
K07 -dual circuit brake warning light (61) in, bl 0,5 <=, T1 - cable connector, single, bl 0,5 <=, C01 - Regulator (61) out
K07 -dual circuit brake warning light (K) out, ro 0,5 =>, T3 - cable connector, triple, ro 1,5 =>, F - brake light and dual circuit warning light switch in
K07 -dual circuit brake warning light (K) out, ro 0,5 =>, T3 - cable connector, triple, ro 1,5 =>, F - brake light and dual circuit warning light switch in
K07 -dual circuit brake warning light (V) out, br/ge 0,5 =>, E03 - Emergency flasher switch (31) in
K10 - rear window defogger warning light (sedan 113 only) in, sw 0,5 <=, J09 -rear window defogger relay (sedan 113 only) (86) out
K10 rear window defogger warning light (sedan 113 only) in, bl/ws 0,5 <=, E15 - rear window defogger switch out
K9 - ATF temperature warning light in, sw 0,5 <=, S - fuse box (#11)
K9 - ATF temperature warning light out, bl/ro 0,5 =>, T2 - cable connector, double, bl/ro 0,5 =>, F13 - ATF temperature control switch in
L01 -Sealed-Beam unit, left headlight (31) out, br 2,5 => , ground
L01 -Sealed-Beam unit, left headlight (56a) in, ws 2,5 <=, S - Fuse Box #05 out
L01 -Sealed-Beam unit, left headlight (56b) in, ge 2,5 <= , S - Fuse Box #03 out
L02 -Sealed-Beam unit, left headlight (56a) in, ws/sw 2,5 <=, S - Fuse Box #06 out
L02 -Sealed-Beam unit, left headlight (56b) in, ge/sw 2,5 <=, S - Fuse Box #04 out
L02-Sealed-Beam unit, right headlight (31) out, br 2,5 =>, ground
L10 - Instrument panel light in, br 0,5 <=, J02 -emergency flasher relay (31) out
L10 - Instrument panel light in, br 0,5 <=, G - fuel gauge sending unit out
L10 - Instrument panel light in, ws/ro 0,5 <=, E01 - Light switch (58b) out
L10 - Instrument panel light out, br ?,? =>, ground
L10 - Instrument panel light out, br 0,5 =>, ground
L10 - Instrument panel light out, ws/ro 0,5 <=>, L10 - Instrument panel light in
M01 - parking light, left, not found on drawing for 72
M02 -tail / brake light, right (58 ) in, gr 1,5 <=, T - cable adapter, ws/ro 0,5 <=, S - Fuse Box #01 out
M04 -Tail / brake light, left (54) in, ro 1,5 <=, T4 - cable connector (four connections), sw/ro 1,0 =>, T3 - cable connector, triple, sw/ro 0,5 =>, T20 - test network central plug in
M04 -Tail / brake light, left (54) in, ro 1,5 <=, T4 - cable connector (four connections), sw/ro 1,0 <=, T1 - cable connector, single, sw/ro 1,5 <=, T3 - cable connector, triple, sw/ro 1,5 <=, F - brake light and dual circuit warning light switch out
M04 -Tail / brake light, left (54) in, ro 1,5 <=, T4 - cable connector (four connections), sw/ro 1,0 <=, T1 - cable connector, single, sw/ro 1,5 <=, T3 - cable connector, triple, sw/ro 1,5 <=, F - brake light and dual circuit warning light switch out
M04 -Tail / brake light, left (58 ) in, gr 1,5 <=, T4 - cable connector (four connections), ro 0,5 =>, T20 - test network central plug in
M04 -Tail / brake light, left (58 ) in, gr 1,5 <=, T4 - cable connector (four connections), gr/sw 0.5 <=, S - Fuse Box #2 out
M05 -turn signal and parking light, front left (58 ) in, gr 1,0 <=, T2 - cable connector, double, gr 1,0 <=, S - Fuse Box #01 out
M05 -turn signal and parking light, front left (58 ) out, sw 0,5 =>, M11 - side marker light, front in
M05 -turn signal and parking light, front left (BL) in, sw/ws 1,5 <=, T2 - cable connector, double, sw/ws 1,0 <=, T - cable adapter, sw/ws 1,0 <=, E02 - turn signal and headlight dimmer switch (L) out
M05 -turn signal and parking light, front left out, br 1,5 =>, ground
M06 -turn signal, rear left (BL) in, sw 1,5 <=, T4 - cable connector (four connections), sw/ws 1,0 <=, T - cable adapter, sw/ws 1,5 <=, E03 - Emergency flasher switch (L) out
M06 -turn signal, rear left (BL) in, sw 1,5 <=, T4 - cable connector (four connections), sw/ws 0,5 =>, T20 - test network central plug in
M07 -turn signal and parking light, front right (58 ) in, gr 1,0 <=, T2 - cable connector, double, gr 1,0 <=, S - Fuse Box #01 out
M07 -turn signal and parking light, front right (58 ) out, sw 0,5 =>, M11 - side marker light, front in
M07 -turn signal and parking light, front right (BL) in, sw/gn 2.5 <=, T2 - cable connector, double, sw/gn 1,5 <=, T - cable adapter, sw/gn 1,0 <=, E02 - turn signal and headlight dimmer switch (R) out
M07 -turn signal and parking light, front right out, br 1,5 =>, ground
M08 - turn signal, rear, right (BL), sw 1,5, T3 - cable connector, triple out, gn/sw 0,5 =>, T20 - test network central plug in
M08 - turn signal, rear, right (BL) in, sw 1,5 <=, T3 - cable connector, triple, sw/gn1,0 <=, T - cable adapter, sw/gn 1,5 <=, E03 - Emergency flasher switch (R) out
M11 - side marker light, front in, sw 0,5 <=, M05 -turn signal and parking light, front leftt (58 ) out
M11 - side marker light, front in, sw 0,5 <=, M07 -turn signal and parking light, front right (58 ) out
N - ignition coil (1) out, gn 1,5 =>, O - Distributor in
N - ignition coil (1) out, gr/gn 0,5 =>, T20 - test network central plug in
N - ignition coil (15) in, sw 2,5 <=, S - Fuse Box #12 out
N - ignition coil (15) out, sw 0,5 =>, N01 - automatic choke in
N - ignition coil (15) out, sw 1,5 =>, S1 - fuses , sw 1,5 =>, F04 - back-up light switch in
N - ignition coil (15) out, ws 1,5 =>, T20 - test network central plug in
N - ignition coil (15) out, sw 0,5 =>, S1 - fuse sw 0,5 =>, N7 - Automatic Stick Shift control valve in
N - ignition coil (4) out, SW =>, O - Distributor in
N01 - automatic choke in, sw 0,5 <=, N - ignition coil (15) out
N01 - automatic choke out, grounded =>
N01 - automatic choke out, sw 0,5 =>, N03 - Electro-magnetic pilot jet in
N03 - Electro-magnetic pilot jet in, sw 0,5 <=, N01 - automatic choke out
N03 - Electro-magnetic pilot jet out, grounded =>
N7 - Automatic Stick Shift control valve in, sw 0,5 <=, S1 – fuse, sw 0,5 <=, N - ignition coil (15) out
N7 - Automatic Stick Shift control valve out, br 0,5 =>, E17 - Starter cut-out switch in
O - Distributor in, gn 1,5 <=, N - ignition coil (1) out
O - Distributor in, SW <=, N - ignition coil (4) out
O - Distributor out, grounded =>
O - Distributor out, SW =>, P01 Spark plug connector, No1 cylinder, Q01 Spark plug , No1 cylinder, grounded =>
O - Distributor out, SW =>, P02 Spark plug connector, No2 cylinder, Q02 Spark plug, No2 cylinder, grounded =>
O - Distributor out, SW =>, P03 Spark plug connector, No3 cylinder, Q03 Spark plug, No3 cylinder, grounded =>
O - Distributor out, SW =>, P04 Spark plug connector, No4 cylinder, Q04 Spark plug, No4 cylinder, grounded =>
Q01 Spark plug , No1 cylinder, P01 Spark plug connector, No1 cylinder , SW <=, O - Distributor out
Q02 Spark plug, No2 cylinder, P02 Spark plug connector, No2 cylinder, SW <=, O - Distributor out
Q03 Spark plug, No3 cylinder, P03 Spark plug connector, No3 cylinder, SW <=, O - Distributor out
Q04 Spark plug, No4 cylinder, P04 Spark plug connector, No4 cylinder, SW <=, O - Distributor out
S - Fuse box (#11) out, sw 0,5 =>, K9 - ATF temperature warning light in
S - Fuse Box #01 out, gr 1,0 =>, T2 - cable connector, double, gr 1,0 =>, M05 -turn signal and parking light, front leftt (58 ) in
S - Fuse Box #01 out, gr 1,0 =>, T2 - cable connector, double, gr 1,0 =>, M07 -turn signal and parking light, front right (58 ) in
S - Fuse Box #01 out, gr/ro 0,5 =>, T - cable adapter, ws/bl 0,5 =>, T2 - cable connector, double, ws/bl 0,5 =>, X - license plate light in
S - Fuse Box #01 out, ws/ro 0,5 =>, T - cable adapter, gr 1,5 =>, M02 -tail / brake light, right in
S - Fuse Box #02 in, gr 1,5 <=, E01 - Light switch (58 ) out
S - Fuse Box #02 out, gr/sw 0,5 =>, T4 - cable connector (four connections), gr 1,5 =>, M04 -Tail / brake light, left (58 ) in
S - Fuse Box #02 out, gr/sw 0,5 =>, T4 - cable connector (four connections), ro 0,5 =>, T20 - test network central plug in
S - Fuse Box #03 out, ge 2,5 =>, L01 -Sealed-Beam unit, left headlight (56b) in
S - Fuse Box #04 in , ge 2,5 <=, J - Dimmer relay (56b) out
S - Fuse Box #04 out, ge/sw 2,5 =>, L02 -Sealed-Beam unit, left headlight (56b) in
S - Fuse Box #05 out, bl/ws 0,5, K01 -highbeam warning light in
S - Fuse Box #05 out, ws 2,5 =>, L01 -Sealed-Beam unit, left headlight (56a) in
S - Fuse Box #06 in, ws 2,5 <=, J - Dimmer relay (56a) out
S - Fuse Box #06 out, ws/sw 2,5 =>, L02 -Sealed-Beam unit, left headlight (56a) in
S - Fuse Box #07 out, ro 1,5 =>, E01 - Light switch (30) in
S - Fuse Box #08 in , ro 4,0 <=, D - Ignition / starter switch (30) out
S - Fuse Box #08 out , ro 2,5 =>, E03 - Emergency flasher switch (30) in
S - Fuse Box #09 in , ro 6,0 <=, C01 - Regulator (B+) out
S - Fuse Box #09 out, ro 0,5 =>, H03 - ignition key warning buzzer (85) in
S - Fuse Box #09 out , ro 0,5 =>, W - Interior light in
S - Fuse Box #10 in, sw/ge 4,0 <=, D - Ignition / starter switch (X) out
S - Fuse Box #10 out, sw/ge 4,0 =>, E01 - Light switch (X) in
S - Fuse Box #10 out, sw/gr 1,0 =>, T4 - cable connector (four connections), sw/gr 1,0 =>, V - Windshield wiper motor (53) in
S - Fuse Box #10 out , sw 0,5 =>, E15 - rear window defogger switch in
S - Fuse Box #10 out , sw 1,0 =>, E09 - fan motor switch (sedan 113 only) (15) in
S - Fuse Box #11 in , sw 1,5 <=, D - Ignition / starter switch (15) out
S - Fuse Box #11 out, sw 1,5 =>, T3 - cable connector, triple, sw 1,5 =>, F - brake light and dual circuit warning light switch in
S - Fuse Box #11 out, sw 1,5 =>, T3 - cable connector, triple, sw 1,5 =>, F - brake light and dual circuit warning light switch in
S - Fuse Box #11 out, sw 1,5 =>, T3 - cable connector, triple, sw/ge 1,0 =>, H01 - Horn in
S - Fuse Box #12 out, gn 1,5 =>, E03 - Emergency flasher switch (15) in
S - Fuse Box #12 out, sw 0,5 =>, J06 -fuel gauge vibrator in
S - Fuse Box #12 out, sw 2,5 =>, N - ignition coil (15) in
S1 - fuses (three)
T20 - test network central plug in, bl/ws 0,5 <=, J09 -rear window defogger relay (sedan 113 only) (87) out
T20 - test network central plug in, br 0,5 <=, A - Battery (-) out
T20 - test network central plug in, br/ws 0,5 <=, sw (1) ground strap out, A - Battery (-)
T20 - test network central plug in, ge/ro 0,5 <=, A - Battery out
T20 - test network central plug in, gn/sw 0,5 <=, T3 - cable connector, triple, sw/gn 1,0 <=, T4 - cable connector (four connections), sw/gn 1,5 <=, E03 - Emergency flasher switch (R)
T20 - test network central plug in, gn/sw 0,5 <=, T3 - cable connector, triple, sw 1,5 =>, M08 - turn signal, rear, right (BL) in
T20 - test network central plug in, gr 0,5 <=, C01 - Regulator (D+) out
T20 - test network central plug in, gr/gn 0,5 <=, N - ignition coil (1) out
T20 - test network central plug in, ro 0,5 <=, T4 - cable connector (four connections), gr 1,5 =>, M04 -Tail / brake light, left (58 ) in
T20 - test network central plug in, ro 0.5 <=, T4 - cable connector (four connections), gr/sw 0.5 <=, S - Fuse Box #2 out
T20 - test network central plug in, ro 4,0 <=, B - Starter (50) out
T20 - test network central plug in, ro/ws 6,0 <=, B - Starter (30) out
T20 - test network central plug in, sw 0,5, C - Generator (D+) out
T20 - test network central plug in, sw/ro 0,5 <=, T3 - cable connector, triple, sw/ro 1,0 <=, T4 - cable connector (four connections), ro 1,5 =>, M04 -Tail / brake light, left (54) in
T20 - test network central plug in, sw/ro 0,5 <=, T3 - cable connector, triple, sw/ro 1,0 <=, T4 - cable connector (four connections), ro 1,5 =>, M04 -Tail / brake light, left (54) in
T20 - test network central plug in, sw/ws 0,5 <=, T4 - cable connector (four connections), sw 1,5 =>, M06 -turn signal, rear left (BL) in
T20 - test network central plug in, sw/ws 0.5 <=, T4 - cable connector (four connections), sw/ws 1,0 <=, T4 - cable connector (four connections), [s][i][color=gray]sw/ws 1,5 <=, E03 - Emergency flasher switch (L) out
T20 - test network central plug in, ws 1,5 <=, N - ignition coil (15) out
V - Windshield wiper motor (31) out, br 1,0 =>, ground
V - Windshield wiper motor (53) in, sw 1,0 <=, T4 - cable connector (four connections), sw 1,0 <=, E - windshield wiper switch (53) out
V - Windshield wiper motor (53a) in, sw/gr 1,0 <=, T4 - cable connector (four connections), sw/gr 1,0 <=, S - Fuse Box #10 out
V - Windshield wiper motor (53a) in, sw/gr 1,0 <=, T4 - cable connector (four connections), sw/gr 1,0 <=, E - windshield wiper switch (53a) out
V - Windshield wiper motor (53b) in, sw/ge 1,0 <=, T4 - cable connector (four connections), sw/ge 1,0 <=, E - windshield wiper switch (53b) out
V - Windshield wiper motor (53e) in, gn 1,0 <=, T4 - cable connector (four connections), gn 1,0 <=, E - windshield wiper switch (53e) out
V02 -Fan motor (sedan 113 only) (31) out, br 1,0 =>, ground
V02 -Fan motor (sedan 113 only) (33b) in, sw/ge 1.0 <=, E09 - fan motor switch (sedan 113 only) (33b) out
V02 -Fan motor (sedan 113 only) (33f) in, sw/ro 1,0 <=, E09 - fan motor switch (sedan 113 only) (33f) out
W - Interior light in, ro 0,5 <=, S - Fuse Box #09 out =>
W - Interior light out, br ?,? =>, ground
W - Interior light out, br/ws 0,5 =>, F02 - Door contact and buzzer alarm switch,left in
X - license plate light in, ws/bl 0,5 <=, T2 - cable connector, double, ws/bl 0,5 <=, T - cable adapter, gr/ro 0,5 <=, S - Fuse Box #01 out
X - license plate light in, ws/bl 0,5 <=, T2 - cable connector, double, ws/bl 0,5 <=, T - cable adapter, gr 1,5 =>, M02 -tail / brake light, right (58 ) in
X - license plate light out, br 0,5 =>, T2 - cable connector, double, br 0,5 =>, X02 -back-up light, right out, br 1,5 =>, ground
X01 -back-up light, left (RF) in, bl 1,5 <=, T4 - cable connector (four connections), sw 1,5 <=, T1 - cable connector, single, sw 1,5 <=, F04 - back-up light switch out
X01 -back-up light, left (RF) out, br 1,5 =>, ground
X02 -back-up light, right (RF) in, bl 1,5 <=, T3 - cable connector, triple, sw 1,5 <=, T1 - cable connector, single, sw 1,5 <=, F04 - back-up light switch out
X02 -back-up light, right (RF) out, br 0,5 =>, T2 - cable connector, double, br 0,5 <=, X - license plate light out
X02 -back-up light, right (RF) out, br 1,5 =>, ground
Z01 -rear window defogger heating element (sedan 113 only) in, ws 1,5 <=, J09 -rear window defogger relay (sedan 113 only) (87) out
Z01 -rear window defogger heating element (sedan 113 only) out br 1,5 =>, ground
(This list is duplicated forwards and backwards to allow quick reference for all wiring connections to a single component)
Clymer Volkswagen Service - Repair Handbook Clymer
VWoA Volkswagen Official Service Manual
_________________
 "Marmalade" a 1972 Super Beetle, autostick |
|
Not 'knocking' all your time and diligence spent on personally itemizing all of this, BUT.... How is this any better than referring to a good color-coded factory wiring diagram for your car's year, or a Bentley manual?
