 Posted: Sat Jun 21, 2025 2:00 pm Post subject: Anyone familiar with this throttle body? |
 |
|

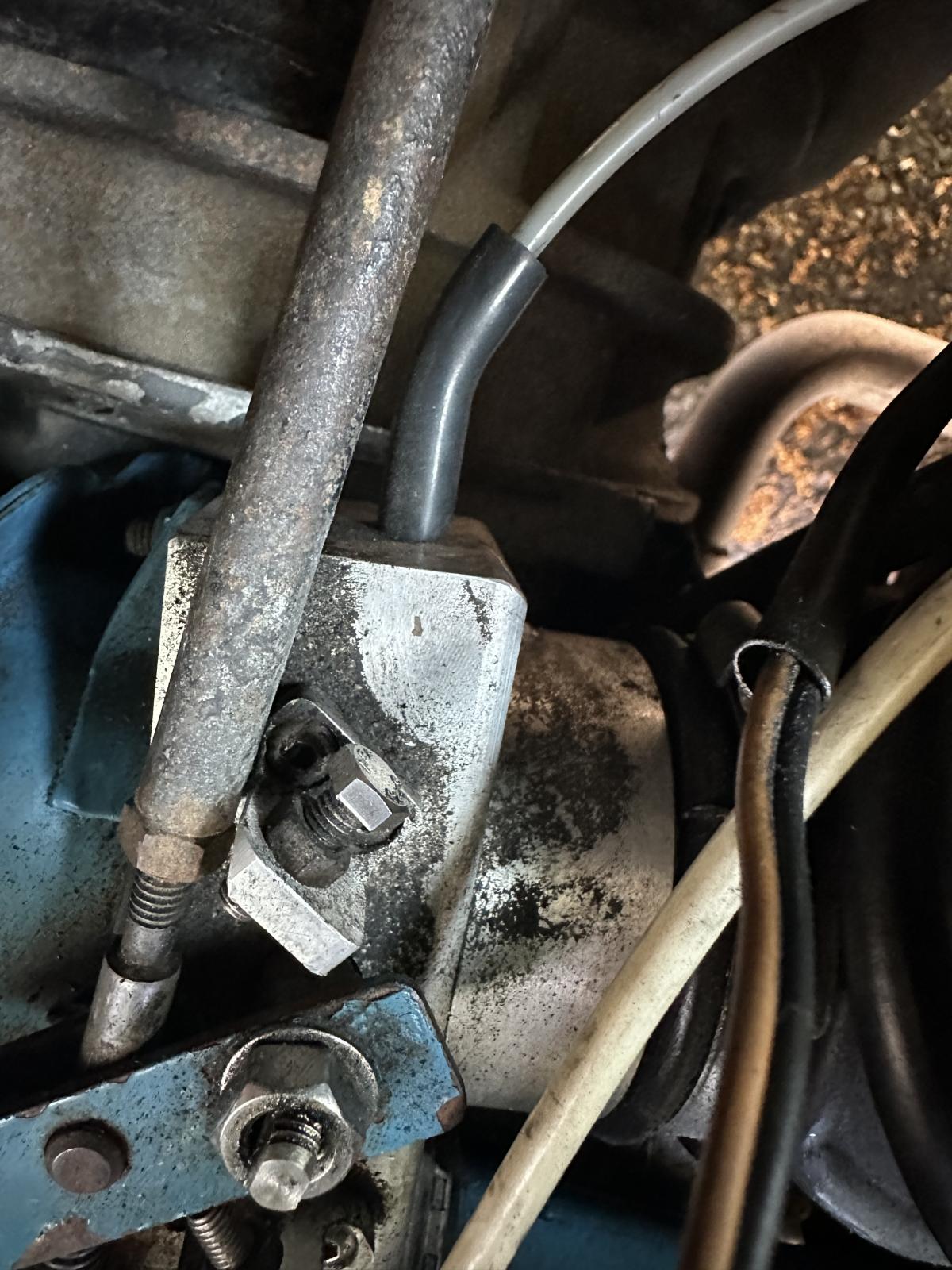

Recently bought a 1987 2.1 Vanagon. Was trying to figure out the throttle body but does not appear to be a standard type (see pic 1). I think it’s a bit wider than most and does not have any place for a throttle position switch. It does have what looks like a fuel emissions line that goes from the throttle body (pic 2) towards the vacuum purge valve in the rear passenger wheel well (pic 3; which then connects to charcoal canister). The throttle body line is not actually connected to anything at the moment, is just hanging, though looks like it should be connected to the purge valve. I also see that my Intake Control Valve has another emissions line (pic 4) that goes to this same purge valve and is connected on the top side of it. Questions:
1. Anyone familiar with this kind of throttle body? Wondering if I should keep it or swap for more standard type.
2. Does it make sense for TB emission line to connect to purge valve?
3. I have not seen other Intake control valves connect to the purge valve, does it make sense in this case?
Just trying to understand this system.
Thanks in advance! |
|
| Back to top |
|
 |
kamzcab86
Samba Moderator
Joined: July 26, 2008
Posts: 8422
Location: Arizona
|
| Posted: Sat Jun 21, 2025 3:08 pm Post subject: Re: Anyone familiar with this throttle body? |
|
|
| ijergas wrote: |
1. Anyone familiar with this kind of throttle body? Wondering if I should keep it or swap for more standard type.
...[it] does not have any place for a throttle position switch. |
Never seen that before. If the van is still running the original Digifant injection system, the ECU (it's my understanding) needs the throttle position switch inputs.
| ijergas wrote: |
2. Does it make sense for TB emission line to connect to purge valve?
3. I have not seen other Intake control valves connect to the purge valve, does it make sense in this case? |
Yes. The stock throttle body has the same connection, albeit the original vacuum tube was purple.

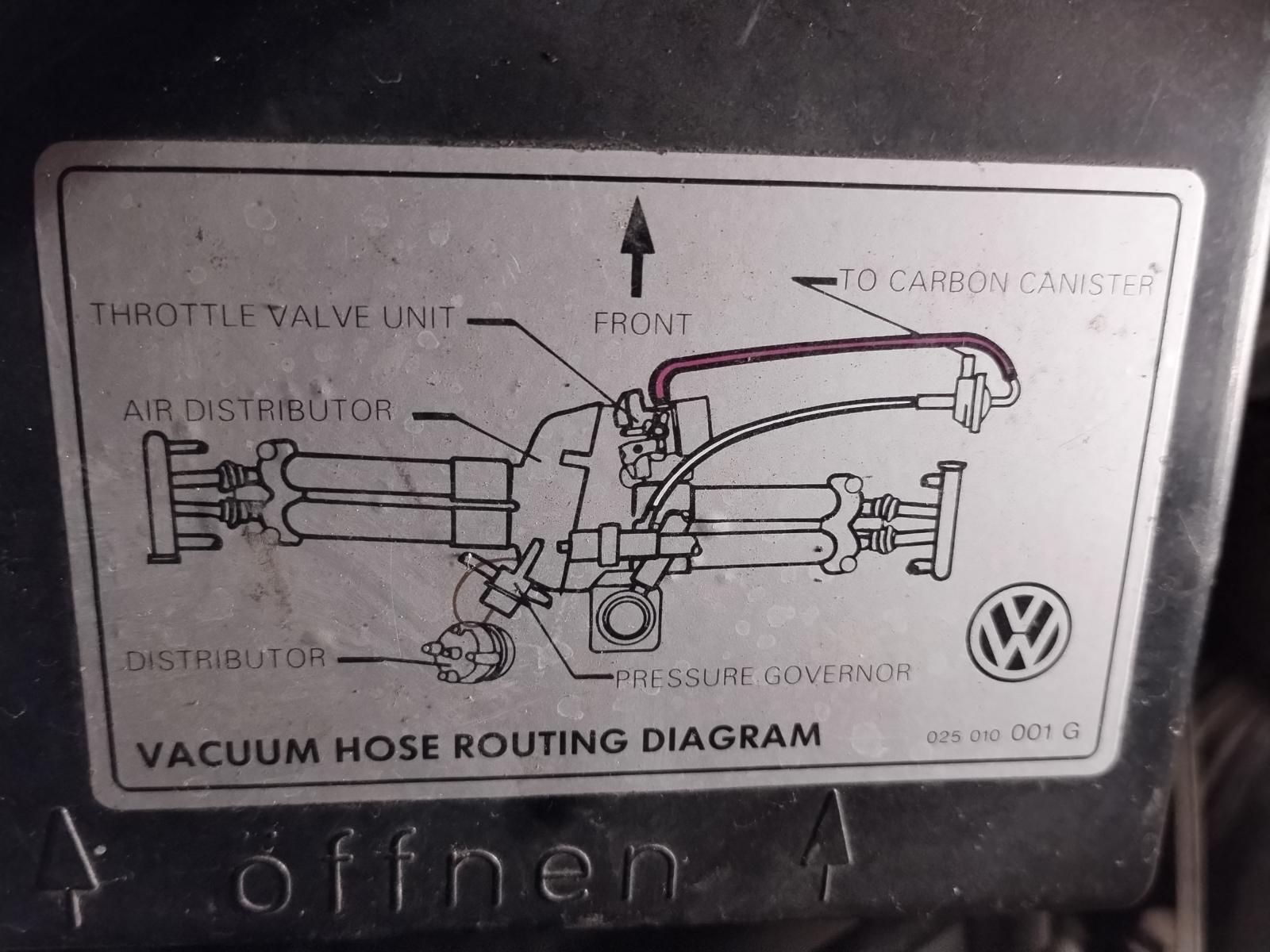

The Digifant idle control valve does indeed have a vacuum tube (white) going to the same "vacuum vent valve". Factory diagram:
_________________
~Kamz
1986 Cabriolet: www.Cabby-Info.com
 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子 |
|
| Back to top |
|
|
ijergas
Samba Member
Joined: April 19, 2025
Posts: 5
Location: California
|
| Posted: Sat Jun 21, 2025 10:35 pm Post subject: Re: Anyone familiar with this throttle body? |
|
|
| Thanks Kamz for that diagram. Very helpful! BTW, where did you find that diagram? |
|
| Back to top |
|
|
whip618
Samba Member
Joined: October 16, 2002
Posts: 762
Location: Albuquerque
|
| Posted: Sat Jun 21, 2025 10:40 pm Post subject: Re: Anyone familiar with this throttle body? |
|
|
this throttle body could be of tencents early models maybe around 2008. I know
he was developing a throttle body machined from billet aluminum back then.
Phil
_________________
Life is simple....either you're qualified or you're not.
USSVI.......Pride Runs Deep
USSVI Life member and Holland Club member
Samba Member No. 3307 |
|
| Back to top |
|
|
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7161
Location: Honolulu,Hawaii and France
|
|
| Back to top |
|
|
ijergas
Samba Member
Joined: April 19, 2025
Posts: 5
Location: California
|
| Posted: Sun Jun 22, 2025 9:05 pm Post subject: Re: Anyone familiar with this throttle body? |
|
|
| Thanks for the tips everyone! I will try to contact tencent. |
|
| Back to top |
|
|
zerotofifty
Samba Member
Joined: December 27, 2003
Posts: 3714
|
| Posted: Sun Jun 22, 2025 9:23 pm Post subject: Re: Anyone familiar with this throttle body? |
|
|
You may not be able to pass the equipment part of the evil smog inspection with that setup. Those bastards once failed me for a perfectly functional non stock hose from the intake to the idle valve. They made me buy the factory hose.
Good luck, keep,us all informed on how this works out.
_________________
Sorry About That Chief.
Give Peace a Chance.
Words to live by. |
|
