81 Westy Horn wire ID help
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Plaidbus
Samba Member


Joined: February 07, 2013
Posts: 13
Location: West Los Angeles
Plaidbus is offline

PostPosted: Fri Jun 13, 2025 12:15 pm    Post subject: 81 Westy Horn wire ID help Reply with quote

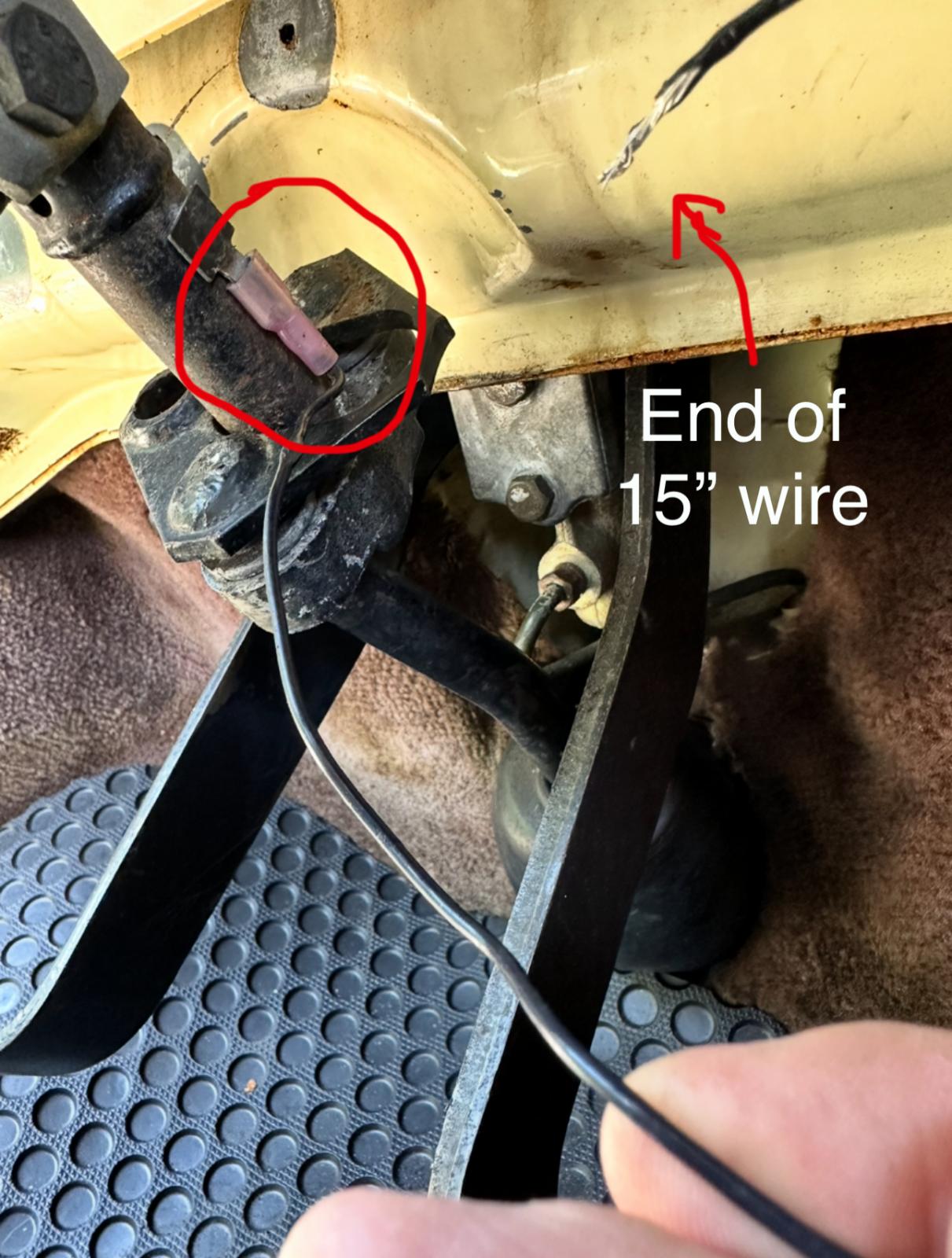

Hello helpful folks! 81 Westy. Can y’all help me identify what this horn wire connects to? From a connector at the bottom of the steering column, 15 inches long, bare ended. When I touch it to bare metal I sometimes get the tiniest honk. Doesn’t look long enough to reach the ground tree behind the fuse box.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1969 Transporter "Plaidbus"
1981 Westy "Arabella"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
pathao
Samba Member


Joined: November 01, 2012
Posts: 333
Location: Montreal, Canada
pathao is offline

PostPosted: Fri Jun 13, 2025 1:41 pm    Post subject: Re: 81 Westy Horn wire ID help Reply with quote

This wire serves as a ground for the horn ring.
Because of the rubber couplings part of the steering column, the horn ring (in your steering wheel) is un grounded. This wire follow the column, turns with it and by-pass the rubber couplings.

If you ground the wire and press your horn, it should honk.


Hope those photos help



Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.

_________________
1982 AC P27 - 2.0 FI FED - 091 - BA6


English is a second language to me
