| Author |
Message |
4stroker
Samba Member
Joined: June 08, 2025
Posts: 2
|
 Posted: Sun Jun 08, 2025 3:04 pm Post subject: Dual Carb ID |
 |
|

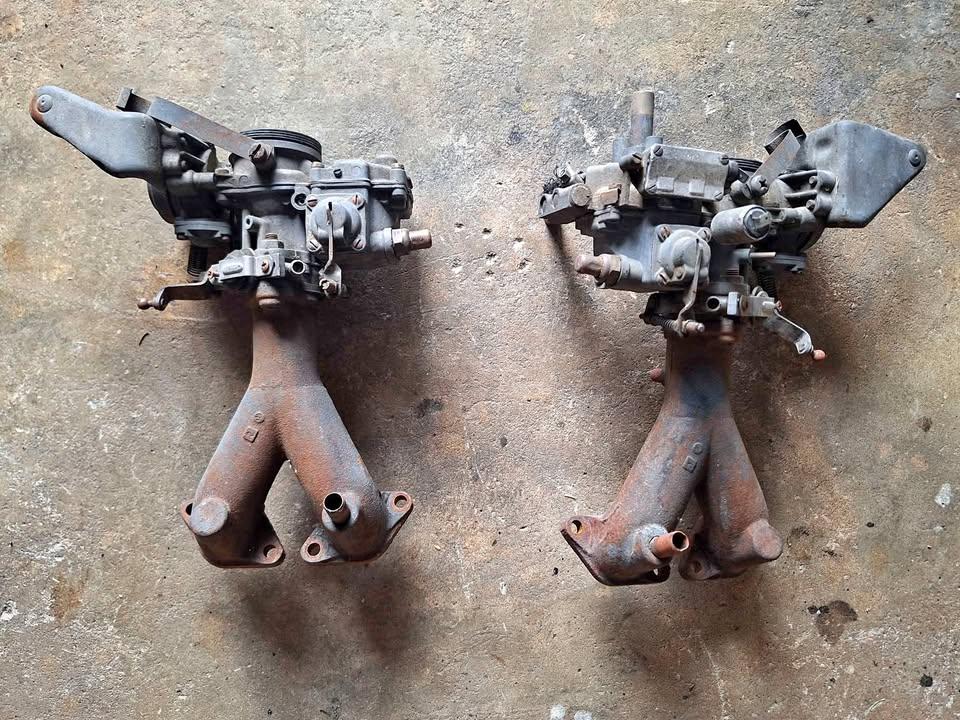

Hi all, can anyone help ID these carbs please? Would they work well on a stock 1600 DP with an exhaust? Going into an offroad buggy, no engine bay restrictions. Thanks.
|
|
| Back to top |
|
 |
liquidrush
Samba Member
Joined: July 18, 2018
Posts: 753
Location: MO
|
| Posted: Sun Jun 08, 2025 3:24 pm Post subject: Re: Dual Carb ID |
|
|
| These pictures are from an old ad in Australia. Notice op joined today and this is the first post. |
|
| Back to top |
|
|
halfassleatherworks
Samba Member
Joined: December 09, 2018
Posts: 796
Location: Reno NV
|
| Posted: Sun Jun 08, 2025 3:34 pm Post subject: Re: Dual Carb ID |
|
|
late 72,73 and 74 Bus
Last edited by halfassleatherworks on Thu Jun 12, 2025 8:52 pm; edited 1 time in total |
|
| Back to top |
|
|
4stroker
Samba Member
Joined: June 08, 2025
Posts: 2
|
| Posted: Sun Jun 08, 2025 5:59 pm Post subject: Re: Dual Carb ID |
|
|
| liquidrush wrote: |
| These pictures are from an old ad in Australia. Notice op joined today and this is the first post. |
its a current ad, I'm in Australia and looking at buying them. |
|
| Back to top |
|
|
modok
Samba Member
Joined: October 30, 2009
Posts: 27629
Location: Colorado Springs
|
| Posted: Sun Jun 08, 2025 7:12 pm Post subject: Re: Dual Carb ID |
|
|

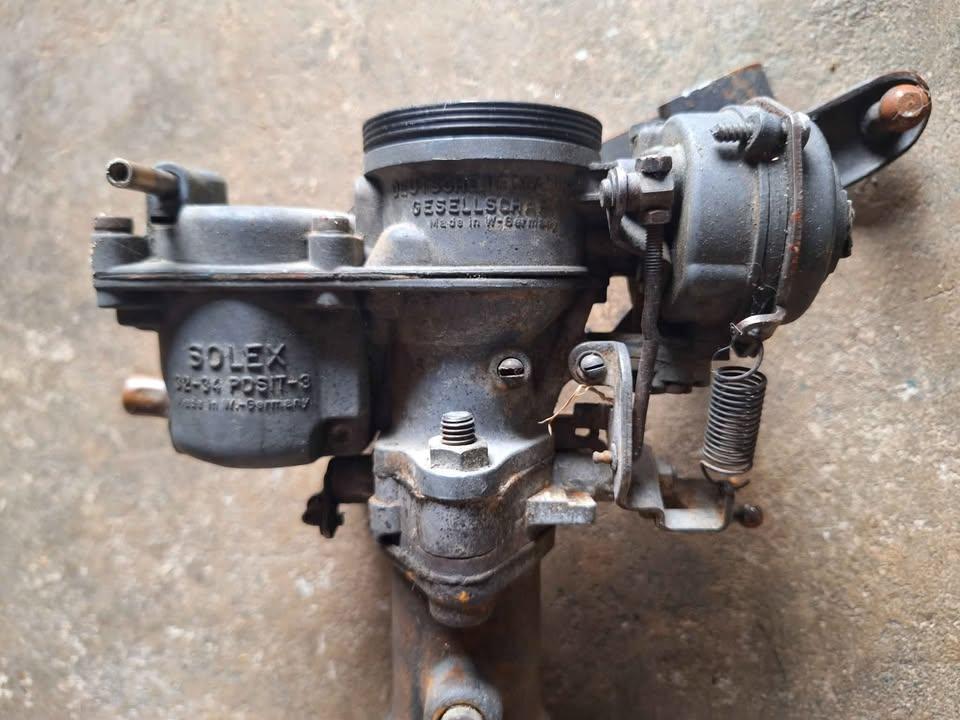

They are pdsit carbs, on type 4 manifolds.
The type 4 engine came in 1700, 1800, and 2000cc
So one may expect these carbs to have larger venturis than used in the 1600 type3 or Brazil 1600 which came with these carbs oe.
They might work well, but its all up to you to make it happen. |
|
| Back to top |
|
|
oprn
Samba Member
Joined: November 13, 2016
Posts: 14668
Location: Western Canada
|
| Posted: Mon Jun 09, 2025 4:22 am Post subject: Re: Dual Carb ID |
|
|
I have a set as well that need a real good soaking and clean up. At one time I thought about using them on my 1641 SP. The engine they came off got a set of 40mm Webers.
_________________
Our cars get old, we get old but driving an old VW never gets old! |
|
| Back to top |
|
|
Zed999
Samba Member
Joined: March 04, 2018
Posts: 1380
Location: UK
|
| Posted: Mon Jun 09, 2025 6:47 am Post subject: Re: Dual Carb ID |
|
|
| It will be awkward to plumb the central idling system on a type-1 engine with the fan housing in the way. I think these would probably be about the most difficult twin carbs to fit to a type-1, you'd have to be determined and I don't see it being worth the effort personally. |
|
| Back to top |
|
|
Dusty1
Samba Member
Joined: April 16, 2004
Posts: 2069
|
| Posted: Mon Jun 09, 2025 6:51 am Post subject: Re: Dual Carb ID |
|
|
| 4stroker wrote: |
| Would they work well on a stock 1600 DP with an exhaust? |
If you mean "Will they bolt right up to a 1600 and function?" the short answer is
no.
The Type 4 manifolds are different from anything that will bolt up to Type 1 (1600). To make them work on Type 1 you need a pair of '67 Type 3 manifolds from the one year Type 3 that was dual port / dual carbs.
A linkage would be nice, too. The good news is they have the linkage brackets.
.
. |
|
| Back to top |
|
|
oprn
Samba Member
Joined: November 13, 2016
Posts: 14668
Location: Western Canada
|
| Posted: Mon Jun 09, 2025 10:17 am Post subject: Re: Dual Carb ID |
|
|
Certainly not a bolt on but with a few rudimentary skills it should not be difficult to adapt them especially on a Buggy.
_________________
Our cars get old, we get old but driving an old VW never gets old! |
|
| Back to top |
|
|
Multi69s
Samba Member
Joined: January 24, 2006
Posts: 5552
Location: Lefty, CA
|
|
| Back to top |
|
|
Slow 1200
Samba Member
Joined: July 02, 2004
Posts: 2127
|
| Posted: Fri Jun 13, 2025 1:09 am Post subject: Re: Dual Carb ID |
|
|
| Zed999 wrote: |
| It will be awkward to plumb the central idling system on a type-1 engine with the fan housing in the way. I think these would probably be about the most difficult twin carbs to fit to a type-1, you'd have to be determined and I don't see it being worth the effort personally. |
Agreed, also they are hard enough to setup properly for a stock bus engine for the uninitated, I can't imagine trying to make them work on a different engine |
|
| Back to top |
|
|
Multi69s
Samba Member
Joined: January 24, 2006
Posts: 5552
Location: Lefty, CA
|
| Posted: Fri Jun 13, 2025 1:35 pm Post subject: Re: Dual Carb ID |
|
|
| Zed999 wrote: |
| It will be awkward to plumb the central idling system on a type-1 engine with the fan housing in the way. I think these would probably be about the most difficult twin carbs to fit to a type-1, you'd have to be determined and I don't see it being worth the effort personally. |
Its been quite awhile since I messed with this style carburetor. Are these the carbs that use one carb for the idle circuit, then plumbs it to the other carb?
If so, I would skip on these carbs. I used them when I 1st put my Type 4 engine in my Squareback, and tuning was a nightmare.
_________________
69 road Bug 2110
73 Squareback - 2L, T4, Automatic W/ AC
Gone, but many fond memories 69 Baja Bug 2010 - 5 Rib Bus Transaxle
Gone but not forgotten 72 Baja Bug 2010
My builds
T4 into Squareback http://www.thesamba.com/vw/forum/viewtopic.php?t=458944&highlight=
Auto Trans Rebuild http://www.thesamba.com/vw/forum/viewtopic.php?t=516066&highlight=
AC in Squareback https://www.thesamba.com/vw/forum/viewtopic.php?t=...highlight= |
|
| Back to top |
|
|
volksworld
Samba Member
Joined: November 26, 2011
Posts: 2579
Location: formerly NY currently NC
|
| Posted: Sat Jun 14, 2025 1:07 pm Post subject: Re: Dual Carb ID |
|
|
| I THINK they have a larger base than a type III carb and wont bolt on to one of those manifolds either....have to dig through some crap in the shop to check...the sheet metal screws crammid into the stipped holes holding the electric chokes on arent a great sign...I'd pass and leave them for someone trying to convert their injected bus back to carbs |
|
| Back to top |
|
|
|
