Swepco 101 for CV joints
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
dougnlina Premium Member
Samba Member


Joined: January 19, 2016
Posts: 293
Location: San Francisco, CA
dougnlina is offline

PostPosted: Sat Jun 14, 2025 7:32 am    Post subject: Swepco 101 for CV joints Reply with quote

I have switched to Swepco 101 for my CVs and am very pleased with its performance. I put an average of 10,000 miles a year on the van. I had previously been using the Redline CV-2 that GoWesty sold. I was in the habit of servicing the axles once a year with the redline because it seemed to not hold up. It just did not seem to age well. After the rainy season (November to march here in NorCal) the CV-2 grease would be milky, runny, and just seemed to have broken down. (sorry no photos) I assumed it was absorbing water due to its appearance, but it could have just been the grease falling apart.

Four years ago I replaced the CVs and switched to the Swepco grease. Since then, I have serviced the axles twice (now once every two years about 20,000 miles) and this grease is solid, it does not get runny, and I honestly think I could let it go quite a bit longer than I have been.
Cleaning these up the grease still seemed like new, I would be comfortable running this grease longer at this point. I also feel that if you were one of those "types" who would prefer not to do this messy maintenance task, that this would be an excellent candidate to be the "lifetime" grease you put in there and forget about it until the joint started making noise.

First two images are of a CV as removed from the van, 2 years and 20000 miles on the grease, 40,000 miles on the joint.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

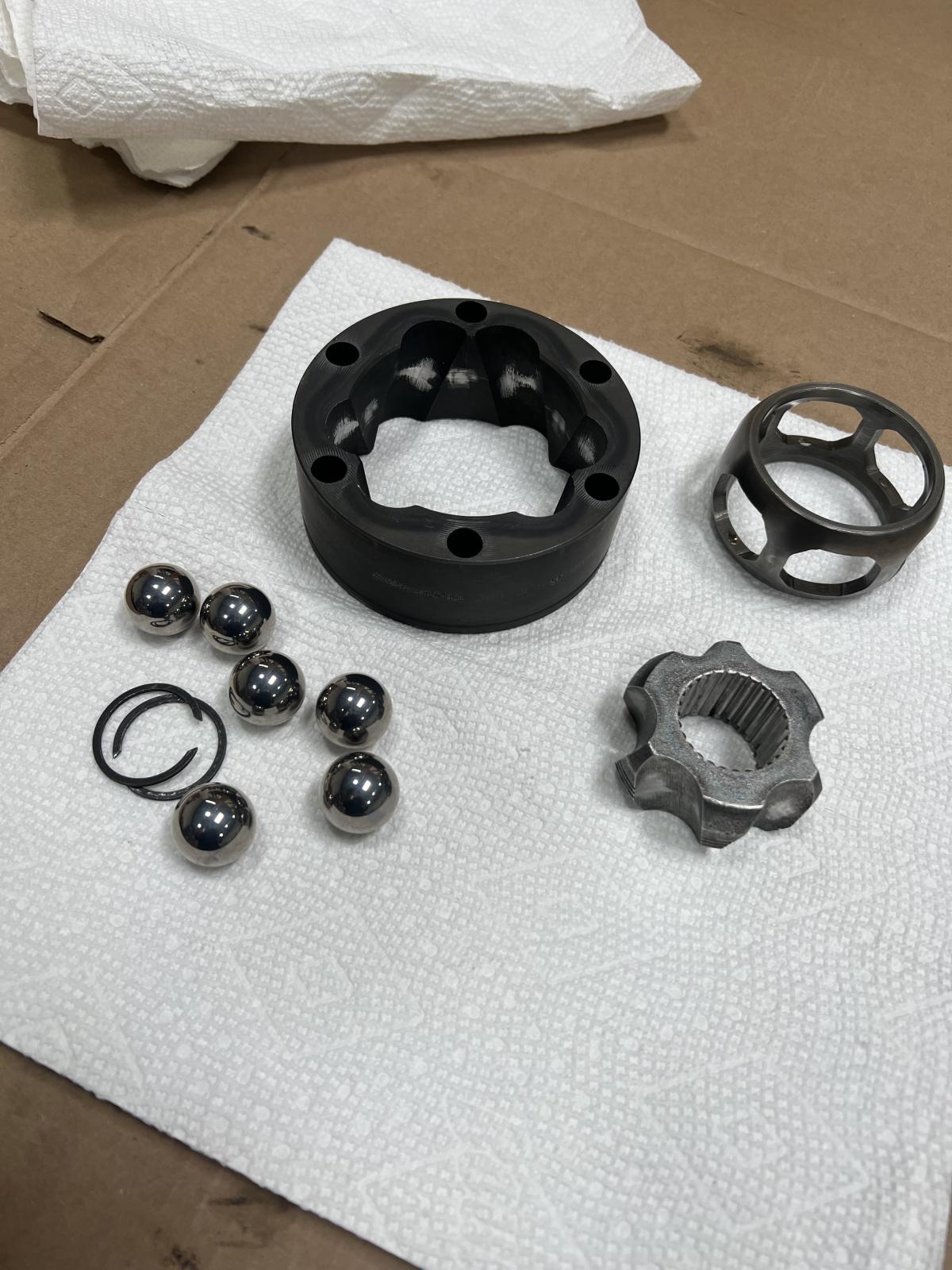

These are images of the joints after cleaning them up, they are just starting to break in and get shiny wear spots.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




Image may have been reduced in size. Click image to view fullscreen.

One tube was enough to do 3 joints, or two if you wanted to pack the crap out of it and put a lot in the boot, now quite enough in my opinion to do 4 joints though. YMMV
_________________
"Grover" a '87 Syncro Poptop 1.8T
"Olive" a '60 Ragtop Beetle (retired)


Last edited by dougnlina on Sat Jun 14, 2025 10:51 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 5660
Location: Bemidji, MN
DanHoug is offline

PostPosted: Sat Jun 14, 2025 8:14 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

the only moly grease available locally was the Stalube moly. prolly not a bad grease but i found some Swepco 101 on clearance and was around $12 a tube. i got 4 of them, put one in my dedicated moly grease gun.

looking at the specs, it has a high moly content and other favorable parameters. glad to hear it is working well.

one tube left!!
https://www.pscmotorsports.com/fl-swepco-101-moly-grease.html
_________________
-dan
60% of what you find on the internet is wrong, including this post.

'87 Westy & '89 Westy both 2.1 4spd

Past projects can be found at--
www.thefixitworkshop.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 52239

Wildthings is offline

PostPosted: Sat Jun 14, 2025 9:12 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

I never pulled the CV joints on my 1991 until the tranny failed at around 240K miles. When almost new with only 30K miles from the factory the joints had started making noise because of the junky factory grease or low volume thereof so I pumped brand X lithium grease into them to get back on the road and then added some moly grease once I got home and every 30-50K miles thereafter. The joints were only lightly pitted when I finally took them off to pull the transmission, but I replaced them at that time anyway, figuring I could eventually use them on one of my older rigs. The present CV's have now been on the rig for around 200K miles and will some get their first full service because I need to pull the tranny to reseal it. I am not expecting to find anything beyond some polishing of the races.

If I had to do it over again, I would have added more grease to the CV's the day the van came off the dealer's lot and then do the 30-50K mile addition of a bit of extra grease.

Over the years I have used Stalube, Valvoline, and Cenex, whichever was available and reasonably priced and was in my grease gun.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8350
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Sat Jun 14, 2025 9:17 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

Good looking goo there. Keep on it, I say…

FWIW, I’m done with Redline. Here’s my previous experience with CV-2 grease after 25k miles.. Evil or Very Mad

Image may have been reduced in size. Click image to view fullscreen.

- Dave

PS: Thanks for the link, Dan! Cool
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 5660
Location: Bemidji, MN
DanHoug is offline

PostPosted: Sat Jun 14, 2025 9:46 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

Dave- that looks like the cheese around my toilet wax ring. did you smell it??!! <grin>
_________________
-dan
60% of what you find on the internet is wrong, including this post.

'87 Westy & '89 Westy both 2.1 4spd

Past projects can be found at--
www.thefixitworkshop.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8350
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Sat Jun 14, 2025 9:54 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Just curious, do we know what % moly in the Swepco? Couldn’t find it on the link…

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dougnlina Premium Member
Samba Member


Joined: January 19, 2016
Posts: 293
Location: San Francisco, CA
dougnlina is offline

PostPosted: Sat Jun 14, 2025 10:38 am    Post subject: Re: Swepco 101 for CV joints Reply with quote

dhaavers wrote:
Good looking goo there. Keep on it, I say…

FWIW, I’m done with Redline. Here’s my previous experience with CV-2 grease after 25k miles.. Evil or Very Mad

Image may have been reduced in size. Click image to view fullscreen.

- Dave

PS: Thanks for the link, Dan! Cool


Yeah, thats what my Redline joints looked. like, the grease was just broken down..
_________________
"Grover" a '87 Syncro Poptop 1.8T
"Olive" a '60 Ragtop Beetle (retired)
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 7151
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Sun Jun 15, 2025 12:50 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

I too have been using Swepco, but the 164 model, since I had read about it years ago on a hardcore offroad racer forum.
T3Technique sells it too.

Good stuff.
_________________
Silicone Steering Boots and 930 Cv boots for sale in the classifieds.
Syncro transmission upgrade parts in the Classifieds.
Subaru EJ22+UN1 5 speed transmission
http://www.thesamba.com/vw/forum/viewtopic.php?t=416343
Syncro http://www.thesamba.com/vw/forum/viewtopic.php?t=4...num+gadget
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8350
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Mon Jun 16, 2025 2:54 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

dhaavers wrote:

Just curious…do we know what % moly in the Swepco? Couldn’t find it on the link…

<repost>

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skemems
Samba Member


Joined: February 23, 2017
Posts: 245
Location: Oregon
skemems is offline

PostPosted: Mon Jun 16, 2025 3:10 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

dhaavers wrote:
dhaavers wrote:

Just curious…do we know what % moly in the Swepco? Couldn’t find it on the link…

<repost>

- Dave


https://swepcolube.com/products/swepco-101-moly-grease/

Safety Data Sheet (SDS)
_________________
87 VW Westfalia - EJ25
86 VW Westfalia - EJ22
85 VW Westfalia - WBX 2.1 project
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8350
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Mon Jun 16, 2025 3:30 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

^^^ Indeed. Saw that, checked that.

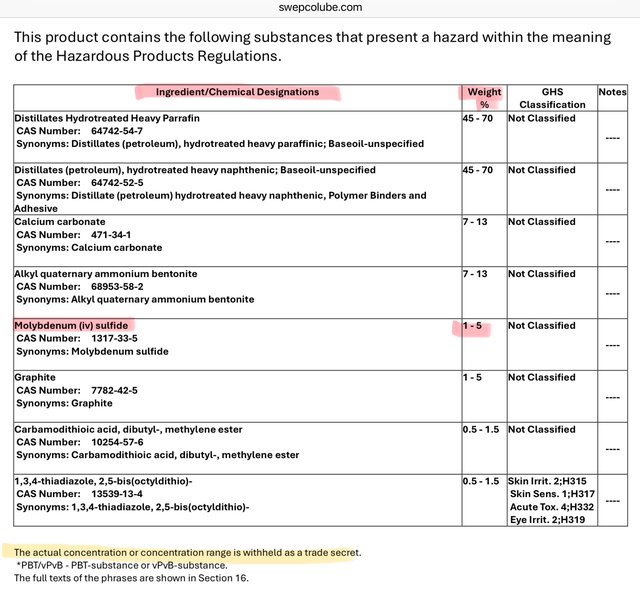

FWIW, the SDS only gives a “range” which reportedly includes the amount, but does not specify the actual amount. WTH???

Image may have been reduced in size. Click image to view fullscreen.

Without an actual number, there is no evidence that Swepco is any better than any other grease with 5% moly. (Or possibly even less…???)

Still looking for an actual answer…

<shrug>

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DanHoug
Samba Member


Joined: December 05, 2016
Posts: 5660
Location: Bemidji, MN
DanHoug is offline

PostPosted: Mon Jun 16, 2025 3:33 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

while Amsoil is good at disclosing the percent moly in their formulations, Swepco is not. the Swepco MSDS says 1-5%. whatever.

while moly is great, i'm not sure the percentage is of great consequence to us in CV use. things like flowability, water resistance, oil separation, and wear tests that make a good CV grease are probably better indicators. as is real world usage reports from valid sources.

viewing photos of old grease in CVs with Swepco vs Redline conjure words like butter vs cheese in my mind. the butter having a better chance of reflowing back into the ball track. lots of variables at play here of course so have the discriminator knob turned up pretty high when evaluating this.

but it has convinced me that the sweetheart Red Moly may be best left to song and not in my CV joints.

Oh, says Red Molly to James "That's a fine motorbike.
A girl could feel special on any such like"
Says James to Red Molly "My hat's off to you
It's a Vincent Black Lightning, 1952
_________________
-dan
60% of what you find on the internet is wrong, including this post.

'87 Westy & '89 Westy both 2.1 4spd

Past projects can be found at--
www.thefixitworkshop.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dhaavers
Samba Member


Joined: March 19, 2010
Posts: 8350
Location: NE MN (tinyurl.com/dhaaverslocation)
dhaavers is offline

PostPosted: Mon Jun 16, 2025 3:44 pm    Post subject: Re: Swepco 101 for CV joints Reply with quote

Ok, I get that. For the sake of discussion, then…

FWIW, here’s my current favorite, comparable (yet much more affordable) than the popular old “CAT Desert Gold” grease…

https://www.amalie.com/wp-content/uploads/2024/04/AMALIE_Pro_Tac_Plus_Sell_Sheet.pdf

What to compare, then…???

- Dave
_________________
86 White Wolfsburg Westy Weekender
"The WonderVan"

<EDITED TO PROTECT INNOCENT PIXELS>
Back to top
View user's profile Send private message Gallery Classifieds Feedback
