 Posted: Sun Jun 15, 2025 4:55 pm Post subject: Factory/Dealer AC removal. |
 |
|
Hello everyone
My 74 Super beetle came with factory/dealer installed DPD Aircon, of course im restoring some things and this doesn't work.
However just doing general things to the engine before dropping it, this bracket the compressor sits on is a pain! and i can not for the life of me figure out how it actually mounts in, the space you have to get to the mounting bolts are very very very slim.
I was wondering if any of you wizards on here had some more knowledge on this topic.
Thannks!
-Remi  |
|
| Back to top |
|
 |
Danpa
Samba Member
Joined: August 21, 2007
Posts: 1281
Location: Valparaiso, in
|
| Posted: Sun Jun 15, 2025 5:27 pm Post subject: Re: Factory/Dealer AC removal. |
|
|
Post some pics.
Dan
_________________
67 Beetle (gone)
68 Bay Window Double Cab (gone) sob, sob!
64 Beetle (gone)
77 Scirocco (gone)
73 Squareback (scrapped)
70 Beetle (current, in pieces) |
|
| Back to top |
|
|
RandoRemi
Samba Member
Joined: April 19, 2025
Posts: 8
Location: Tennessee
|
| Posted: Sun Jun 15, 2025 5:50 pm Post subject: Re: Factory/Dealer AC removal. |
|
|
| Danpa wrote: |
Post some pics.
Dan |

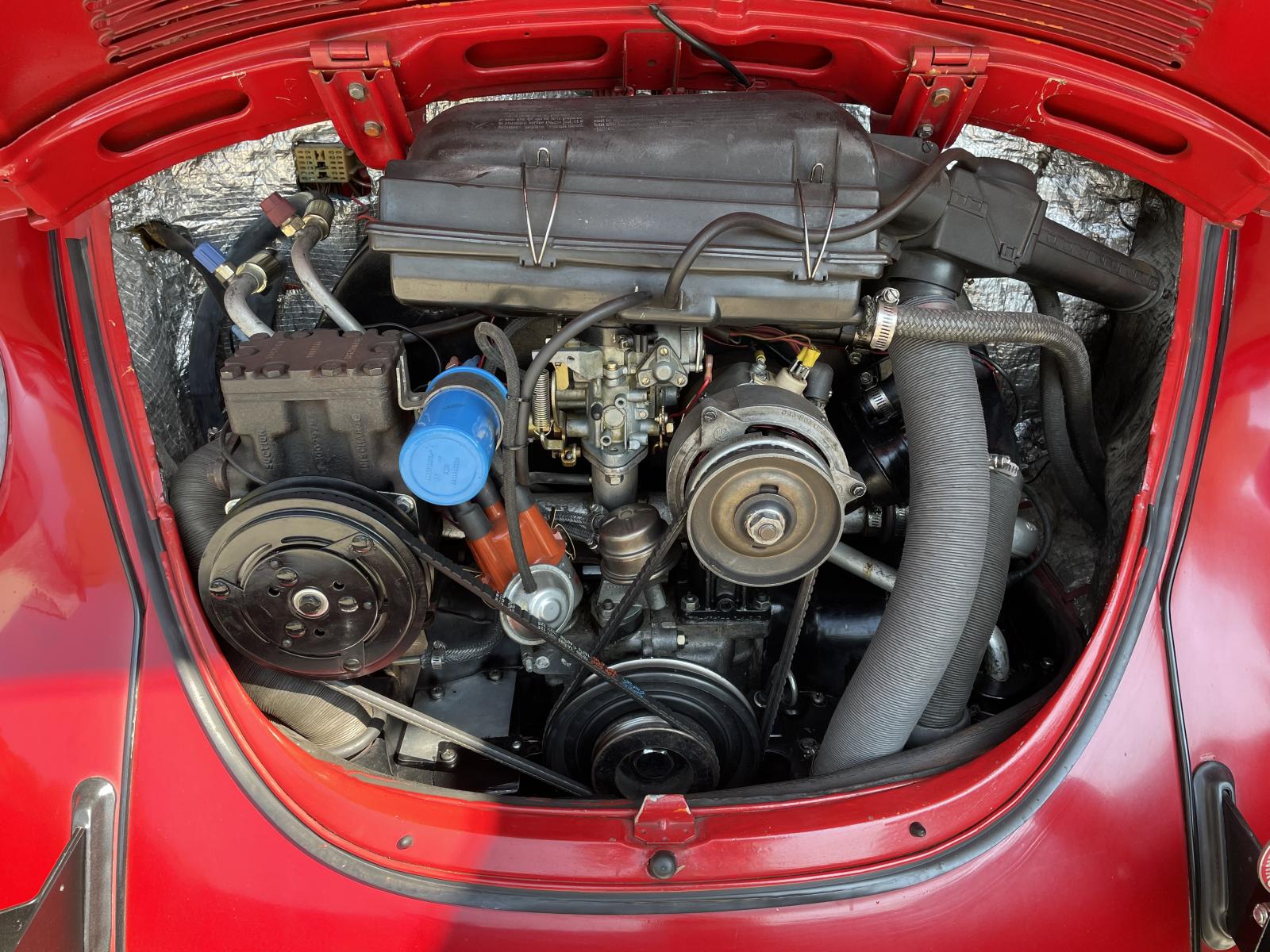

I'm away from the car at the moment. But here is the same system that I'm working with, only photo I could find of it
|
|
| Back to top |
|
|
Beeble1
Samba Member
Joined: August 14, 2012
Posts: 594
Location: Manteno, Illinois
|
| Posted: Sun Jun 15, 2025 7:52 pm Post subject: Re: Factory/Dealer AC removal. |
|
|
Here’s a copy of an install Manual:
https://www.thesamba.com/vw/archives/manuals/vw_a_c_install/VW%20AC%20Beetle%20Custom%201972.php
The brackets mount to the #3 & #4 exhaust studs, and the engine case bolt behind the distributor. I have the same DPD system on my car, fully restored and functional.
Believe me, that compressor makes working on ANYTHING in the engine bay a complete pain in the butt.
_________________
Beeble1, 1973 Super (o\_|_/o) 1600cc w/ Dealer A/C
Beeble2, 2013 Beetle 2.5L Daily Driver
Dealership items from Bishop-Wayne Volkswagen & Turner Volkswagen in Kankakee, IL wanted |
|
| Back to top |
|
|
scrivyscriv
Samba Electrician
Joined: October 04, 2011
Posts: 3341
Location: Memphis
|
| Posted: Sun Jun 15, 2025 9:45 pm Post subject: Re: Factory/Dealer AC removal. |
|
|
Where are you located? I'm in the Memphis area, and could help if you're nearby.
_________________
Robert in Memphis
Dünkelgrügen 1967 Java Green bug thread
Engine rebuild thread
If you're ever in the Memphis area, you are welcome to stop by for advice and help. |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33013
Location: Hot Arizona
|
| Posted: Mon Jun 16, 2025 7:31 am Post subject: Re: Factory/Dealer AC removal. |
|
|
| Beeble1 wrote: |
| The brackets mount to the #3 & #4 exhaust studs, and the engine case bolt behind the distributor. I have the same DPD system on my car, fully restored and functional. |
That's how the lower bracket attaches. There may also be a bracket/bar on the left side of the compressor.
| Beeble1 wrote: |
| Believe me, that compressor makes working on ANYTHING in the engine bay a complete pain in the butt. |
I used that system with my 1835cc DP engine with single Weber 40DCNF on its special intake manifold. I "invented" what's now called "Weber windows" back about mid-1970s because changing #3 and #4 spark plugs was so tough, and back then with leaded gasoline the plugs needed changing every 6000 miles.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
RandoRemi
Samba Member
Joined: April 19, 2025
Posts: 8
Location: Tennessee
|
| Posted: Mon Jun 16, 2025 3:31 pm Post subject: Re: Factory/Dealer AC removal. |
|
|
well darn. that explains a ton, for some reason i thought it was bolting to something different. i have to take the manifold out soon anyway. Thanks a ton! |
|
