buster
Samba Member
Joined: September 20, 2002
Posts: 283
Location: Missouri
|
 Posted: Fri Nov 23, 2007 1:21 pm Post subject: Vent Wing Resto. Thats easy and really works. |
 |
|
I started putting my door window frames together today. Everything when together real easy and as always the vent wing is a bitch. The vent wing seal that came from WW didn't work out so well for me so I thought I would share my process. I used a rubber mallet, some 3M 2242 Rubber Tape, and a exacto knife. The 3M tape is the secret here, makes the the installation real easy. I have outlined the process below with a pics.

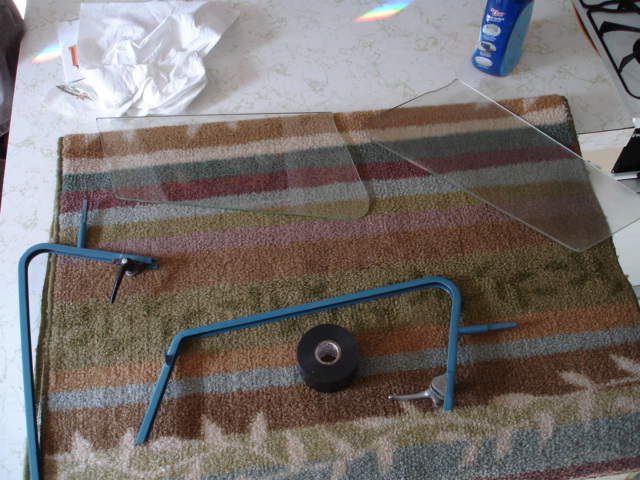

Here is were I started.

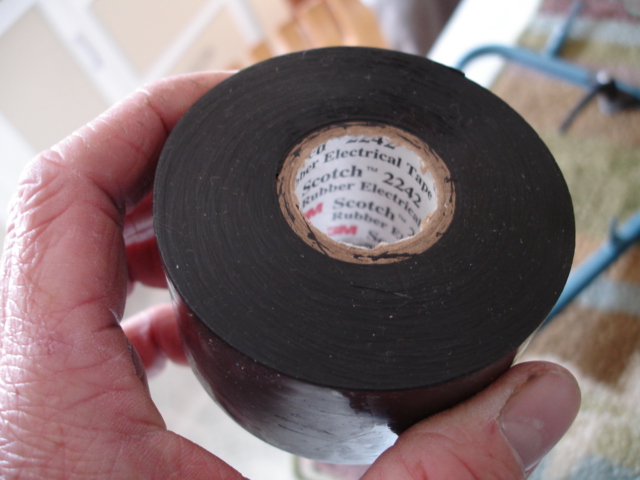

I used 3M 2242 Rubber Electric Tape.
Wrap the tape around the glass. I used 2 ply thick. Its stretches around the glass real easy.

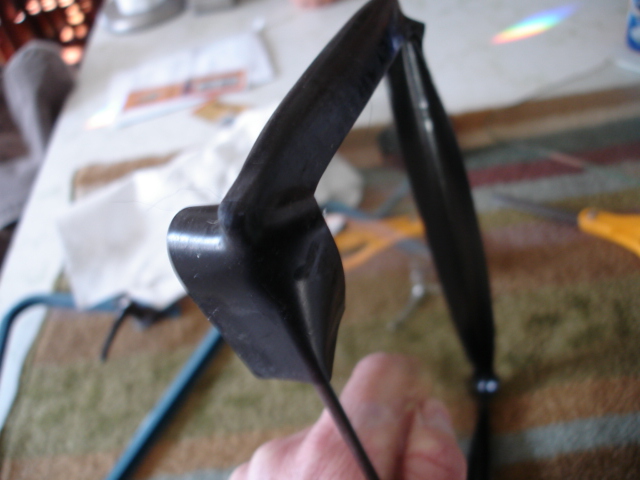

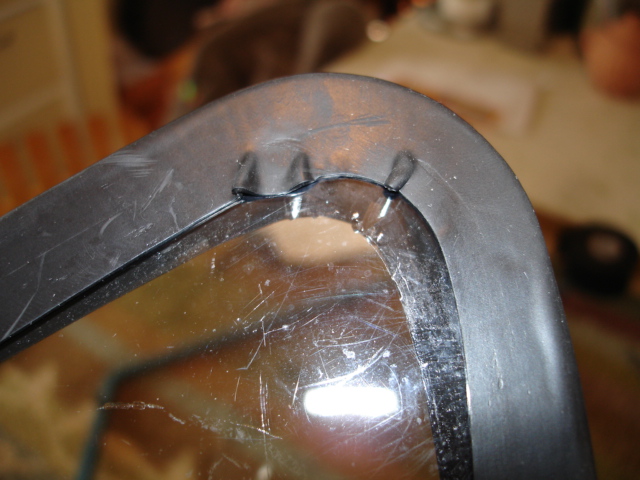

Smooth the rubber around the corners.

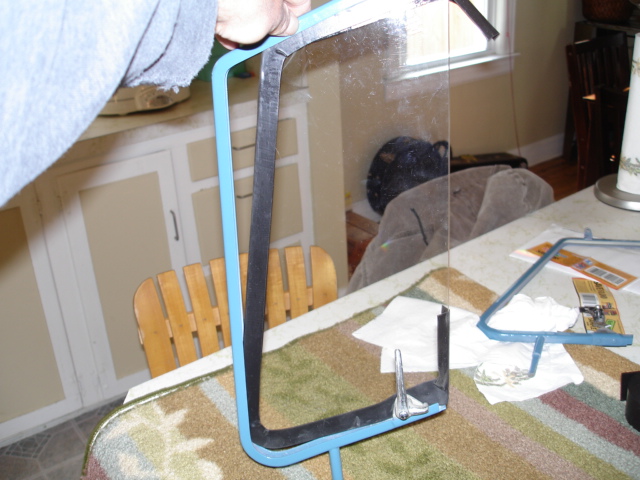

Slide the glass in the frame. It went in real easy for me. If it gets hung up use some soap water, or KY Jelly, Yes i said KY Jelly.

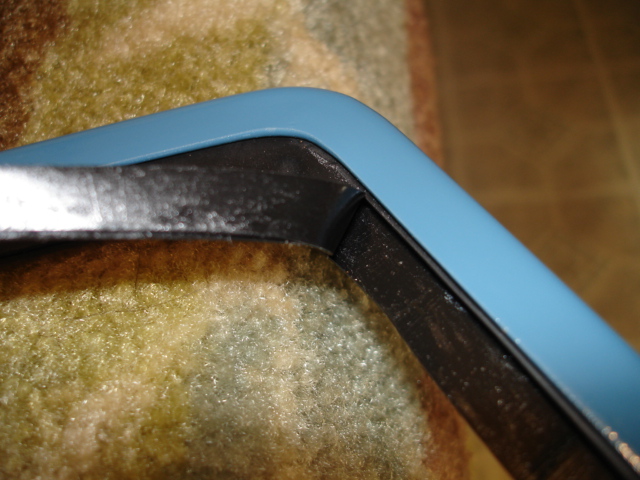

There is a bit of excess hanging out after you get it pushed in all the way.
Trim off the excess with a exacto knife.

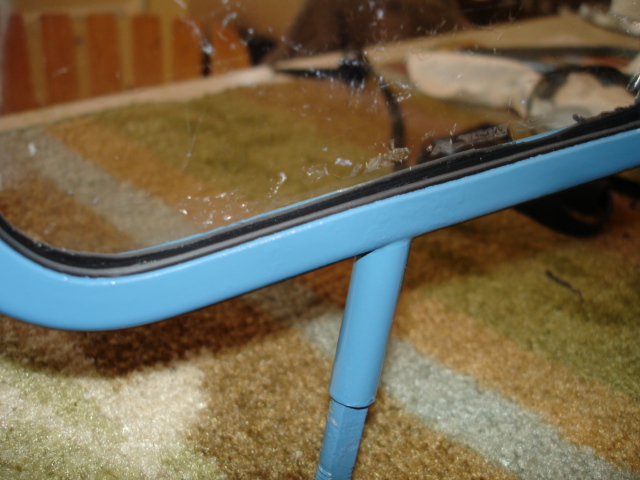

After the seal is trimmed.
The window is in. And the tools of the trade.
I didn't apply any window rubber sealant or what ever to keep the glass from sliding out. But honestly its in there really tight so I dont see it being a problem. I hope this helps, good luck.
P.S. I did accidentally brake one of my latches on the corner of my counter top in the process. Anyone got a spare latch around?
Dan |
|
| Back to top |
|
 |
mintonman
Samba Member
Joined: October 20, 2003
Posts: 4246
Location: between Trenton NJ. & Philly Pa.
|
| Posted: Fri Nov 23, 2007 1:27 pm Post subject: |
|
|
Dan,
you forgot the rain deflector & the latch is for the wrong side.
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH" |
|
| Back to top |
|
|
buster
Samba Member
Joined: September 20, 2002
Posts: 283
Location: Missouri
|
| Posted: Fri Nov 23, 2007 1:31 pm Post subject: |
|
|
| mintonman wrote: |
Dan,
you forgot the rain deflector. |
Yeah I know, I didnt install the rain gutter by choice. Figured it would be easier to trim the seal without it there. You dont really need it there anyways. |
|
| Back to top |
|
|
SurfCityRacing
Samba Member
Joined: September 12, 2007
Posts: 1286
Location: Santa Cruz, CA
|
| Posted: Mon Nov 26, 2007 2:37 pm Post subject: |
|
|
Hey Buster, Where'd you get the tape? I've looked at a few different hardware stores and couldn't find it.
_________________
Riding with Surf City had me thinking "F'n Piercy" was your real name. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12606
|
| Posted: Mon Nov 26, 2007 2:50 pm Post subject: |
|
|
| buster wrote: |
| mintonman wrote: |
Dan,
you forgot the rain deflector. |
Yeah I know, I didnt install the rain gutter by choice. Figured it would be easier to trim the seal without it there. You dont really need it there anyways. |
Without the rain guard the rain drips inside the bus (near the driver's left foot) when the window is open. I would definately recommend installing it.
My '53 doesn't have the deflector. I think it was one of those improvements they made at some point after June '53.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
ritchiet002
Samba Member
Joined: January 27, 2003
Posts: 1676
Location: Kaneohe, HI
|
| Posted: Mon Nov 26, 2007 2:55 pm Post subject: |
|
|
| SurfCityRacing wrote: |
| Hey Buster, Where'd you get the tape? I've looked at a few different hardware stores and couldn't find it. |
http://www.jamestowndistributors.com/userportal/show_product.do?pid=3879&PTECH Here is a place online
_________________
Somewhere there is a jar with your name on it!
From now on, I'm gonna connect the dots my own way!______________________________________ |
|
| Back to top |
|
|
mintonman
Samba Member
Joined: October 20, 2003
Posts: 4246
Location: between Trenton NJ. & Philly Pa.
|
| Posted: Mon Nov 26, 2007 3:25 pm Post subject: |
|
|
| Clara wrote: |
| buster wrote: |
| mintonman wrote: |
Dan,
you forgot the rain deflector. |
Yeah I know, I didnt install the rain gutter by choice. Figured it would be easier to trim the seal without it there. You dont really need it there anyways. |
Without the rain guard the rain drips inside the bus (near the driver's left foot) when the window is open. I would definately recommend installing it.
My '53 doesn't have the deflector. I think it was one of those improvements they made at some point after June '53. |
I wasn't even about to go there, I wanted to , but figured he felt VW was all wrong with that deflecter  To each his own
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH" |
|
| Back to top |
|
|
pyrOman
Fire Master
Joined: July 21, 2003
Posts: 12546
Location: Over 2002 posts deleted!
|
| Posted: Mon Nov 26, 2007 3:39 pm Post subject: |
|
|
My vent windows are NEVER open!  Going on 6 years now since installing the new rubber. Got me a bee in the face once, only ONCE!
_________________
Some people are so busy being clever they don't have time enough to be wise. |
|
| Back to top |
|
|
BeaterBarndoor
Samba Member
Joined: December 15, 2000
Posts: 839
Location: North Carolina
|
| Posted: Mon Nov 26, 2007 4:23 pm Post subject: |
|
|
| Clara wrote: |
Without the rain guard the rain drips inside the bus (near the driver's left foot) when the window is open. I would definately recommend installing it.
My '53 doesn't have the deflector. I think it was one of those improvements they made at some point after June '53. |
to my knowledge,barndoors never used a drip catch. out of curiosity i just checked barndoor.dk and none had them,that id seen . my old 55 post bd however did have them. id say its a post bd addition.
_________________
www.thebustransfer.com
Whaaaaat? |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5458
|
| Posted: Mon Nov 26, 2007 5:00 pm Post subject: |
|
|
cool tip on using rubber tape. i used "glass tape," which was not really tape, on my last windows and got ok results. might try the tape thing next time.
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
EL DUB
Samba Member
Joined: February 15, 2007
Posts: 630
|
| Posted: Mon Nov 26, 2007 5:24 pm Post subject: |
|
|
That tape is available at the depot. Its in a special section of electrical tapes, the bigger widths and such. Not in those bins with the crappy .49-1.99 tapes.
_________________
Castle Rock, Co
Eric and Laura's DUB "EL DUB"
1964 Deluxe Bus
1959 Single cab
1963 Double Cab{coming soon}
SBS #77 Cuarenta Seis Para Vida
*****WTB Circle Motors Long Beach,Ca Plate frame.****** |
|
| Back to top |
|
|
mintonman
Samba Member
Joined: October 20, 2003
Posts: 4246
Location: between Trenton NJ. & Philly Pa.
|
| Posted: Mon Nov 26, 2007 5:25 pm Post subject: |
|
|
Does look nice
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH" |
|
| Back to top |
|
|
Andrew
Samba Member
Joined: October 27, 2000
Posts: 5865
Location: Who in the what now?
|
| Posted: Mon Nov 26, 2007 6:05 pm Post subject: |
|
|
| Clara wrote: |
| buster wrote: |
| mintonman wrote: |
Dan,
you forgot the rain deflector. |
Yeah I know, I didnt install the rain gutter by choice. Figured it would be easier to trim the seal without it there. You dont really need it there anyways. |
Without the rain guard the rain drips inside the bus (near the driver's left foot) when the window is open. I would definately recommend installing it.
My '53 doesn't have the deflector. I think it was one of those improvements they made at some point after June '53. |
Personally, I just try not to have the windows open in the rain...
We didn't realize until afterward that we forgot the rain deflectors and that the latches were on the wrong side on my vent windows, either, or else we would have put them in. IMO, though, it has a much cleaner look without the rain deflectors.
_________________
-Andrew |
|
| Back to top |
|
|
Long-roofs
Samba Member
Joined: March 20, 2002
Posts: 2368
Location: Millwood, Wa
|
| Posted: Mon Nov 26, 2007 6:20 pm Post subject: |
|
|
| BeaterBarndoor wrote: |
| Clara wrote: |
Without the rain guard the rain drips inside the bus (near the driver's left foot) when the window is open. I would definately recommend installing it.
My '53 doesn't have the deflector. I think it was one of those improvements they made at some point after June '53. |
to my knowledge,barndoors never used a drip catch. out of curiosity i just checked barndoor.dk and none had them,that id seen . my old 55 post bd however did have them. id say its a post bd addition. |
Correct, as far as I know. My 1148xx Barndoor does not have the gutters, has original glass and original crusty rubber. I know I have some gutters off a Wolfsburg Bus, not sure if they are different than '57 or '58's.
_________________
---
Trying to keep poor cool
People are talking, the greatness is coming, going to be greater than great, so great, greater than anything ever.
-- |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Tue Nov 27, 2007 8:16 am Post subject: |
|
|
| StockNazi wrote: |
| cool tip on using rubber tape. i used "glass tape," which was not really tape, on my last windows and got ok results. might try the tape thing next time. |
this coming from someone named 'stocknazi'
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
| Back to top |
|
|
Stocknazi
Samba Member
Joined: June 18, 2004
Posts: 5458
|
| Posted: Tue Nov 27, 2007 5:24 pm Post subject: |
|
|
| DaveM wrote: |
| StockNazi wrote: |
| cool tip on using rubber tape. i used "glass tape," which was not really tape, on my last windows and got ok results. might try the tape thing next time. |
this coming from someone named 'stocknazi' |
funny daveM, you bustin' my balls man
the glass tape is rubber and does appear stock, so i am ok with it.
the rubber i got was way too thick and i had to find an alternative to it.
i like stock buses, but i don't get that anal about things.
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).
"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"The tree of liberty must be refreshed from time to time with the blood of patriots and tyrants."
Thomas Jefferson |
|
| Back to top |
|
|
Ian
Samba Moderator
Joined: August 28, 2002
Posts: 4958
Location: 713
|
| Posted: Tue Nov 27, 2007 5:57 pm Post subject: |
|
|
I believe the new rubbers are supposed to be thick. It's only a press-fit. If it is loosey-goosey in there it will fall out, while driving.
I wouldn't use electrical tape.
_________________
All your Buses are belong to us.
Love and good roads!
IN LOVING MEMORY OF ROB CRESS 1968-2012 & KEN CRIMMINS 1957-2024 |
|
| Back to top |
|
|
SurfCityRacing
Samba Member
Joined: September 12, 2007
Posts: 1286
Location: Santa Cruz, CA
|
| Posted: Tue Nov 27, 2007 7:37 pm Post subject: |
|
|
Found the tape at the Depot today and finished my windows. They look great. I forgot the drip guard in the first one (Even after reading this. Guess I'm a dumbass). I took it apart to add the drip guard, and let me tell you it was a beeeotch getting it apart. If you screw up, take all of the tape off and do it again. It stretches and bunches up the second time around. Do it right the first time, pay attention.
Thanks for the help!

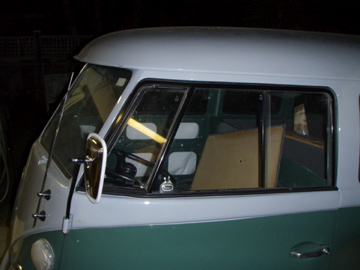

Hard to see, but here it is:
_________________
Riding with Surf City had me thinking "F'n Piercy" was your real name. |
|
| Back to top |
|
|
mintonman
Samba Member
Joined: October 20, 2003
Posts: 4246
Location: between Trenton NJ. & Philly Pa.
|
| Posted: Wed Nov 28, 2007 12:36 pm Post subject: |
|
|
The wing/vent window is for when it IS raining for us smokers, also helps defog the windshield on those hot humid rainy days. Thats another reason I hate new cars, no wing windows. There is nothing like them on hot days except safaris.
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH" |
|
| Back to top |
|
|
DaveM
Mad Samba Scientist
Joined: June 11, 2002
Posts: 3010
Location: Dry side of Oregon
|
| Posted: Wed Nov 28, 2007 3:01 pm Post subject: |
|
|
| SurfCityRacing wrote: |
| <snip>Do it right the first time<snip> |
... and just buy some damn rubber pieces from Ronnie or WW or someone else.
_________________
Sounding like a broken record as to why You should be measuring protein during harvest in order to better your agronomic practices. |
|
