Author |
Message |
indianpeaksjoe Samba Member

Joined: July 27, 2017 Posts: 633 Location: Moab, UT
|
Posted: Sat Jun 21, 2025 9:45 am Post subject: Ashtray for 66 beetle |
|
|
Does anyone know if you can buy replacement ashtray's for a 66?
The little chrome door in this pic.
Thanks!
-Joe _________________ Adventures in owning a 66 beetle |
|
Back to top |
|
 |
mukluk Samba Member

Joined: October 18, 2012 Posts: 7452 Location: Clyde, TX
|
Posted: Sat Jun 21, 2025 9:55 am Post subject: Re: Ashtray for 66 beetle |
|
|
Used ones, yes; new ones, no. Look in the classifieds.
Now if you're wanting hardware or a replacement knob, yes, those are available. _________________ 1960 Ragtop w/Semaphores "Inga" |
|
Back to top |
|
 |
runamoc  Samba Member

Joined: June 19, 2006 Posts: 6076 Location: 37.5N 77.1W
|
Posted: Sat Jun 21, 2025 3:31 pm Post subject: Re: Ashtray for 66 beetle |
|
|
sand it then paint it _________________ Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires |
|
Back to top |
|
 |
indianpeaksjoe Samba Member

Joined: July 27, 2017 Posts: 633 Location: Moab, UT
|
Posted: Sat Jun 21, 2025 3:49 pm Post subject: Re: Ashtray for 66 beetle |
|
|
Thanks, i got a fast fab gauge mount where the radio blank is, i was thinking of moving the sPod mount down to the ashtray. But I didn’t want to drill that one up.
Maybe I’ll see if I can 3d print something.
-Joe _________________ Adventures in owning a 66 beetle |
|
Back to top |
|
 |
my3bugs Samba Member
Joined: June 18, 2003 Posts: 812 Location: Moreno Valley
|
Posted: Sat Jun 21, 2025 4:18 pm Post subject: Re: Ashtray for 66 beetle |
|
|
i dont think thats an original ashtray you have there . the original sits flush to the dash ...... there are plenty in the classifieds . |
|
Back to top |
|
 |
runamoc  Samba Member

Joined: June 19, 2006 Posts: 6076 Location: 37.5N 77.1W
|
Posted: Sat Jun 21, 2025 6:01 pm Post subject: Re: Ashtray for 66 beetle |
|
|
can kinda see the one I made from aluminum diamond plate for my '69
_________________ Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires |
|
Back to top |
|
 |
my3bugs Samba Member
Joined: June 18, 2003 Posts: 812 Location: Moreno Valley
|
Posted: Sat Jun 21, 2025 6:04 pm Post subject: Re: Ashtray for 66 beetle |
|
|
ya i see lots of original ones in the classifieds that sit flush 10 to 50 clams .
now i have a trick to clean up old ashtrays like these . the face plate you can just paint if ya take the knob off . now toss the main part in to a small bucket or bowl , just enough water to cover the item of warm water with citric acid , just a table spoon will do .........let it sit for 15 minutes or so , take it out n rub it down with #4000 steel wool , its the finest you can buy . see if it needs a longer soak ? if so toss it back in or it may be good .....the citric not only softens rust but all the black ash crap in the bottom of the tray , ya you got it rub it good its not magic , but often they practically look like new after a soak n rub or two ........ if you have a rusty piece of crap it might take over night , but the next morning after a rub down the rust will all be gone ....... |
|
Back to top |
|
 |
runamoc  Samba Member

Joined: June 19, 2006 Posts: 6076 Location: 37.5N 77.1W
|
Posted: Sat Jun 21, 2025 6:14 pm Post subject: Re: Ashtray for 66 beetle |
|
|
another thing I did to my ash tray...drilled a 1/4" hole in the top of the 'receiver', soldered a stock dash lamp base to the 'receiver' so the light would be right over the hole. Glued a piece of clear plastic over the hole (keep smoke out of the trunk). Connected the wire to the other dash lights...now I have a lit ash tray.
you can see the lamp base in this photo
_________________ Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires |
|
Back to top |
|
 |
Schnitzelfuss Samba Member
Joined: September 18, 2024 Posts: 117 Location: North Alabama
|
Posted: Sat Jun 28, 2025 3:23 pm Post subject: Re: Ashtray for 66 beetle |
|
|
Good lookin’ hound dawg! Bassett? |
|
Back to top |
|
 |
indianpeaksjoe Samba Member

Joined: July 27, 2017 Posts: 633 Location: Moab, UT
|
Posted: Sat Jun 28, 2025 6:25 pm Post subject: Re: Ashtray for 66 beetle |
|
|
Schnitzelfuss wrote: |
Good lookin’ hound dawg! Bassett? |
Yup! I’ve got three of these goofy pups.
L1018180 by Joe, on Flickr
Although Lou is the one who likes the beetle the most.
P3231299 by Joe, on Flickr
-Joe _________________ Adventures in owning a 66 beetle |
|
Back to top |
|
 |
Schnitzelfuss Samba Member
Joined: September 18, 2024 Posts: 117 Location: North Alabama
|
Posted: Sat Jun 28, 2025 11:54 pm Post subject: Re: Ashtray for 66 beetle |
|
|
Awesome. I’ve got a soft spot for hounds, got two Redbones, a Beagle, and a Weimaraner mix. They are out in the shop with me every day “helping” me restore my ‘66 sedan. That is, if barking at everything- and nothing- or napping right where I need to be next helps. |
|
Back to top |
|
 |
indianpeaksjoe Samba Member

Joined: July 27, 2017 Posts: 633 Location: Moab, UT
|
Posted: Sun Jun 29, 2025 7:28 am Post subject: Re: Ashtray for 66 beetle |
|
|
I'm printing that pic out to use as inspiration to wire my beetle better!
Also, I did order an ashtray from the classifieds. I'll probably drill the aftermarket one I have and paint the one I got to match. _________________ Adventures in owning a 66 beetle |
|
Back to top |
|
 |
runamoc  Samba Member

Joined: June 19, 2006 Posts: 6076 Location: 37.5N 77.1W
|
Posted: Sun Jun 29, 2025 9:07 am Post subject: Re: Ashtray for 66 beetle |
|
|
Quote: |
use as inspiration to wire my beetle better! |
I rewired it the way the Germans should have done it if cost wasn't an issue. In the photo you'll notice my main wiring harness goes into a EMT conduit to under the rear seat on the passenger side where the battery is. Main reason I did that way was the replacement heater channels didn't have the two holes for the harness to pass thru as shown in the photo.

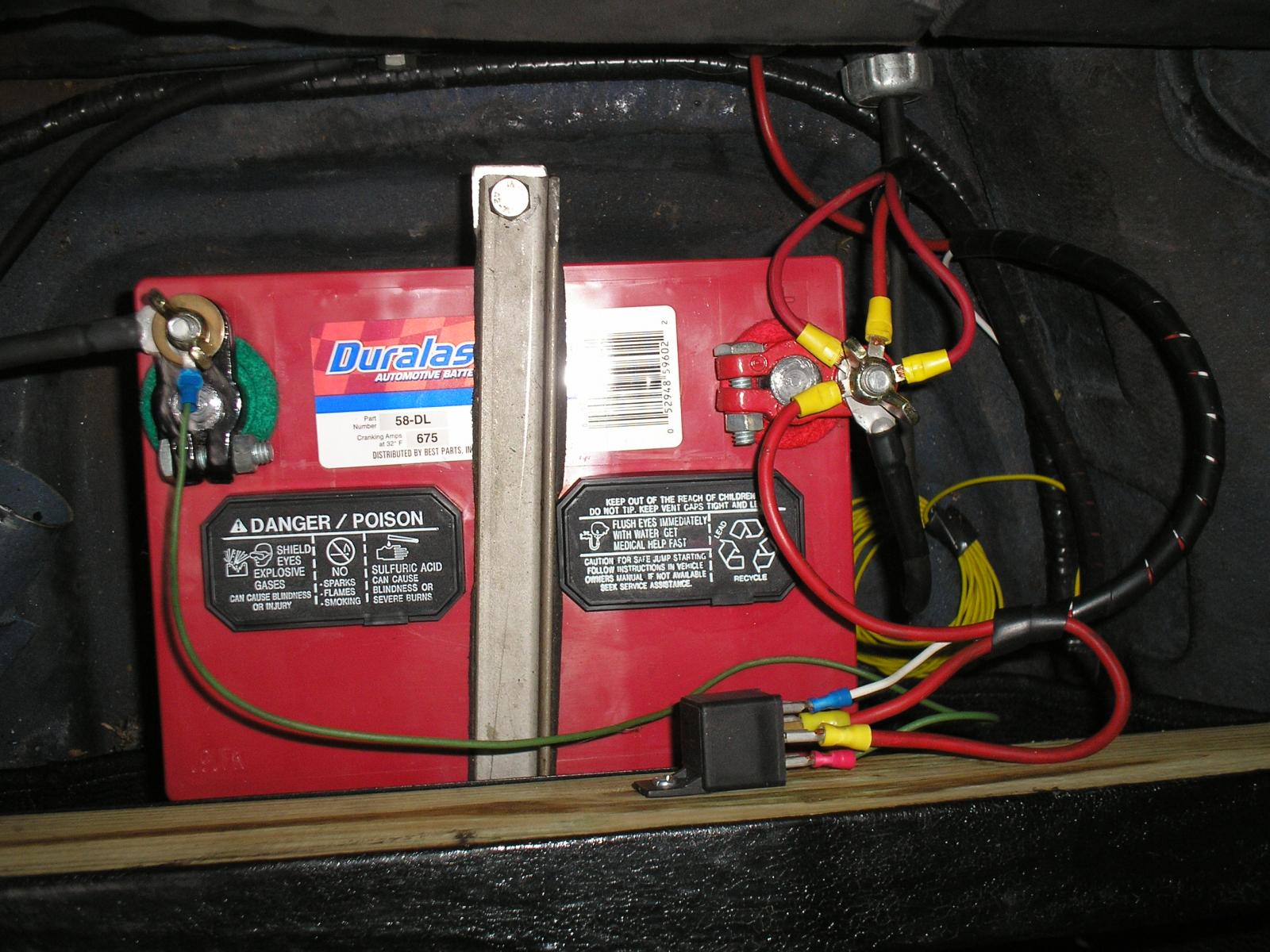

under the rear seat wiring

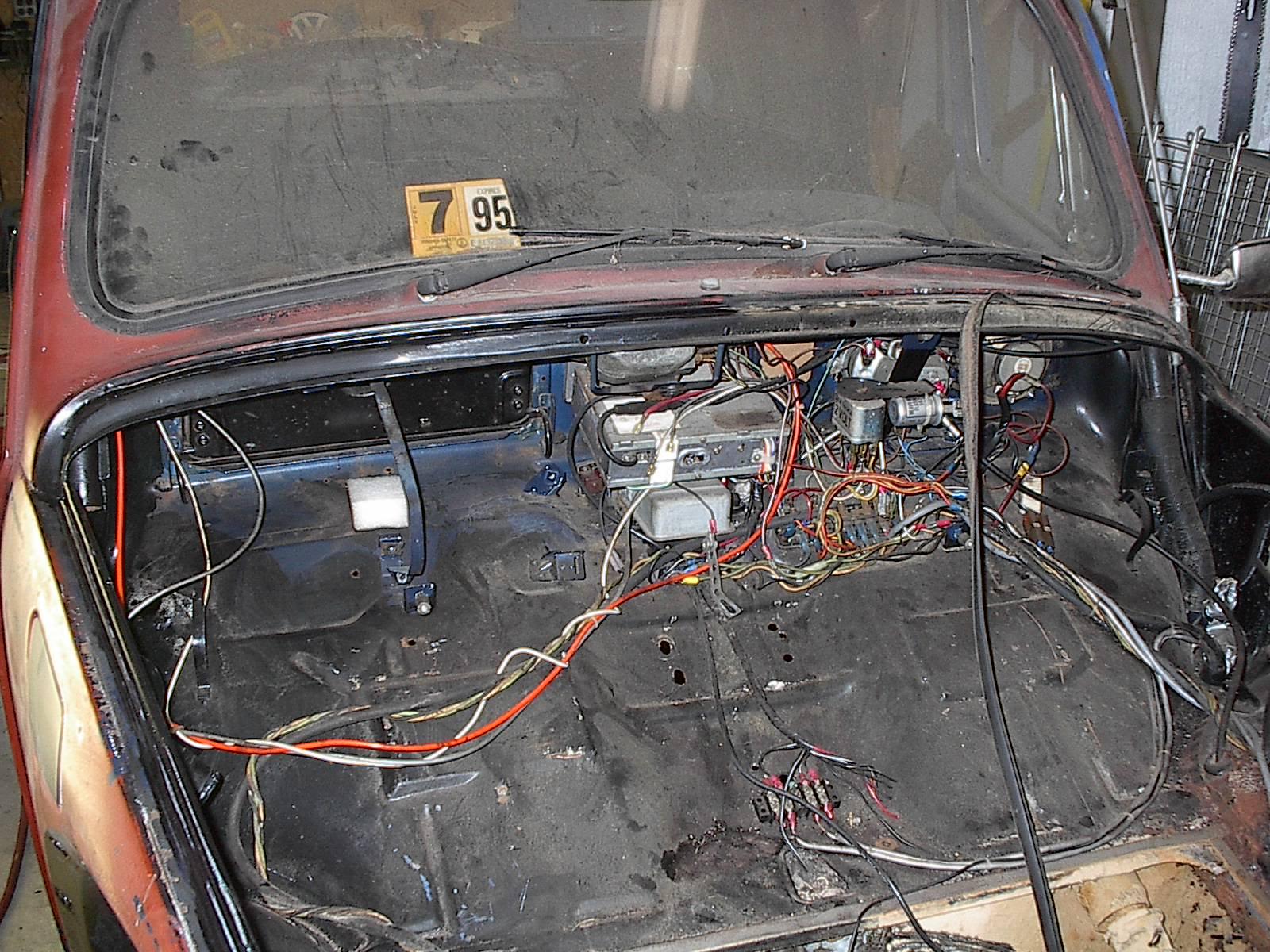

what I started with
I use only T&B crimp connectors. They are tin plated copper. Close up of how I installed a brake light test connection. Put 12v on it to see if the lights or the switch is the problem.
_________________ Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires |
|
