 Posted: Tue Mar 09, 2021 12:17 pm Post subject: Gene Berg Breather Pics |
 |
|
Hello! Last week I ordered a custom GBE oil fill breather, and after the fact I have some concerns. Below is a pic of my present set-up. I understand the GBE breather is functionally better, but now it seems I'm going to be running breather hoses from my valve covers around the front of the fan shroud somehow, and I'm afraid it's going to clutter up the look. I'm trying to clean up my engine bay, not make it look more "busy." Do any of you have pics for how you mounted and run your breather hoses? I'd appreciate looking at what some others did. Peace. BTW, I no longer have fresh air hoses running from the fan shroud.
_________________
Please check my '67 sedan project progress!
http://www.thesamba.com/vw/forum/viewtopic.php?t=502253&highlight= |
|
| Back to top |
|
 |
Turnswrenches
Samba Member
Joined: May 02, 2019
Posts: 552
Location: Dawsonville, GA
|
| Posted: Tue Mar 09, 2021 12:32 pm Post subject: Re: Gene Berg Breather Pics |
|
|

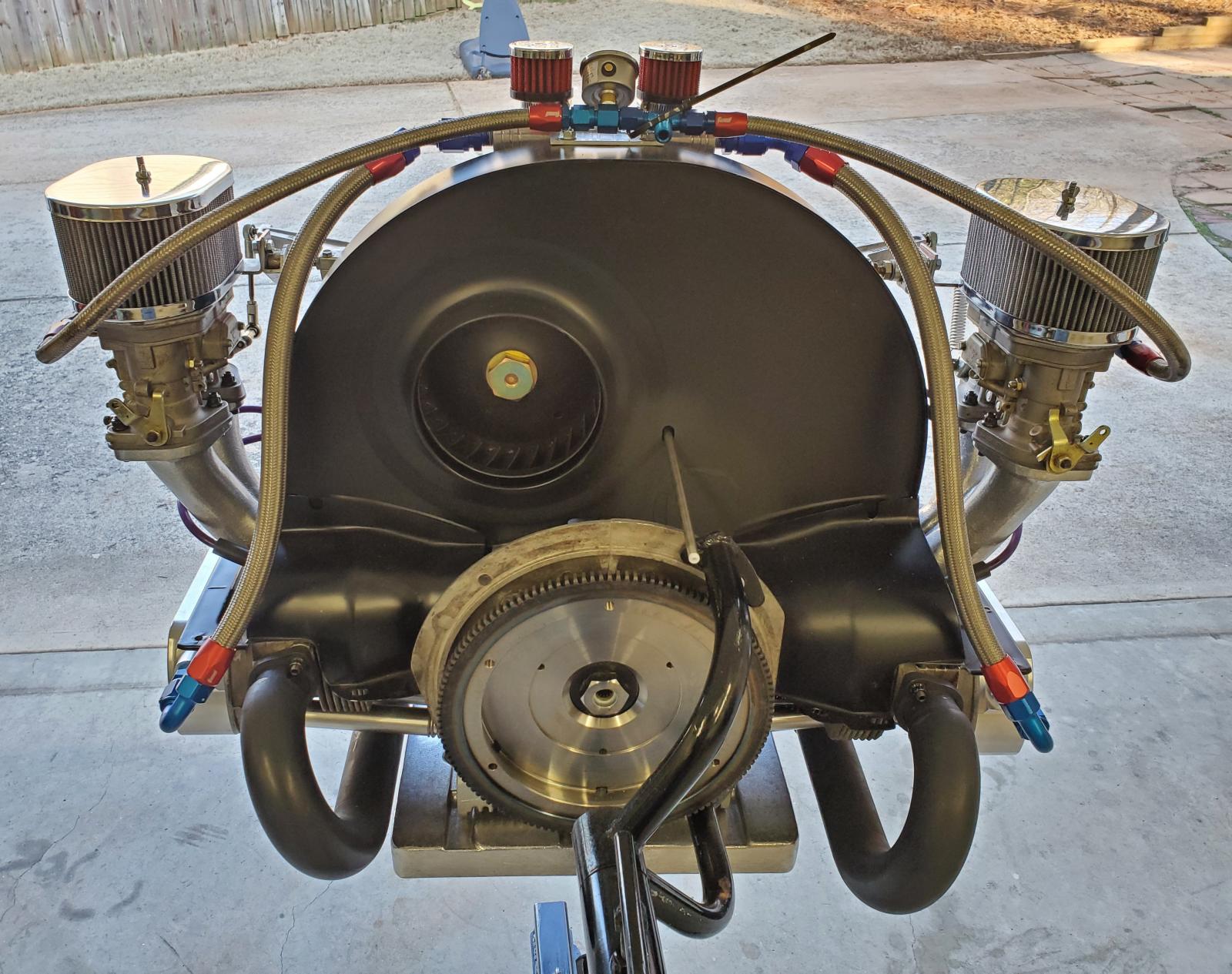

I went with the "cluttered" look.
_________________
71 Superbeetle, stock 1641DP with Weber progressive
Railbuggy with 2332
Scat 4340 84mm crank
5.5 H-beams
Mahle 94mm pistons
AA jugs
Grant rings
CB2292 cam + straight cut gears
46/37.5 CNC Wedgeports
Pauter 1.5's
Big Beef intakes
44IDF's/38 vents |
|
| Back to top |
|
|
Howard 111
Samba Member
Joined: July 09, 2005
Posts: 1827
Location: Virginia
|
| Posted: Tue Mar 09, 2021 12:44 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Turnswrenches, that doesn't look cluttered at all. Everything serves a purpose. Nice engine!
_________________
1973 Karmann Ghia
Turbocharged, Fuel Injected
http://www.thesamba.com/vw/forum/viewtopic.php?t=531270 |
|
| Back to top |
|
|
croSSeduP
Samba Member
Joined: June 13, 2004
Posts: 1150
Location: Western Washington State
|
| Posted: Tue Mar 09, 2021 12:54 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| Howard 111 wrote: |
| Turnswrenches, that doesn't look cluttered at all. Everything serves a purpose. Nice engine! |
I agree. But, it's not a Berg breather.
_________________
Please check my '67 sedan project progress!
http://www.thesamba.com/vw/forum/viewtopic.php?t=502253&highlight= |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79415
Location: Sneaking up behind you
|
| Posted: Tue Mar 09, 2021 1:25 pm Post subject: Re: Gene Berg Breather Pics |
|
|
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Turnswrenches
Samba Member
Joined: May 02, 2019
Posts: 552
Location: Dawsonville, GA
|
| Posted: Tue Mar 09, 2021 3:00 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Glenn... What carb linkage are you running on that hotrod ?
Im looking for an upgrade to my hacked-up redline stuff.
_________________
71 Superbeetle, stock 1641DP with Weber progressive
Railbuggy with 2332
Scat 4340 84mm crank
5.5 H-beams
Mahle 94mm pistons
AA jugs
Grant rings
CB2292 cam + straight cut gears
46/37.5 CNC Wedgeports
Pauter 1.5's
Big Beef intakes
44IDF's/38 vents |
|
| Back to top |
|
|
Teeroy
Samba Member
Joined: April 20, 2003
Posts: 3837
Location: Eastern WA
|
| Posted: Tue Mar 09, 2021 3:27 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Thats a Gene Berg linkage
_________________
Pres. Rivercity VW Club www.rcvwclub.org
Founder Derr Wheat Panzers (DWP)
ARR #3
www.autosportsnorthwest.org |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79415
Location: Sneaking up behind you
|
| Posted: Tue Mar 09, 2021 3:28 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| Turnswrenches wrote: |
Glenn... What carb linkage are you running on that hotrod ?
Im looking for an upgrade to my hacked-up redline stuff. |
It's a Berg.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
petrol punk
Samba Member
Joined: August 21, 2007
Posts: 1034
Location: Las Vegas, NV
|
| Posted: Tue Mar 09, 2021 3:36 pm Post subject: Re: Gene Berg Breather Pics |
|
|
I have the same style carb linkage and my Gene Berg breather wouldn't fit. I have the crossbar in the lower hole and it interferes with the vertical AN fitting on the breather. I think it would fit if the crossbar were installed in the upper hole though.
_________________
36hp '56 European DeLuxe oval
'70 bug 1835cc |
|
| Back to top |
|
|
74 Thing
Samba Member
Joined: September 02, 2004
Posts: 7630
|
| Posted: Tue Mar 09, 2021 3:44 pm Post subject: Re: Gene Berg Breather Pics |
|
|
If running vc breathers just use the 1&2 side and not the 3&4 side since that side fills up with oil anyways. Check out the old Muffler Mike Sheldon video with the window valve covers.
And your engine looks good already :D |
|
| Back to top |
|
|
j-dub
Samba Member
Joined: November 09, 2003
Posts: 870
Location: Phoenix, AZ
|
| Posted: Tue Mar 09, 2021 4:22 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Are you going to keep your breather box?
_________________
1957 Oval rag
"POLICE STATION TOILET STOLEN ... Cops have nothing to go on." |
|
| Back to top |
|
|
croSSeduP
Samba Member
Joined: June 13, 2004
Posts: 1150
Location: Western Washington State
|
| Posted: Tue Mar 09, 2021 7:09 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| j-dub wrote: |
| Are you going to keep your breather box? |
Are you asking me? If so, are you talking about the breather in the pic I posted, or the one from Berg that's on the way?
_________________
Please check my '67 sedan project progress!
http://www.thesamba.com/vw/forum/viewtopic.php?t=502253&highlight= |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79415
Location: Sneaking up behind you
|
| Posted: Tue Mar 09, 2021 7:13 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Here's a CB breather and linkage.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
nextgen
Samba Member
Joined: August 19, 2004
Posts: 6137
Location: CONGERS, N.Y.
|
| Posted: Tue Mar 09, 2021 7:26 pm Post subject: Re: Gene Berg Breather Pics |
|
|
You want clutter, I will show you clutter. I have used many after market breathers on my bugs and sqbk's and some were just overkill.
I then just ran the hose to the air cleaner, but after having my carbs rebuilt, Rick Hunt the rebuilder said not to run the hose directly to the air cleaner, the oil will mess up the carb. So I ran it out to the atmosphere and started to smell oil fumes.
OK built my own small breather out of an aftermarket oil filler tube. Works great, been driving it for months and no oil just fumes going into the carb.
The oil and fumes goes up, but cannot exit and drips back down into the case.
Keep in mind what VW used as breathers, they were very small. For larger engines I understand larger breathers, my breather would probably explode, ha.
_________________
email: [email protected]
The TYPE IV UPRIGHT CONVERSION MANUAL
BEETLE MAGNETIC DEFLECTOR SHIELDS
LETS TALK DUBS https://www.youtube.com/results?search_query=joe+cali+ghia https://letstalkdubs.libsyn.com/ep-200-joe-cali-ty...qI3xJTCzjs |
|
| Back to top |
|
|
Bones 53
Samba Member
Joined: February 19, 2005
Posts: 661
Location: Reno NV
|
| Posted: Tue Mar 09, 2021 7:31 pm Post subject: Re: Gene Berg Breather Pics |
|
|
The Berg breather provides a nice way to add oil and let the engine breath. I thought it was bulky so I fabbed a filler and used a Clyde Berg breather.
|
|
| Back to top |
|
|
Xevin
Samba Member
Joined: January 08, 2014
Posts: 8557
|
| Posted: Tue Mar 09, 2021 9:49 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Looking good.
Your engine bay looks great. However my eye is drawn to the wiring and crimps. Maybe clean those up in your pursuit for less clutter. Sorry, that wasn’t your question, just thinking out loud.
Mine engine bay is a “Junk Drawer” full of stuff
I dig looking at all these hi-performance engines. One of these days, I might fool around and go for it.
_________________
Keep on Busin'
| 67rustavenger wrote: |
GFY's Xevin and VW_Jimbo!  |
| Clatter wrote: |
| Damn that Xevin... |
| skills@eurocarsplus wrote: |
I respect Xevin and he's a turd  |
| SGKent wrote: |
My God! Xevin and I 100% agree  |
|
|
| Back to top |
|
|
croSSeduP
Samba Member
Joined: June 13, 2004
Posts: 1150
Location: Western Washington State
|
| Posted: Tue Mar 09, 2021 9:56 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| Xevin wrote: |
Looking good.
Your engine bay looks great. However my eye is drawn to the wiring and crimps. Maybe clean those up in your pursuit for less clutter. Sorry, that wasn’t your question, just thinking out loud.
Mine engine bay is a “Junk Drawer” full of stuff
I dig looking at all these hi-performance engines. One of these days, I might fool around and go for it. |
Re. wiring...I totally agree with you! But, I don't know what to do about it. I need wiring for oil pressure switch, oil pressure gauge, oil temp switch, oil temp gauge, head temp gauge, etc., etc., etc.! Those wires NEED to be there. I don't know how to clean that up. Now, add breather hoses coming around too, and....
You see my dilemma.
First World problems, for sure.
_________________
Please check my '67 sedan project progress!
http://www.thesamba.com/vw/forum/viewtopic.php?t=502253&highlight= |
|
| Back to top |
|
|
j-dub
Samba Member
Joined: November 09, 2003
Posts: 870
Location: Phoenix, AZ
|
| Posted: Tue Mar 09, 2021 9:57 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| croSSeduP wrote: |
| j-dub wrote: |
| Are you going to keep your breather box? |
Are you asking me? If so, are you talking about the breather in the pic I posted, or the one from Berg that's on the way? |
Yes, I was asking if you are keeping the breather box on the firewall and simply adding the berg filler/breather? I have a berg filler/breather and it used one of those V8 valve cover breather that is used as an intake for the air when run with a PVC system. I had my fuel pump block off and my 1/2 valve cover vented to it. I found that there simply was not enough breathing going on and the V8 style breather would leave a mist under it like a mild shower head.
Here is a pic of that setup, I have since painted the distributor cap
I do like Glenn's berg breather style better that has a stock style oil filler cap and then a 19mm hose you can send out of the engine compartment. Bonus points to Bones 53s custom filler setup and distributor!
_________________
1957 Oval rag
"POLICE STATION TOILET STOLEN ... Cops have nothing to go on." |
|
| Back to top |
|
|
jpaull
Samba Member
Joined: February 22, 2005
Posts: 3639
Location: Paradise, Ca
|
| Posted: Tue Mar 09, 2021 10:18 pm Post subject: Re: Gene Berg Breather Pics |
|
|
| j-dub wrote: |
| croSSeduP wrote: |
| j-dub wrote: |
| Are you going to keep your breather box? |
Are you asking me? If so, are you talking about the breather in the pic I posted, or the one from Berg that's on the way? |
Yes, I was asking if you are keeping the breather box on the firewall and simply adding the berg filler/breather? I have a berg filler/breather and it used one of those V8 valve cover breather that is used as an intake for the air when run with a PVC system. I had my fuel pump block off and my 1/2 valve cover vented to it. I found that there simply was not enough breathing going on and the V8 style breather would leave a mist under it like a mild shower head.
Here is a pic of that setup, I have since painted the distributor cap
I do like Glenn's berg breather style better that has a stock style oil filler cap and then a 19mm hose you can send out of the engine compartment. Bonus points to Bones 53s custom filler setup and distributor! |
J-Dub, nice engine! Your the only one that makes that Berg breather look good!!
_________________
[email protected] MPH 1/4 Mile & 8.1 @ 83.7MPH in 1/8 Mile with Mild Type 1 VW Mag Case 2234cc commuter engine in stock weight bug w/only .491 total lift(CB2292 Cam), 42x37 heads, 48idf's, Street tires, Belt on, Mufflers, Pump gas, video of the run here: https://youtu.be/M3SPqMOKAOg
Transmission by MCMScott:
Rhino case, Klinkenberg 4.12, Superdiff, 002 mainshaft with 091 first idler. Weddle 1.48 Third & 1.14 Fourth. |
|
| Back to top |
|
|
jason
Samba Member
Joined: August 07, 2002
Posts: 3462
Location: Garage
|
| Posted: Thu Mar 11, 2021 10:16 pm Post subject: Re: Gene Berg Breather Pics |
|
|
Here is one I put in my bus. I believe they are a little shorter. It also has the vent cap. Its the same as a v8 uses. It has a vent cap so I capped the inputs.
|
|
