Late VW beetle Vacuum schematic
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Amos Roleau
Samba Member


Joined: July 15, 2025
Posts: 1
Location: Vermont
Amos Roleau is offline
PostPosted: Wed Jul 16, 2025 1:11 pm    Post subject: Late VW beetle Vacuum schematic Reply with quote
Vacuum schematic for 1978 VW beetle from California. Have tried to find vacuum schematics online and even bought a Bentley book but it still is not a comprehensive vacuum diagram. Only shows older vacuum routing. Are there any members that have these original cars that can help me get these vacuum lines all put back in their proper position? The people that owned this car had butchered all the fuel and vacuum system just to make it sort of run. This vehicle does not have an EGR valve.
Back to top
View user's profile Send private message Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 52778
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline
PostPosted: Wed Jul 16, 2025 2:49 pm    Post subject: Re: Late VW beetle Vacuum schematic Reply with quote
waxhead wrote:

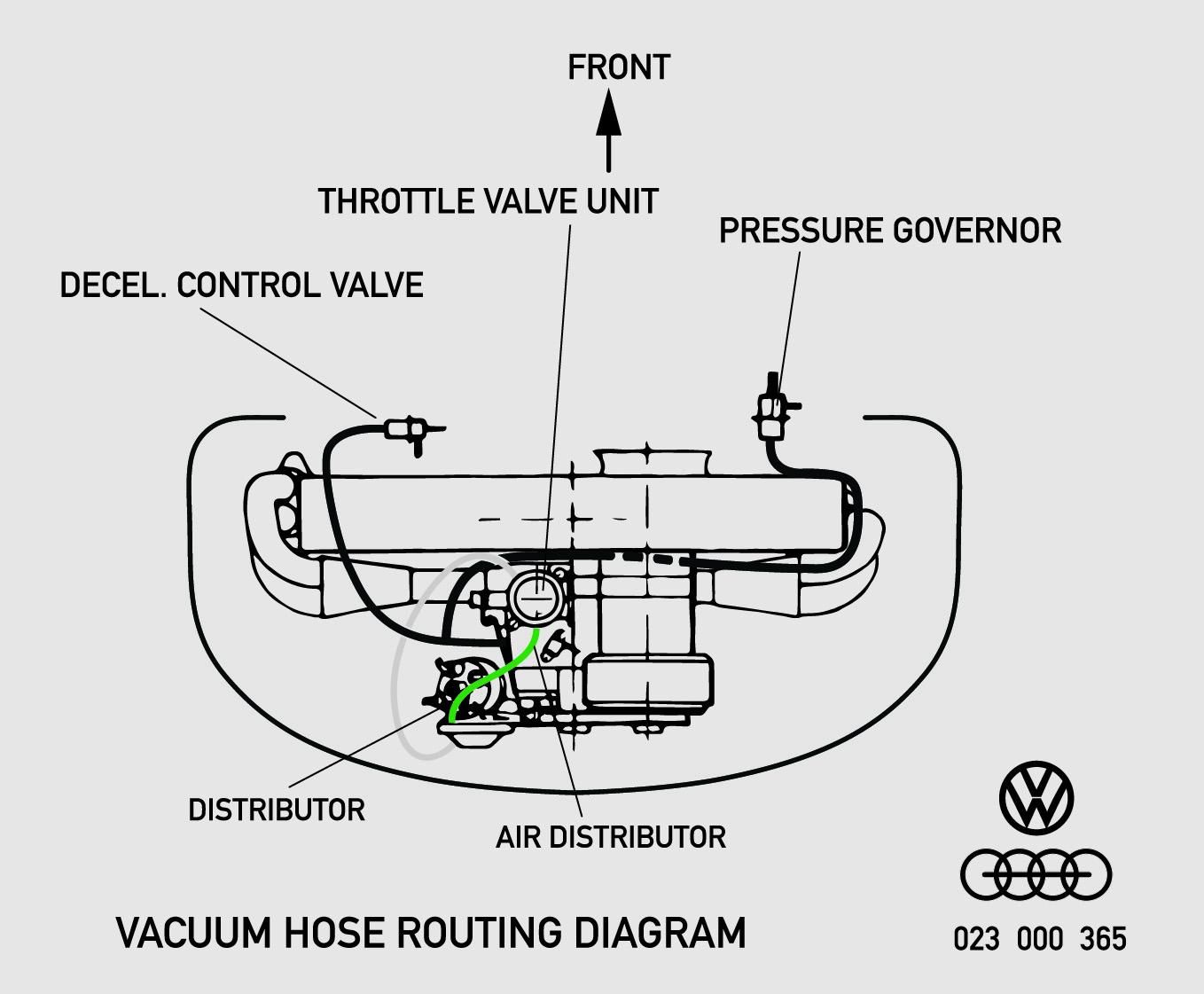

I have just started reproducing this sticker, found on the inside of the deck lid of late-model fuel injected cars.

Accurate reproduction printed on silver foil, then laminated for durability. See my ads to order.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
