Jetta 2.5 se conversion?
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
vodo1976
Samba Member


Joined: February 01, 2011
Posts: 9
Location: Navarro, CA
vodo1976 is offline

PostPosted: Wed Jul 30, 2025 4:42 pm    Post subject: Jetta 2.5 se conversion? Reply with quote

Someone just wrecked their Jetta 2.5 se near my house
Will that engine fit into my 86 Westy?
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 18751
Location: Retired South Florida
MarkWard is offline

PostPosted: Wed Jul 30, 2025 5:14 pm    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

I had to google it. Looks to be an inline 5 cylinder. Owners have installed the Audi version of that engine. Maybe slight trimming. I recall reading there was a South African Vanagon that had a 5 cylinder new.

Probably not a weekend project, but with skills, time, and money, I’m sure it’s possible.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OlisGarage
Samba Member


Joined: June 01, 2022
Posts: 240
Location: Indianapolis, IN
OlisGarage is offline

PostPosted: Wed Jul 30, 2025 6:35 pm    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

Yes it will, but there are no kits. Here is a thread where user kdj just recently did this. It’s a very clean swap. I’m sure he will chime in, but it took some fabrication skills. He did a great job.

https://www.thesamba.com/vw/forum/viewtopic.php?t=...p;start=40
_________________
1981 VW Vangagon TDI (in progress)
1984 VW Rabbit Convertible (daily)
2003 VW Jetta Wagon TDI (recovering from a hit and run)
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
vodo1976
Samba Member


Joined: February 01, 2011
Posts: 9
Location: Navarro, CA
vodo1976 is offline

PostPosted: Wed Jul 30, 2025 7:45 pm    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

Awesome. Thanks for the link.
Gotta figure out if I need the diesel bell housing.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 15352
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Thu Jul 31, 2025 4:47 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

No you don't use the diesel 50* bellhousing
you use a Kennedy Adapter plate.

and some DIY fabrication.
_________________
Abscate wrote:
These are the reasons we have words like “wanker”
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Kdj
Samba Member


Joined: January 28, 2017
Posts: 269
Location: Naptown
Kdj is offline

PostPosted: Thu Jul 31, 2025 5:36 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

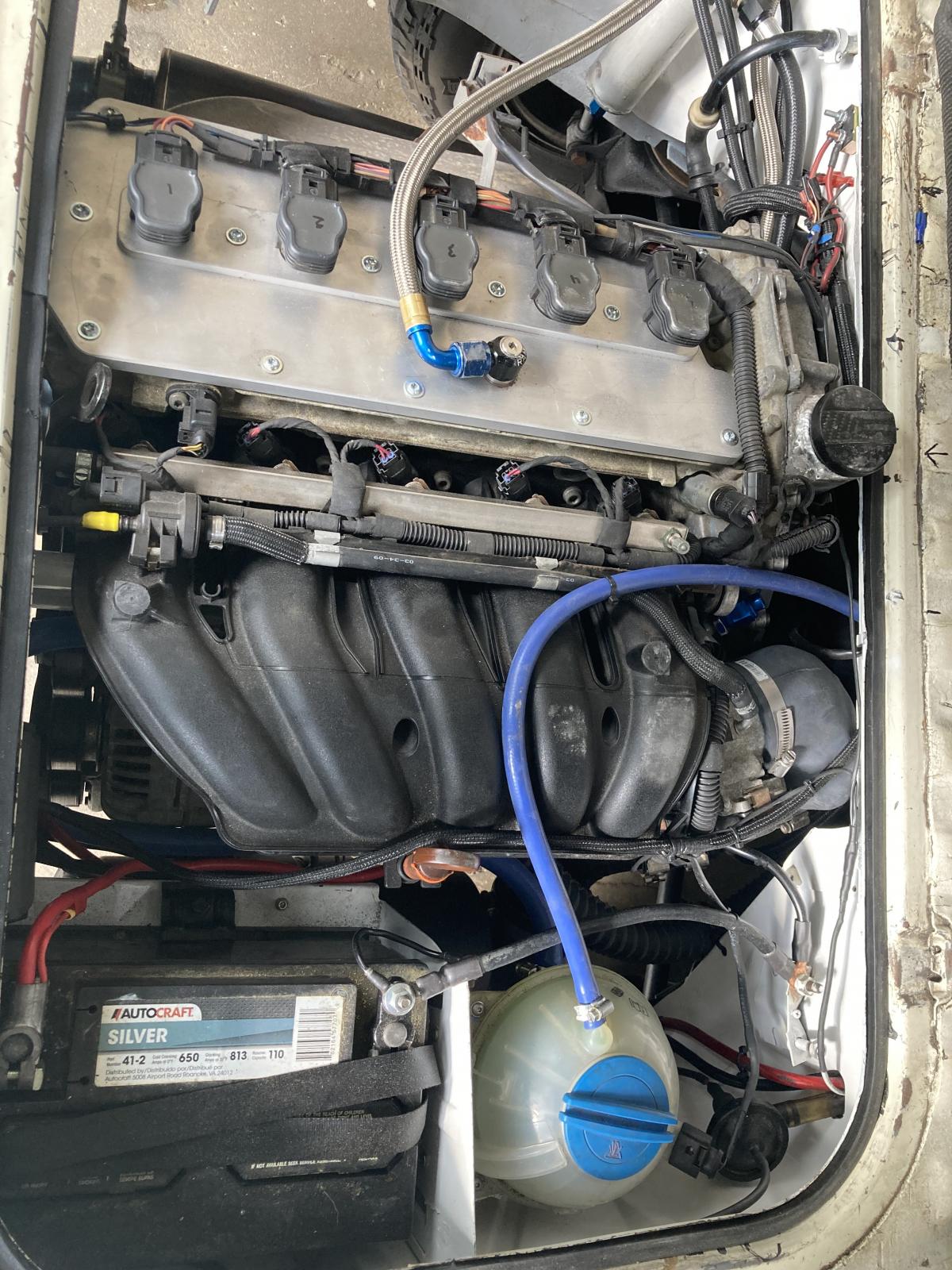

Yes the 07k from a 2.5 jetta will fit in a vanagon.
Image may have been reduced in size. Click image to view fullscreen.


It will take some fabrication. I posted what I did in the earlier linked thread.
Also suggest you read Pchills thread on Honda k-24 swap. His excellent skill is what inspired me. There are a couple of other k-24 threads also.
https://www.thesamba.com/vw/forum/viewtopic.php?t=766259&highlight=k24

The biggest hurdle is the front timing cover. I opted to raise my engine cover but have since learned of a better solution. The audi DAZA found in RS3's has a timing cover that would solve this problem pretty easily. Then its the intake manifold, again aftermarket solutions are available or just keep it stock.

Got more then 2000 miles so far and am very happy. Torque is your friend when trying to push a brick down the road. This engine has it. Maybe not as much as a diesel, but a big jump over the old 1.8 8v that was in my van when I got it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vodo1976
Samba Member


Joined: February 01, 2011
Posts: 9
Location: Navarro, CA
vodo1976 is offline

PostPosted: Thu Jul 31, 2025 7:06 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

I think you mentioned that the conversion cost you about $5,000 using your own labor.
Does that include the cost of the engine?
What are the major costs/parts?
Also, can I stick with my stock transmission?
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
vodo1976
Samba Member


Joined: February 01, 2011
Posts: 9
Location: Navarro, CA
vodo1976 is offline

PostPosted: Thu Jul 31, 2025 7:34 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

I think you mentioned that the conversion cost you about $5,000 using your own labor.
Does that include the cost of the engine?
What are the major costs/parts?
Also, can I stick with my stock transmission?
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
vodo1976
Samba Member


Joined: February 01, 2011
Posts: 9
Location: Navarro, CA
vodo1976 is offline

PostPosted: Thu Jul 31, 2025 7:38 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

Oh man. This looks like it may be over my skill and commitment level.
Might just need to find a conversion that has a comprehensive kit.
I can do basic welding (MIG) and some electrical work, but that’s about the extent of my skill level.
Plus I can barely fit my van in my tiny over-stuffed garage!
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Kdj
Samba Member


Joined: January 28, 2017
Posts: 269
Location: Naptown
Kdj is offline

PostPosted: Thu Jul 31, 2025 7:57 am    Post subject: Re: Jetta 2.5 se conversion? Reply with quote

There's a link to a spreadsheet with cost brake down in the 07k thread. I'm just guy in his garage also, so don't underrate yourself. Though do have access to some equipment at work there really isn't anything that can't be done with a mig welder and angle grinder. If you want it you can do it! But also much respect a man who know his limitations.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
