| Author |
Message |
cmonSTART
Samba Member
Joined: July 15, 2014
Posts: 1915
Location: NH
|
 Posted: Sat Jun 16, 2018 4:11 pm Post subject: Installed Z-bed hinges - what are these brackets?? |
 |
|
Hey Folks, I installed these Z-bed hinges today:
http://www.busdepot.com/zbed
All is well, but what are these brackets supposed to do? The instructions aren't really that helpful:
"When in bed position you may want to use the rear support folk which in bays just slots into the small bar where you seat fits into." (That's as written, spelling and all..)
That really doesn't help me. What are these things and where do they go? Anyone have any pictures?
[/img]
_________________
'78 Bus 2.0FI
de K1IGS |
|
| Back to top |
|
 |
alman72
Samba Member
Joined: October 09, 2014
Posts: 2576
Location: MICHIGAN
|
| Posted: Sat Jun 16, 2018 4:32 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
folk? slots?
my guess is that the fork sides into the factory tabs.
when your rear seat is now able to move up and forward, look at the slanted tin going from the floor to the cargo area where the engine access is (if you are post 72) on this slanted rear wall tin, are factory tabs/inserts for the factory bench.
this is a guess, and I will hunt for a pic to make my thought clear.
|
|
| Back to top |
|
|
cmonSTART
Samba Member
Joined: July 15, 2014
Posts: 1915
Location: NH
|
| Posted: Sun Jun 17, 2018 5:42 am Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
Hmm.. it appears my 78 doesn't have that bracket, but it might be a good idea to weld one on when I am sufficiently motivated.
_________________
'78 Bus 2.0FI
de K1IGS |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
|
| Back to top |
|
|
cmonSTART
Samba Member
Joined: July 15, 2014
Posts: 1915
Location: NH
|
| Posted: Sun Jun 17, 2018 1:41 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
Man, hate to say it but I couldn't find any reference to these clips in those Youtube links.
It does look like they're supposed to slide into a bracket as alman72 posted, just my bus doesn't have one. Everyone on Youtube just unfolds the bed and doesn't mess with the bracket.
_________________
'78 Bus 2.0FI
de K1IGS |
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12846
Location: San Jose, California, USA
|
| Posted: Sun Jun 17, 2018 5:32 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
Time to call the vendor.
Good luck
Tcash |
|
| Back to top |
|
|
DerLuftkuhler
Samba Member
Joined: January 25, 2015
Posts: 11
Location: Finland
|
| Posted: Wed Feb 10, 2021 1:20 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
Hi,
did the mist ever clear over this mystery? I have the same setup and wondering this too. |
|
| Back to top |
|
|
skills@eurocarsplus
Samba Peckerhead
Joined: January 01, 2007
Posts: 17873
Location: sticksville, ct.
|
| Posted: Wed Feb 10, 2021 1:41 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
seeing the Zee industries bed sits FLUSH with the rear cargo area it is a "kick stand' to support the top edge of the seat with the edge of the bulkhead.
unless you're giving your partner the pakistani pile driver it's probably not needed
_________________
| gprudenciop wrote: |
my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese....... |
| Jake Raby wrote: |
| Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public. |
| Brian wrote: |
| Also the fact that people are agreeing with Skills, it's a turn of events for samba history |
|
|
| Back to top |
|
|
cmonSTART
Samba Member
Joined: July 15, 2014
Posts: 1915
Location: NH
|
| Posted: Wed Feb 10, 2021 1:50 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
Wow, I posted that a while ago.
The above is correct - It's supposed to support the seat back. I still have not welded in a bracket to do so. I really should do that soon.
_________________
'78 Bus 2.0FI
de K1IGS |
|
| Back to top |
|
|
HoboBus
Samba Member
Joined: December 29, 2016
Posts: 350
Location: Not Key West, unfortunately.
|
| Posted: Wed Feb 10, 2021 3:12 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
| skills@eurocarsplus wrote: |
unless you're giving your partner the pakistani pile driver it's probably not needed
|
Epic.
Henceforth, This shall be known as the PPD bracket.
_________________
Salt air it ain't thin, it'll stick right to your skin,
it'll make you feel fine. Makes you feel fine.
And I wanna be there. -- Jimmy Buffett
Just a beach-oriented camping Hobo with a bus. |
|
| Back to top |
|
|
DerLuftkuhler
Samba Member
Joined: January 25, 2015
Posts: 11
Location: Finland
|
| Posted: Thu Feb 11, 2021 11:52 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
| skills@eurocarsplus wrote: |
| unless you're giving your partner the pakistani pile driver it's probably not needed |
Thanks! As i'm not native in english i had to google this one up and according to urban dictionary's definition, this maneuvre seems quite awkward and uncomfortable so i'm safe to say it's unlikely to happen in my bus. Most likely will leave them unused.
In my late model '73 9-seater bus there are two factory tabs in the slanted tin area that the back rest is bolted in to, but the brackets would need modification to fit. I will post pics of the solution if i ever get there. |
|
| Back to top |
|
|
cryptonate
Samba Member
Joined: November 02, 2023
Posts: 5
Location: New Jersey
|
| Posted: Thu Jul 31, 2025 3:45 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|

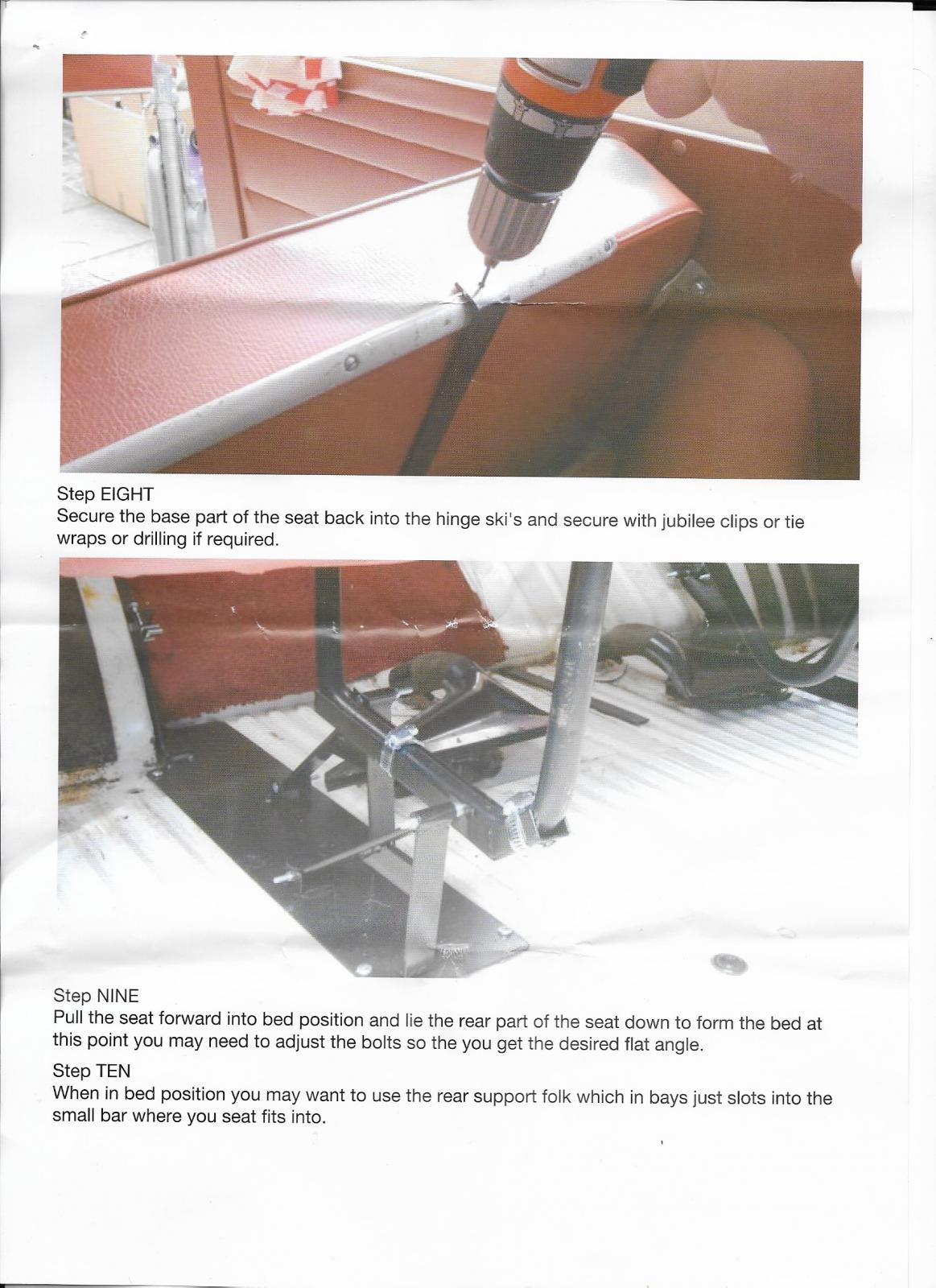

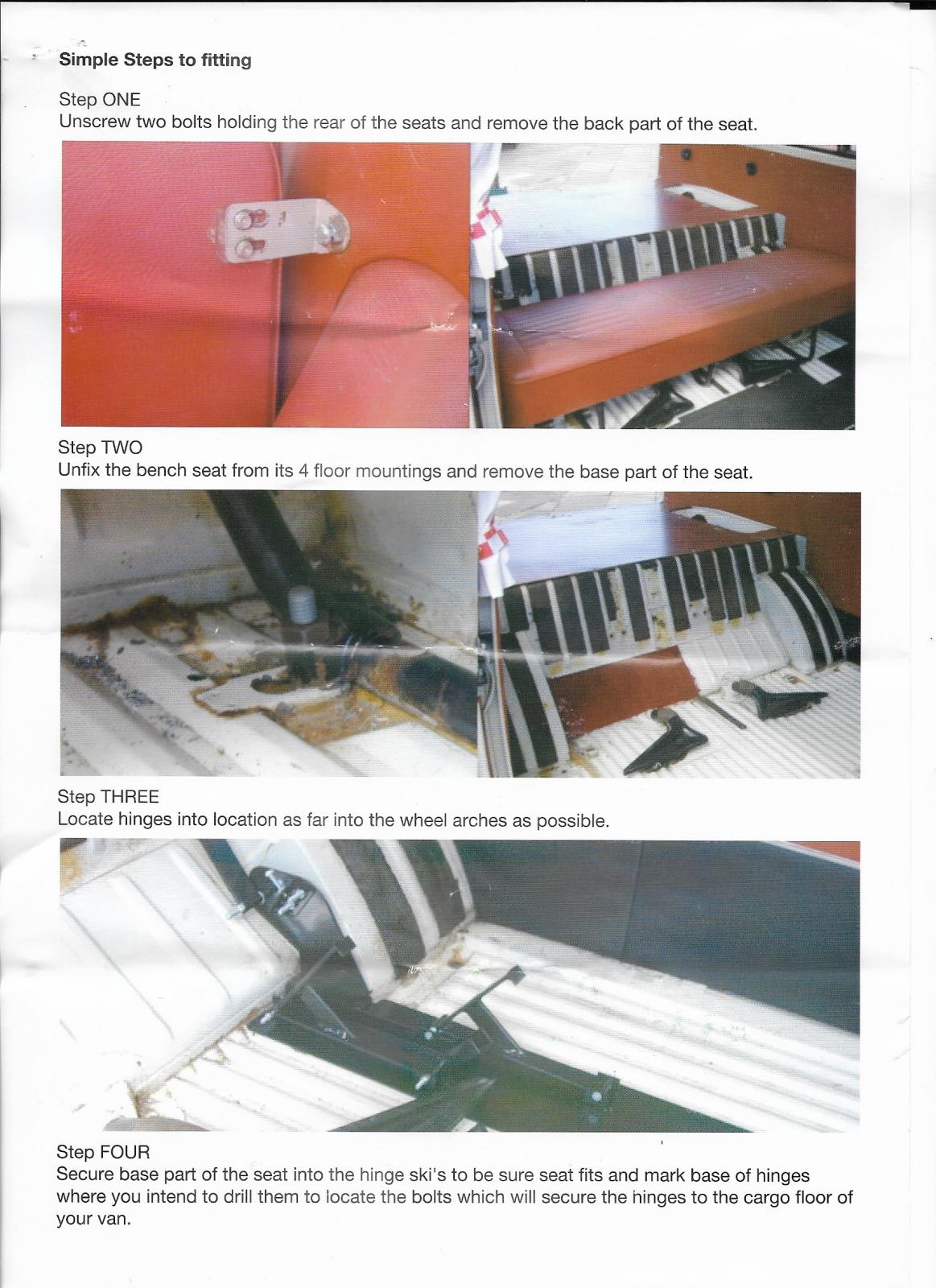

I finally broke down and bought these from busdepot for my 75 bay window tin top. I asked for the full instructions before buying but they never sent them so I am posting it here in case it could help anyone and in case anyone has done it and has tips to help me.
|
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42786
Location: at the beach
|
| Posted: Thu Jul 31, 2025 3:52 pm Post subject: Re: Installed Z-bed hinges - what are these brackets?? |
|
|
| cryptonate wrote: |
I finally broke down and bought these from busdepot for my 75 bay window tin top. I asked for the full instructions before buying but they never sent them so I am posting it here in case it could help anyone and in case anyone has done it and has tips to help me.
|
Thank you for posting it. They are basically the same instructions that Z-Products of N. Hollywood CA (now defunct) gave when they made and sold the kits. I think that the owner, Tim as I recall his name, sold the plans and misc left overs to Ron at BD. The kit is good, I have had one in both buses I owned. It worked incredibly well when camping or traveling and you just need to lay down and get some sleep in a KOA or something. Last time we used the bed we went to Yosemite and took our large tent. But somehow I packed the poles somewhere else so we had to sleep in the bus. The only problem with having the bed is that the spare tire takes up too much room. You will either end up with it on the floor, chained to the bus when you sleep, or or on the nose of the bus, where it will do some damage over time. Were the nose of my bus not like it just left the factory, I would have a nose mount like I had on the 1971.
