113 VW 1200 deluxe from 1962 - different heating outlets?

pastellgreen

Hello,

I'm thinking of buying a deluxe from May 1962, first delivery in austria. I got several pictures from the current owner, it seems to be a very clean and original car.
From the german models I know, that a steering wheel lock was added since august 1961, but during my research in classified ads, I have seen vehicles from model year 1962 delivered to other (also european) countries, that still have the ignition key placed in the dashboard. I assume, it was a german-only thing, for other countries you had to add the option M 55 or so. So I'm not surprised that the austrian offered has no steering-iginiton-lock.

But:

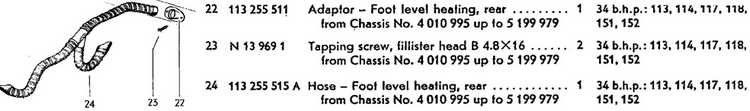

I also got pictures from the area under the rear seat. And here, I'm very surprised. Normally, I would have thought it to be like that:

Image may have been reduced in size. Click image to view fullscreen.

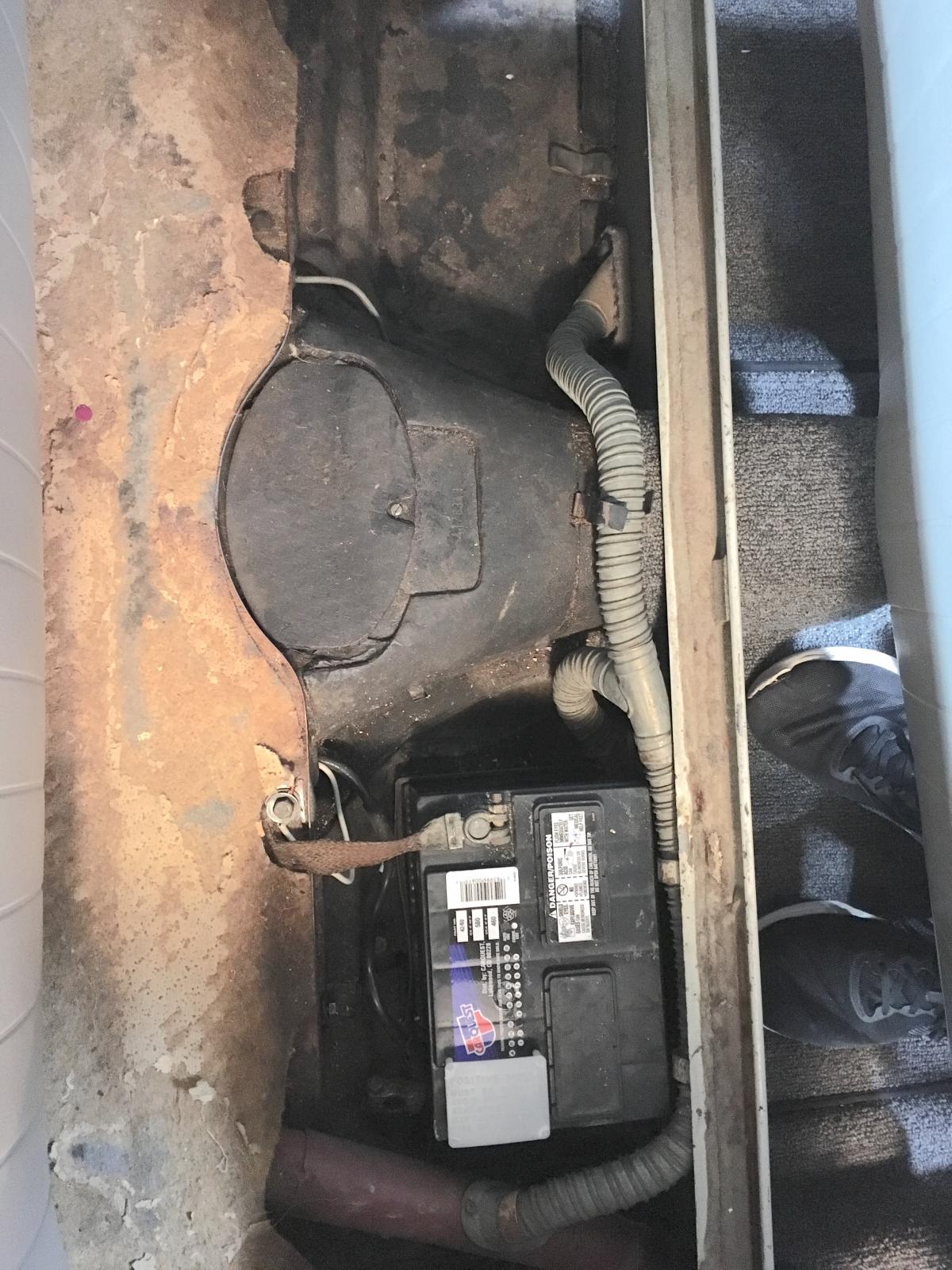

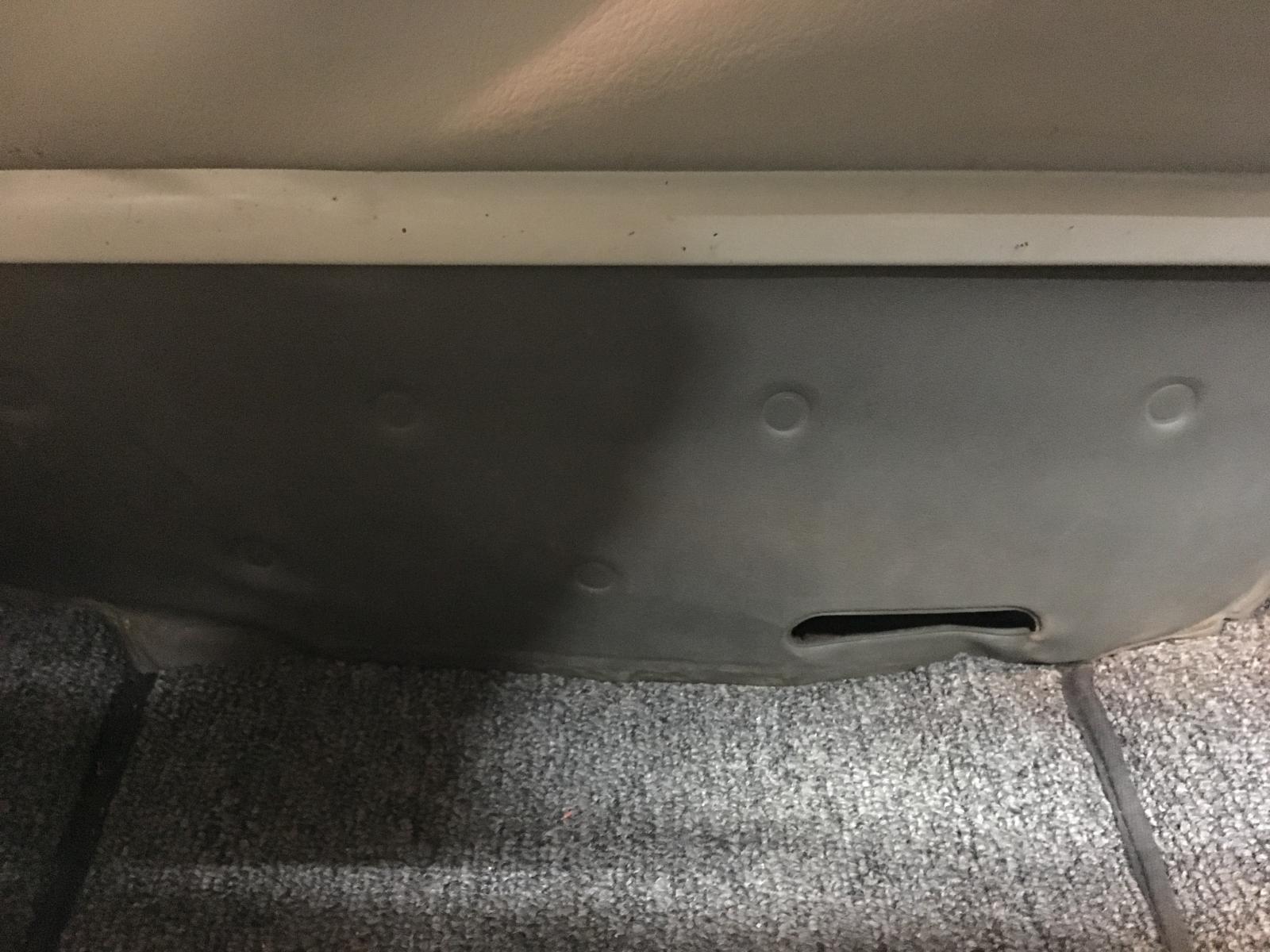

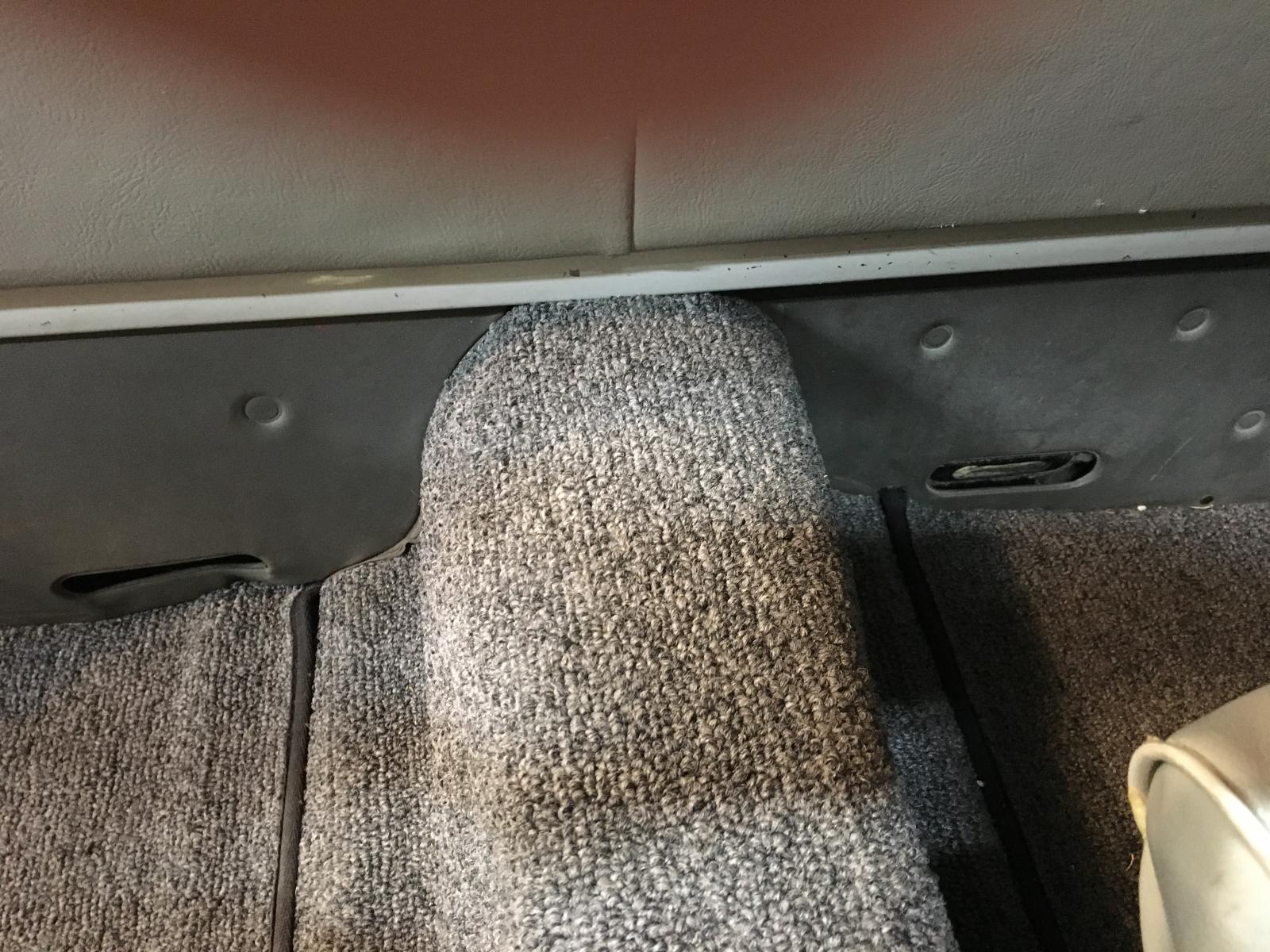

but the setting in the offered car looks like this:

I do not understand it, because with the all known setting from the first picture, VW introduced a very effective heater outlet. Is this factory or dealer installed? Regarding also the quality of work on the boards, it looks to me very professional, when not installed from the factroy, it should be an accessory item? Does anybody have seen this setting anywhere?

VOLKSWAGNUT

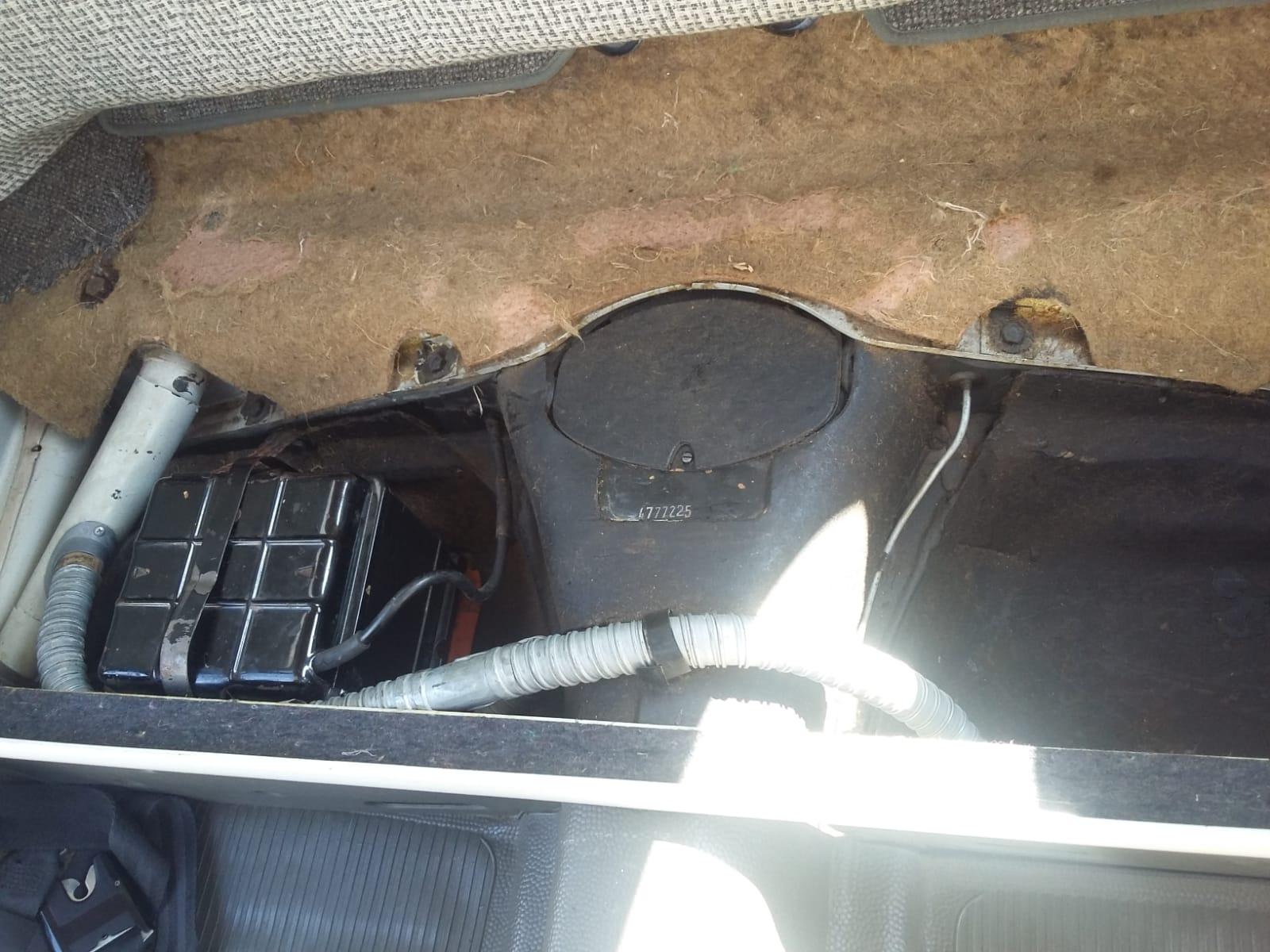

Has "1962" heating.. .. so should be correct.

Best 62 heat topic

https://www.thesamba.com/vw/forum/viewtopic.php?t=445797

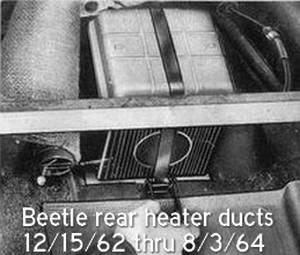

63/64 heat topic

https://www.thesamba.com/vw/forum/viewtopic.php?t=541030

.
_________________
aka Ken {o\!/o}
Its your vehicle- stop askin' for approval-do what YOU like for cryin' out loud
Better to roll em' how you want and wear em' out-than lettin' em' rot out
Its about the going not the showing
Rebuilt to drive not decorate
WANTED: Local Eatin' Joints, Triple D for TheSamba contributions here http://www.thesamba.com/vw/forum/viewtopic.php?t=570510
Search "VOLKSWAGNUT" on YouTube since you cant watch a "certain" BELT change video round here
Usually and often edited

pastellgreen

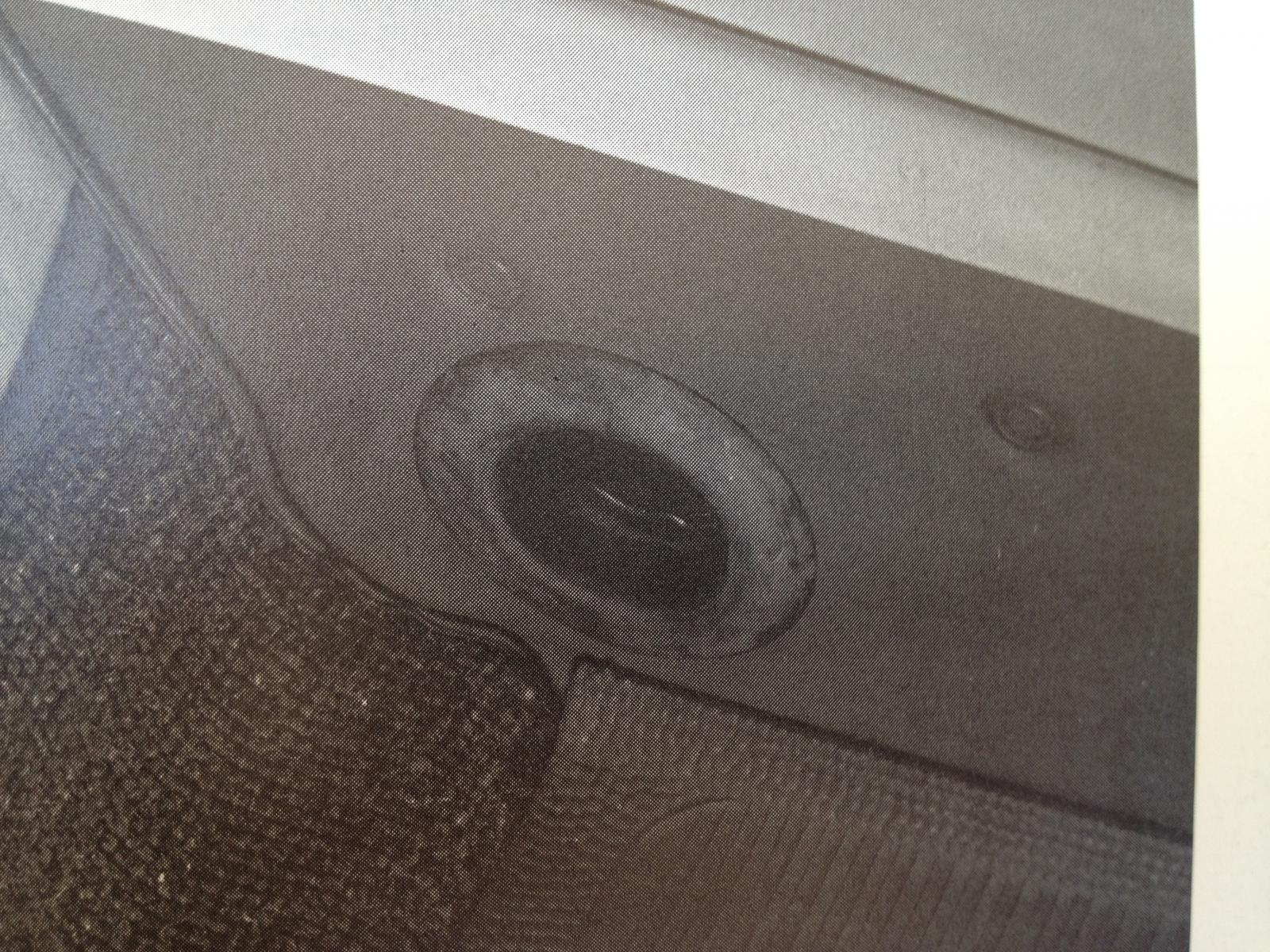

Thank you! But when did they use the round style heater outlets wihtout flaps? Or did they install tem only in german delivered cars?

VOLKSWAGNUT

pastellgreen

Thank you very much again! The first picture was found in a german book about the changes on the beetle, and was an example picture for the heater outlets starting in august 1961. So the picture is obviously wrong?
But the book also states: hand knob flap controls since 13 december 1962. Is there a possibillity, that in germany we always had only the round outlets, and since the mentioned date with flaps? I'm really confused now... however I have never seen the oblong type here in germany.

edit: found german instruction manuals on internet showing clearly the oblong type in 1961. But the manual from January 1962 shows the round style with control flaps. My confusion is gone by now, but many thanks to you!

I once had a 7/1961 and a 3/1963 and never came in touch wiht the oblong type...
