 Posted: Sun Jul 12, 2009 12:39 pm Post subject: 1967 Riviera Camper project..... |
 |
|
Thought I would share my project. It's my buddy Eric Williams' bus, and ended up being a partial restore. It needed rust repair, some interior, and touch body/paint. Looking to make it a little more respectable.
Hope you enjoy the pics

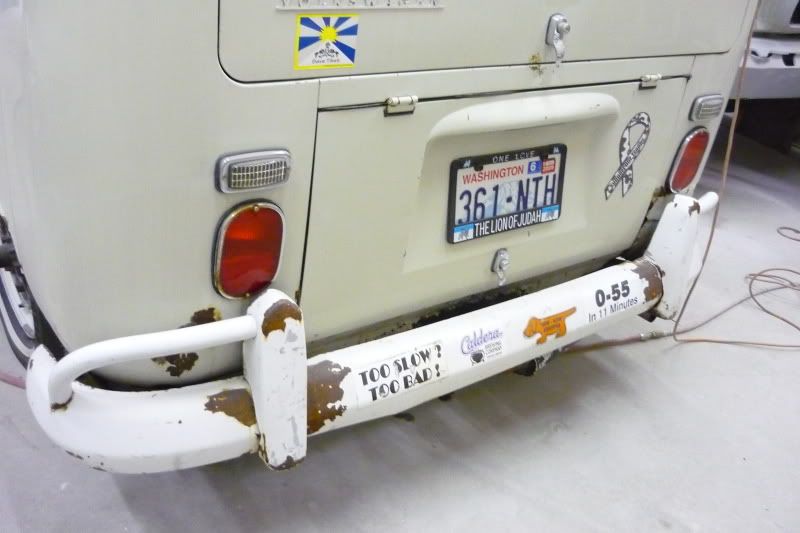

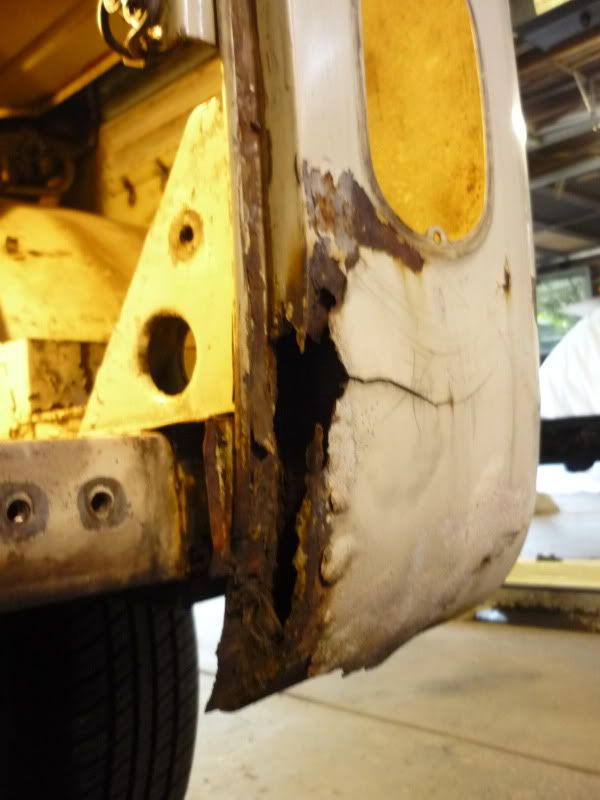

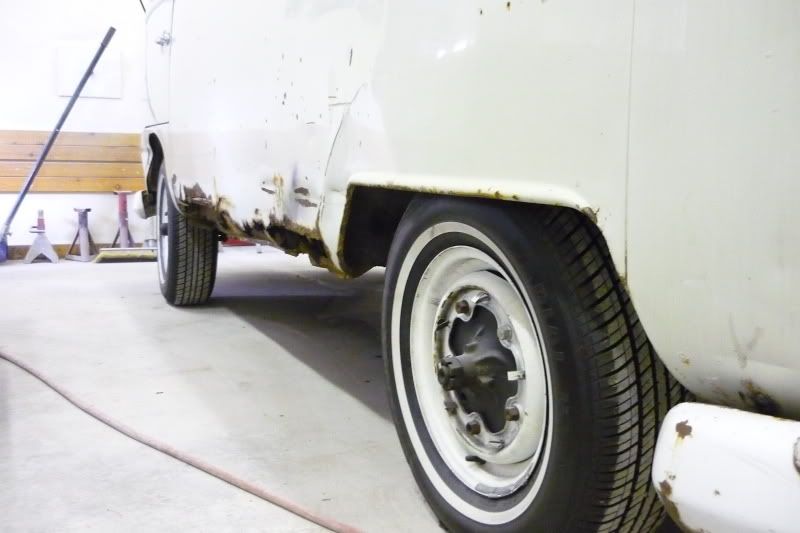

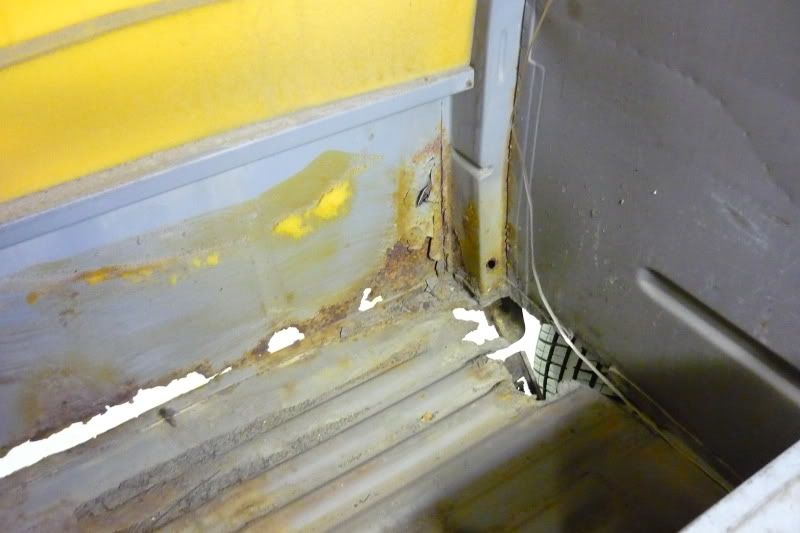

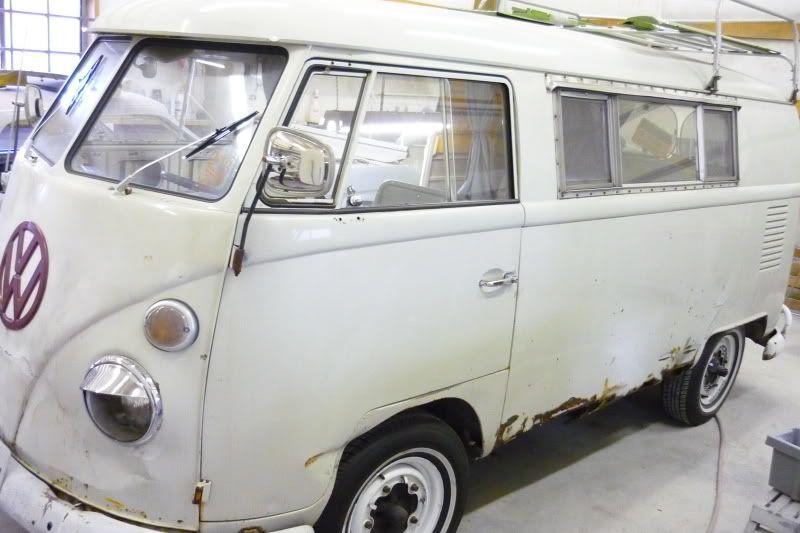

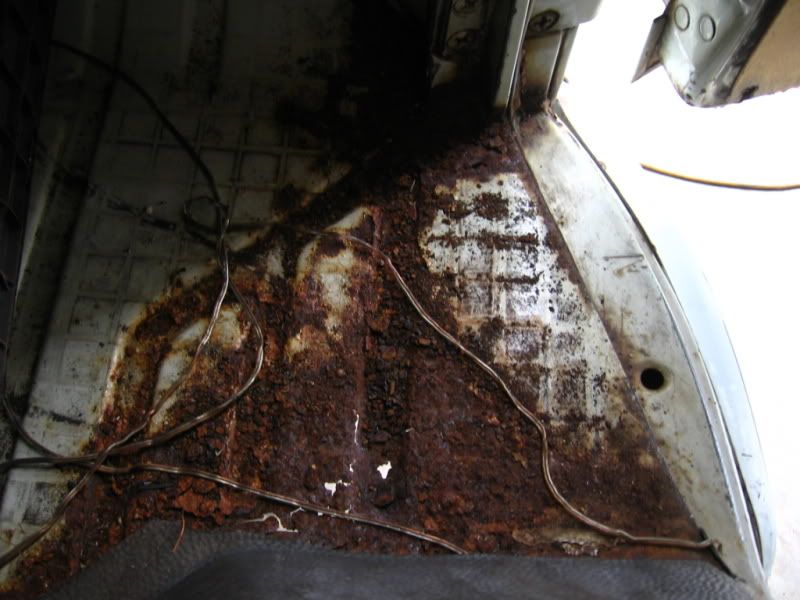

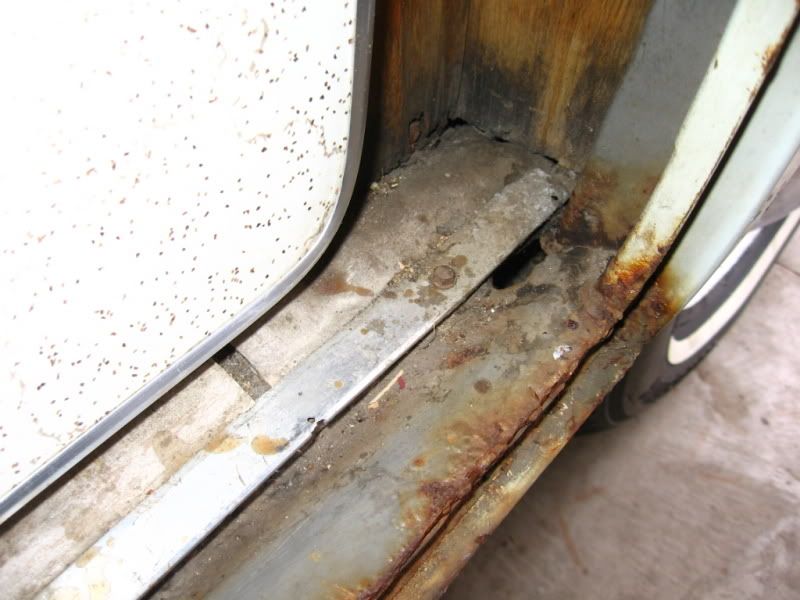

What I started with.....
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
 |
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Sun Jul 12, 2009 4:12 pm Post subject: |
|
|

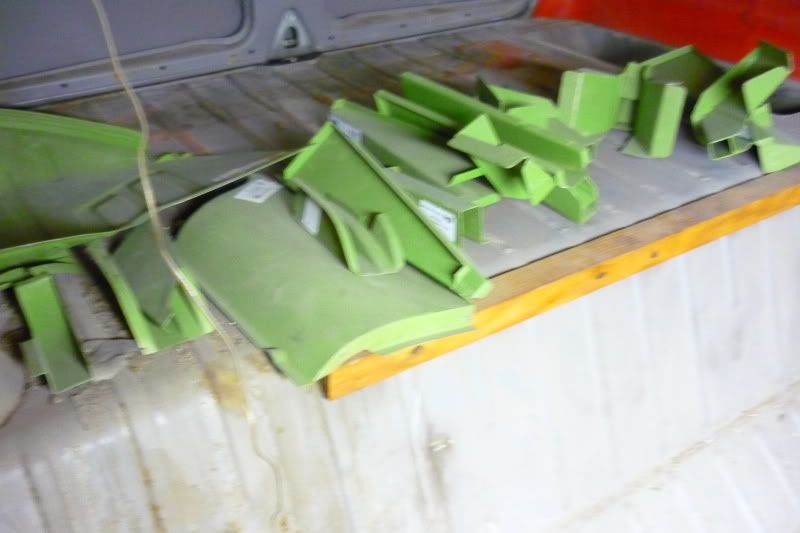

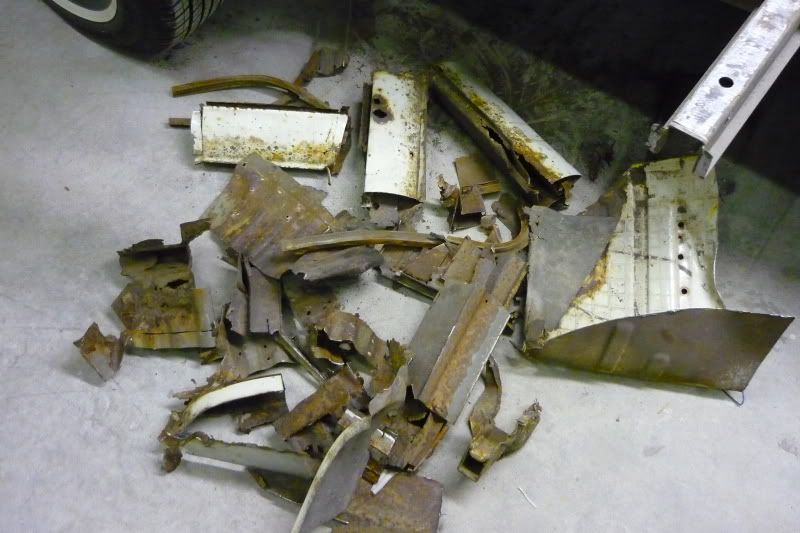

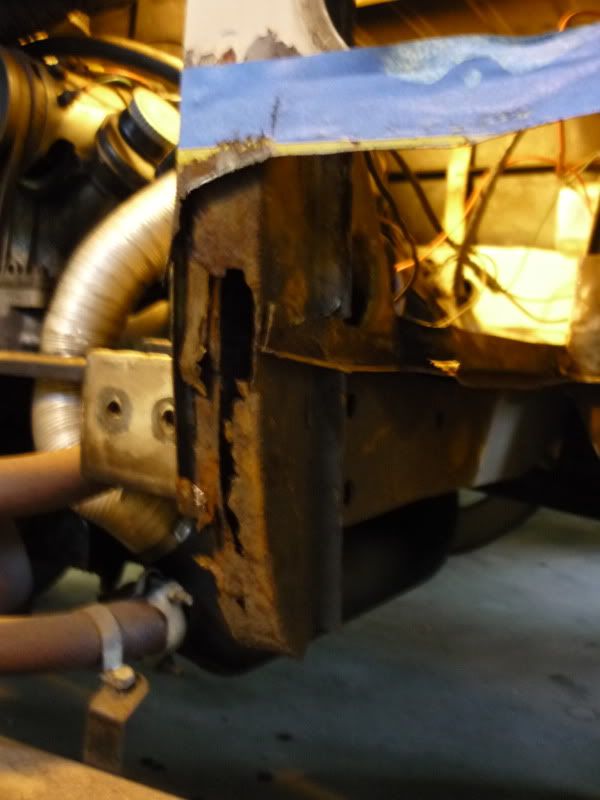

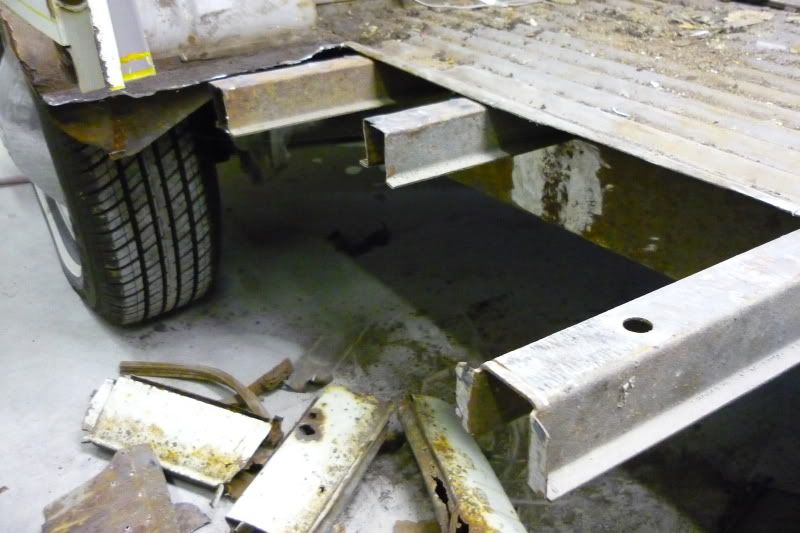

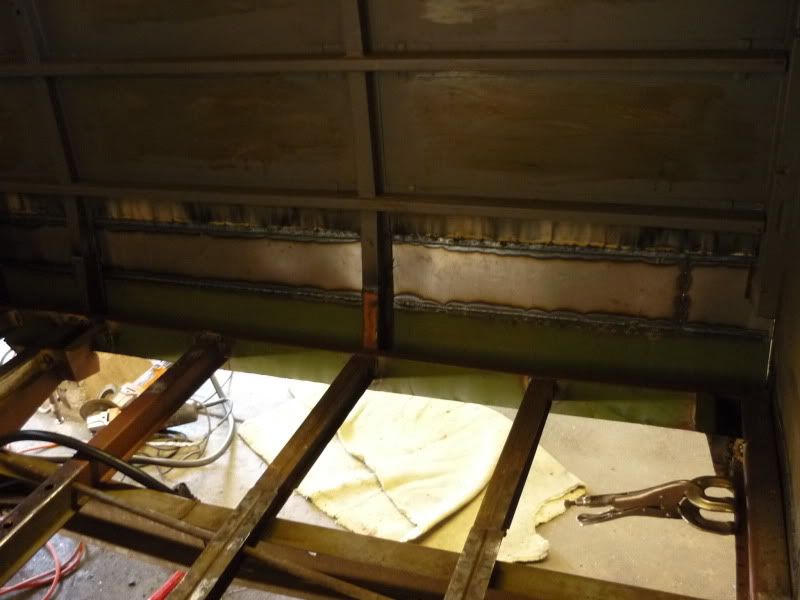

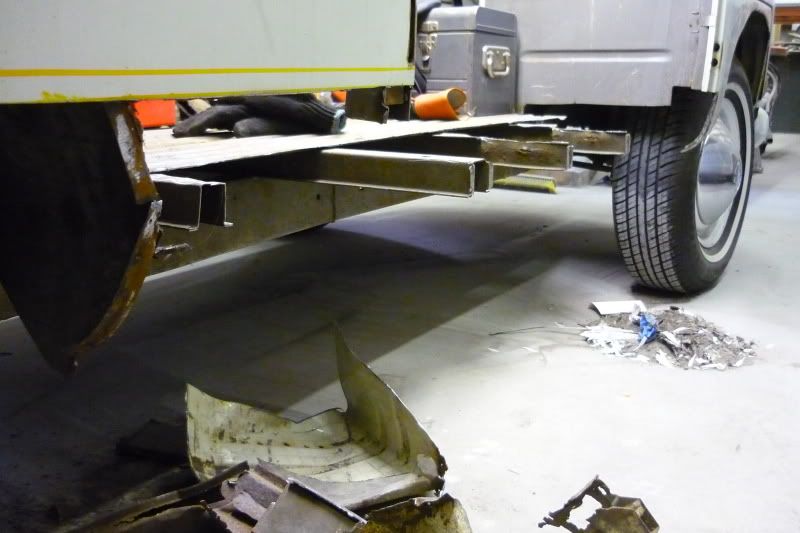

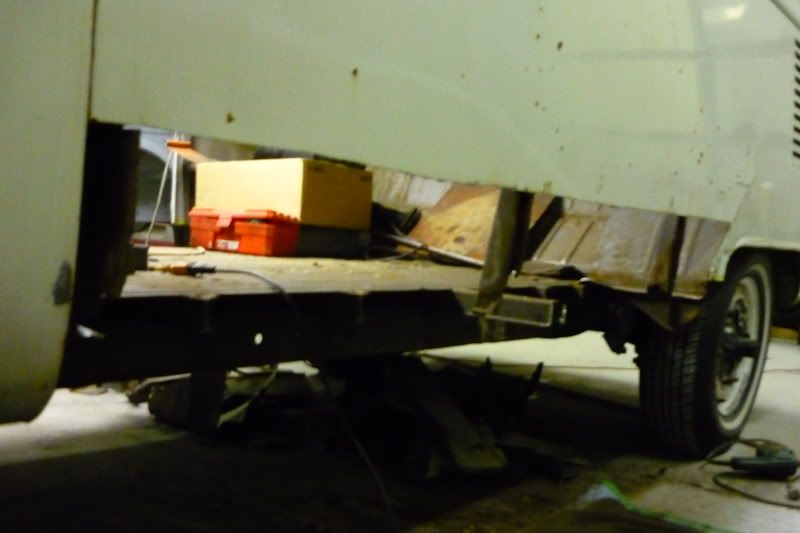

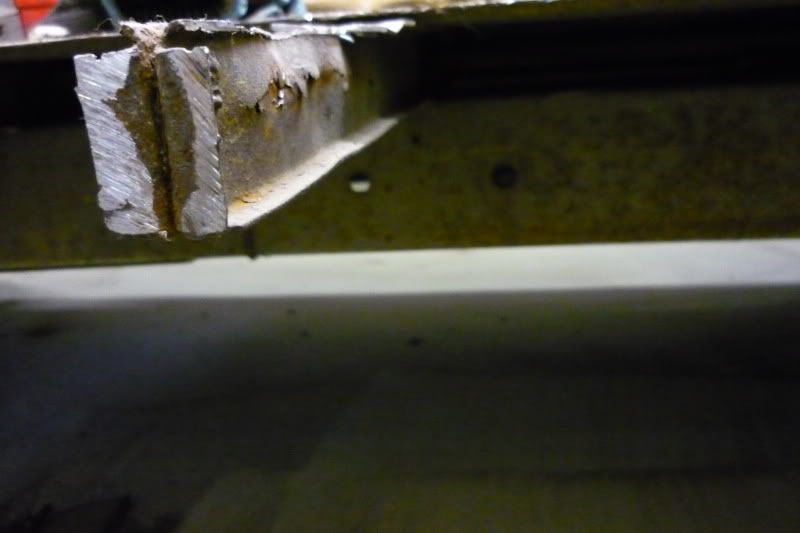

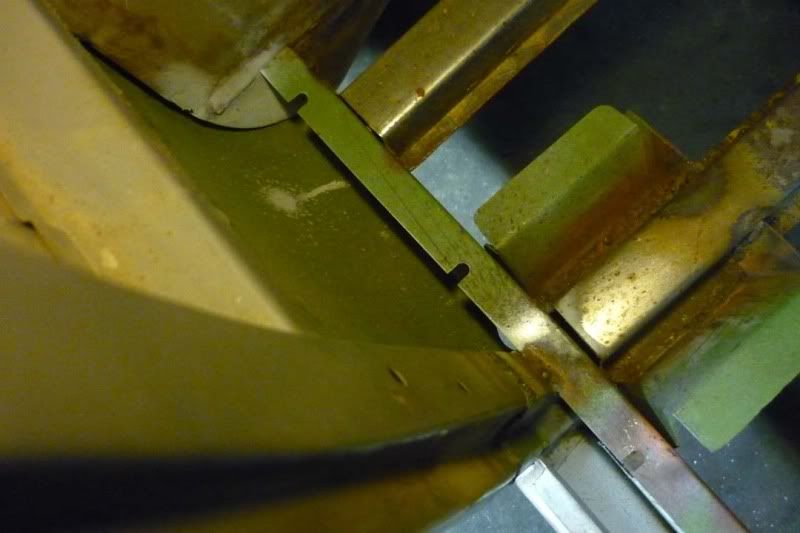

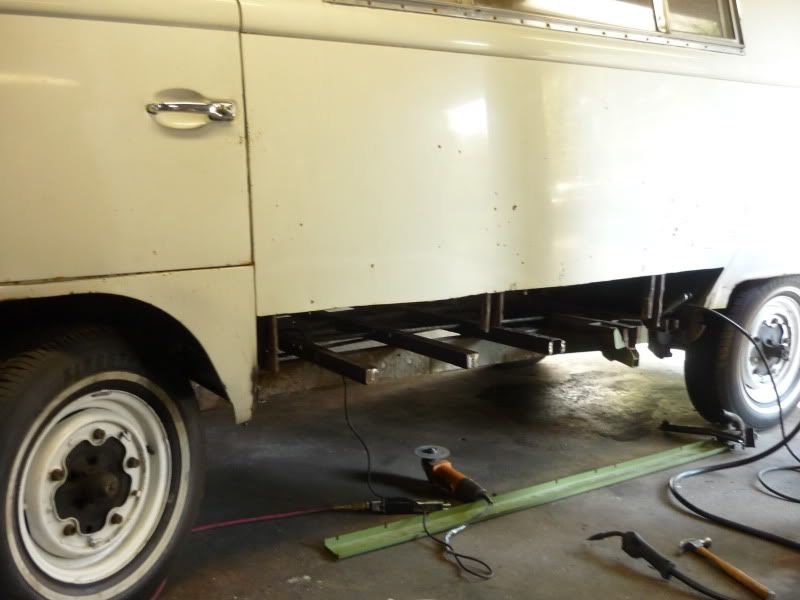

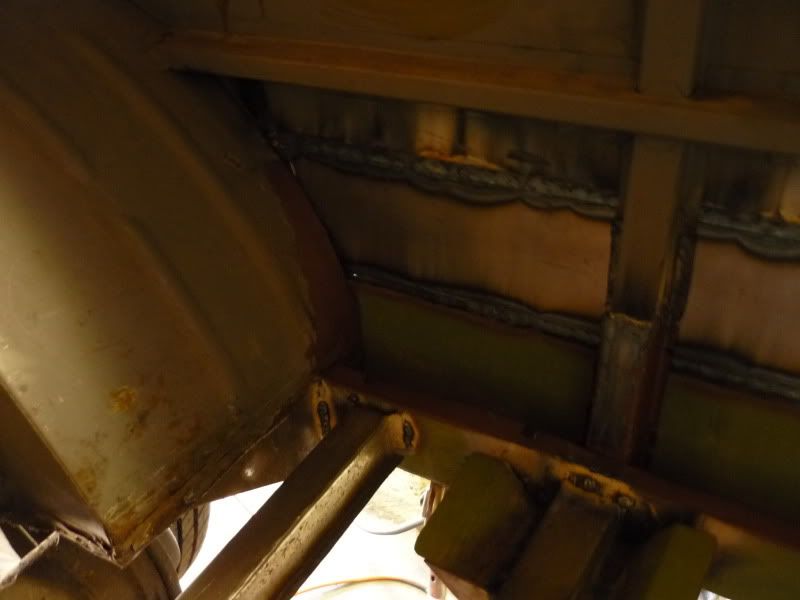

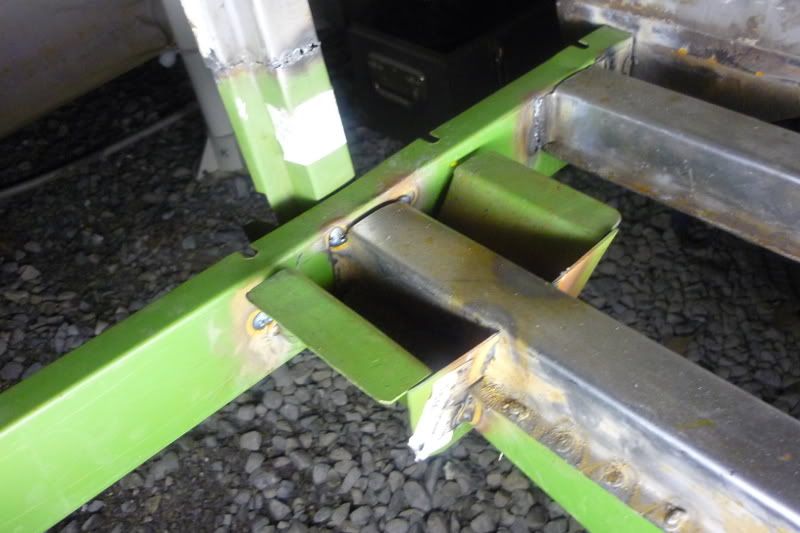

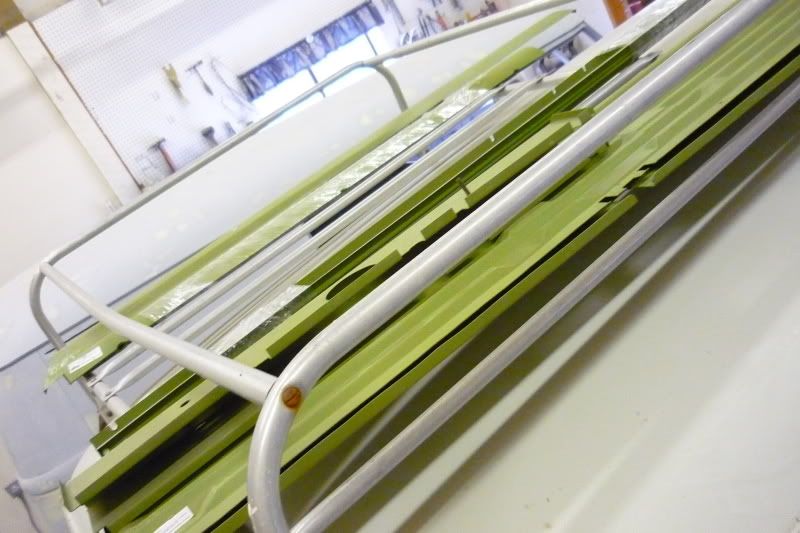

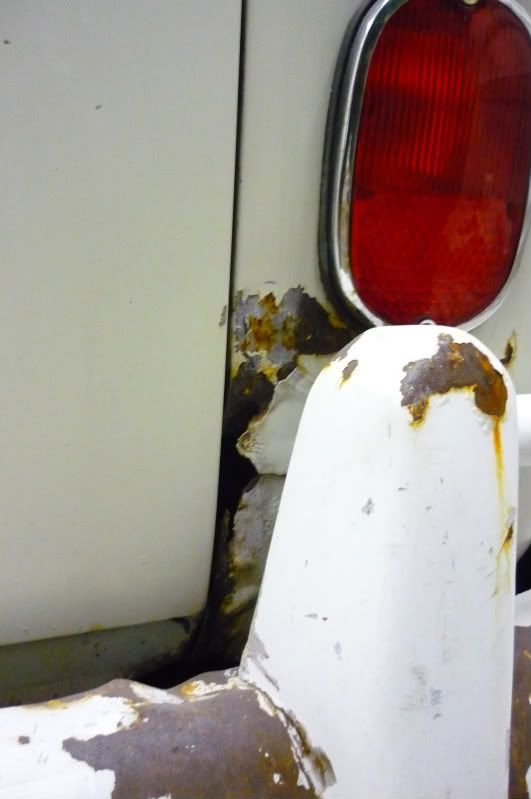

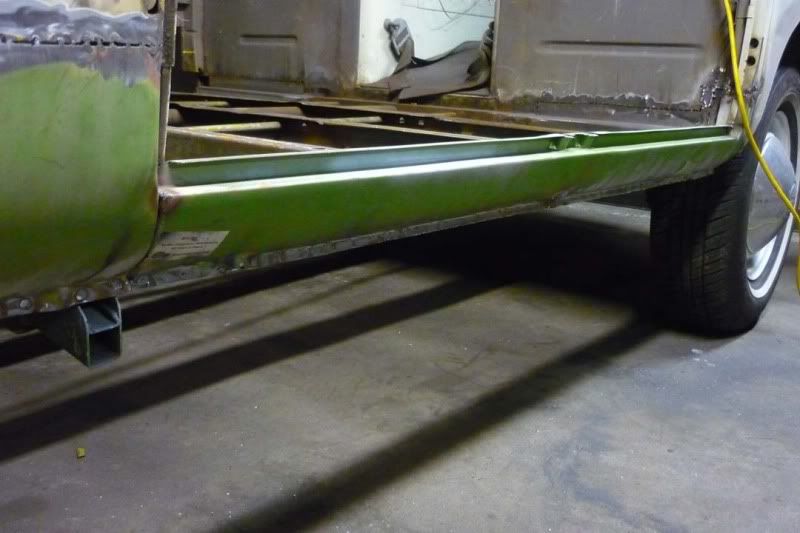

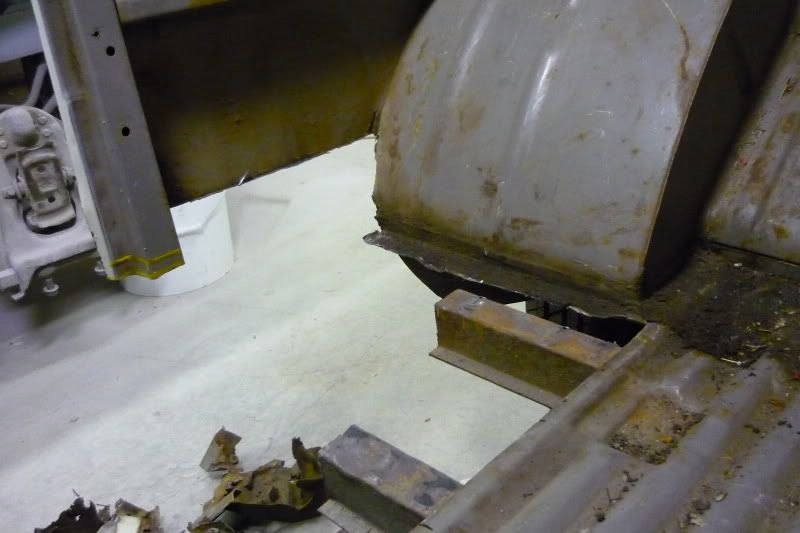

I tried to tackle the whole right side first. I made the I beams and crossmembers in a welding certification class I was taking at the time. They had some kick ass machinery there, so in my freetime I would take advantage of using them while I could for vw projects. After those were installed, I moved on to the bulkhead, rockers, and rear qtr area...
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Mon Jul 13, 2009 10:49 am Post subject: |
|
|

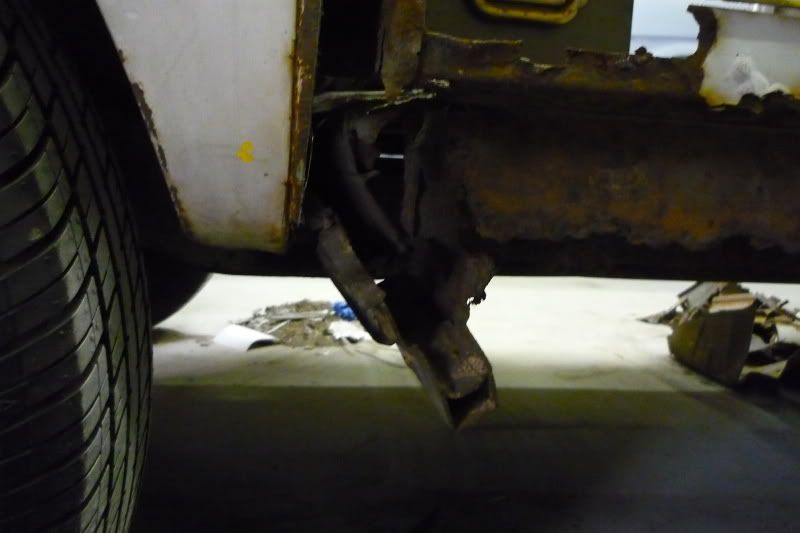

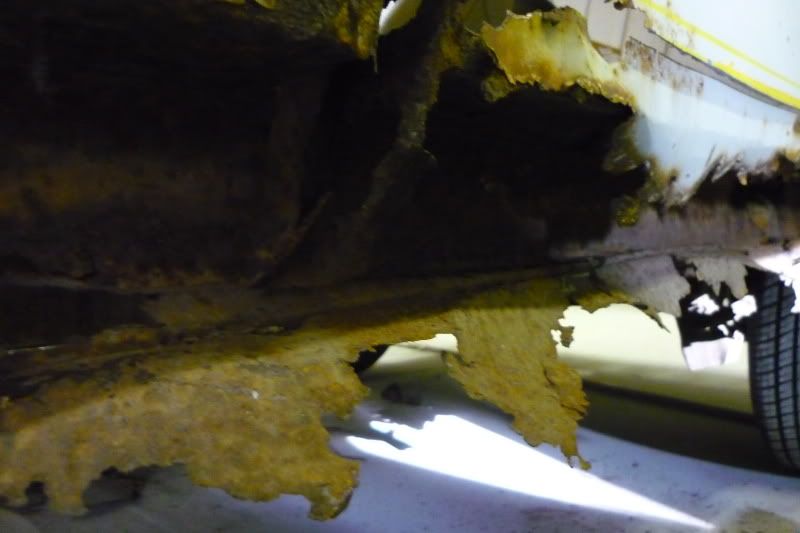

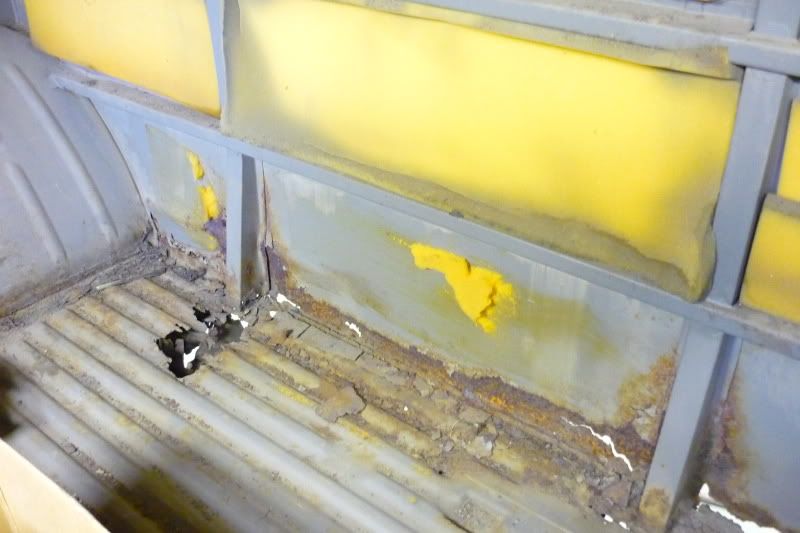

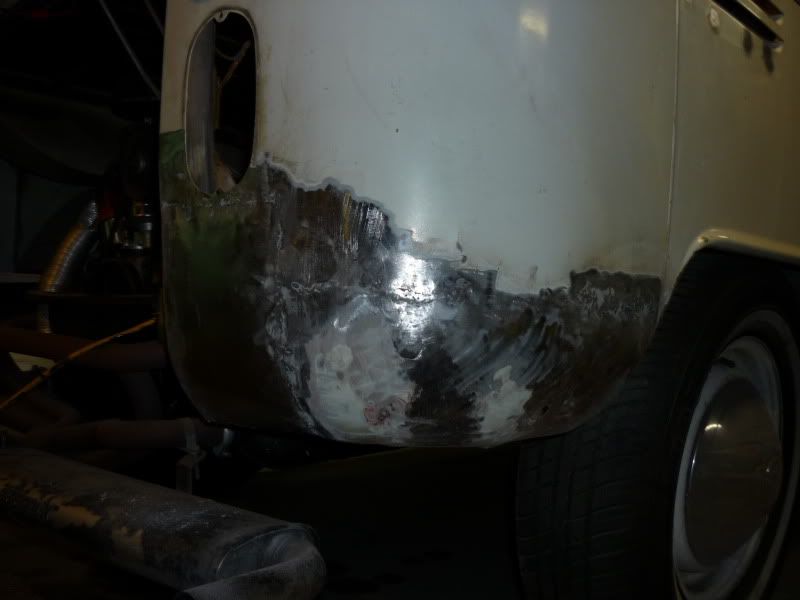

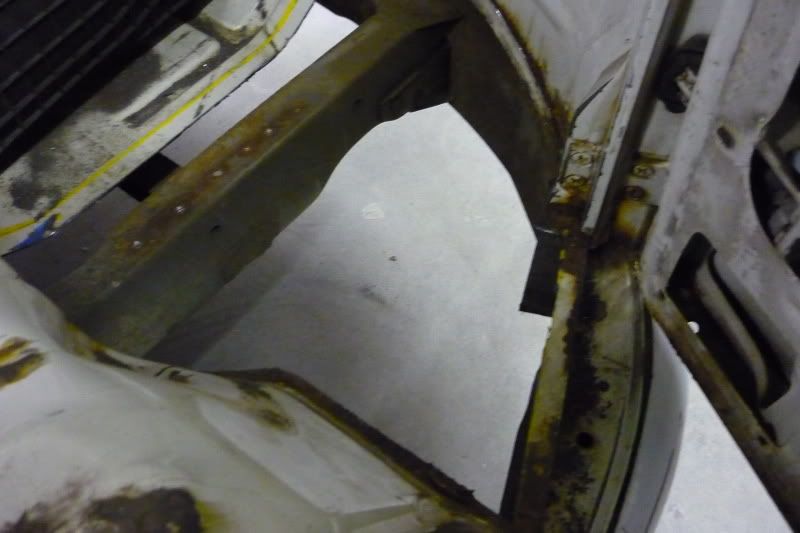

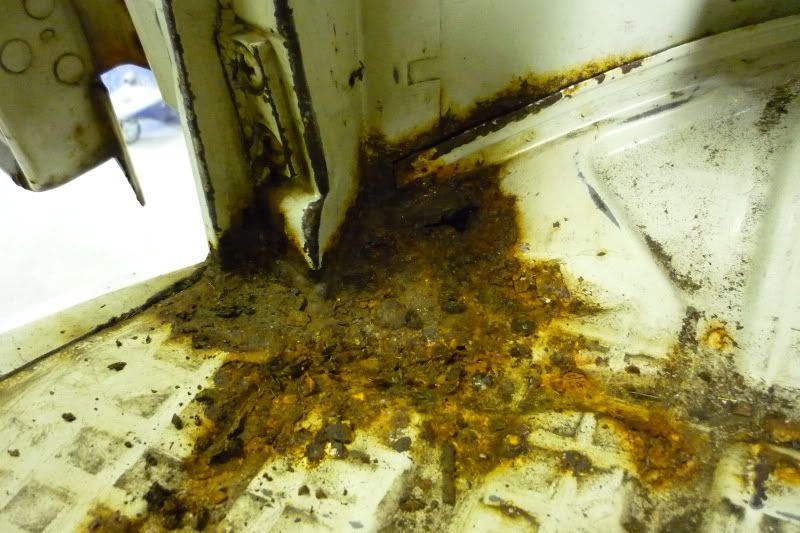

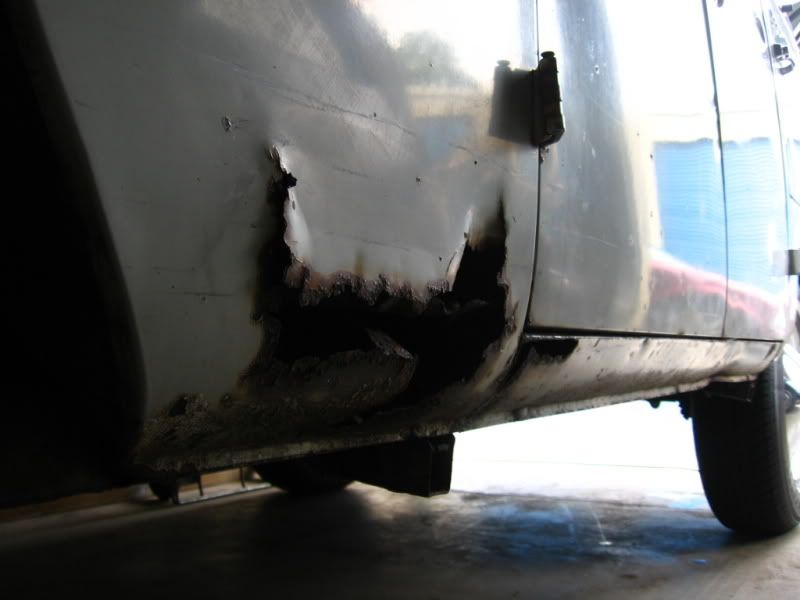

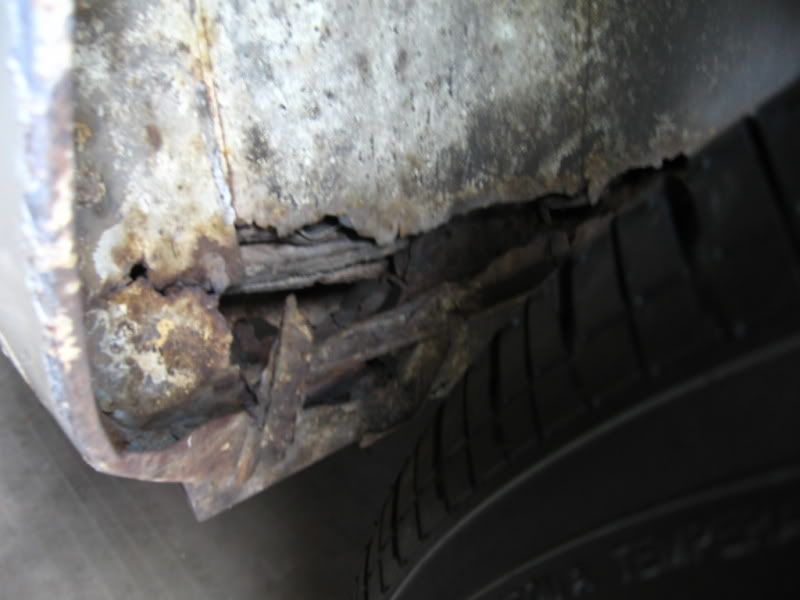

Started doing the drivers side here. Background wise. The bus had originally been found leaning in a ditch, and eventually rusted out everything on that side.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Mon Jul 13, 2009 11:01 am Post subject: |
|
|

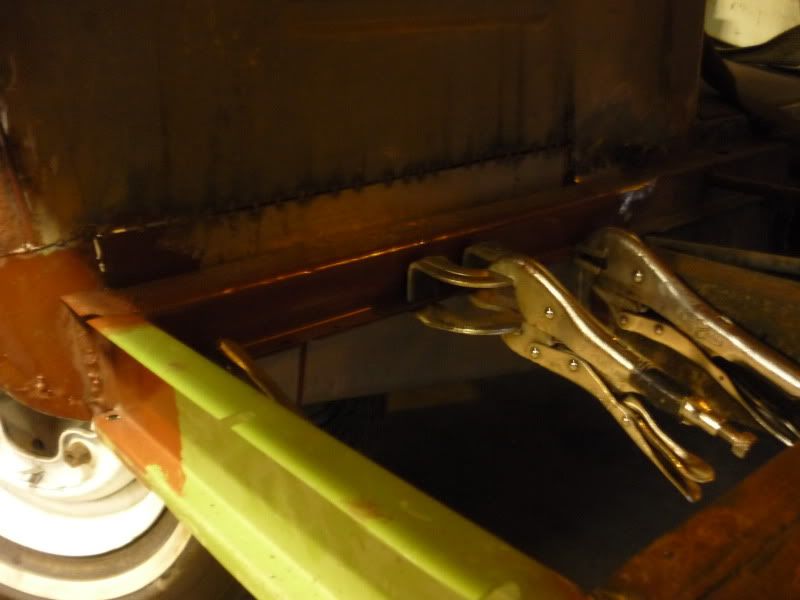

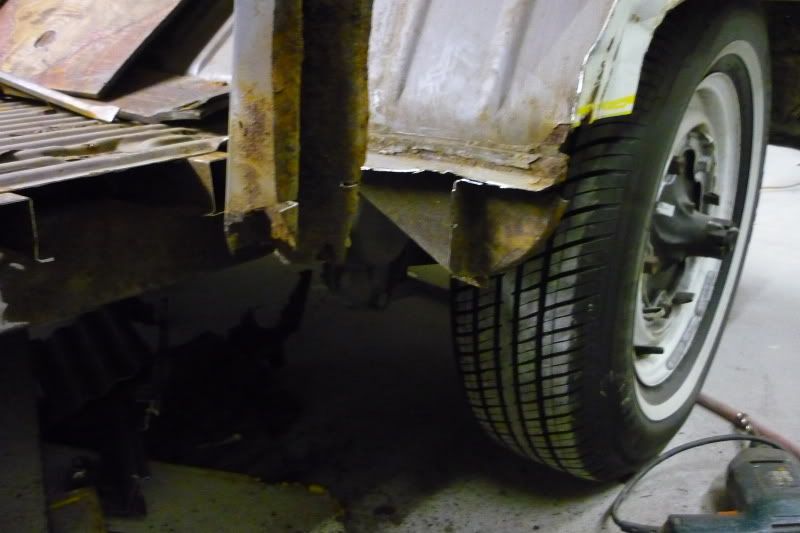

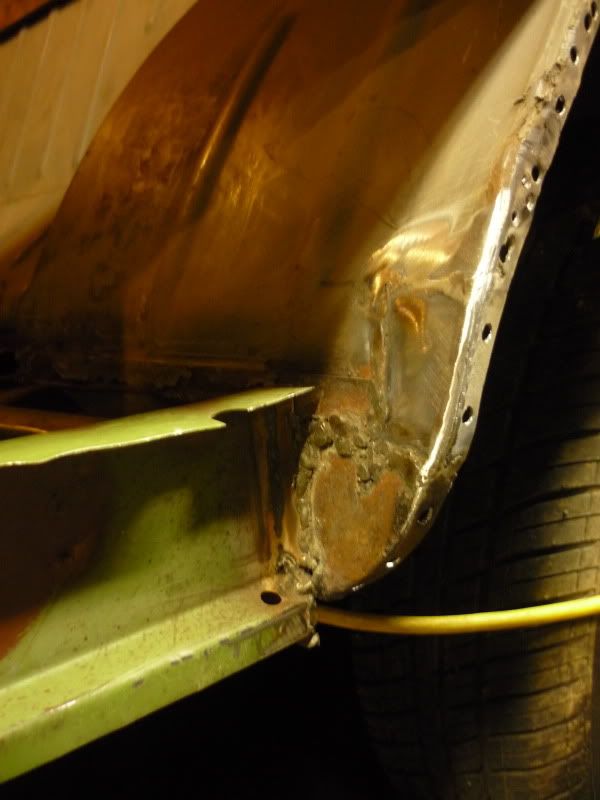

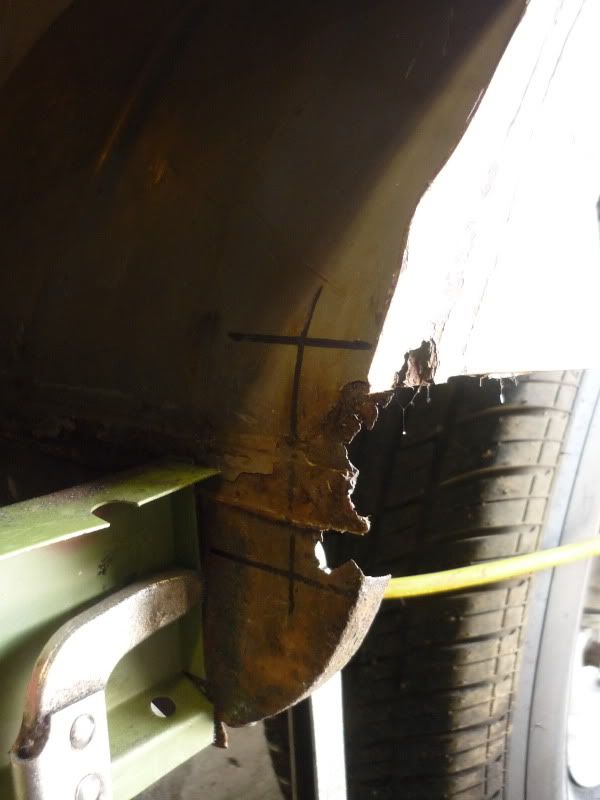

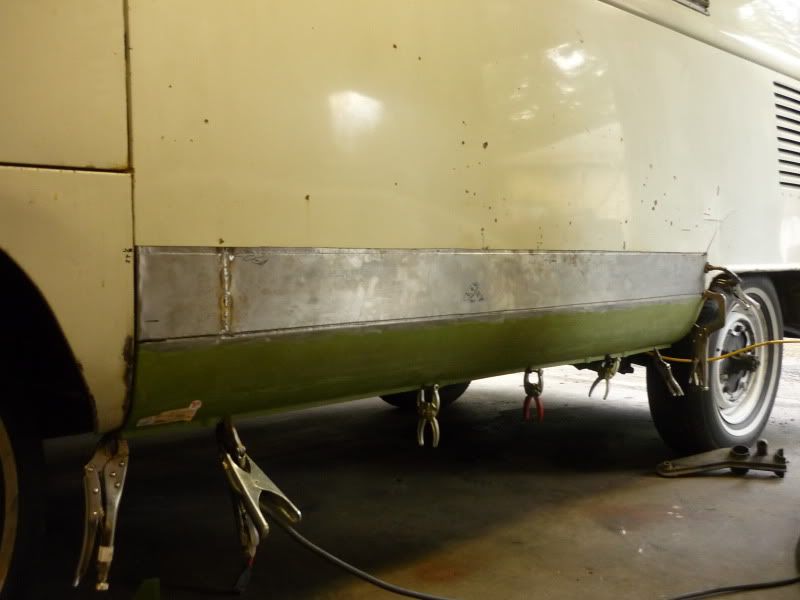

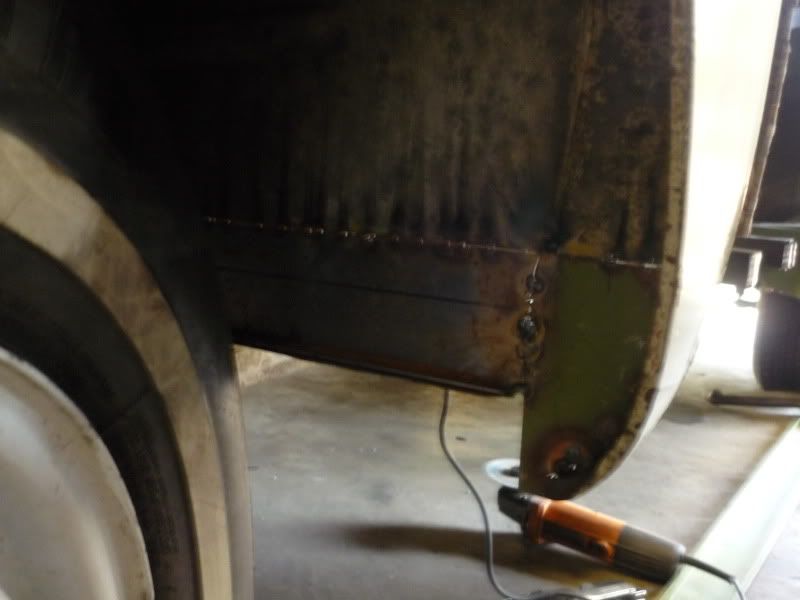

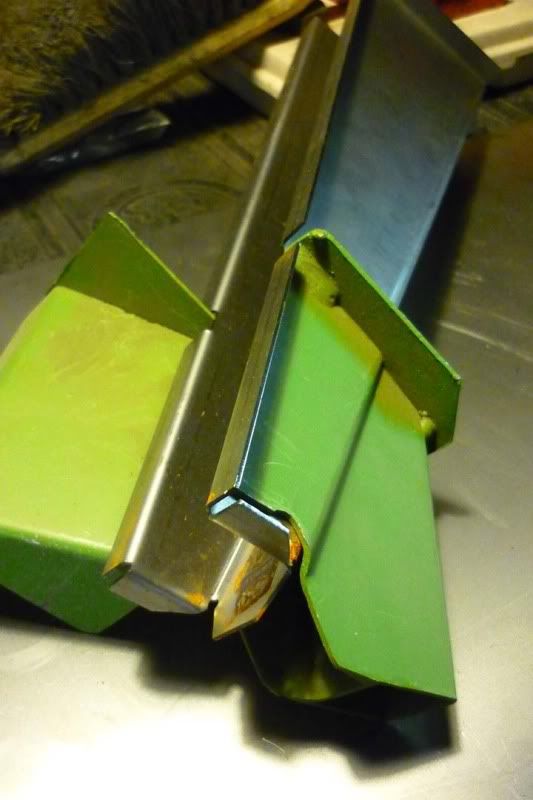

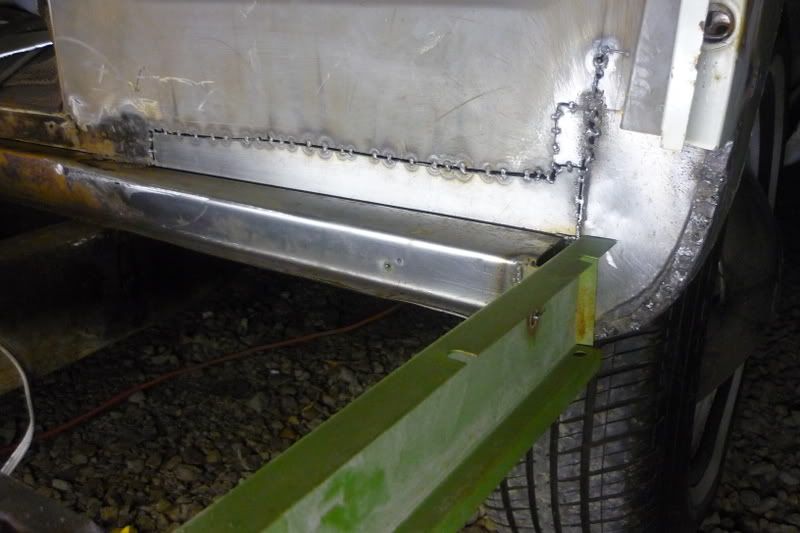

After finishing some welds, and getting everything ground down. I started mocking up the drivers rocker. The rust was beyond where the replacement panel laid.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
Nor_AL_67
Samba Member
Joined: December 18, 2007
Posts: 663
Location: Huntsville,Alabama
|
| Posted: Mon Jul 13, 2009 11:09 am Post subject: |
|
|
That's a lot of work, good job.
_________________
63 Sedan
61 Rag
67 Type 1 Sedan
63 Type 2 Standard Walk-thru
69 Ghia
68 912
Amateur Versus Rusty Bus! |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Mon Jul 13, 2009 11:24 am Post subject: |
|
|

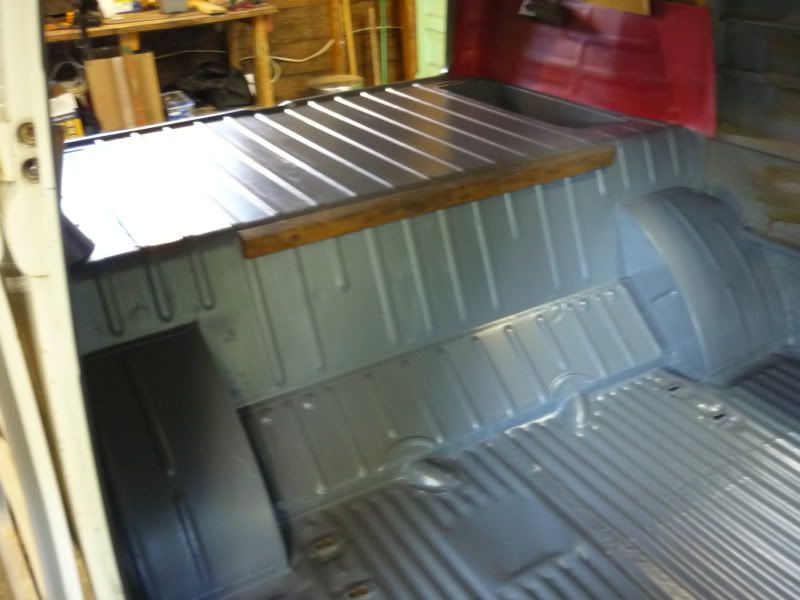

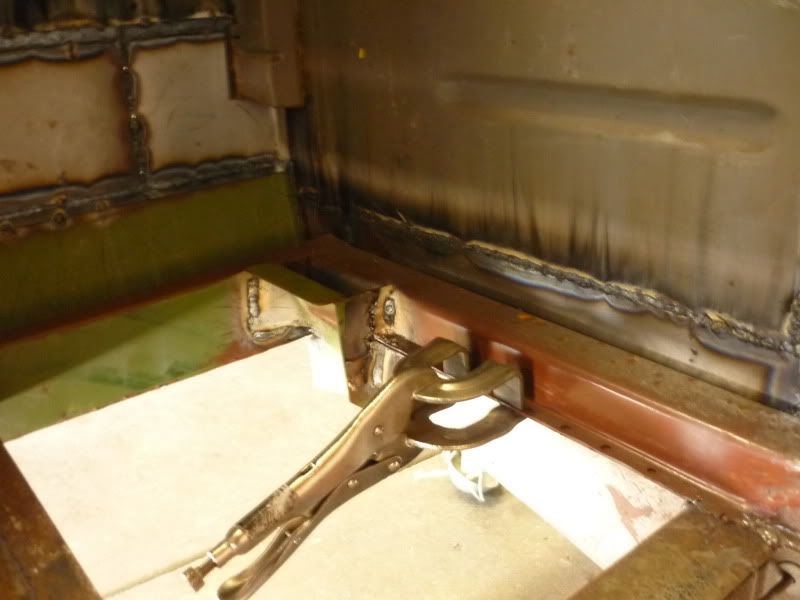

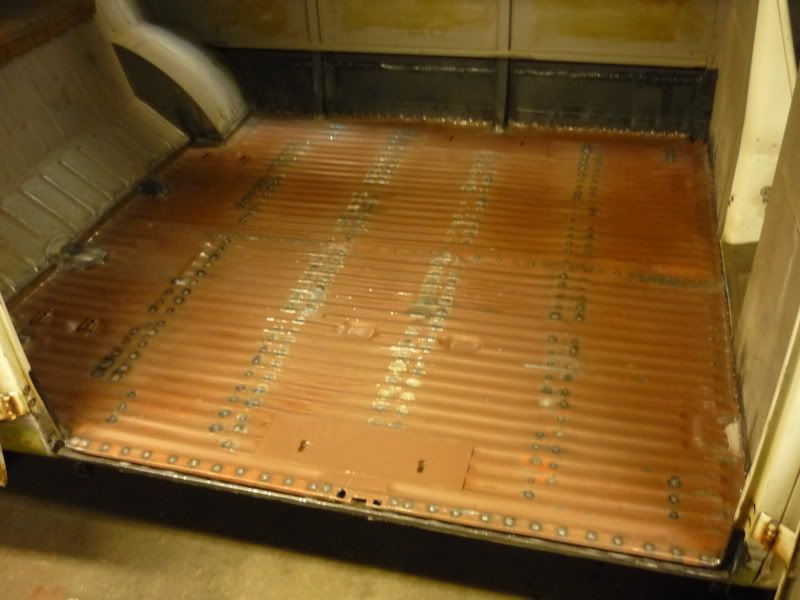

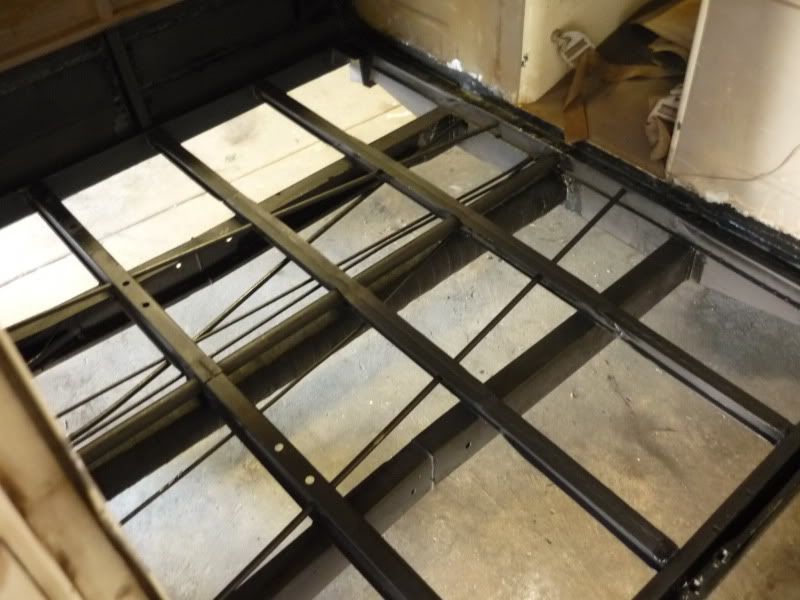

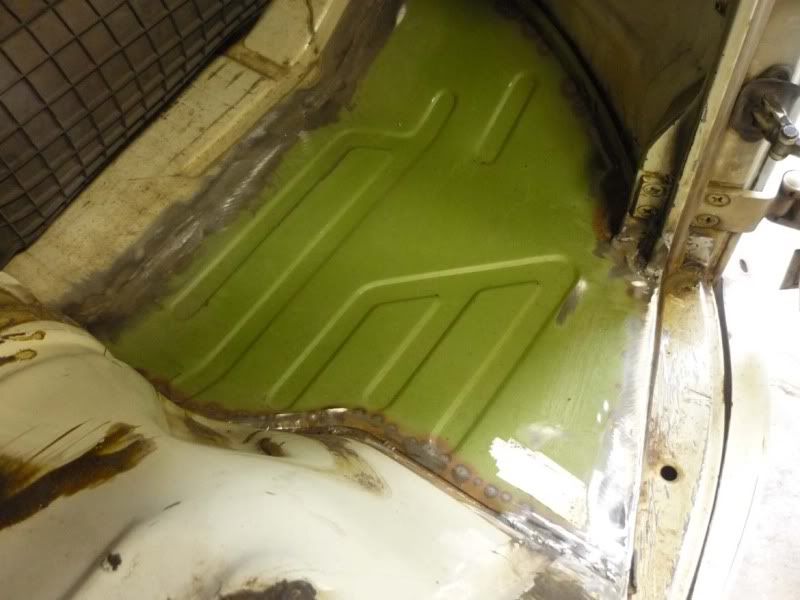

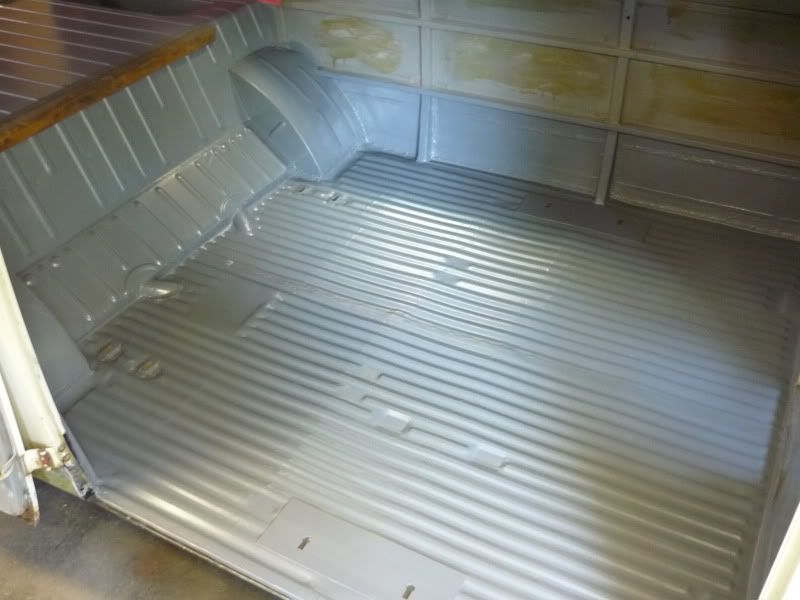

After replacing the center supports. I formed a new heater tube and coated everything with POR15 twice before putting in the floors.
Floors had gotten a couple of coats of rust proof paint also.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
outoftheoffice
Samba Member
Joined: March 02, 2009
Posts: 470
Location: Houston, Texas
|
| Posted: Mon Jul 13, 2009 11:52 am Post subject: |
|
|
| Wow, great work |
|
| Back to top |
|
|
Rich's 50
Samba Member
Joined: February 18, 2004
Posts: 10794
Location: San Diego, CA
|
| Posted: Mon Jul 13, 2009 12:13 pm Post subject: |
|
|
Nice welds  |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Mon Jul 13, 2009 9:46 pm Post subject: |
|
|
thanks for the props guys. This bus turned out to be more work than anticipated.....suprise suprise.
Ended up making the inner pillar piece, stripping the excess bondo off, and making a new patch panel....

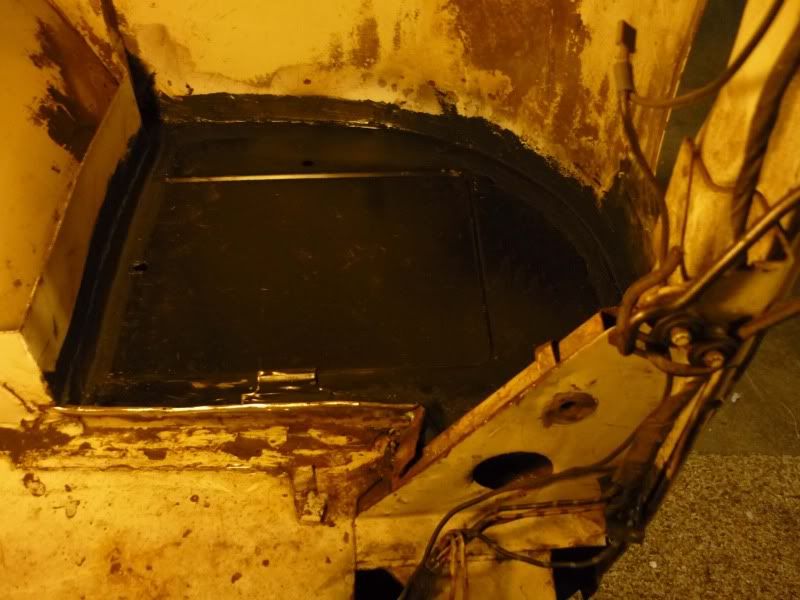

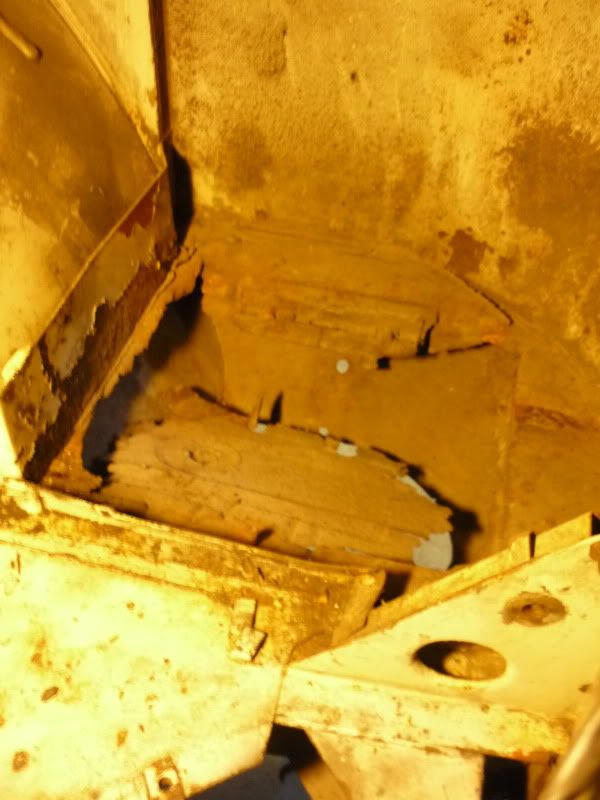

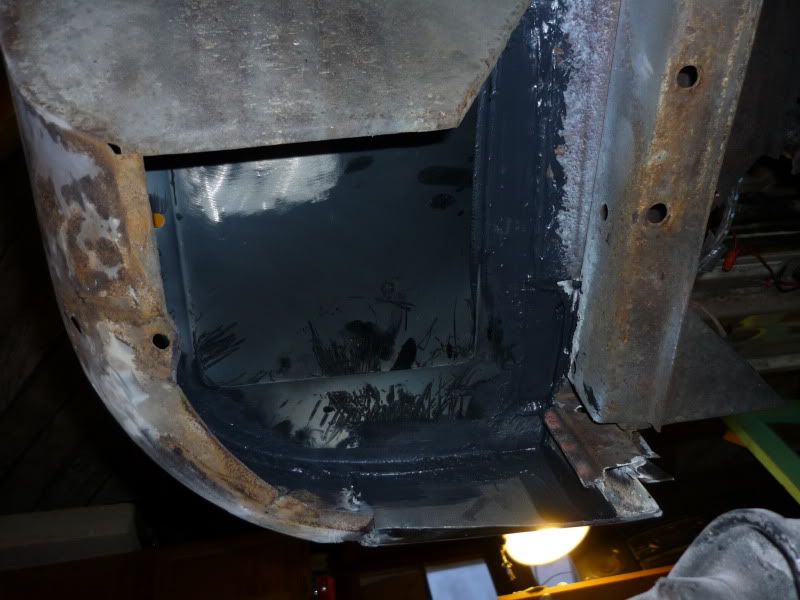

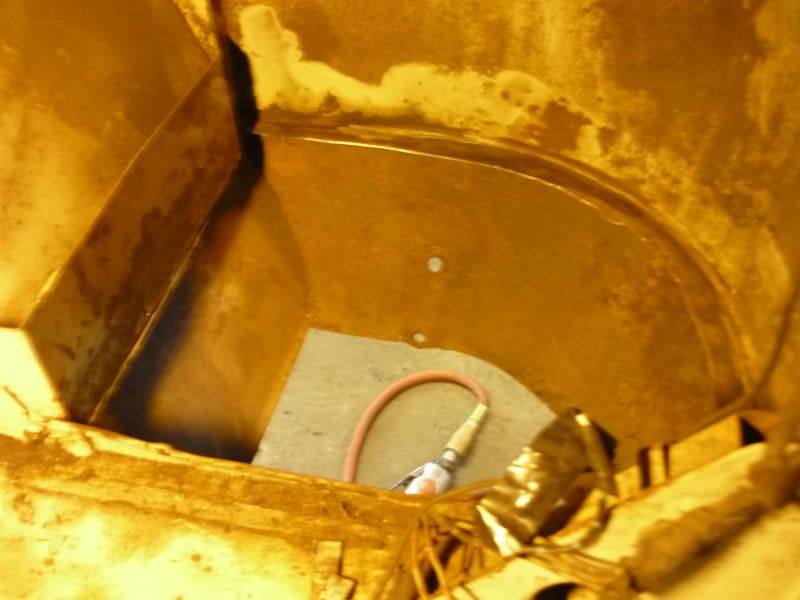

The battery tray was toast also....
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Mon Jul 13, 2009 10:03 pm Post subject: |
|
|

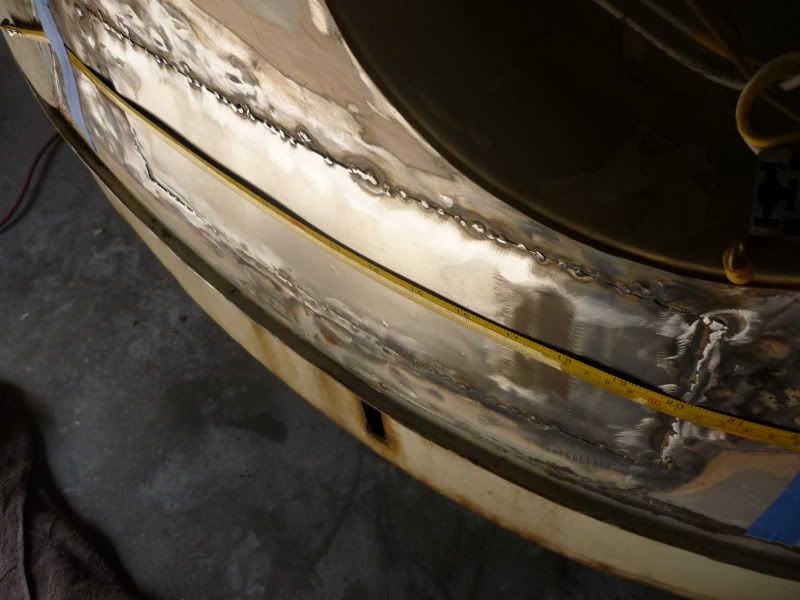

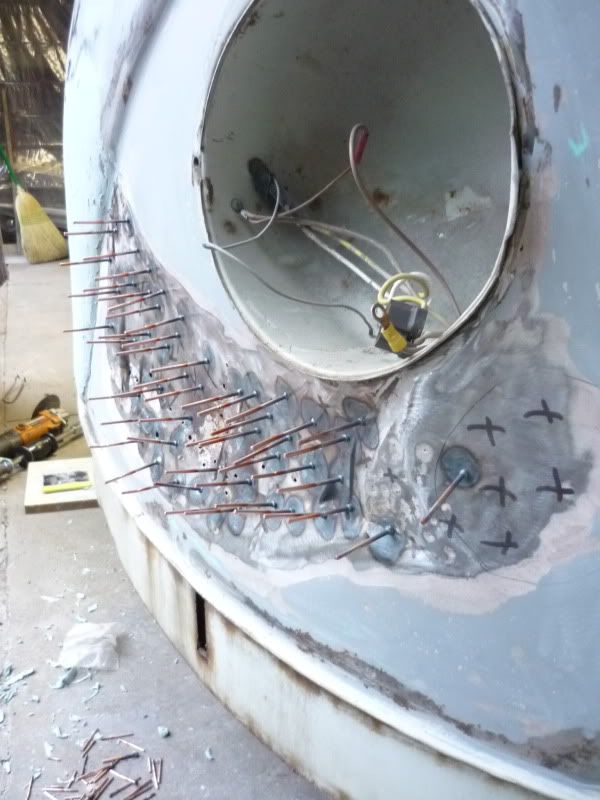

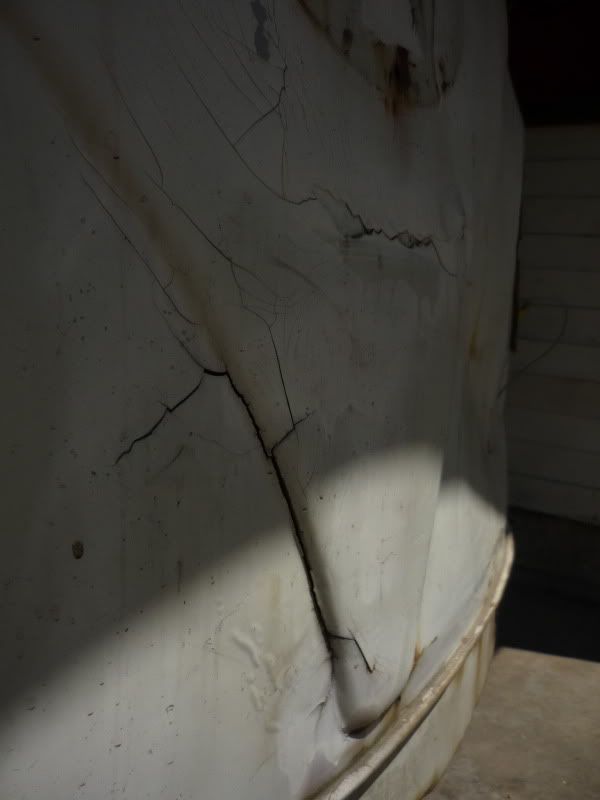

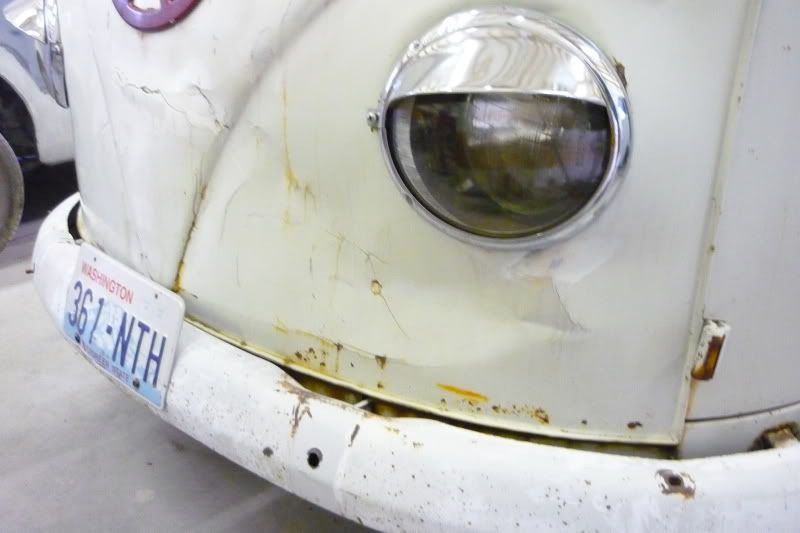

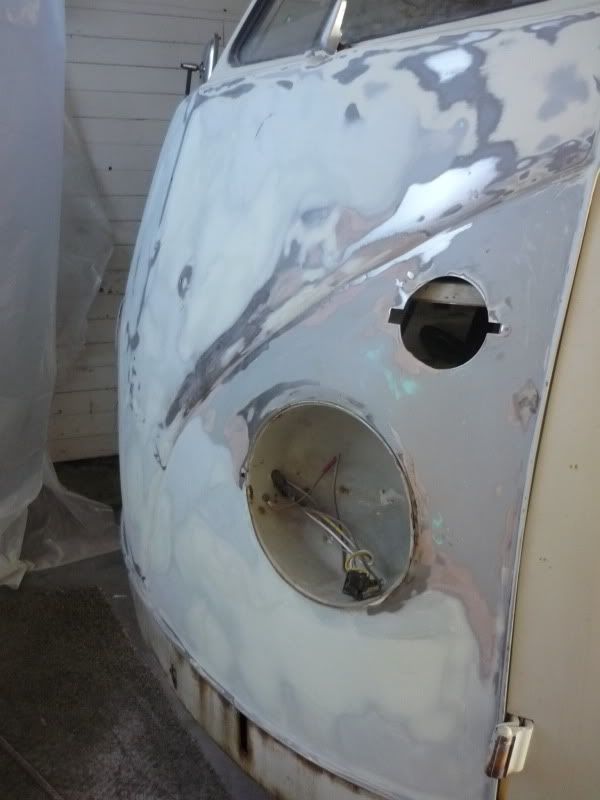

Next the front nose. Found that it had previously been hit right under the
drivers headlight and lower V below the emblem. Took off alot of filler here....
Tried getting that nasty section straight, but no luck, so it got cut.
After the welds were finished up. Almost the whole nose receive a skim coat of filler. Nothing compared to what was applied previously.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=355803 |
|
| Back to top |
|
|
a-train
Samba Member
Joined: October 11, 2003
Posts: 702
Location: Issaquah via Parkland, WA
|
| Posted: Mon Jul 13, 2009 11:19 pm Post subject: |
|
|
Yeah skillet, you went to town on that thing....nice work..... That bus is on cream puffity puff status from damn near junkyard status. I gotta get my riviera over there soon so's you can hook a brutha up with some floor and rocker replacement. That '67 made me want to get out there and camp like no other.
...........but chyou don't hear me dough.......
_________________
I like VWs |
|
| Back to top |
|
|
mixedup59
Samba Member
Joined: August 07, 2002
Posts: 704
Location: Tacoma Washington
|
| Posted: Wed Jul 15, 2009 12:08 am Post subject: |
|
|
^^^Thanks Atrain...

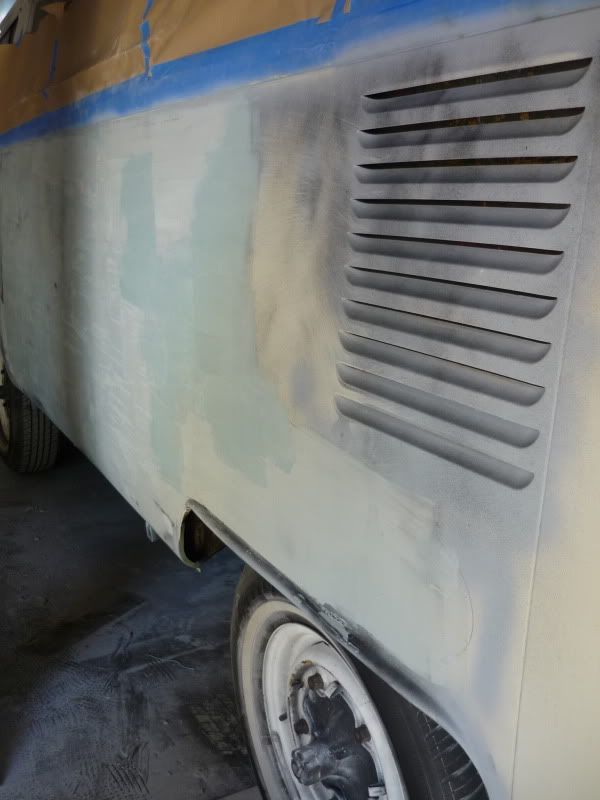

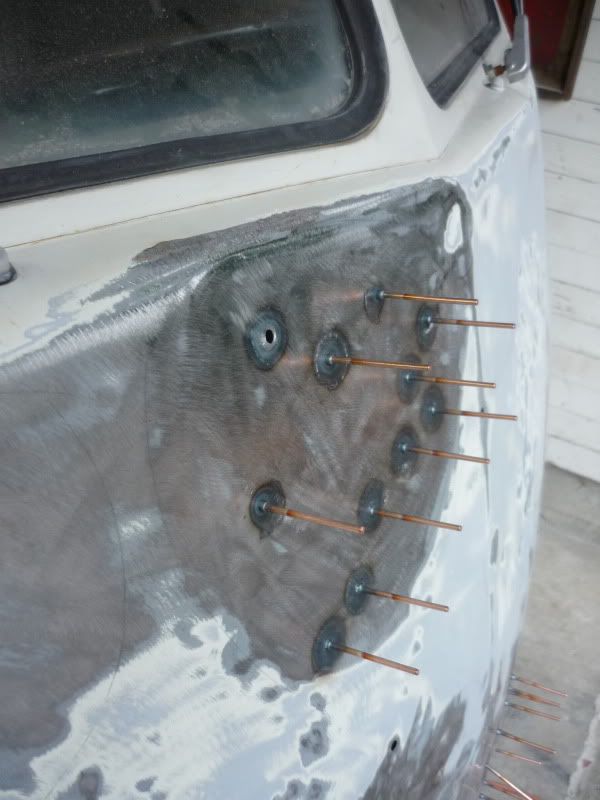

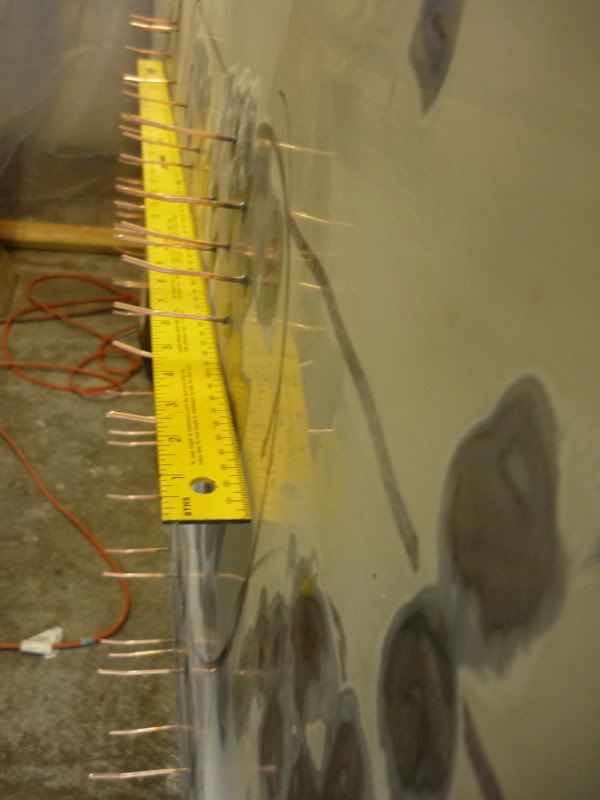

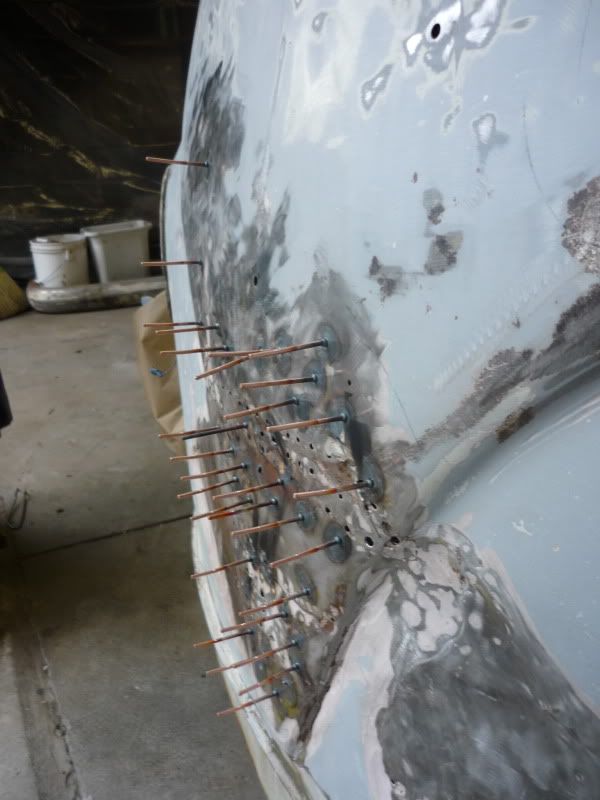

Here's when I started the drivers panel. Alot of waves initially, and a few more after welding that lower section in due to the heat. I used a yard stick to indicate just how much I needed to pull and push in different areas.

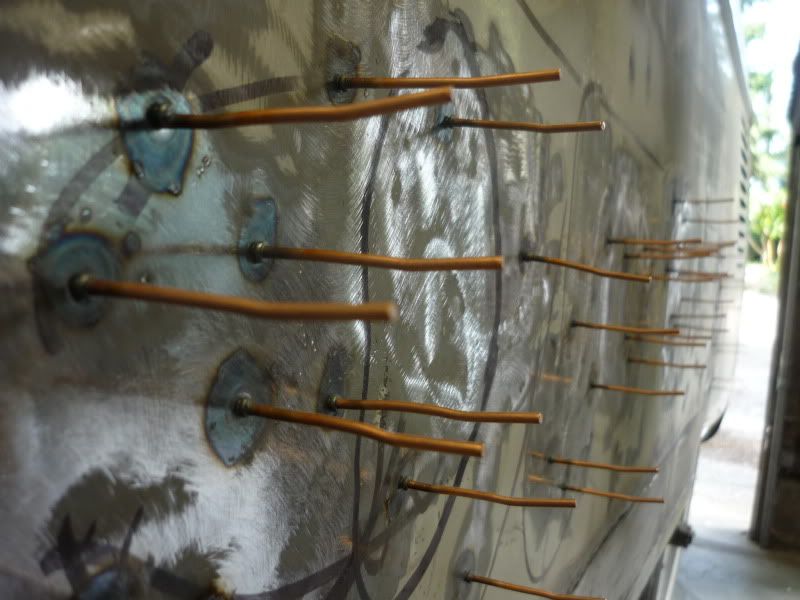

I didn't want to apply a ton of mud, so alot of slide hammer nails were used instead. Worked out pretty well in the end with only minimal filler.
