 Posted: Sat Aug 22, 2015 12:47 pm Post subject: Westy cargo door latch cover trim |
 |
|
I've added interior paneling to my panel bus & like the finishing trim found on some other models. In looking for the trim piece, I've found many spot welded in place. I believe loose ones are harder to find... and are held in place only by two screws attaching it to the door panel.

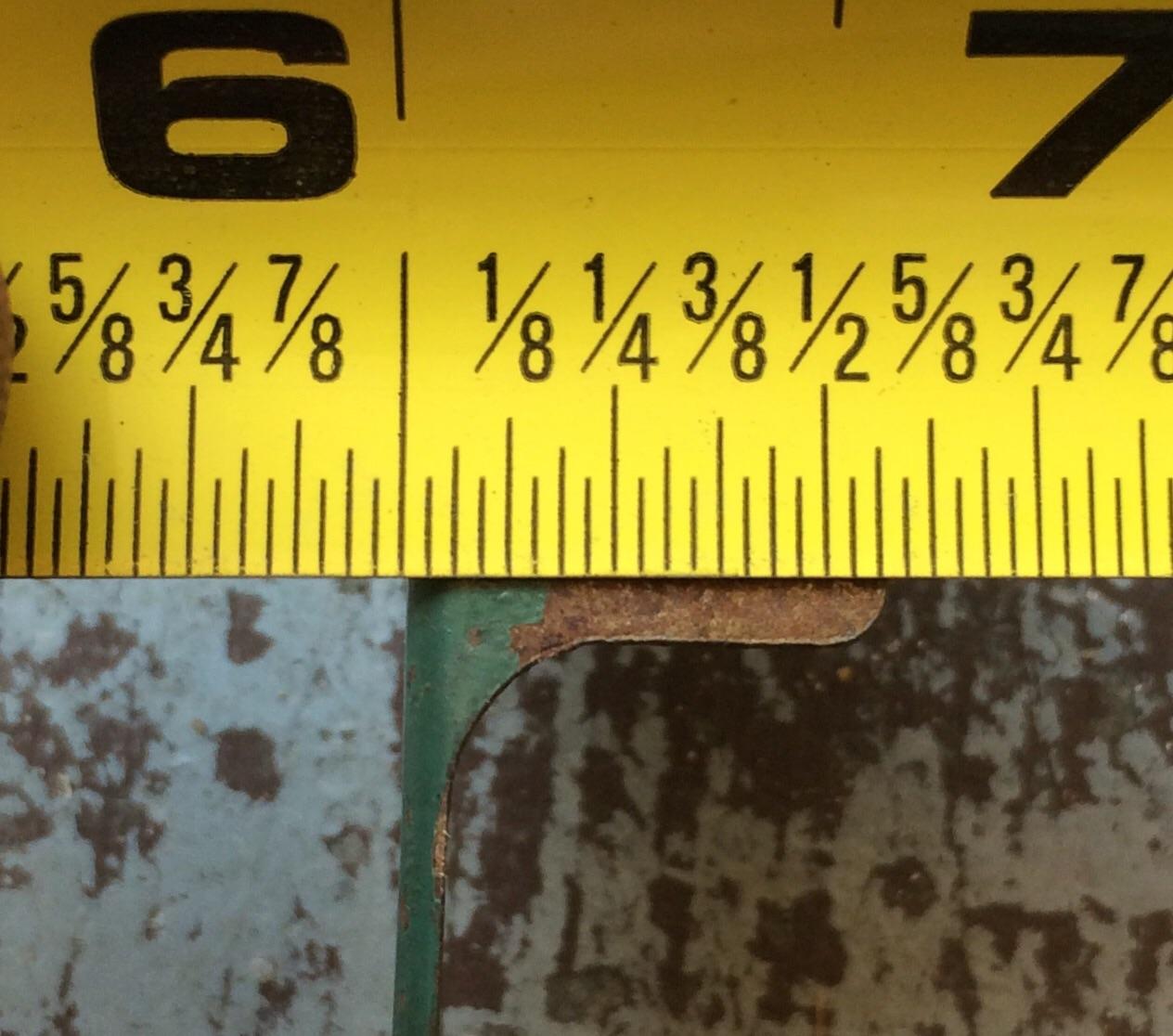

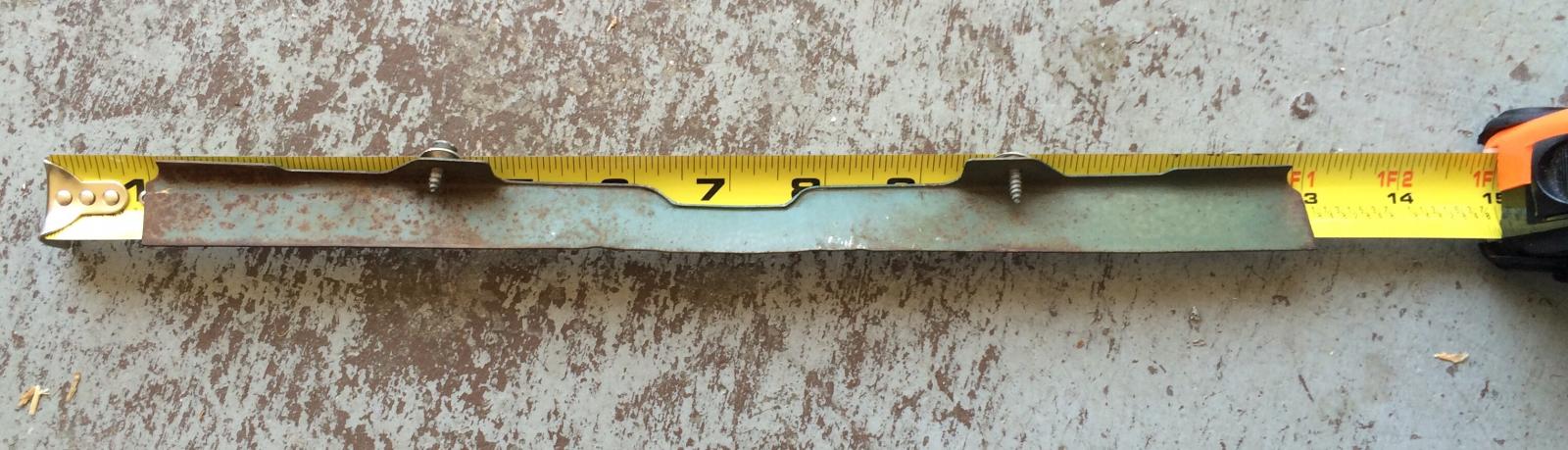

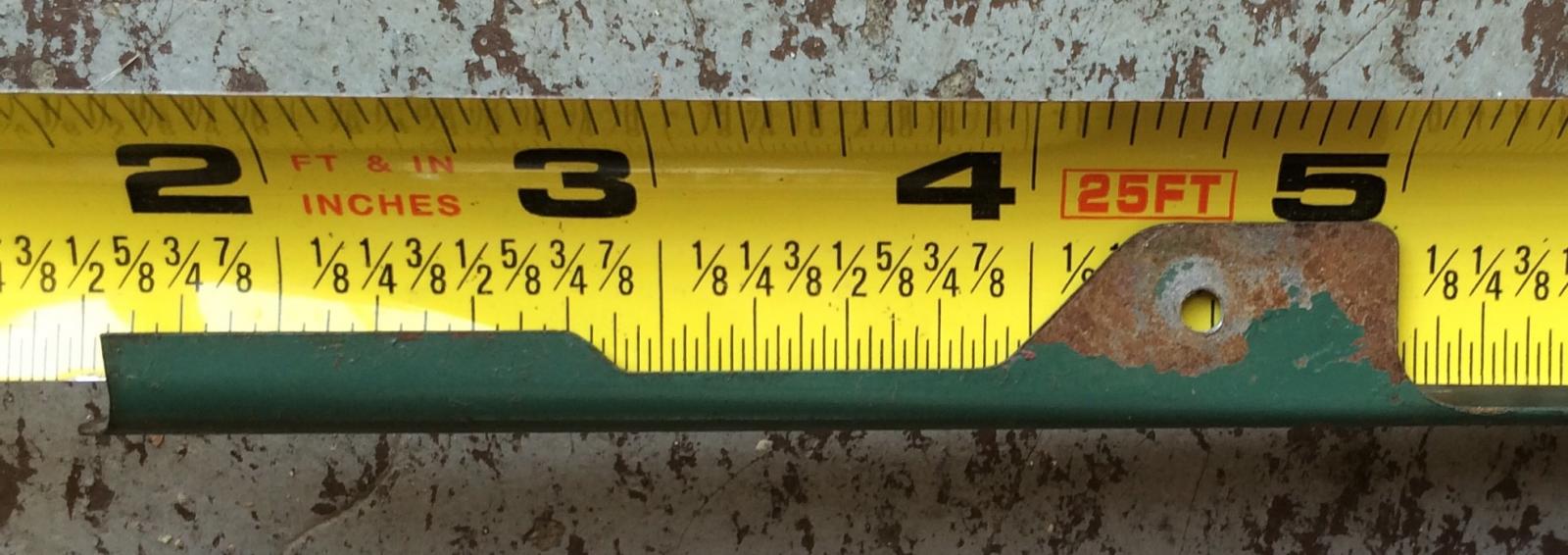

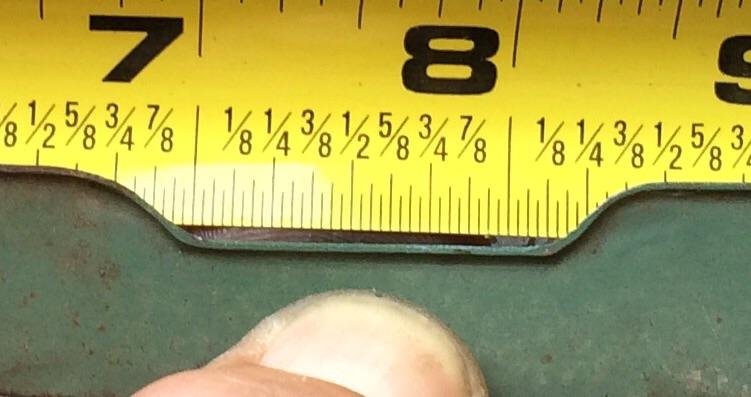

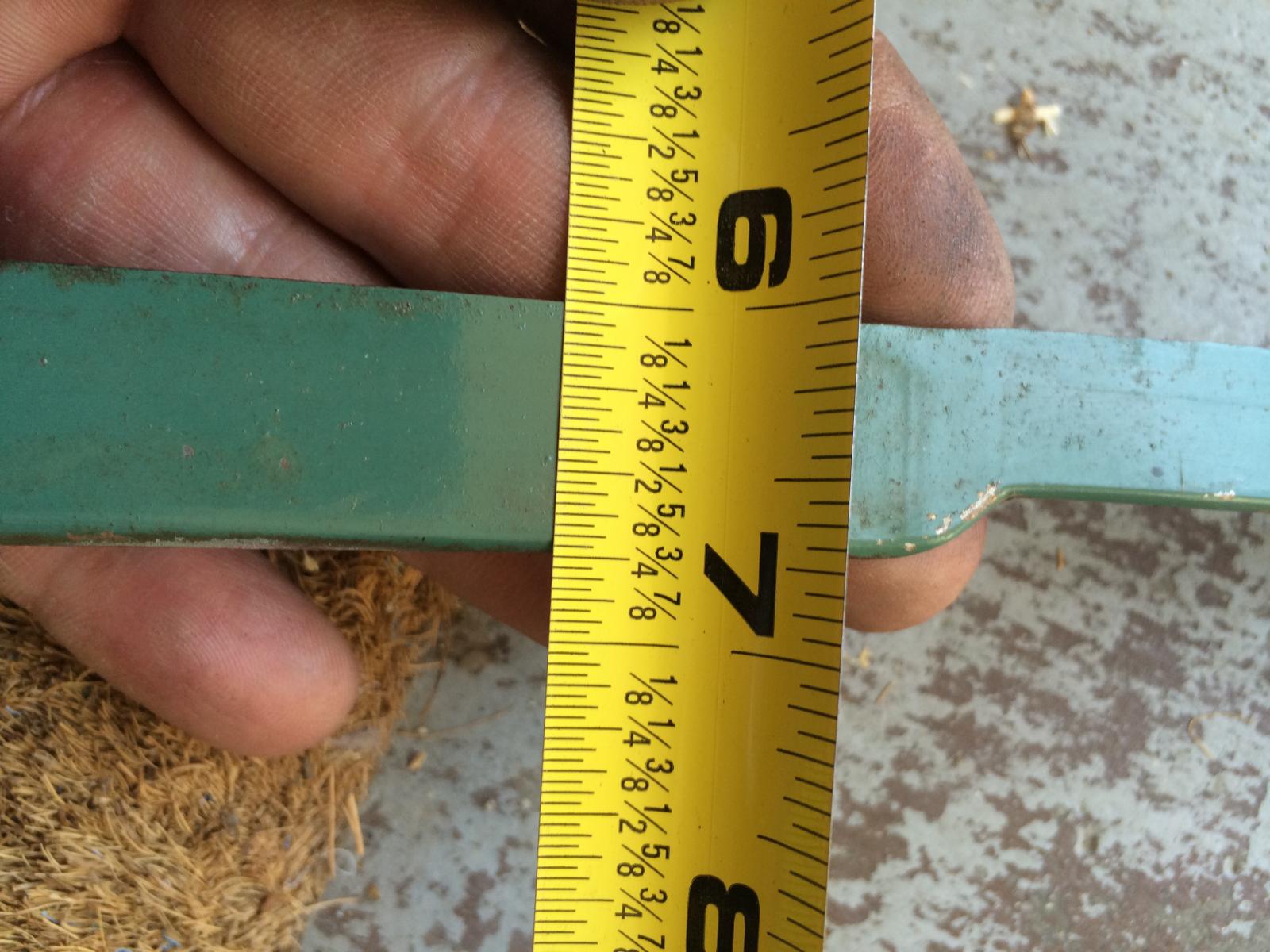

I'm posting this in case anyone wants to make the piece. Forgive the mix-n-match of metric & imperial units. I started with tape measure & migrated to calipers.
e
As delivered look (minus being paint mismatch)...
_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
“They are about as worthless as the tits on the boars that live in the woods behind their junk yard.” -Weatherly |
|
| Back to top |
|
 |
srfndoc
Samba Member
Joined: August 21, 2010
Posts: 3390
Location: SoCal
|
| Posted: Sat Aug 22, 2015 2:20 pm Post subject: |
|
|
Those are tough to find and seem to always be missing on campers. Took me a couple years to find an OG paint one for my SO42. Thanks for posting up the detailed dimensions in case somebody wants to make them.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches |
|
| Back to top |
|
|
jjjjack
Samba Member
Joined: August 08, 2005
Posts: 1014
Location: Gainesville, FL
|
|
| Back to top |
|
|
Ragman
The Sambinator
Joined: July 18, 2003
Posts: 3518
Location: Denver
|
| Posted: Fri Oct 26, 2018 10:38 pm Post subject: Re: Westy cargo door latch cover trim |
|
|
My 66 SO-42 westy is missing this piece. I also see them on non westy doors. Are they the same part?
Or do I need to find one specifically from a camper?
I’ve heard people mention on their buses this piece is spot welded in.
If someone could explain the differences that would be great. Thanks! |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15265
Location: Casa de Oro, California
|
| Posted: Sat Oct 27, 2018 2:55 pm Post subject: Re: Westy cargo door latch cover trim |
|
|
This guy (screen name Likes Girls) posted this photo in the gallery of non Westy doors and they have the plate.
My ex '67 Kombi had it as well as my '65 Micro and '67 Westy.
Other than the Westy color they look the same. |
|
| Back to top |
|
|
Ragman
The Sambinator
Joined: July 18, 2003
Posts: 3518
Location: Denver
|
| Posted: Sat Oct 27, 2018 3:17 pm Post subject: Re: Westy cargo door latch cover trim |
|
|
Hey Barry,
Are any of yours spot welded in place?
Erik |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15265
Location: Casa de Oro, California
|
| Posted: Sat Oct 27, 2018 4:24 pm Post subject: Re: Westy cargo door latch cover trim |
|
|
| Ok, that must be the difference; the non-Westy ones are spot welded on in four spots. Why the Westy ones are loose someone will have to explain. |
|
| Back to top |
|
|
sgellis
Samba Member
Joined: July 06, 2016
Posts: 2195
Location: SW Nova Scotia, Canada
|
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15265
Location: Casa de Oro, California
|
| Posted: Sun Oct 28, 2018 11:52 am Post subject: Re: Westy cargo door latch cover trim |
|
|
| sgellis wrote: |
Maybe commercial busses didn't come with it as they didn't have interior panels.
My door has it welded in but was off a pre 64 deluxe. |
Thinkin' you're right. My Kombi had replacement side doors. Someone show a pic of a commercial door without it? The OACDP parts blowups don't show that piece but the Westy parts does so it must come on the door if it's non Westy and non commercial.
I'd think you could drill one off the spotwelds and use it as normal. The area where the spots are is almost totally hidden behind the rubber. |
|
