Engine case corrosion?
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
jbillow
Samba Member


Joined: July 13, 2015
Posts: 76
Location: Gansevoort, NY
jbillow is offline

PostPosted: Sat Mar 07, 2020 9:29 pm    Post subject: Engine case corrosion? Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

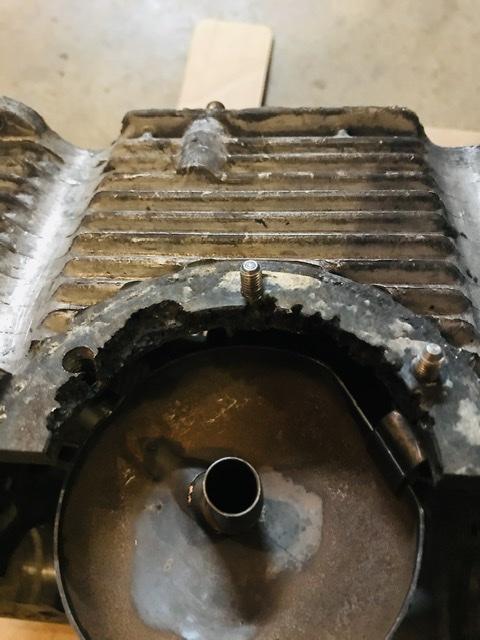

Has anyone seen this before? Any thoughts on if it’s toast or how I could repair it?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jimmyhoffa
Samba Member


Joined: February 16, 2014
Posts: 1178
Location: St. Louis
jimmyhoffa is offline

PostPosted: Sat Mar 07, 2020 9:33 pm    Post subject: Re: Engine case corrosion? Reply with quote

I'd say that might be close to a goner, if not a goner. I had some minor corrosion of a very similar style, just less advanced. I made surfacing tool to level it, and did what I could. In addition, instead of using m6 studs, I through-bolted from the inside of the case with a longer m6 bolt, just so the "case meat" was sandwiched between the bolt head and sump plate.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

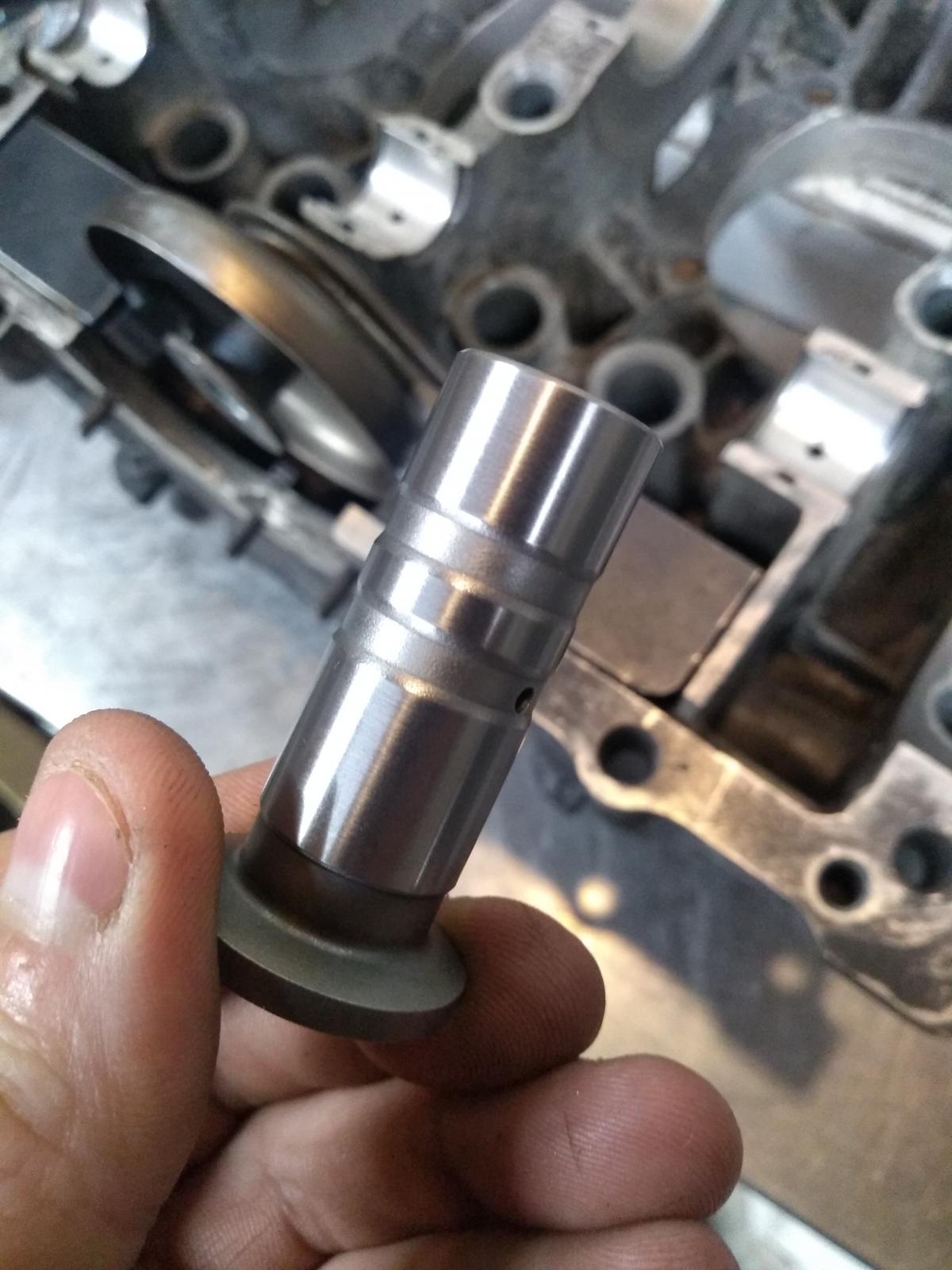

You can kinda see my "bolt-studs" in the lifter picture

Image may have been reduced in size. Click image to view fullscreen.

_________________
1974 Chenowth 2RL #1244 Street Legal
My other car isn't ridiculous.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RWK
Samba Member


Joined: June 24, 2009
Posts: 1610
Location: S.W. MI
RWK is offline

PostPosted: Sat Mar 07, 2020 9:51 pm    Post subject: Re: Engine case corrosion? Reply with quote

got one worse then that ! caused by moisture, from oil not burning it off, forming acid, or just condensation and water getting in engine, water is heavier goes to bottom, why you should change oil every year even if it's not run, especially in damp climates.
_________________
73 Type 181
63 Type 113
63 Type 261- 428 071
62 Type 241-378 025 178 530
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jbillow
Samba Member


Joined: July 13, 2015
Posts: 76
Location: Gansevoort, NY
jbillow is offline

PostPosted: Sat Mar 07, 2020 9:57 pm    Post subject: Re: Engine case corrosion? Reply with quote

thanks for the reply, any idea what caused this?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jbillow
Samba Member


Joined: July 13, 2015
Posts: 76
Location: Gansevoort, NY
jbillow is offline

PostPosted: Sat Mar 07, 2020 10:05 pm    Post subject: Re: Engine case corrosion? Reply with quote

car had been sitting for several years before I got it, cylinders were froze so was/am in the process of rebuilding and found this. I'm thinking of making some metal split gaskets placing one inside with bolts through holding each half in place and one on the outside and filling void with JB weld. Am I nuts?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bugguy1967
Samba Member


Joined: January 16, 2008
Posts: 4368
Location: Los Angeles, CA 90016
bugguy1967 is offline

PostPosted: Sat Mar 07, 2020 10:20 pm    Post subject: Re: Engine case corrosion? Reply with quote

Try it, let us know how it goes. Did you ask this on FB? If so, it seems like you just want one confirmation to do what you know you already want to do. It will probably seal. Go for it.
_________________
"A petrol engine can start readily, run smoothly and give every appearance of being in good order, without necessarily being in good tune." - Colin Campbell, "The Sportscar Engine"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jbillow
Samba Member


Joined: July 13, 2015
Posts: 76
Location: Gansevoort, NY
jbillow is offline

PostPosted: Sat Mar 07, 2020 10:50 pm    Post subject: Re: Engine case corrosion? Reply with quote

Don't know why you have that impression bugguy, and why I would ask on FB is beyond me. But thanks for your informed response.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mukluk
Samba Member


Joined: October 18, 2012
Posts: 7452
Location: Clyde, TX
mukluk is offline

PostPosted: Sun Mar 08, 2020 12:37 am    Post subject: Re: Engine case corrosion? Reply with quote

https://www.thesamba.com/vw/forum/viewtopic.php?t=505703
_________________
1960 Ragtop w/Semaphores "Inga"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
txoval
Samba Member


Joined: January 23, 2004
Posts: 3839
Location: The Woodlands, TX
txoval is offline

PostPosted: Sun Mar 08, 2020 6:20 am    Post subject: Re: Engine case corrosion? Reply with quote

Yes, see link above, it has been done several times before.

If you can afford the Belzona product, it would be better, but it’s about $200 for the same amount as a $6 JB Weld package
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jbillow
Samba Member


Joined: July 13, 2015
Posts: 76
Location: Gansevoort, NY
jbillow is offline

PostPosted: Sun Mar 08, 2020 11:52 am    Post subject: Re: Engine case corrosion? Reply with quote

thanks guys
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bugguy1967
Samba Member


Joined: January 16, 2008
Posts: 4368
Location: Los Angeles, CA 90016
bugguy1967 is offline

PostPosted: Mon Mar 09, 2020 8:30 pm    Post subject: Re: Engine case corrosion? Reply with quote

jbillow wrote:
Don't know why you have that impression bugguy, and why I would ask on FB is beyond me. But thanks for your informed response.


There are a lot of specific VW groups on FB and someone asked that same question as soon as you posted this. It also looked the same as your pics. Just a coincidence...
_________________
"A petrol engine can start readily, run smoothly and give every appearance of being in good order, without necessarily being in good tune." - Colin Campbell, "The Sportscar Engine"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
