"Herrenfahrer-Werkzeugsätze" (Gentlemens Driver Tool Sets)
But great unused condition for this piece of history.

Looks like past 1976 and near but before 1979:
the 760 has already the black plastic covered handle and W(est)-Germany imprint
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello everyone,

yesterday the weather was nice to take some new photos... and to work outside on the cars

HAZET 2575/3 - Phillips screwdriver set for air cooled VW (1958-1969)
with HAZET 814-2, -3 and -4:

HAZET 4500/9 or 4500/10 carburettor tool set for air cooled VWs (1969-...):

HAZET 4501 - Carburettor special measuring device for measuring the throttle valve gap
HAZET 4503 - Carburettor special bending lever for adjusting the injection pipe
HAZET 4505-1 - Bending lever for adjusting the accelerator pump lever
HAZET 4505-2 - Holder for the accelerator pump lever
HAZET 4507 - Setting gauge (made of brass or plastic) for throttle valve gap or gap size of the float chamber ventilation valve
HAZET 4507-1 - Setting gauge for throttle and starter valve gap
HAZET 4513-13 - Special wrench for main jet or float needle valve
HAZET 4513-14 - Special wrench for main jet or float needle valve
HAZET 615 Starter and block wrench 11x13 mm
HAZET 2587 Special double open-end wrench 9x9 mm

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[vwpieces]

Holy Grail, Rarest of Rare?
Or some DIY hack job?

Likely only 429 made.
Hazet 763 of a different kind.

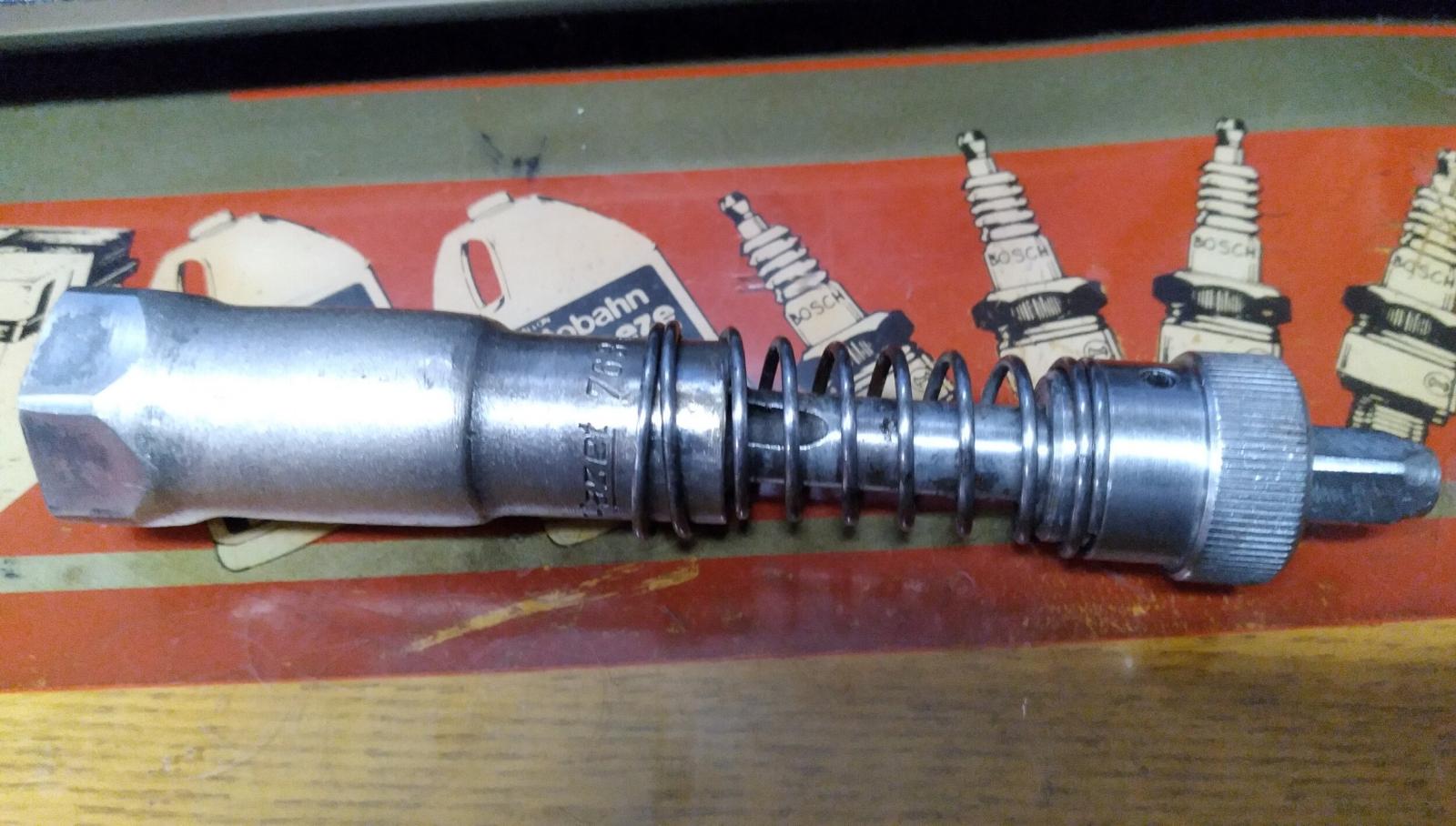

Early 356A Carrera toolkit spark plug tool
_________________
68 BUS
83 JETTA TURBO DIESEL
83 2dr JETTA 16V
81 Turbo Diesel Jabbit

[rsbadura]

Only to complete it here (discussion in GarageJournal.com):
the ratchet for the tool was made till today by Bilz (founded 1919), a company near Porsche:
https://www.bilz.com/products/ratchets
I also suspect that they adapted the Hazet 763 to the requirements of the tight 8 spark plug Porsche 356 Carrera - that this was not done by Hazet.
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello everyone,

HAZET 1932 welding pliers (1969 to today, this version with yellow handles 1979 to before 1988).
These pliers are designed for bending sheet metal up to 1 mm thick in order to weld them with an overlap.
Now I need the matching 1964 hole punch pliers for spot welding.
But for longer edges I use another hand-friendly tool with compressed air.

HAZET 1861-00 and 1861-11 stripping pliers (1967-2000, this version 1967 and 1969 until before 1985).
These pliers with yellow-transparent hand protection are used to strip fine wires with a diameter of 0.3 to 1.2 mm or 0.5 to 5 mm, without having to adjust the cross-section. The different diameters are implemented using parallel, spring-loaded gripping blade slats. In practice, however, this means more effort than with the simple 1860-1 with V-blades and over the years neither the spring force nor the cutting/gripping blade is even across all the sensitive slats. Therefore, it is not such a great tool.

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello again,

are often overlooked as Hazet VW special tools because they hide under the socket sets and ratchets:

Hazet 921 (1950-1972) - VW spring rod fastening 8 mm
Hazet 922 (1950-1972) - VW cylinder head bolts 10 mm
HAZET 923 (1967-1972) - VW oil drain and filler plug on the gearbox 17 mm

and something much older:
Hazet 196 (around 1932) - automobile wrench "Excelsior"
not for Volkswagen, but for "Auto Union" (four rings standing for the brands "DKW", "Wanderer", "Horch" and "Audi") - today AUDI is part of VW.
This 9 1/2" adjustable wrench with Auto Union part# "896583-0" was probably part of an on-board tool kit -
as other Hazet standard spanners 10x12 with "896580-0", 11x14 "896581-0", 17x19 "896582-0", ... could be found at the Internet.

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello everyone,

found my classic 1964 for plug welding of two overlapping sheets of metal....

HAZET 1932 (from ~1979) welding plier flange tool for crimping edges on metal
HAZET 1964 (from ~1979) sheet metal punch 5.5 mm
DEMA 18561 (current) my compressed air tool for both - much faster and without any effort

HAZET 1868-20 Christmas baubles versions (~2018, ~2022, ~2024)

Wish you happy and peaceful holidays,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello everyone,

new arrival in my collection:

HAZET 2586 ignition adjustment tool (1969-1972)

This ignition timing adjustment tool for old mechanical rotation ignition distributors with a yellow-transparent handle and gray cable with a blue plug was for old VW type 1 (classic beetle and others like that) and type 2 (old T2 / bay window transporter & bus) vehicle classes. Several tools, such as a test lamp, open-end or ring spanner, which are required for ignition adjustment, are replaced by this HAZET 2586.

Remove the distributor cap from the ignition distributor and switch on the ignition. Turn the crankshaft until the ignition timing mark is on the housing parting line. First check that cylinder 1 is at the correct top dead center (TDC) 0° by checking the overlap of the two valve opening phases on the 3rd cylinder - the pulley mark (at the rear in driving direction) should then be on the housing parting line, as with the original. The second, more important pulley marking (at the front in driving direction) is for the standard ignition timing 7.5° before TDC opposite the housing joint. Attach the cable to terminal 1 of the ignition coil (usually a green cable also runs from there to the distributor capacitor). If the test lamp does not light up, position the tool so that the clamping screw of the ignition distributor is clamped between the ring spanner and socket wrench. Loosen the 10 mm screw by turning the handle. Turn the ignition distributor clockwise until the breaker contact is closed. Then turn the distributor anti-clockwise until the contact begins to open and the test lamp lights up. Retighten the 10 mm clamping screw on the distributor and check the timing again. Put the distributor cap on.

The inscriptions on the yellow transparent handle are "HAZET" and "2586" on one side and "CHR.-VAN." for chrome-vanadium, "D.B.G.M." on the other side for registered German federal utility pattern and "GERMANY". On the socket secured with a slotted screw in the tool "Hazet" (yes, little "a"), below it small "GERMANY" and below that "2586" and a "10".

The tool only appears in catalogs from 1969 to 1972 - cannot be found in catalogs before 1967 or after 1976. From 1988 to 2005 there was a clamping wedge set “2586 N” for exhaust systems.

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

and hello again

HAZET 2597 parallel claw tensioner for torsion bar stabilizer (1972)

Tensioner with two star grip screws (one is fixed) for mounting the stabilizer under the front axle on VW type 1 (classic beetle and others like that, except 1302 and 1302S) and type 2 (as transporter & bus) vehicle classes.

Inscriptions on one side of the claw are "HAZET", below in small "GERMANY", "2597" and "DBGM" for registered German federal utility pattern and on the other side "CHROM VANADIUM".

This tool only appears in the 1972 catalog - it is not included in the 1970 catalog before or after 1976. Later there were two other tools with a completely different function with this number no longer for air-cooled Volkswagens. Only briefly around 1979 an open 17 mm double ring spanner for diesel injection lines and since 2000 as a curved bit holder as a door hinge tool.

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello again,

not special for VW:
HAZET 1960 bodywork sheet metal cutter (1958-2010, this version 1965-1976)
(With old little "a" replacement blade 1960-1 and later from 1979 clamping sleeves instead of screws.)

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[rsbadura]

Hello everyone,

completed my Hazet 2510 tool set for flywheel and rear axle (1950-1972) with
- the rotating rod HAZET 1014
- the 3/4" sliding piece HAZET 1015,
- the 36 mm 3/4" socket Hazet 1056 especially for VWs (for the rear axle of a bay window you need a 46 mm socket),
- the guide plate Hazet 2511 and
- the lever extension Hazet 2512.

These look so cute and small in the photo - but they are big and heavy - keep in mind it is a 36 mm socket.

regards,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[Davicin]

Hello¡ i own a 72/12 manoskop but i dont have the handle and the connection part to the tool main axis. How could i get it? Have you more pics of that handle? Thank you¡ amazing collection btw

[rsbadura]

This bigger size 72/12 of Stahlwille Manoskop never sold as Hazet tool or in its VW sets as the 72/6 as Hazet 2590.

Spare parts are not available after more than 50 years. So you need to buy another one more complete or rebuild the missing parts. I bought also two of them, because on the Hazet one without Stahlwille inscript the attached pointer was missing - and sold it (the 72/12) again without - also because the price level of a Stahlwille 72/12 is around 10 times lower and less than the rare and collectable Hazet 2590. So price range is only around 20 € what I noticed the past decade. Sad and curious - but there are none or less Stahlwille collectors.

good luck,
_________________
Rolf-Stephan Badura
1970 VW Karmann-Ghia Coupe
1979 VW Bus L camper conversion
1982 Eriba Pan travel trailer
2017 VW CrossPolo
HAZET classic tools collection

[cru62]

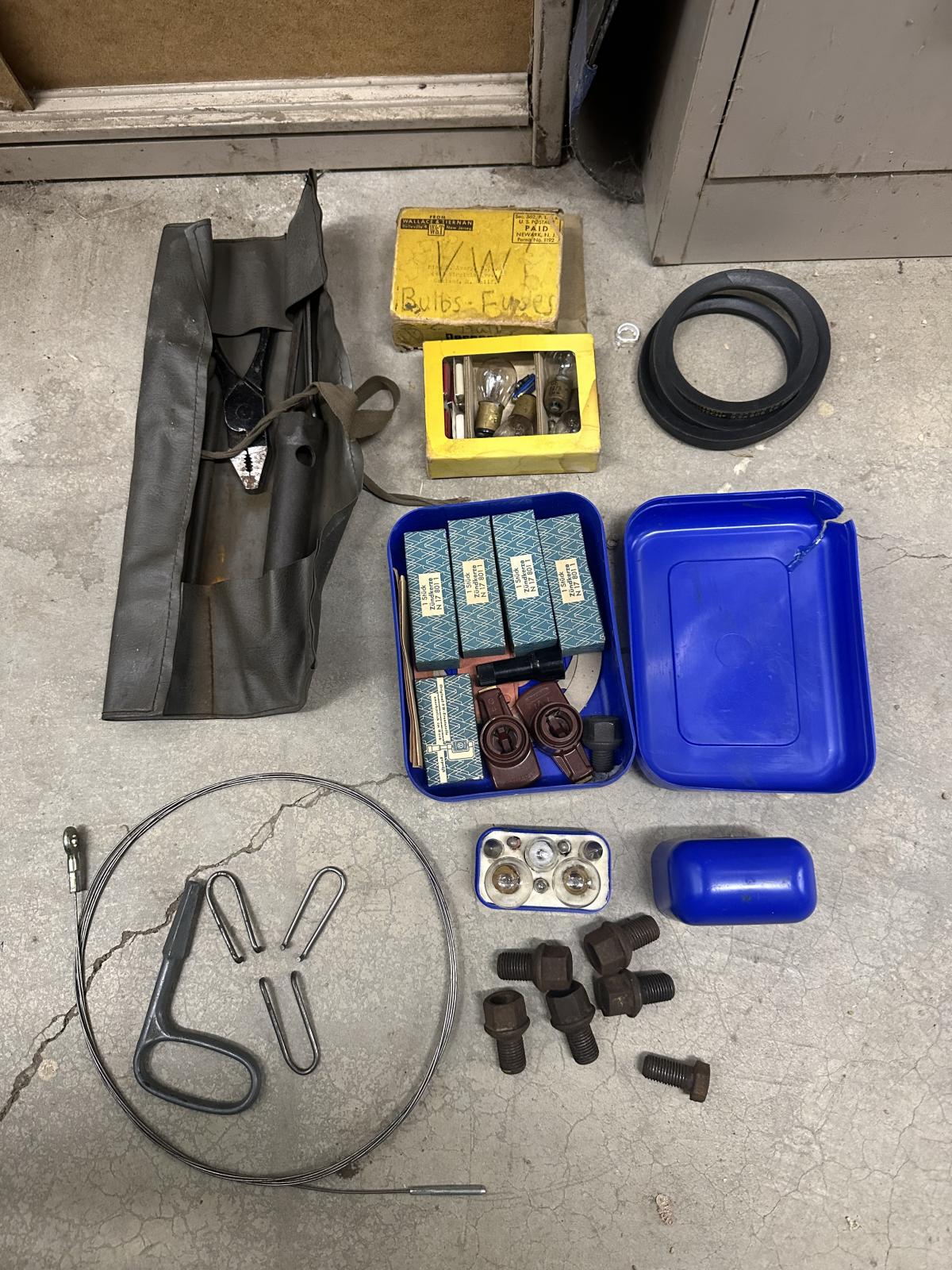

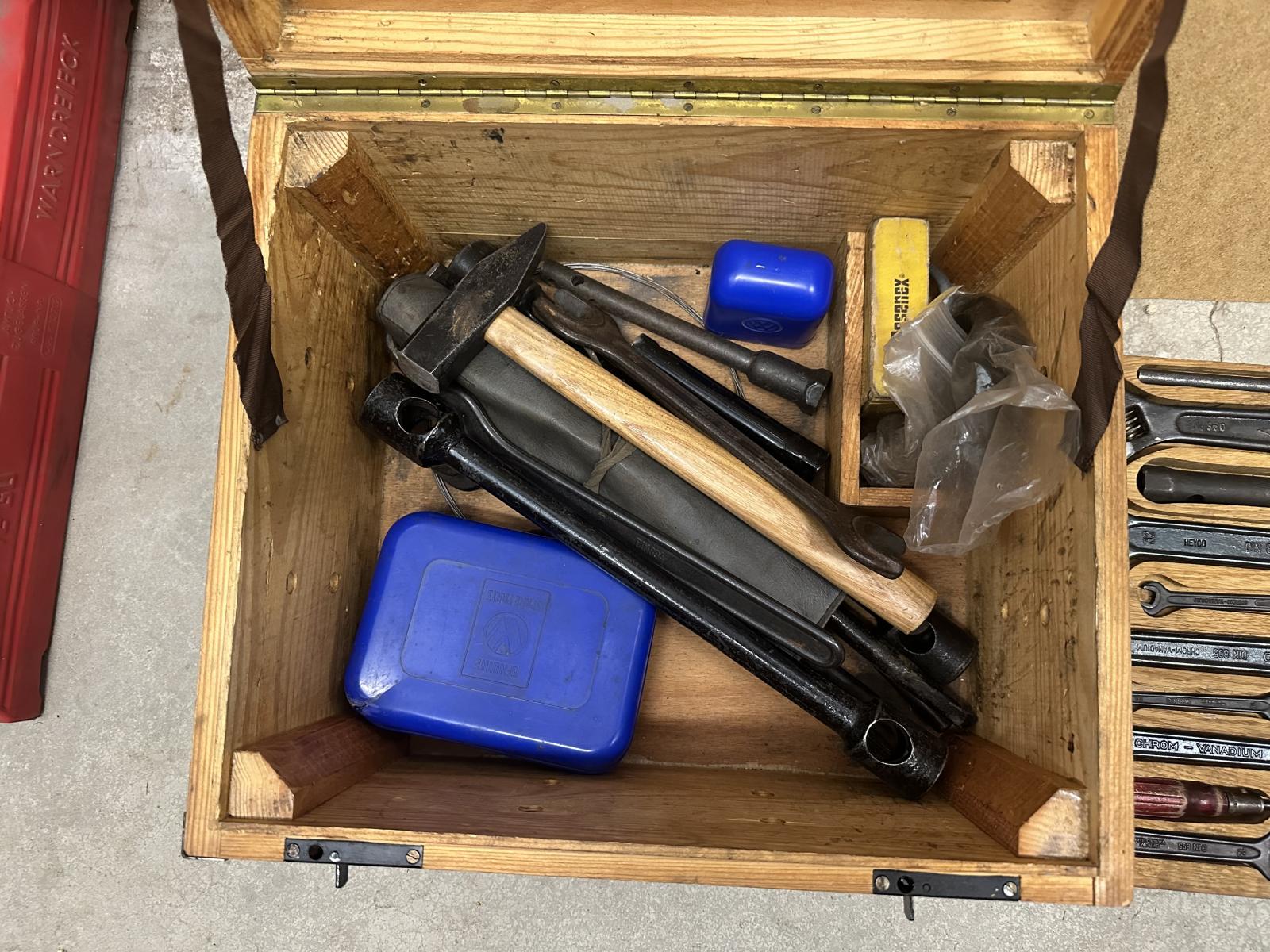

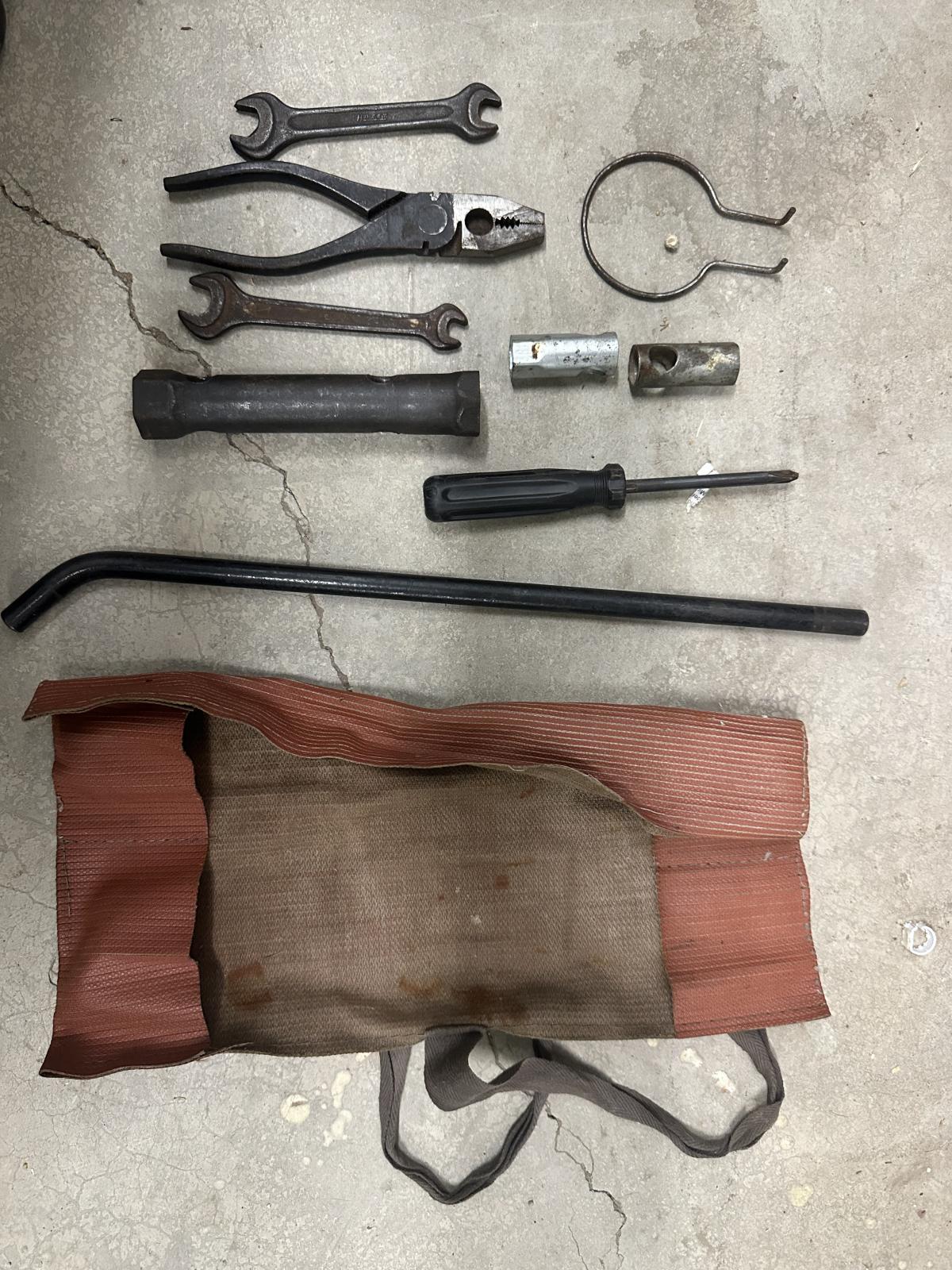

Picked this up from my Brother-in-law. He got it when he cleaned out the garage of a buddy of his in Pasadena who was a Baja racer. He bought the guys 1956/7 sunroof oval and all his VW parts and some tools. He wasn’t interested in these things and so I got them! Well, except for the red tool roll which is from my ‘61 Kombi. I thought the stuff was really cool. Looks to be tools for a big truck.

_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!

[EverettB]

Nice!

I don't recognize those tools but I do recognize the little blue plastic case as a VW part.

One thread
https://www.thesamba.com/vw/forum/viewtopic.php?t=530576
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!

[rsbadura]

[cru62]

There are several HAZET marked tools as well as some HEYCO. Most of them are unmarked. I was just curious what the boxed set may be for.
_________________
"My biggest worry is that when I die, my wife will sell all my parts for what I told her I paid for them"-Jon

Jokes about German sausage are the wurst.

Stop dead photo links! Post your photos to The Samba Gallery!

[vwpieces]

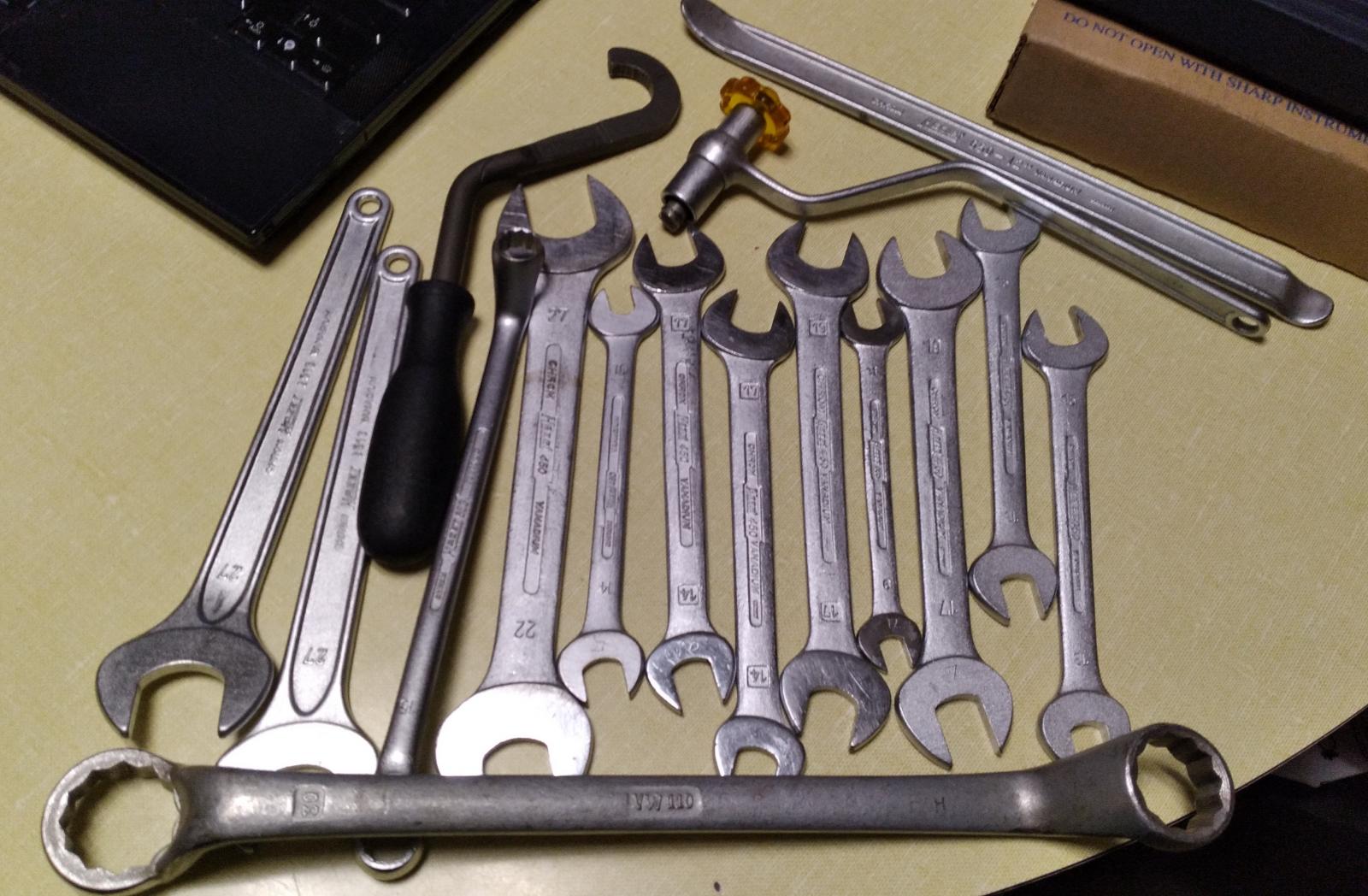

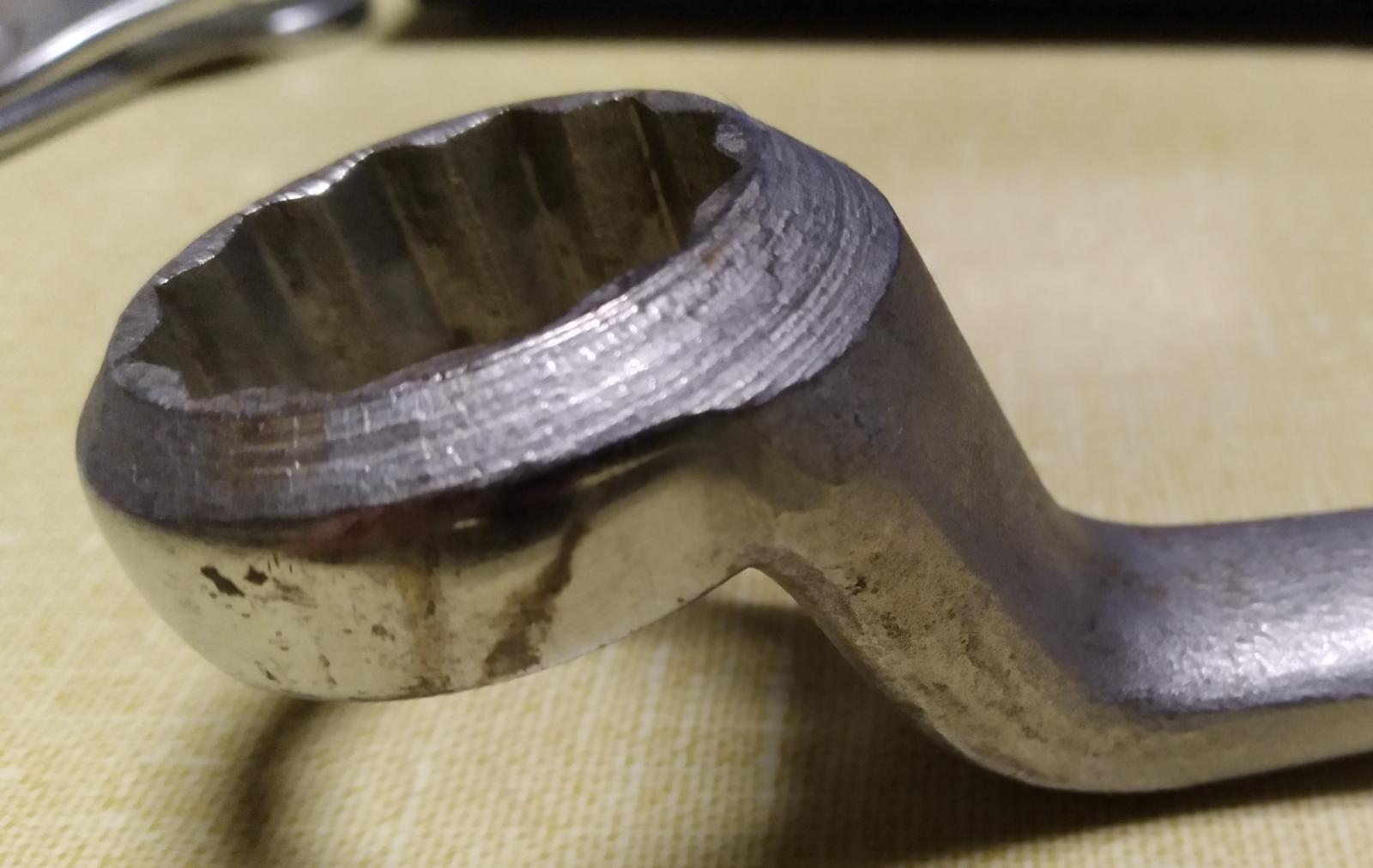

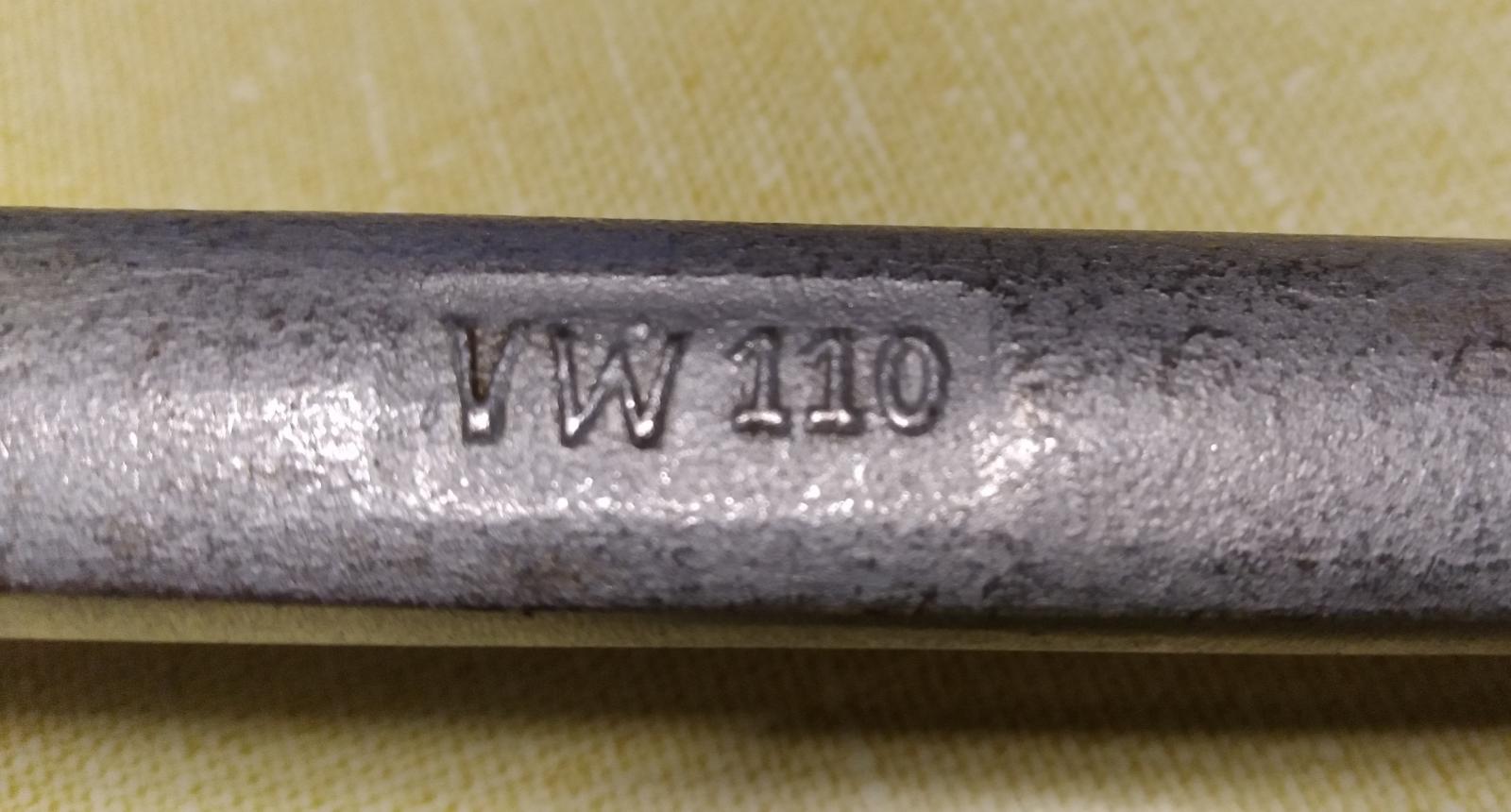

Hazet VW110 deep offset wrench like the 630 but slightly modified by Hazet.
