How do I strengthen my pan for Xtreme offroad?
Forum Index -> HBB Off-Road Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
traviswx1
Samba Member


Joined: August 24, 2005
Posts: 79
Location: Lodi, CA
traviswx1 is offline

PostPosted: Tue Aug 30, 2005 8:27 pm    Post subject: How do I strengthen my pan for Xtreme offroad? Reply with quote

I pulled out the seats,shifter, battery, and carpeting. I am now down to all of that tar under coating. I wanted to get it down to bare metal so maybe i can weld some steel plating for reinforcement.I needed some tips on what kind of steel would be good for reinforcements. I also need to get rid of all of the crap because i bought a jamar super shifter so i can shift my 091 tranny without getting a useless body lift. I am also planning on getting a rollcage.
Code:
Back to top
View user's profile Send private message Classifieds Feedback
desertthing
Samba Member


Joined: April 30, 2005
Posts: 61

desertthing is offline

PostPosted: Fri Sep 02, 2005 10:01 pm    Post subject: sxtreme off road? Reply with quote

Try a chromoly chassis and forget the pan. If you want extreme! extra stell means extra weight.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanhag
Samba Mortician


Joined: June 29, 2003
Posts: 2596
Location: Desert Coast
Vanhag is offline

PostPosted: Fri Sep 02, 2005 10:35 pm    Post subject: Reply with quote

I agree with the chromoly chassis idea.

Personally I'm doing a body lift to strengthen the pan and body. O what? that useless lift? I bought a taiwanese special so I can have my local fab shop weld one out of stock tubing. I figure if it is done right you're going to add a bunch of strength to the car.

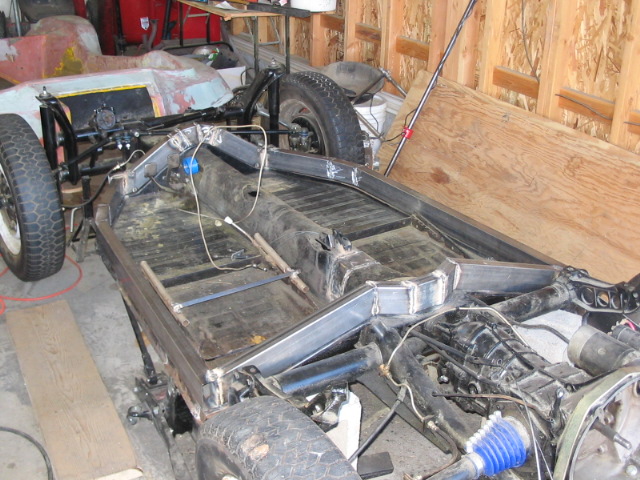

It should look a little like Iceluke's setup:
Image may have been reduced in size. Click image to view fullscreen.


I'll be welding the roll cage to the lift, rear torsion, body, and front beam. I'll also be welding up some rock gaurds for the side bottoms for those times when you have to roll over a boulder.
_________________
CU05 w/HBB
HOODRIDANCE
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
UncleDirty
Samba Member


Joined: July 20, 2005
Posts: 745
Location: Riverside Ca
UncleDirty is offline

PostPosted: Sat Sep 03, 2005 3:32 am    Post subject: Reply with quote

Start by welding all the seams on your pan. Also the frame horn seams. It's best to have it sand blasted first, but you can clean the undercoating off pretty good with a wire wheel.
A piece of 3/16 plate between the torsion housing and the pan is a good idea. I think Hibbards book shows some examples.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
traviswx1
Samba Member


Joined: August 24, 2005
Posts: 79
Location: Lodi, CA
traviswx1 is offline

PostPosted: Sat Sep 03, 2005 8:44 pm    Post subject: Reply with quote

Has anyone seen a pan fabed of chromoly and if they have how did it turn out. I was thinking about maybe doing that. i would first use some square tubing on the perimeter then work my way in to the sheeting then the tunnel. Sounds good. Opinion needed! Thanks.
Back to top
View user's profile Send private message Classifieds Feedback
Dirt Junkie
Samba Member


Joined: July 12, 2005
Posts: 146
Location: Phoenix, AZ
Dirt Junkie is offline

PostPosted: Sat Sep 03, 2005 8:56 pm    Post subject: Reply with quote

check the classifieds the was a guy on there who makes them.
_________________
Club AZ Baja President!
or as my boys call me "El Presidente"

Now Celebrating my 27th year of being Addicted to VWs.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Chewbacca
Samba Member


Joined: October 27, 2004
Posts: 182
Location: Australia
Chewbacca is offline

PostPosted: Sun Sep 04, 2005 2:18 am    Post subject: Reply with quote

How eXtreme are we talking here?
like 3 or 4 cans of pepsi maX?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
traviswx1
Samba Member


Joined: August 24, 2005
Posts: 79
Location: Lodi, CA
traviswx1 is offline

PostPosted: Sun Sep 04, 2005 4:58 pm    Post subject: Reply with quote

Do you know what section of the classifieds he was in or do you have a direct link? Thanks!
Back to top
View user's profile Send private message Classifieds Feedback
Dirt Junkie
Samba Member


Joined: July 12, 2005
Posts: 146
Location: Phoenix, AZ
Dirt Junkie is offline

PostPosted: Mon Sep 05, 2005 7:57 pm    Post subject: Reply with quote

Searched for the ad today and found nothing. Confused It was a pan made with tubing that you weld your rear tortion to.
_________________
Club AZ Baja President!
or as my boys call me "El Presidente"

Now Celebrating my 27th year of being Addicted to VWs.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
traviswx1
Samba Member


Joined: August 24, 2005
Posts: 79
Location: Lodi, CA
traviswx1 is offline

PostPosted: Tue Sep 06, 2005 9:17 am    Post subject: Reply with quote

Were talking about six cans
Back to top
View user's profile Send private message Classifieds Feedback
baja5
Samba Member


Joined: February 28, 2004
Posts: 4269
Location: Ramona,Ca.
baja5 is offline

PostPosted: Tue Sep 06, 2005 5:34 pm    Post subject: Reply with quote

start with this.

http://www.funbodies.com/tube_chassis.htm
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dirt Junkie
Samba Member


Joined: July 12, 2005
Posts: 146
Location: Phoenix, AZ
Dirt Junkie is offline

PostPosted: Thu Sep 15, 2005 9:18 pm    Post subject: Reply with quote

The ad is back up in classifieds again its a featured ad.
_________________
Club AZ Baja President!
or as my boys call me "El Presidente"

Now Celebrating my 27th year of being Addicted to VWs.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
DeMinimis
I Eat Glue


Joined: November 16, 2004
Posts: 1840
Location: Down in the pig mine
DeMinimis is offline

PostPosted: Sun Sep 18, 2005 4:52 pm    Post subject: Reply with quote

Vanhag:

Looked at your lift before and was impressed. Looks plenty stout. How do you plan on bolting the body to the frame (bolts all the way through the lift, tabs, weld nuts, etc...)?
_________________
Yes Virginia, beer can make you smarter.

'78 SB CEII In Progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ellobo
Samba Member


Joined: December 18, 2004
Posts: 286
Location: O.C. California
ellobo is offline

PostPosted: Sun Sep 18, 2005 5:59 pm    Post subject: Reply with quote

You didn't mention if this was for a buggy project or if you were doing a baja bug....I added some 1 1/4" x .120" wall within the c-channel from underneath. If you're lucky enough to afford a f/g body with the intergral 3" body lift...This is the way to go.... Very Happy
Either way, If you're looking to get some extreme support...Then, I would add an additional roll cage structure or cage.....

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
Vanhag
Samba Mortician


Joined: June 29, 2003
Posts: 2596
Location: Desert Coast
Vanhag is offline

PostPosted: Sun Sep 18, 2005 7:52 pm    Post subject: Reply with quote

Support from underneathe, I like it, But I'm worried about scraping the bolt heads off on boulders and trees.

DeMinimouse, that's not my pan in the picture it was IceLuke's. Like I said I plan on taking my Tiawan lift to the local shop and having them copy it a couple of times from tubing, like IceLukes.
_________________
CU05 w/HBB
HOODRIDANCE
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
