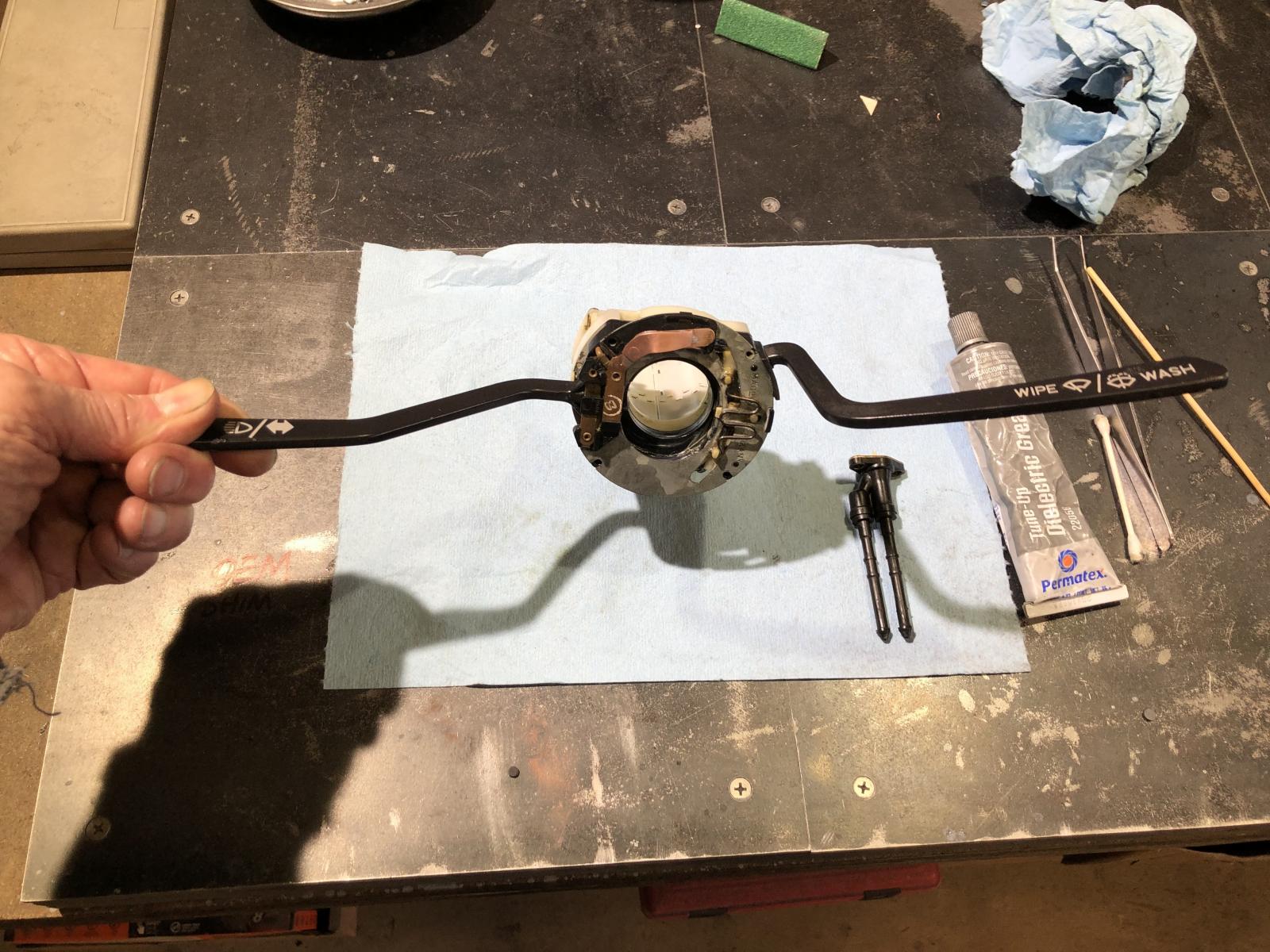

Turned my attention to the turn signal and wiper stalks.

I believe they are OEM German units…at least the turn signal/headlight stalk appears to be since it’s made in Germany and has a large hole in the horn ring contact from years of spinning steering wheels!
Image may have been reduced in size. Click image to view fullscreen.


I’ve read lots of post on Samba about repop turn signal units being crap and not canceling, not working, etc. Having an OEM German unit, I wanted to see if I could restore the horn ring contact. I checked the signal switch and it has a solid snap to the R or L and tripping the cancel tab snaps the lever back with authority. So, mechanically it appears to be functional. Worth a try restoring the contact

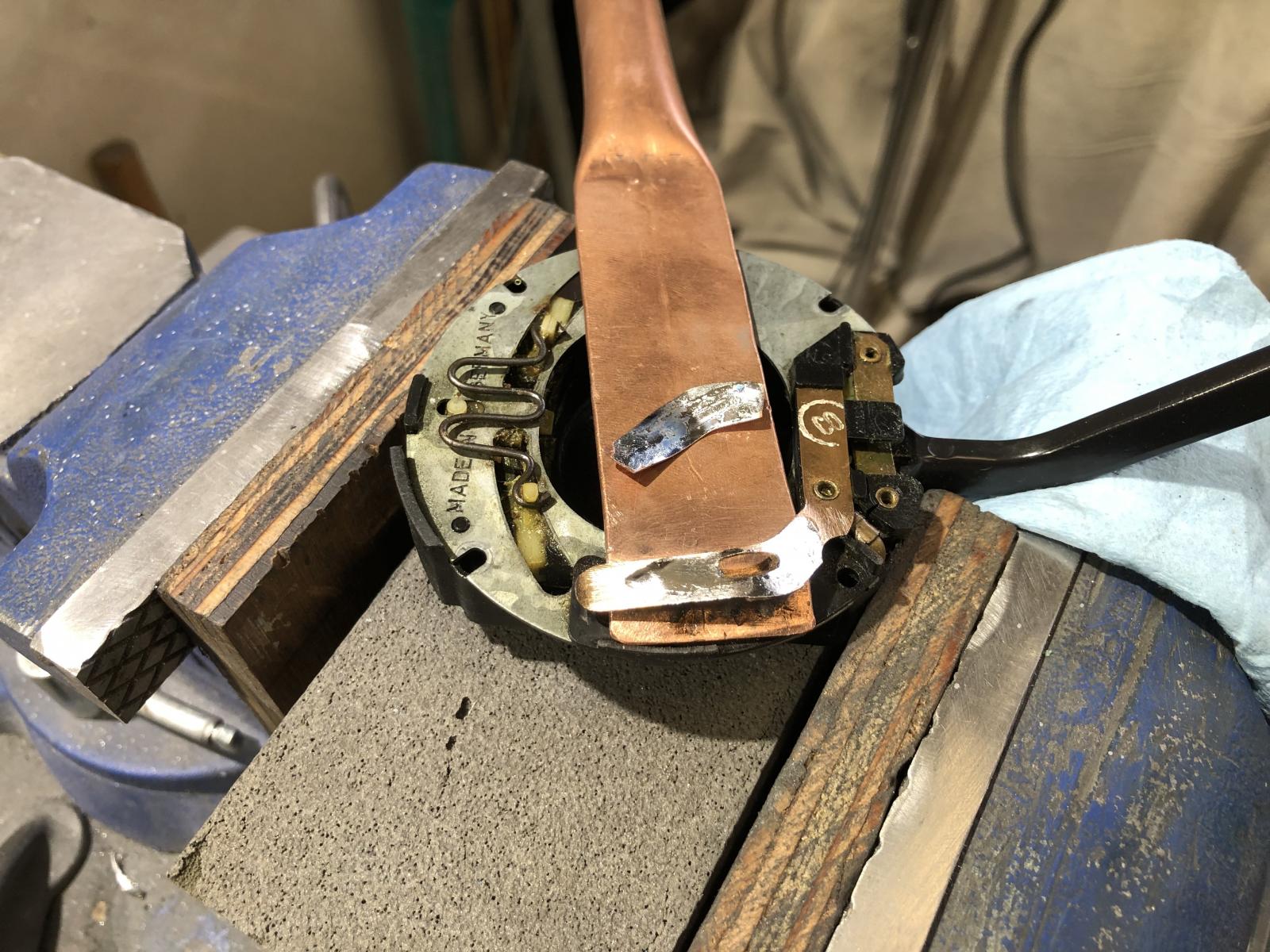

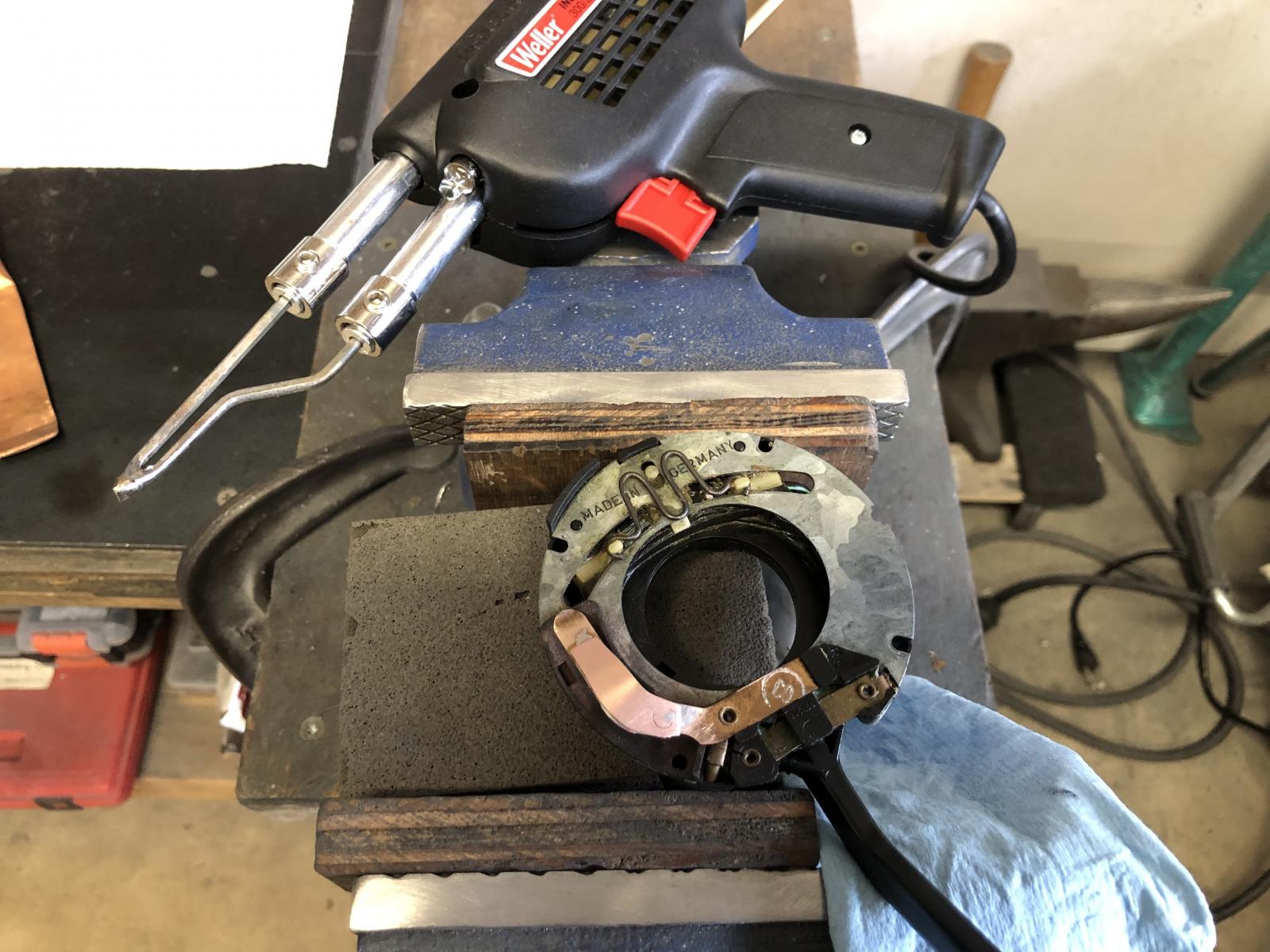

The horn ring contact is 0.010” thick copper…I bought some 0.016” copper from my local ACE hardware…
Image may have been reduced in size. Click image to view fullscreen.

…made a template of the contact and cut out a piece to overlay the hole.
Image may have been reduced in size. Click image to view fullscreen.


Supported the contact strip with a dowel and sanded the contact and cleaned w/acetone…
Image may have been reduced in size. Click image to view fullscreen.

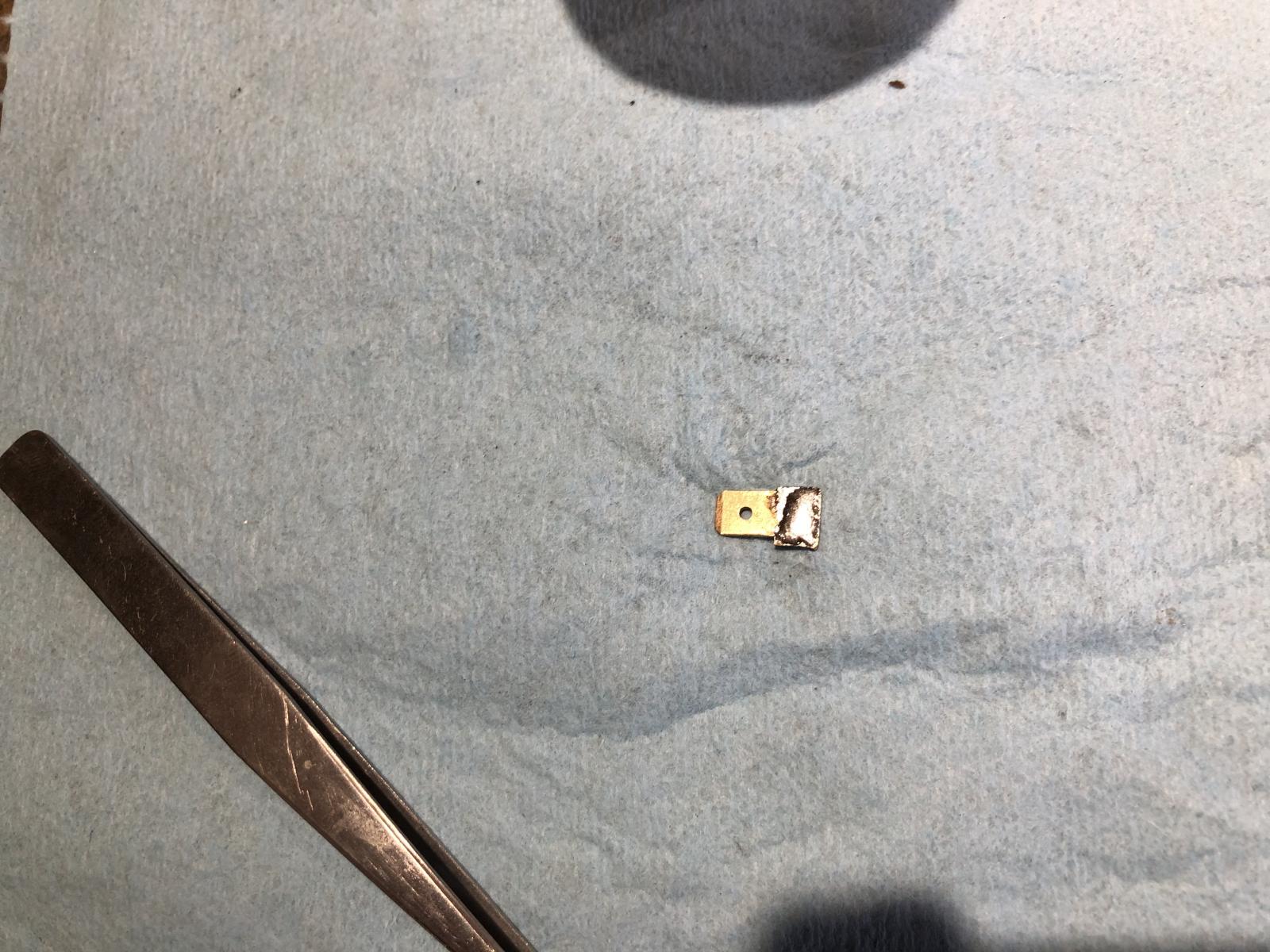

…tinned the contact and the overlay…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


…applied heat to the overlay until the solder flowed out…
Image may have been reduced in size. Click image to view fullscreen.

…SUCCESS!

Clean and lubed both wiper and turn signal controls (removed the unused windshield washer nonsense)…ready for intstall.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Wed Apr 02, 2025 7:04 am    Post subject: Re: The DUNGBTL Build Reply with quote
…but you’ll be done before me…

Very Happy

I doubt that.
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Fri Apr 11, 2025 5:39 pm    Post subject: Re: The DUNGBTL Build Reply with quote
DUNGBTL wrote:
bruceo98 wrote:
Nice. Are you going to lay down any sound deadening on those pans?

Yes. Not going to slather it on every square inch…trying to keep it light (as you well know Embarassed )…just enough to dampen the drum! Similar to what the factory did to the door and quarter panel skins.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

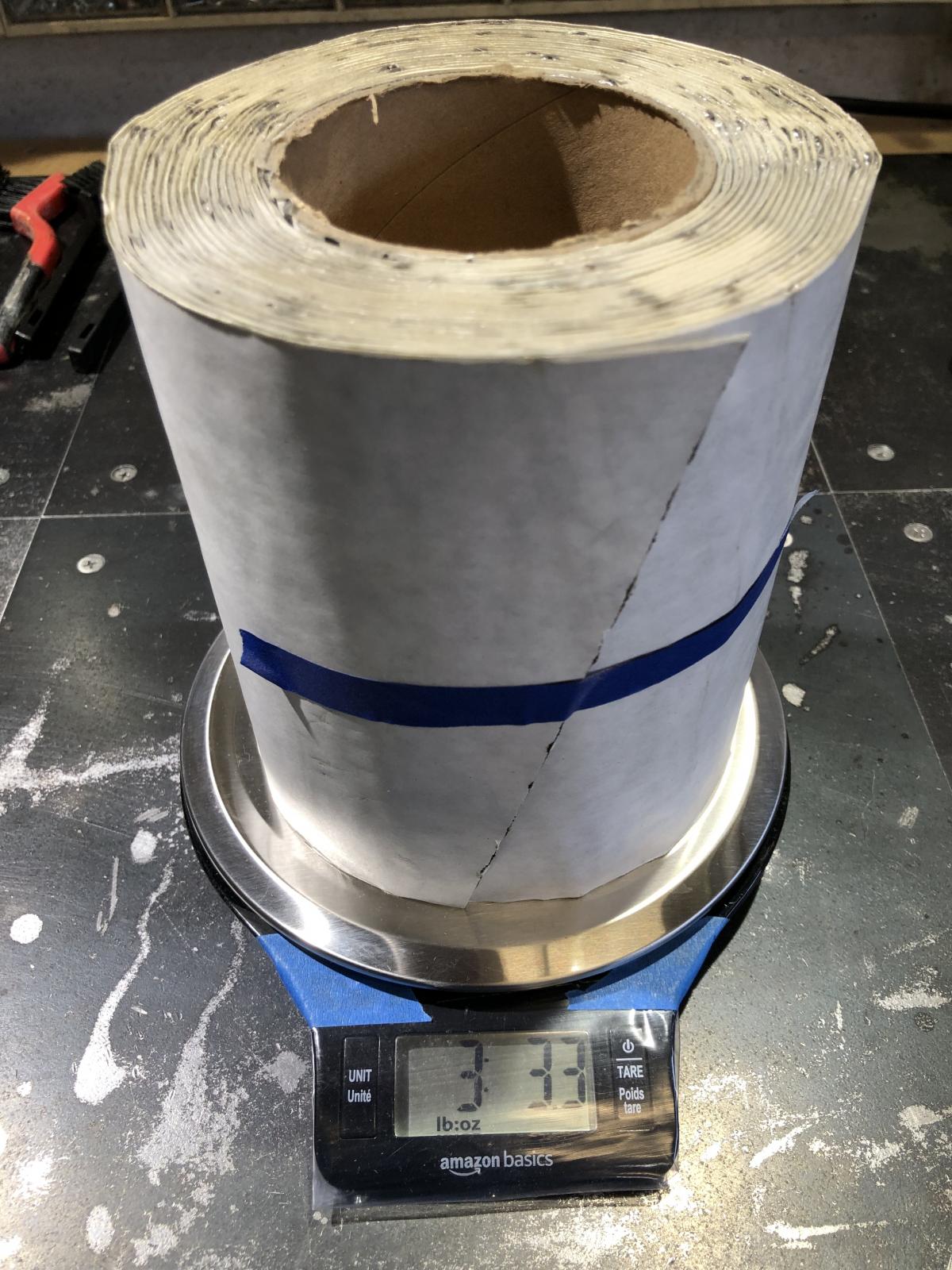

1.7 lbs added…0.77 kg for our metric friends.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Fri Apr 11, 2025 7:48 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Yeah, that should work. At least it will take away that hollow sound.
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Sat Apr 12, 2025 7:03 am    Post subject: Re: The DUNGBTL Build Reply with quote
bruceo98 wrote:
Yeah, that should work. At least it will take away that hollow sound.

Exactly. Inexpensive too at your local ACE.

I’ve got the OEM chassis harness cleaned and stripped of un-used wires. Should start wiring the chassis next week.

Any progress on yours?

J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Sat Apr 12, 2025 7:07 am    Post subject: Re: The DUNGBTL Build Reply with quote
nah, not too much happening on mine right now. too much work and life getting in the way. SSDD
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Wed Apr 16, 2025 2:30 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Wiring has begun!

Very satisfying progress this week as I am actually starting to reassembly! Started the chassis wiring with one of the simplest circuits…the dome light.

I started with this pile…
Image may have been reduced in size. Click image to view fullscreen.

…cleaned all the connections, unwrapped and checked all the wires for crispiness, and pulled out wires not used. Transformed the pile into sub harnesses…
Image may have been reduced in size. Click image to view fullscreen.
…and a pile of wires and connectors not being used…
Image may have been reduced in size. Click image to view fullscreen.

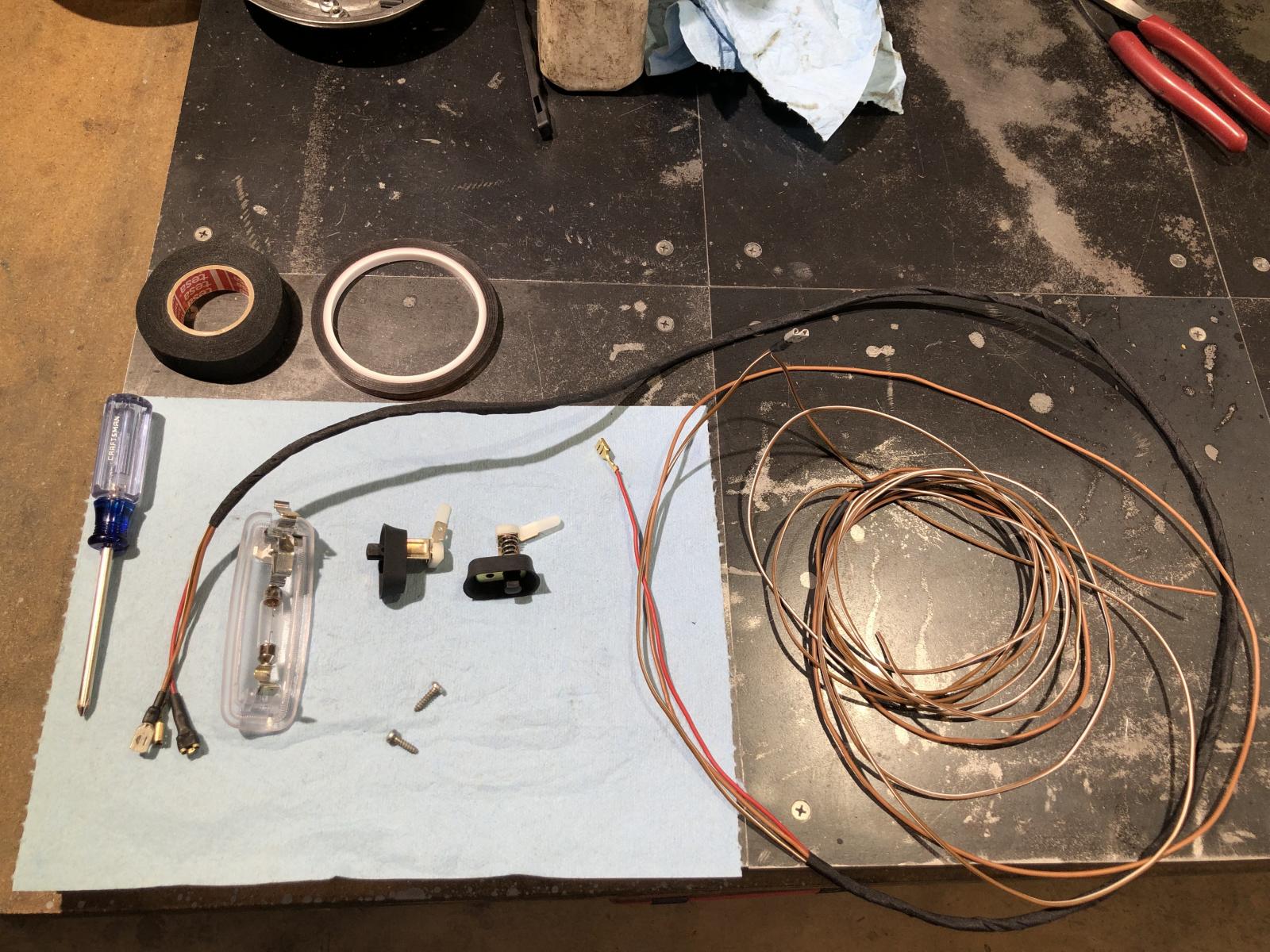

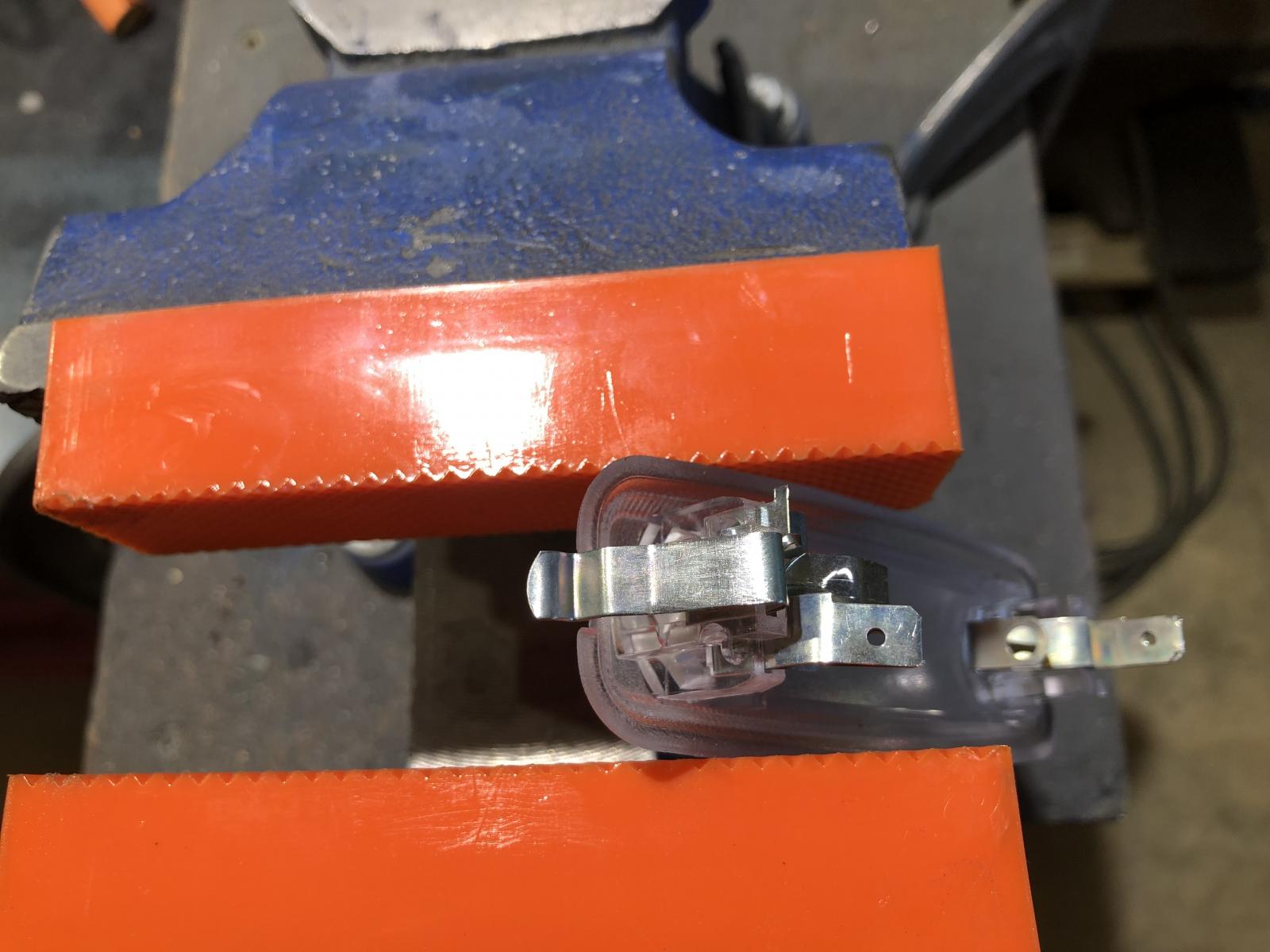

The eBay dome light I bought came with a power male connector and 1 ground male connector. It relies on one mounting clip to ground against the body once installed for the ‘doors closed, light on’ circuit. I didn’t like that so I soldered on a male connector for a proper ground…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


I eliminated the obnoxious ignition/door buzzer and it’s wiring so my dome light harness is simplified. I bought new door switches (2 RHS switches)…
Image may have been reduced in size. Click image to view fullscreen.


‘Fished’ the harness thru the A-pillar to it’s mounting locn.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

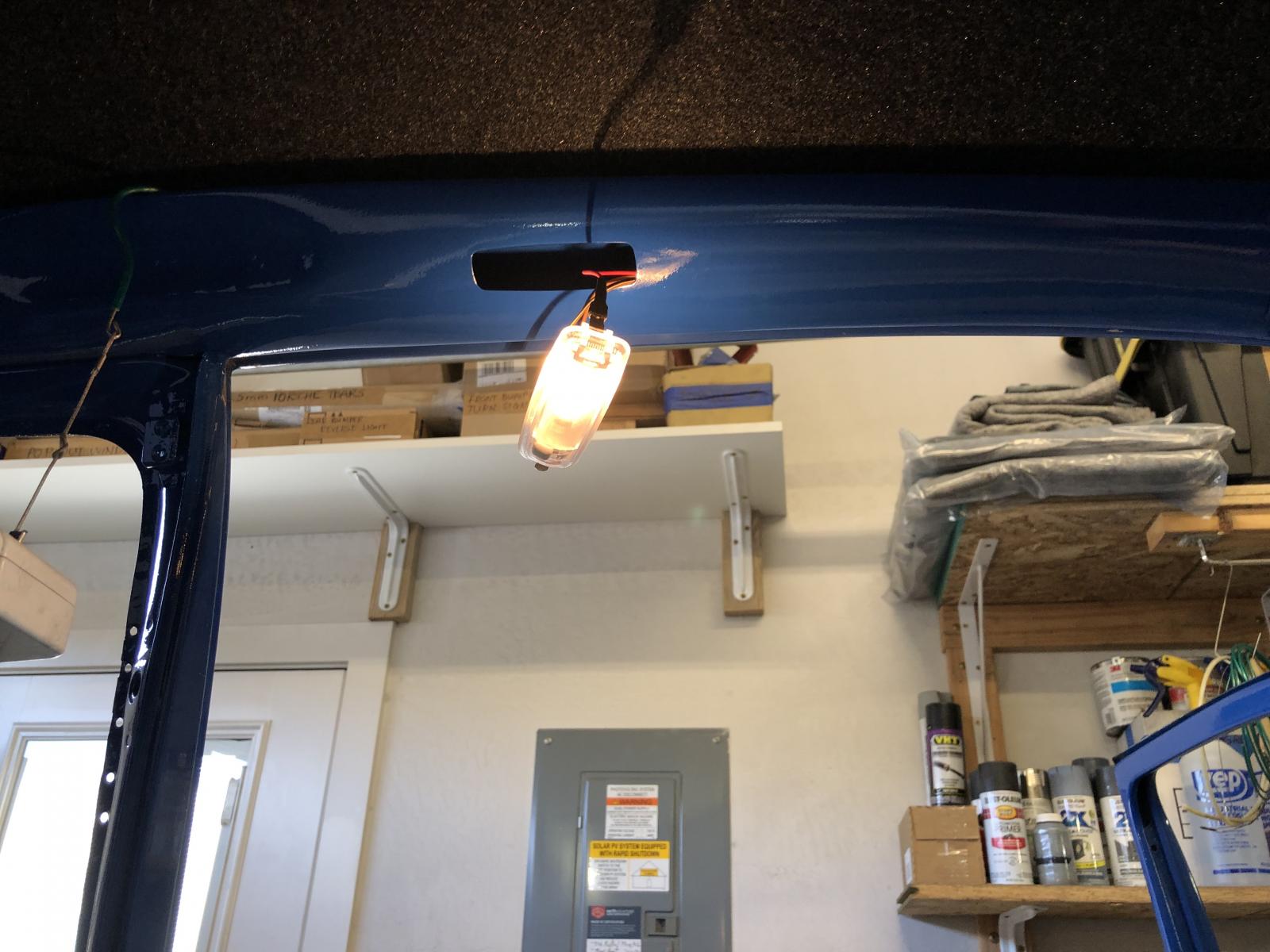

Installed the switches and made the connections…and it WORKS! All three switch positions on the dome light function as they should.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


When I bought the car the motor was out, but it had a battery installed. I never tested the electrical system before I torn it apart. Battery looked decent, however I couldn’t find a date on it so didn’t know its age. I took it out, stuck it on this shelf, put a ‘tender’ on it and forgot about it. That was 3 years ago…
Image may have been reduced in size. Click image to view fullscreen.

…now I’m going to use it for testing purposes. I’ll be using an Odyssey PC680 in the OEM position…it’s 10 lbs lighter Rolling Eyes
Image may have been reduced in size. Click image to view fullscreen.


I also installed new door stops while I was there…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


Little by little… Wink

J.

Last edited by DUNGBTL on Thu Apr 17, 2025 9:34 am; edited 5 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Wed Apr 16, 2025 8:18 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Good luck , looks good so far. When you’re done with yours, you can come do mine . Did I say I hate wiring ? lol
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Thu Apr 17, 2025 9:44 am    Post subject: Re: The DUNGBTL Build Reply with quote
bruceo98 wrote:
Good luck , looks good so far. When you’re done with yours, you can come do mine . Did I say I hate wiring ? lol

Thanks! One circuit a car doesn’t make…or something to that effect Rolling Eyes But you have to start somewhere.

The wifey appreciates the wiring efforts. She says it’s much quieter in the shop and doesn’t have to close the “air lock” (pocket door to the laundry room leading to the garage door)! Very Happy I like it as I stay relatively clean and can now hear my radio…

J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Fri Apr 18, 2025 8:32 am    Post subject: Re: The DUNGBTL Build Reply with quote
Yeah, when i work in my garage i listen to Stevie Ray and so do my neighbors.. Rolling Eyes
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Wed Apr 23, 2025 5:30 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Progress report:

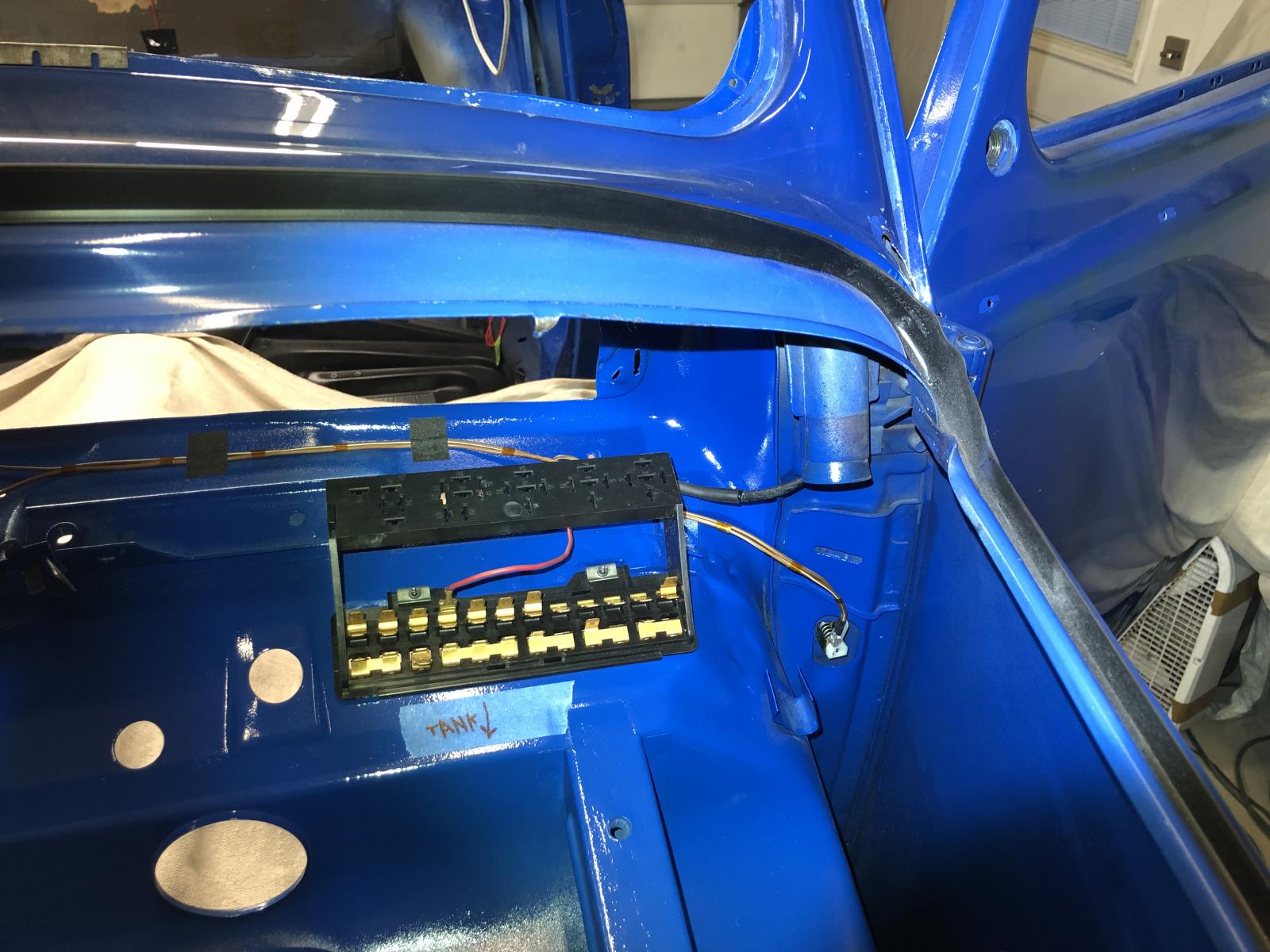

Finished the wiring for the headlight and emergency flasher switches and the front headlight/park/signal lights…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

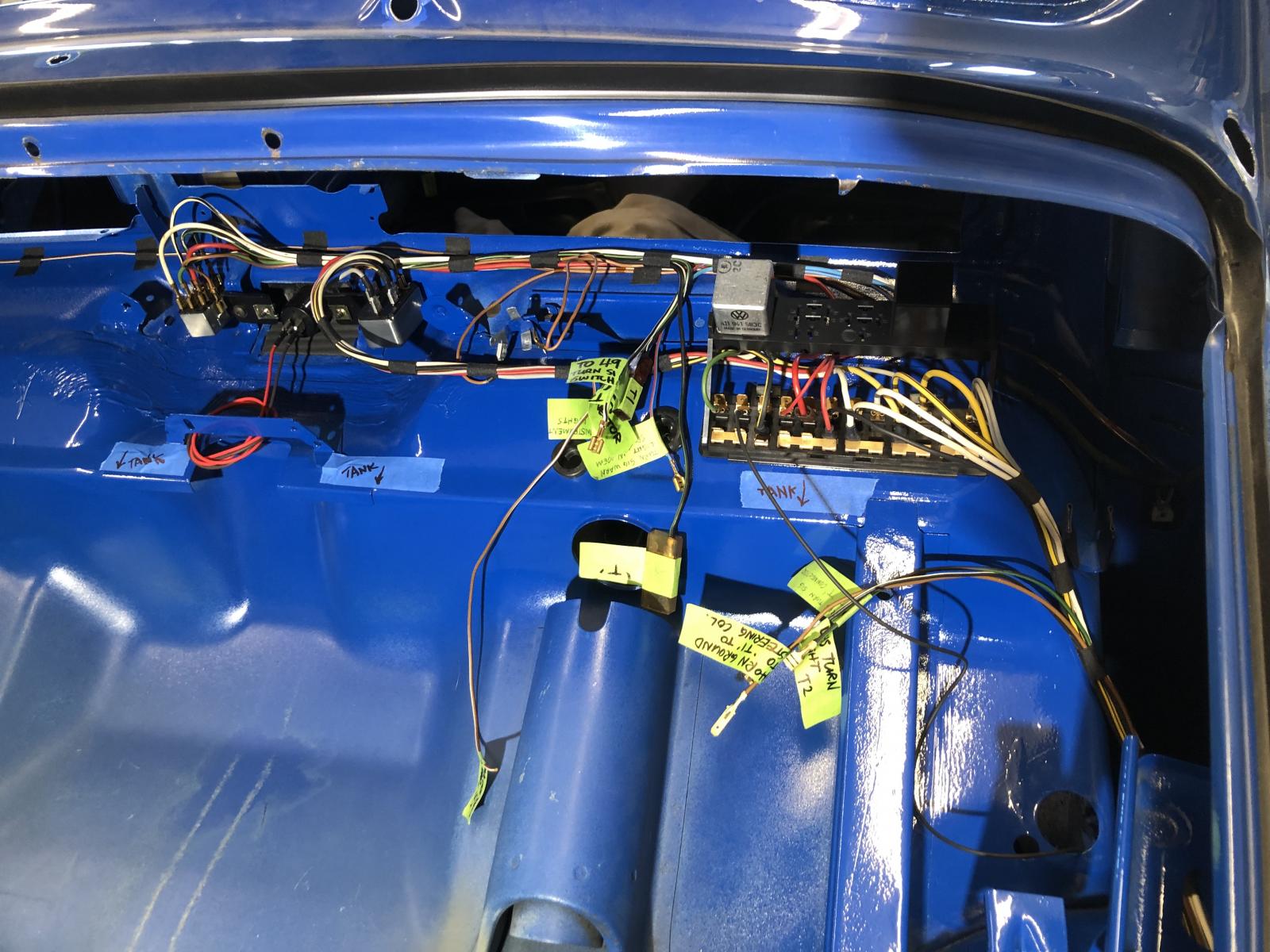

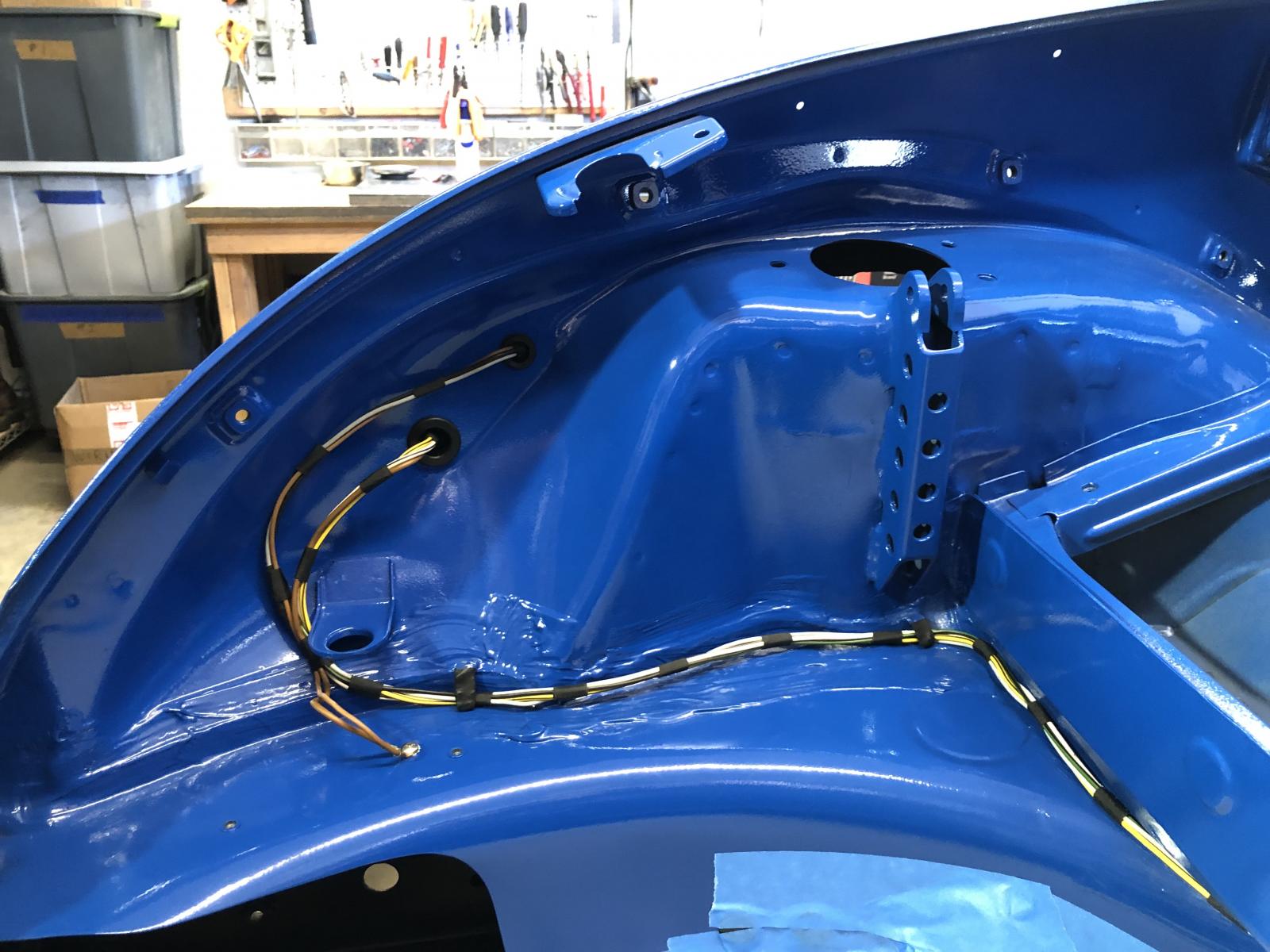

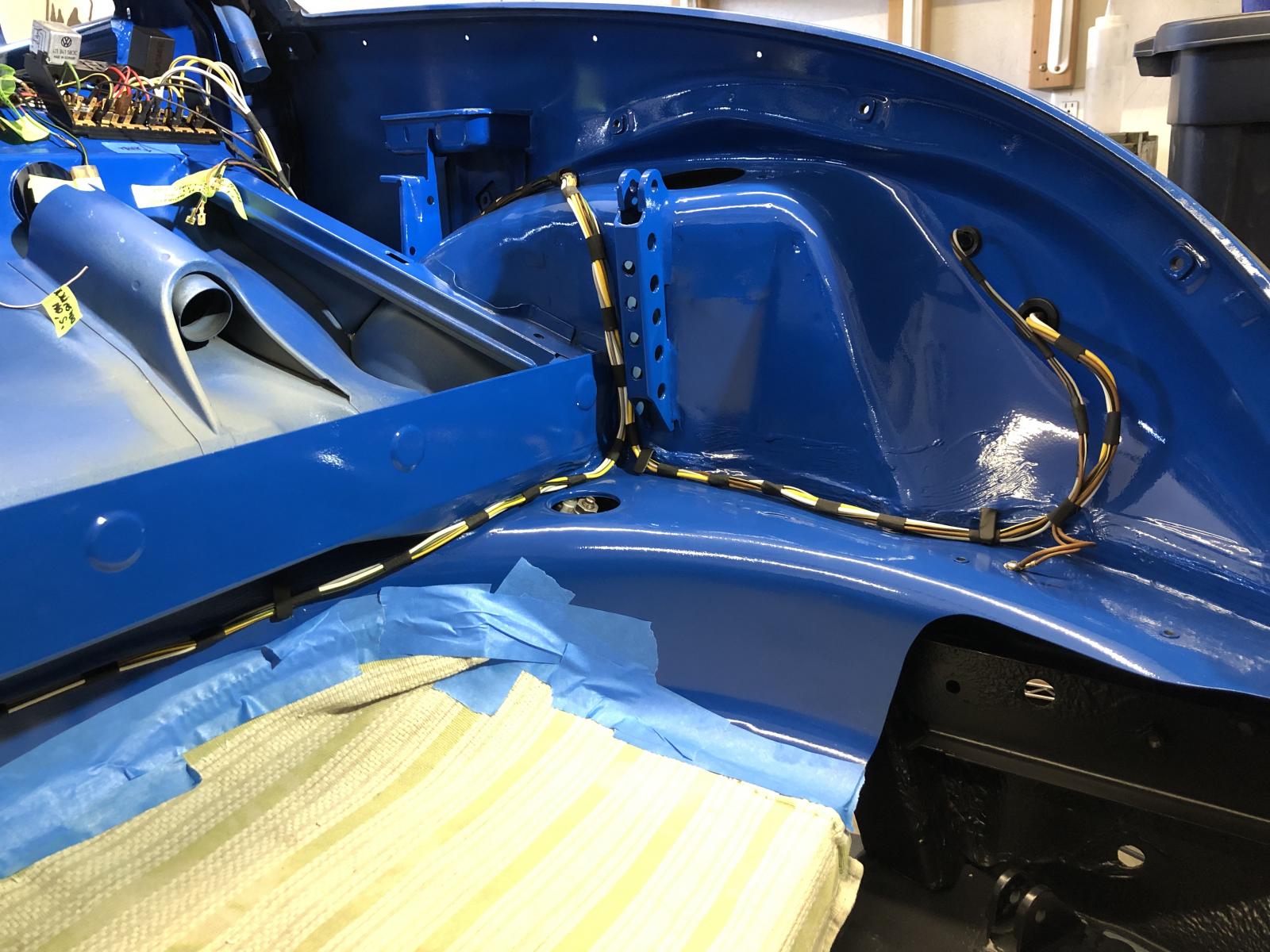

I made a few minor changes to the frunk loom. I eliminated the wiring for brake master cylinder switches as I’m going to run a pedal actuated brake switch.
Image may have been reduced in size. Click image to view fullscreen.

Also eliminated the brake warning light, fan motor, and ign buzzer wiring.

Changed the horn from ‘ignition-on hot’ to fused (#7) battery power so I can toot my own horn w/the engine off. Rolling Eyes I bought these horns…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

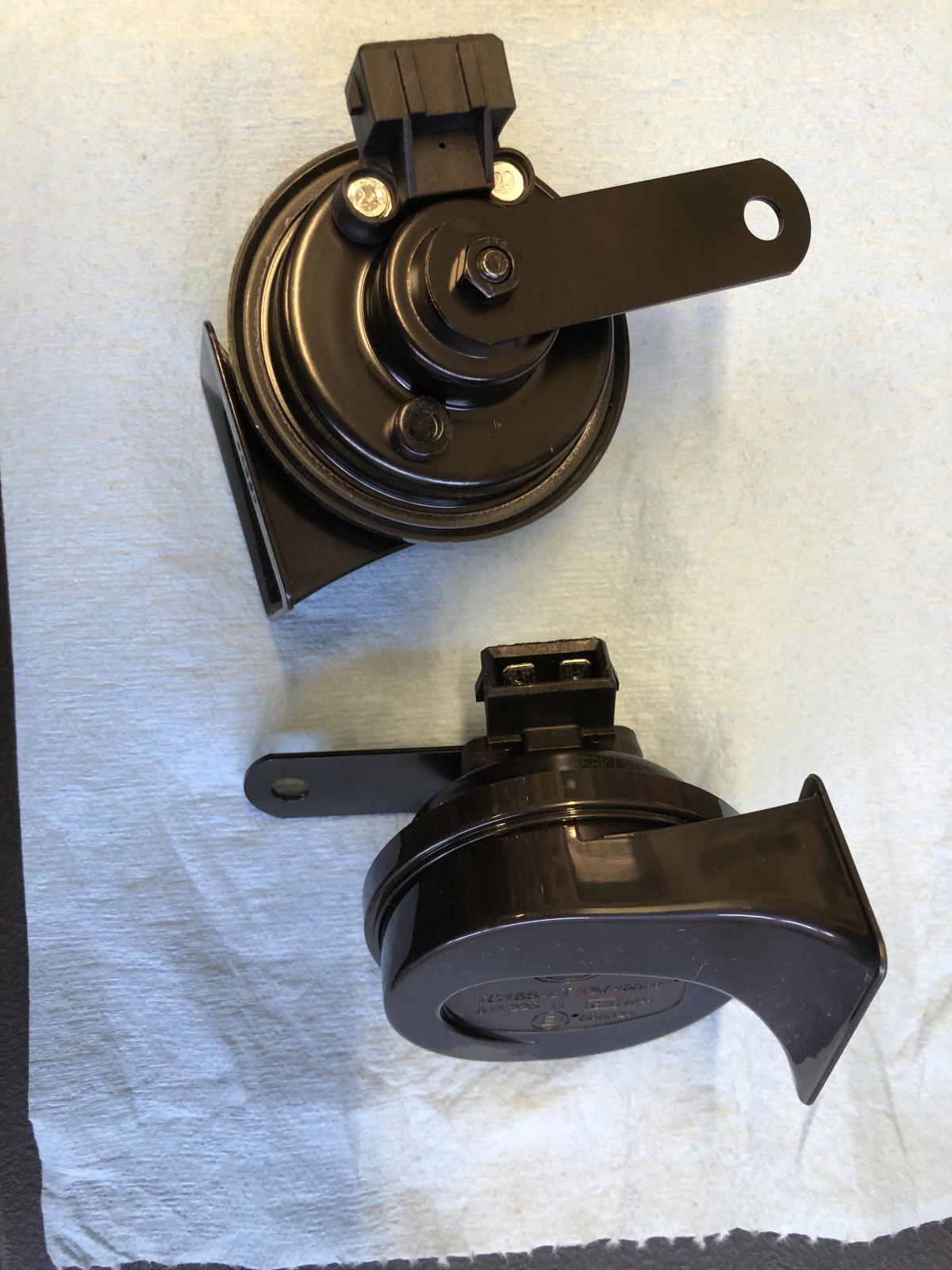

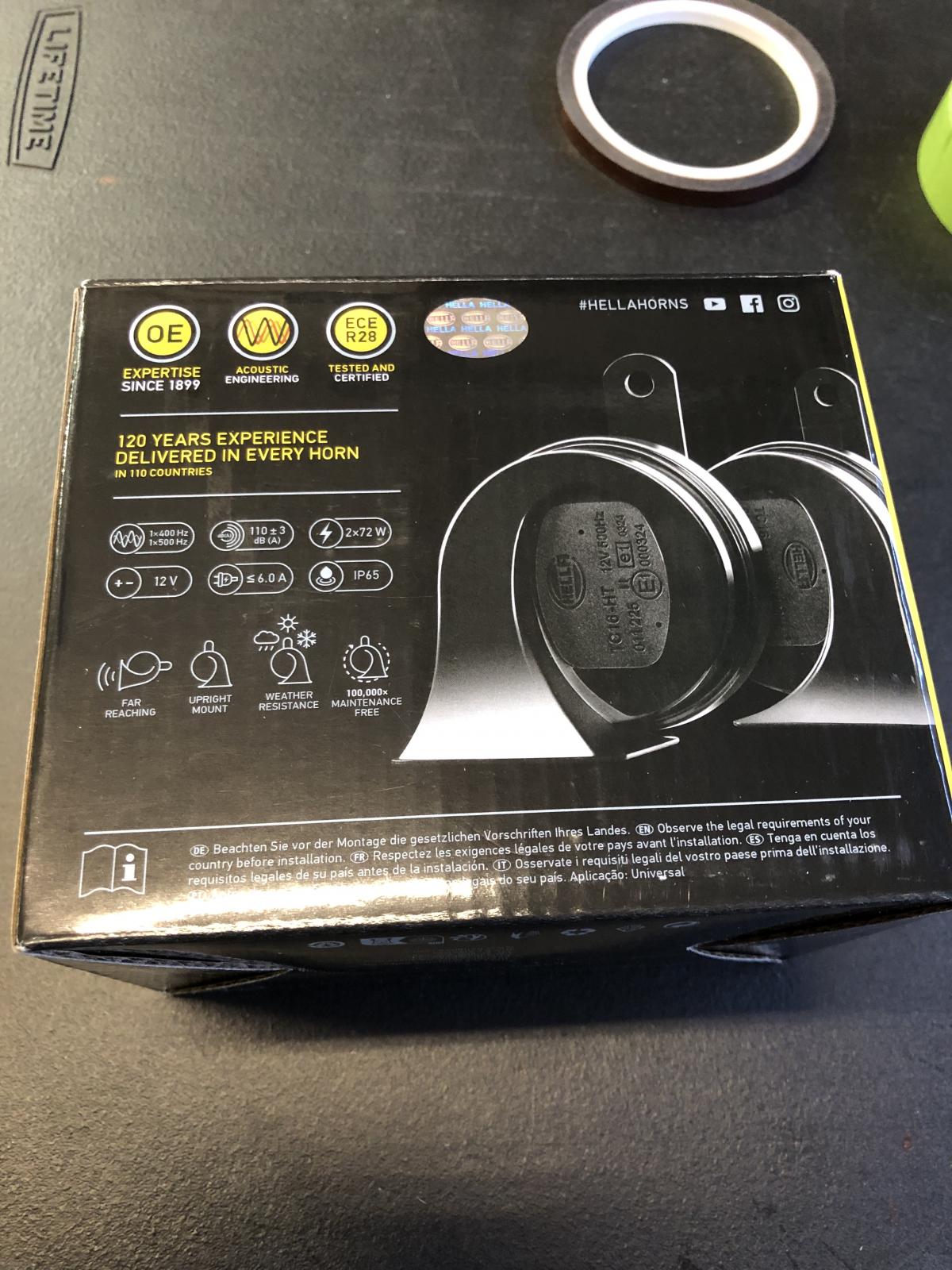

…400 & 500Hz…the box says 110 dBA +/-3 dBA but I’m telling you it must be + because they are LOUD! I’m only going to use 1, the 400Hz unit.

I used a LED relay for the flashers because I’m using LED bulbs…
Image may have been reduced in size. Click image to view fullscreen.


I have to mount my wiper motor because my plan is to have a separate fuse/relay panel (for the radiator fan, fuel pump and ign switch) mounted on the center bracket where the bonnet ‘rain collector’ mounted and I need check for interference.

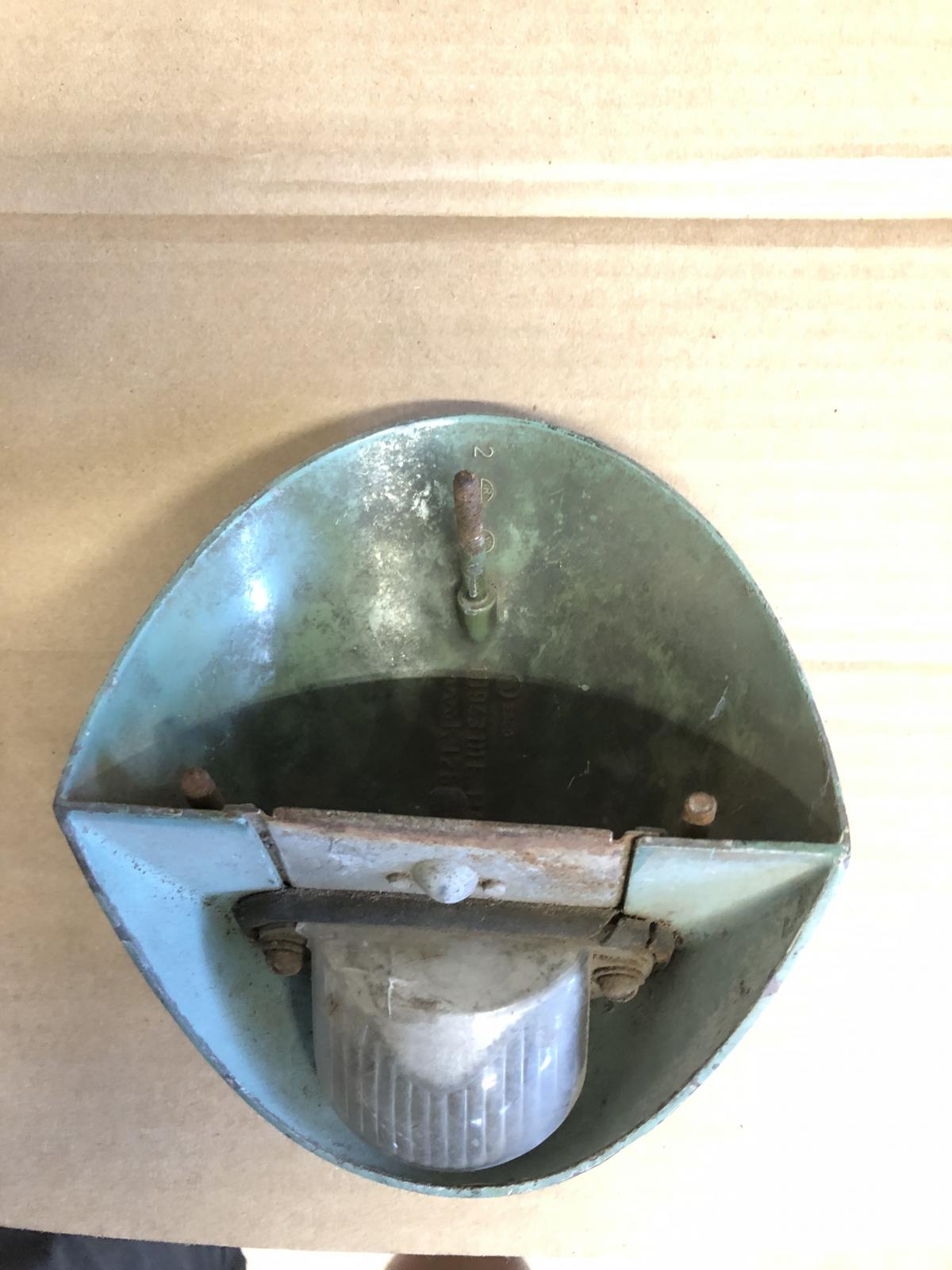

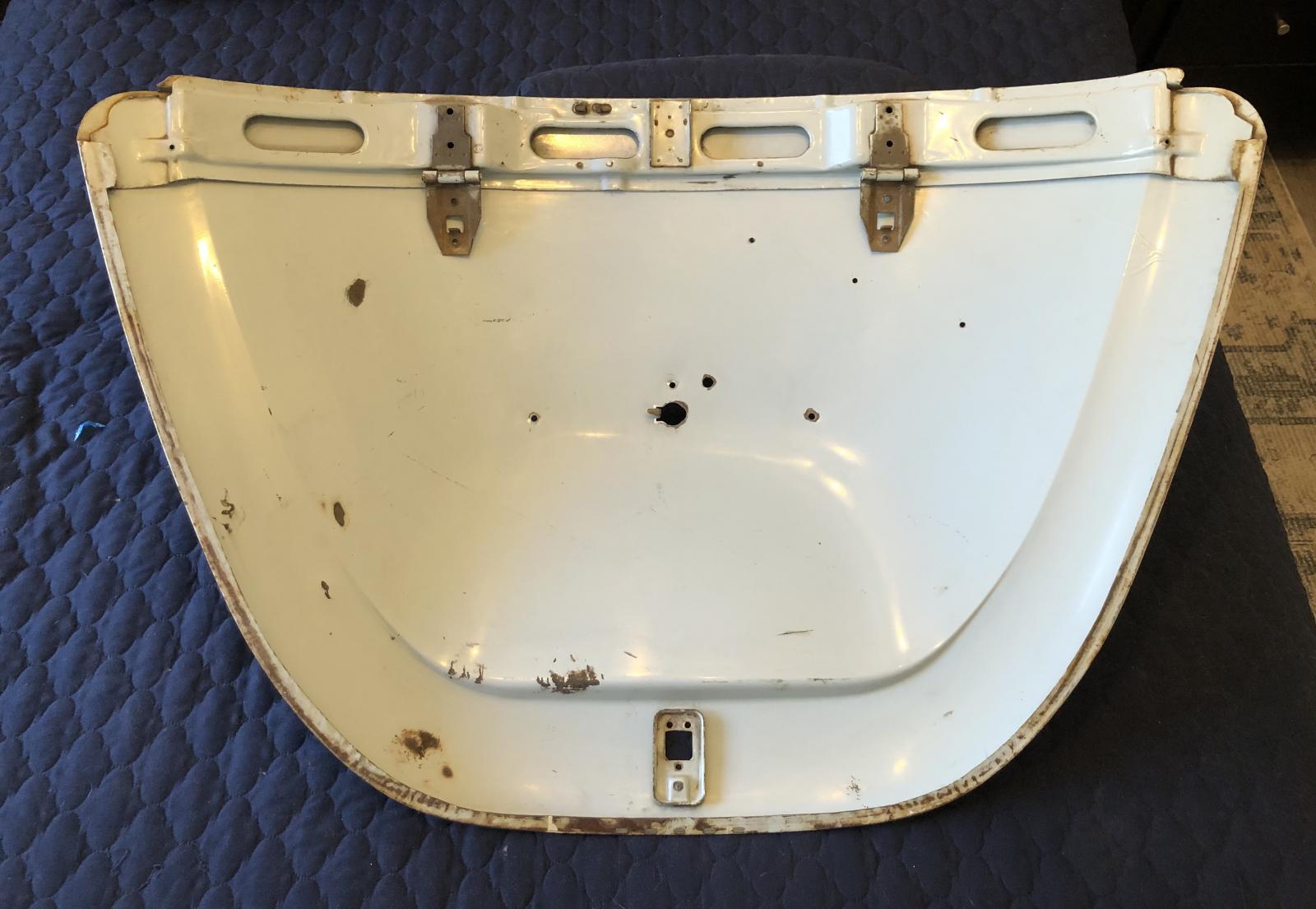

On the non-wiring front, I bought an OEM German ‘68 non-vented decklid off of eBay so that I can now take full credit for H20SB’s comment…
H2OSB wrote:
Dude, have I ever told you I think you're smart? Excellent idea to get the deck lid with(out) vents. Obviously you don't need them with a watercooled engine, but I can't say i would have thought of that if I did the conversion.

H2OSB

Wink
Turned out to be in better condition than I expected…and original paint too!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

Of course I will chop off the hinge structure to convert it to a 911R flip-over style lid like I did with my other spare (see page 3).

Couple a weekends ago I was up at the Portland Swap Meet and bought an OEM Pope’s (R.I.P.) nose for $1…
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.

…I’ll restore it and use it on the non-vented lid. It’s lighter than my ‘72s version ( Rolling Eyes ) and I really like the look.

That is all!

J.

Last edited by DUNGBTL on Thu Apr 24, 2025 7:52 am; edited 3 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
67rustavenger
Samba Member


Joined: February 24, 2015
Posts: 10813
Location: Oregon
67rustavenger is offline
PostPosted: Wed Apr 23, 2025 5:59 pm    Post subject: Re: The DUNGBTL Build Reply with quote
Great clean job on the frunk wiring. I really like the routing and the tape spacing is perfect.

I skipped the Portland Swapmeet this year on purpose.
I always end up spending more than I should on parts/tools... Last year I bought a Vintage 1967 JC Penny Bird mini bike that I sank another $600+ into. Shocked
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Thu Apr 24, 2025 5:44 am    Post subject: Re: The DUNGBTL Build Reply with quote
Nice and neat on the wiring . I bought a supposedly train horn for mine. I hooked it up and it’s loud but not as loudas a train horn . Might have to get a real train horn . Glad you’re making progress on yours. Nice job .
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Thu Apr 24, 2025 8:06 am    Post subject: Re: The DUNGBTL Build Reply with quote
67rustavenger wrote:
Great clean job on the frunk wiring. I really like the routing and the tape spacing is perfect.

I skipped the Portland Swapmeet this year on purpose.
I always end up spending more than I should on parts/tools... Last year I bought a Vintage 1967 JC Penny Bird mini bike that I sank another $600+ into. Shocked

Thanks…guess my OCD is good for something… Wink

I hear you about the PSM. Last year I bought two vintage tool boxes that I didn’t ‘need’…ended up giving them to the local Goodwill to reduce the clutter in my storage unit. Rolling Eyes

bruceo98 wrote:
Nice and neat on the wiring . I bought a supposedly train horn for mine. I hooked it up and it’s loud but not as loudas a train horn . Might have to get a real train horn . Glad you’re making progress on yours. Nice job .

Thanks man! Trying to inspire your wiring Wink

Train horn? Shocked
So you’re the guy! I had to change my pants after you went by! Embarassed
Laughing

Any progress on your locomotive?

J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bruceo98
Samba Member


Joined: February 23, 2021
Posts: 657
Location: LA
bruceo98 is offline
PostPosted: Thu Apr 24, 2025 8:29 am    Post subject: Re: The DUNGBTL Build Reply with quote
Nah . A month of holidays, birthday and doctor appointments and work . And the next 6 weeks radiation everyday . Cars on hold for right now . I have started working on the door interior trim panels .
_________________
I may not be the best, but when the top 10 get together, they all talk about me.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
H2OSB
Samba Member


Joined: April 14, 2013
Posts: 1503
Location: Modesto, CA
H2OSB is offline
PostPosted: Fri Apr 25, 2025 9:50 am    Post subject: Re: The DUNGBTL Build Reply with quote
Damn J, is this going to be a show car or something?

Love the pope's (R.I.P.) nose. Can't wait to see that mounted on the decklid.

H2OSB
_________________
(o\_i_/o) I'm not a vegetarian because I love animals, I'm a vegetarian because I hate plants.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DUNGBTL Premium Member
Samba Member


Joined: October 17, 2022
Posts: 481
Location: Ashland, OR
DUNGBTL is offline
PostPosted: Fri Apr 25, 2025 12:30 pm    Post subject: Re: The DUNGBTL Build Reply with quote
bruceo98 wrote:
Nah . A month of holidays, birthday and doctor appointments and work . And the next 6 weeks radiation everyday . Cars on hold for right now . I have started working on the door interior trim panels .

I hope your treatment goes well…best wishes for a speedy recovery.

H2OSB wrote:
Damn J, is this going to be a show car or something?

Love the pope's (R.I.P.) nose. Can't wait to see that mounted on the decklid.

H2OSB

Wink been there, done that. It’s more go than show!

Yes…the nose on the lid…I’m thinking it will look pretty cool. My design ideas (Outlaw 1302 or 1302RSR) seem to be converging to cohesion…whatever that means.

Thanks for your reply…finally! Wink

J.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Late Model/Super - 1968-up All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... , 32, 33, 34  Next
Jump to:
Page 33 of 34


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
