[radstude]

Root, My 2002 when I bought it, it had 8000 km. It’s always been noisy in 2nd & 4th.
I switched to a Synthetic gear oil, which helped a little. I just figured I would just drive it until it got worse, it never did. I have over 100,000 km on it now, no better, no worse. I figured I would get a German core to rebuild. Now at this point, who knows when.
_________________
1967 VW Fastback (Past)
1971 VW Bug (Past)
1975 VW Bus (Past)
2002 VW Mexican Bug 1600i

[Sotobaggins]

Well here are my parts from my Fi Mexican 2001 the photos should have prices on them if not here they are:

22E computer $550
Beru coil $25obo
Breather box with K&N filter and oil hose $65
98 Coil 7pin $30
Engine bay Harness for 98 carb$45
Fi pump Valve$25obo
Throttle body plus intake sensor and manifold $100
Fuel lines$25 the pair obo
Fuel pressure valve $50
Hall Temp and air sensor bundle$50
Mechanical pump not used or installed new $45
OBDI plug$5
Renalti Valve and down pipe$45 obo

_________________
2001 Ultima Clasico Edicion Mexibeetle
2003 Black GTI 1.8T

[coolbugfan]

Hi Sambas,

I’ve been getting different information from different sources and need some help. I need new fuel injectors for my 1995 1600i. What’s the part number? Where can I get them. I think I see one in the previous post, but the part number isn’t legible.

What other VW/Audi/etc. models used the same injectors? (Especially helpful for any North American VAG vehicles.)
Thanks

[hopkin]

I submitted pics of my car and story to Hot VWs last November, I'm quite psyched to see it in the June 2025 Readers Showcase .

Interesting to see how they cropped the photos (which I expected) and edited the comments that I sent (not too much).

_________________
1971 Super Beetle (past)
1971 Super Beetle (past)
1974 SunBug (past)
1972 914 (past)
1991 Honda Civic (Original Owner)
1996 'Open Air' Mexican Beetle (current)
2015 Golf (past)
2017 Dune Edition (daughter's car)

[Root_Werks]

Nice! Save that issue when you get it for sure!
_________________
When I set my timing, why do I flush, then take a pee?

[radstude]

[alex857]

Some impressions of the 21st Meeting of the VW Käferclub Ultima Edicion www.k-ue.de 2025 in the Bavarian Forest/Czech Republic/Passau of course with lots of Mexicans (including my Selvas Green 1983)

[Root_Werks]

Some very neat pictures! Been driving my Bug more and more with the nicer weather and good transmission. Oddly, never see another Bug on the road when I'm out in mine.
_________________
When I set my timing, why do I flush, then take a pee?

[AL007]

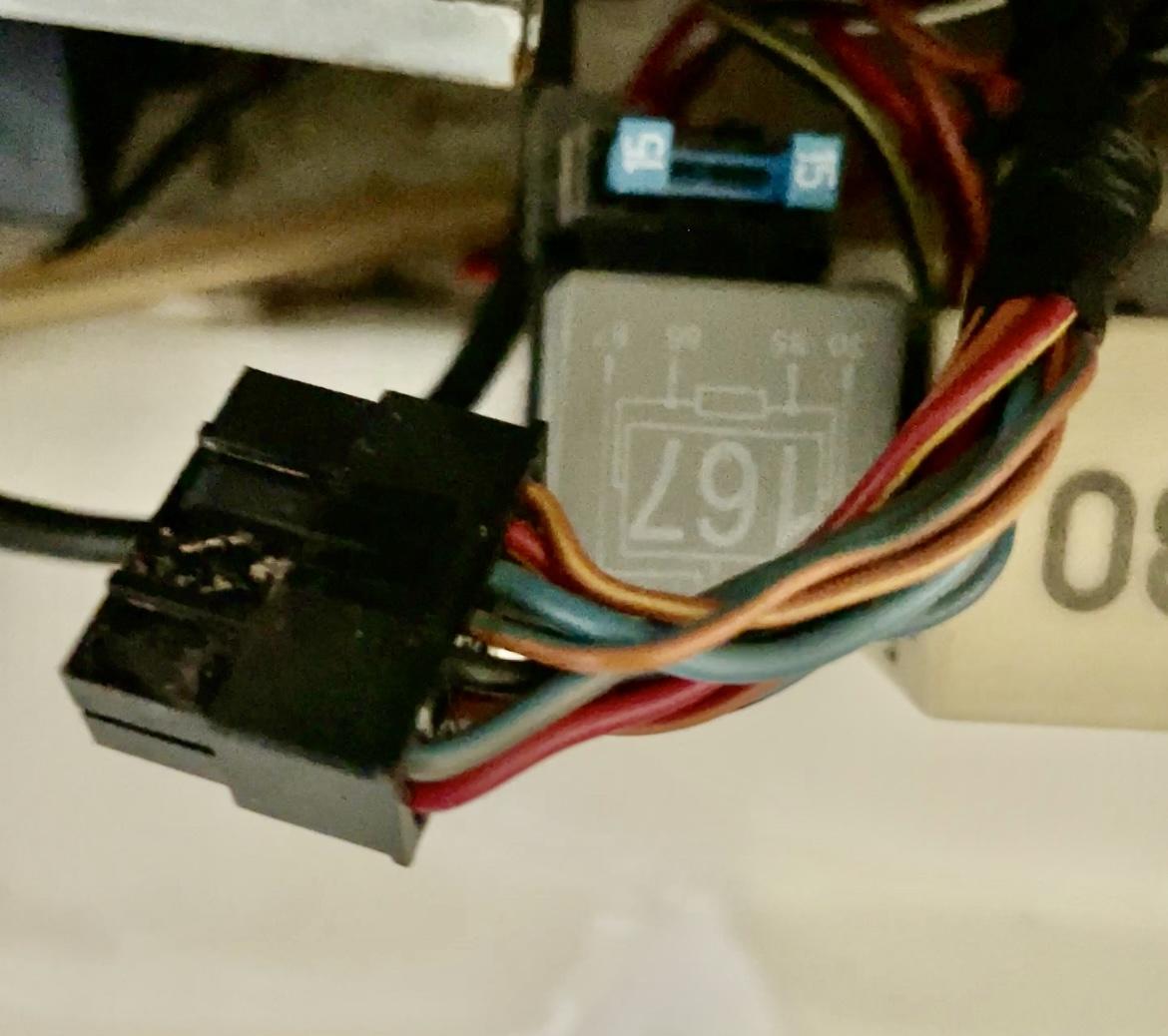

Hi everyone! I've only gotten through about half the posts trying to find more information...I bought a 2004 Mexico Beetle about 4 weeks ago. I've cleaned most of it up and fixed some issues, one of which I found out about on here. Never would have guessed that one wire over the dog house could do that, luckily it hadn't worn through yet. The previous owner disconnected the stereo since he said that it was draining the battery overnight. I've bought a new replacement radio just to have some type of tunes while driving but I can't seem to find which color wires are which on this bug. They don't match what I've found online. Heck even the connector doesn't seem to exist on the installer's computer archive I went to and google only turns up American color wiring. Seems american VW uses normal colors and a dual ISO connector from OEM all they way into the 80s, but the one I have is a 14 pin single with pinks/browns/pastel colors. It has to be OEM since I can't find any splices or evidence of tampering. Would any of you happen to know what female plug I can use to adapt this OEM 14 pin plug to a newer two separate plugs?

[Root_Werks]

The stereo thing may be a tough one. I searched for some adapters various years VW's and none seemed to match yours. I don't like cutting into factory wires, but this might be a situation you have to.

You might be able to reach out to Antonio. He can get almost any part for our Mexi-Bugs.
_________________
When I set my timing, why do I flush, then take a pee?

[AL007]

Antonio said its a special order part from Clarion...but it would cost me more than the stereo to get it...guess I'm going to have to just replace it with a more modern set.

so anyone know what the wire codes are for this?

New radio has black, white, green, yellow...normal colors but the Mexi beetle has pinks, browns, pastels.
_________________
04 VW Beetle Sedan

[hopkin]

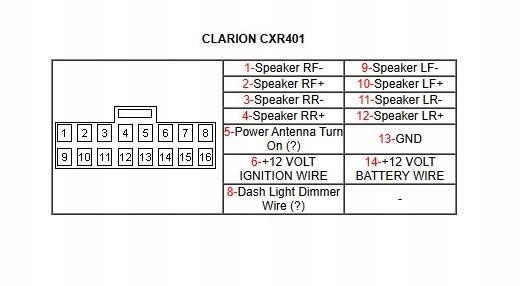

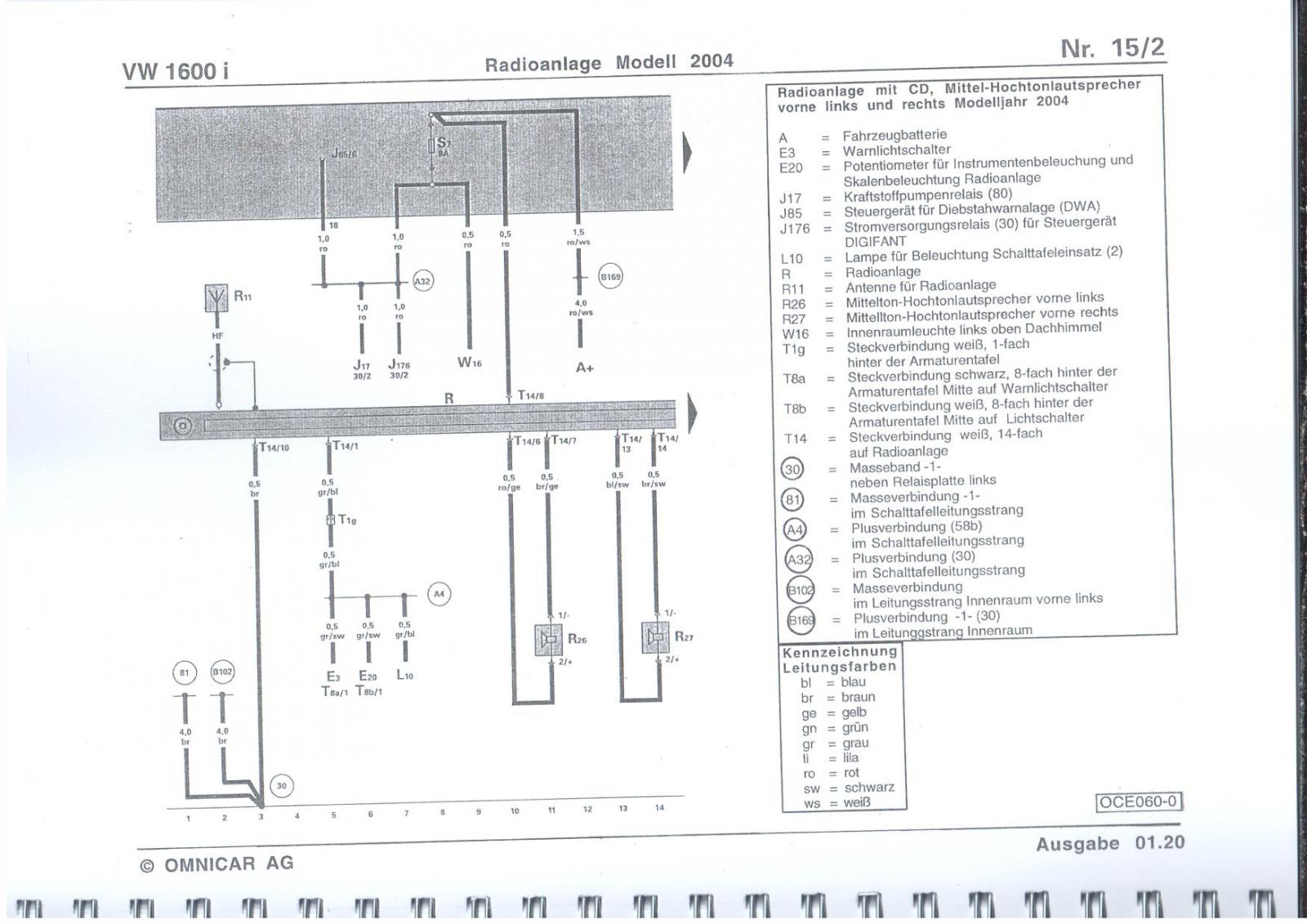

I found this 16 Pin Clarion layout, and schematics with the pin-outs for the connector (Maybe might help)

Check your wire colours against the schematic. If they match, a cheaper, non-cut, option might be to order the pigtails and make your own adapter.

_________________
1971 Super Beetle (past)
1971 Super Beetle (past)
1974 SunBug (past)
1972 914 (past)
1991 Honda Civic (Original Owner)
1996 'Open Air' Mexican Beetle (current)
2015 Golf (past)
2017 Dune Edition (daughter's car)

[AL007]

Another question... I had to adjust the throttle cable since the original broke and was replaced by previous owner. However I noticed it didn't have a tube through the doghouse. It has little rubber grommets though. Is that normal or should I buy a new one from american beetle?
_________________
04 VW Beetle Sedan

[hopkin]

[Pegasín]

Finally, after 180.000 km ( 112.000 miles), the alternator of my 1600i mexi broke down. Low voltage (between 11.5-12v) or directly it don´t charge the batt. Last week, the engine stopped driving on the highway becouse the battery died. It started with the help of a compact lithium starter and then, I was able to continue driving to home with out any troubles.


Bosch reference is 9 120 080 061 (14V 51A) . Is it the same of regular/carburetted Bugs?
I have an old alternator from a T2 Bus (1.6 AD) but is 9 120 080 122 (AL82N)

_________________
Volkswagen 1600i 1995
Volkswagen Kombi T2 1971

[hopkin]

[Pegasín]

[furbo]

Having trouble determining which relays are what in a 95 Mexican beetle. Specifically the headline HB/LB relay. Help?
_________________
79 Westy
70 Ghia Vert
95 Mex Beetle
Eccl 9:10

[hopkin]

[AL007]

Success! I switched out the clarion radio plug to a ISO plug and I now have a working radio. Took her out for a cruise and really enjoyed it.

Now I have a question....seems silly but what mpg are you all getting for driving 60mph? My cruise was about 40-50 miles but it went through about 1/4 of a tank. Is that normal? I could feel the air resistance increase as I passed 45mph on the pedal but I didn't think it aero drag was that bad of an issue. Realistically, how many miles should I expect for a full tank? I don't want to go on a long trip and run out of gas in the middle of no where. All my VW friends have carbs so they don't quite equate to the same thing.
_________________
04 VW Beetle Sedan
