| Author |
Message |
IAMIROY
Samba Member
Joined: September 27, 2011
Posts: 294
Location: Palmdale, CA
|
 Posted: Sun Sep 07, 2014 5:07 pm Post subject: |
 |
|
6v Relay has worked without any issues.
_________________
Mark's Squareback build |
|
| Back to top |
|
 |
vwtype3
Samba Member
Joined: May 19, 2002
Posts: 43
Location: France
|
| Posted: Mon Sep 08, 2014 1:58 pm Post subject: |
|
|
Hello everybody,
I was Lucky enough to find few years ago a 12v push button for my 62 notchback (see the picture in my gallery)
The car is always under restauration and I will try to compare the 6v and 12v model asap for knowledge but I have some friends here in France that kept also the 6v unit without trouble |
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4507
Location: Illinois
|
| Posted: Thu Oct 23, 2014 5:57 pm Post subject: |
|
|
So to follow up on what I did in my 12 volt conversion:

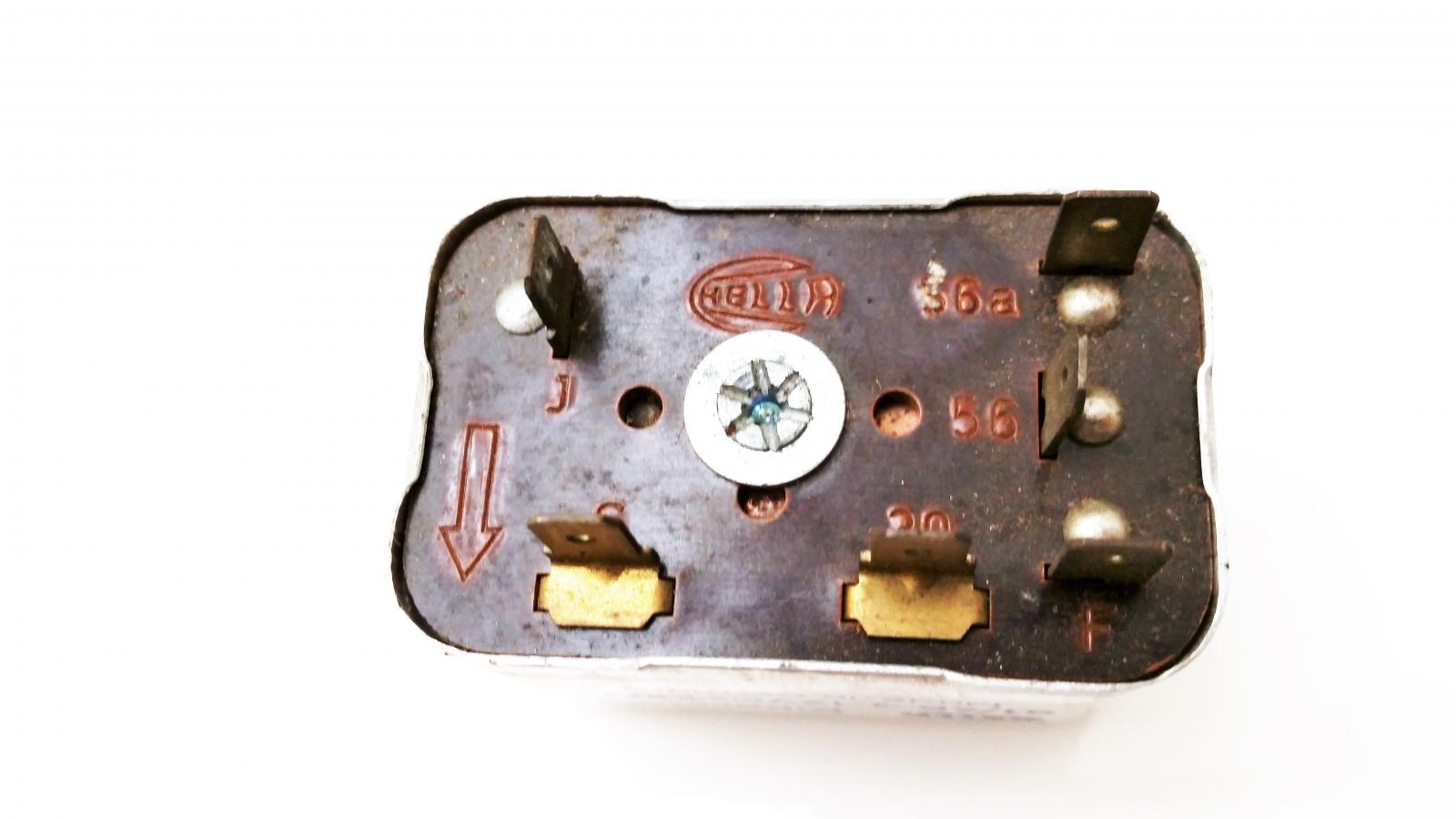

Pulled the 6 volt headlight relay pictured below:
Went to the FLAPS and bought a 5 terminal electronic relay and wired it up using this very crude diagram created through a discussion with Telford Dorr.
As you can see, the "J" wire wasn't used.
I have all of the original functions that were available in 6 volt configuration. Flash to pass with all lights off, high beam, low beam, etc.
I finally got around to testing it today and everything works perfectly. |
|
| Back to top |
|
|
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 319
Location: Sweden
|
| Posted: Sun Aug 14, 2016 8:52 am Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|

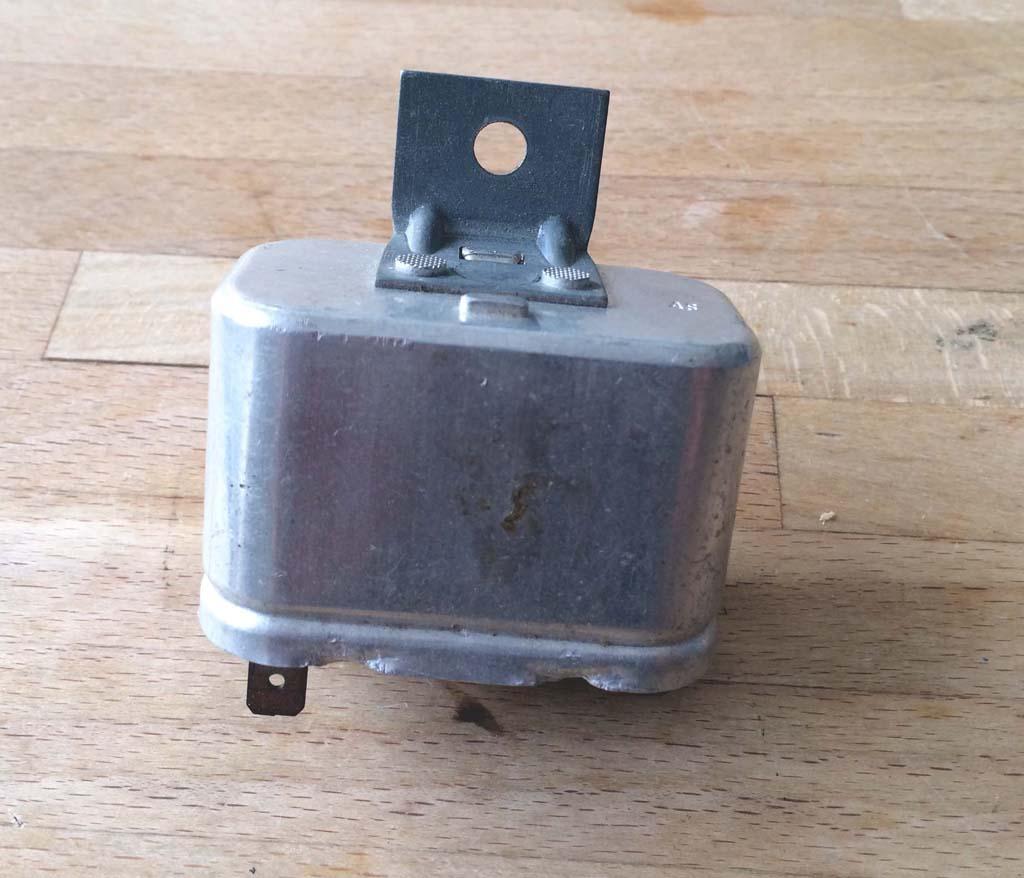

I happened to find the 12 volt version of this relay. Not sure of the origin, but may be Volvo or Saab.

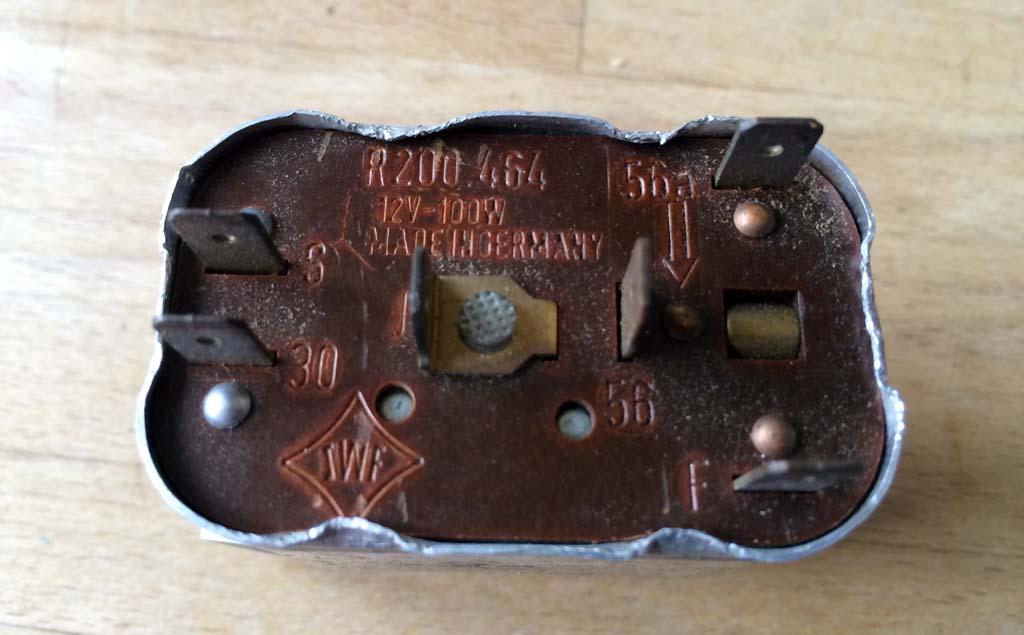

The SWF part number is R200.464.
Terminals (compare with the 6 volt version in post above)
|
|
| Back to top |
|
|
ataraxia
Samba Member
Joined: March 19, 2010
Posts: 4507
Location: Illinois
|
| Posted: Sun Aug 14, 2016 7:07 pm Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
That's interesting...I was never able to find one.

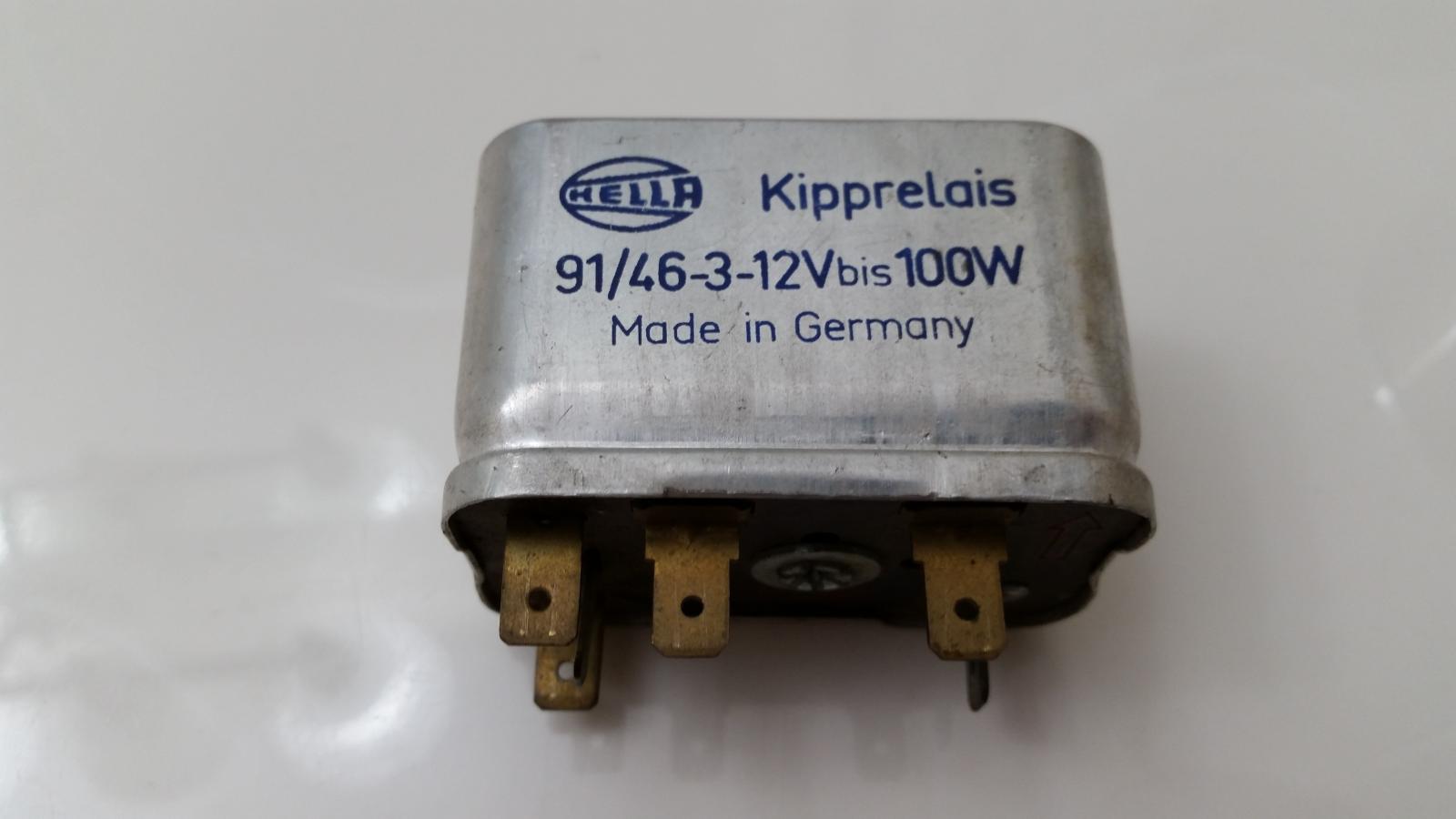

I bought the Hella version in 12 volt - fairly easy to find.
|
|
| Back to top |
|
|
HenrikL
Samba Member
Joined: October 31, 2005
Posts: 319
Location: Sweden
|
| Posted: Mon Sep 11, 2023 5:08 am Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
In the end I stayed with the 6V relay after my 12V conversion. It works ... most of the time. Sometimes I get a click and nothing happens. Sometimes I get a "double-click" and the relay switches and then immediately back.
Anyone else using the 6V relay on 12V? Would a resistor on the signal wire improve things?
Last edited by HenrikL on Mon Sep 11, 2023 6:46 am; edited 1 time in total |
|
| Back to top |
|
|
Jason37
Samba Member
Joined: April 21, 2004
Posts: 1045
|
|
| Back to top |
|
|
greenfyregirl
Samba Member
Joined: July 28, 2006
Posts: 28
|
| Posted: Mon May 05, 2025 12:53 am Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
Hello! can I re-animate this thread and ask to clarify….
Are folks using 6v or 12v switch units?
essentially, can i wire up my 6v unit on a 12v system for long term use?
Thank you
Clare |
|
| Back to top |
|
|
greenfyregirl
Samba Member
Joined: July 28, 2006
Posts: 28
|
| Posted: Mon May 05, 2025 12:55 am Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
| (I’m asking about using the push button switches) |
|
| Back to top |
|
|
Bobnotch
Samba Member
Joined: July 06, 2003
Posts: 23265
Location: Kimball, Mi
|
| Posted: Mon May 05, 2025 12:32 pm Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
| greenfyregirl wrote: |
| (I’m asking about using the push button switches) |
You can, but you really need to use a 67 only wiper motor with it. I only say that as the 67 is a single speed motor with adjustable speed (like the 66 and earlier cars use), versus the 68-on 2 speed motors.
Edit: To clarify, the PB switch unit can handle 12 volts with no problem, however the headlight dimmer portion (dims the dash lights) can burn out because it's not designed to handle the increase in voltage. I only mention this, as the rest of the switch unit has larger wires to handle the higher amperage of 6 volts.
I hope this helps.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
| Tram wrote: |
| "Friends are God's way of apologizing for relatives." |
| Tram wrote: |
| People keep confusing "restored" and "restroyed". |
|
|
| Back to top |
|
|
greenfyregirl
Samba Member
Joined: July 28, 2006
Posts: 28
|
| Posted: Mon May 05, 2025 1:57 pm Post subject: Re: 6v pushbutton switch to 12v headlight relay questions |
|
|
that’s brilliant!! thank you. I’ve found the other PB threads too, so fingers crossed  |
|
