 Posted: Thu May 15, 2025 8:30 am Post subject: Washburn EFI for 1600 Bug |
 |
|
Does anyone have any experience with this system that they could share..or observations/opinions based on their ad?
https://washburns-metal.myshopify.com/products/fis...volkswagen
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!
'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!! |
|
| Back to top |
|
 |
Brian_e
Samba Member
Joined: July 28, 2009
Posts: 3898
Location: Rapid City, South Dakota
|
| Posted: Thu May 15, 2025 8:39 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
Looks like just another version of an electronic carburetor. It will still have the same cold weather running issues as a carb, because of physics.
This one doesn't appear do any programmable timing control either. At least there is nothing for reading crank degrees, unless they are using the stock distributor for that? Not sure how they would alter the timing then?
Brian
_________________
So more or less the lazier and stupider you want to be, the nicer quality parts you need to buy.
-Modok
www.type-emotorsports.com
Type E Engine Parts and Supplies
https://type-emotorsports.com/collections/engine-parts |
|
| Back to top |
|
|
panel
Samba Member
Joined: December 02, 2001
Posts: 1179
Location: Victoria B.C. Canada
|
|
| Back to top |
|
|
volky1970
Samba Member
Joined: November 11, 2006
Posts: 391
Location: A very hot Island with BUGS that KILL!!!
|
| Posted: Thu May 15, 2025 10:22 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| panel wrote: |
| Looks like a Microsquirt in the pics. |
It looks like it is based on a Microsquirt ECU.
_________________
1970 Beetle Turbo 2109cc MS II EFI, W/M Injection, Intercooler, FORD Wasted Spark Coilpack, 48lb. Injectors. |
|
| Back to top |
|
|
john7
Samba Member
Joined: August 06, 2003
Posts: 1545
Location: Garden grove ca
|
| Posted: Thu May 15, 2025 10:14 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|
This is the kit danny at split second in Santa Ana made
_________________
Jesus Saves
Slot Mag King!
I accept Paypal, CASH, GOLD, SILVER, COINS, GUNS & money orders. |
|
| Back to top |
|
|
vamram
Samba Member
Joined: March 08, 2012
Posts: 7928
Location: NOVA
|
| Posted: Fri May 16, 2025 5:32 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
Looking at the installation PDF, it looks like a 2nd return line is not installed as part of this kit...?
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!
'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!! |
|
| Back to top |
|
|
torchwerks
Samba Member
Joined: February 04, 2021
Posts: 20
Location: So Cal
|
|
| Back to top |
|
|
panel
Samba Member
Joined: December 02, 2001
Posts: 1179
Location: Victoria B.C. Canada
|
|
| Back to top |
|
|
vamram
Samba Member
Joined: March 08, 2012
Posts: 7928
Location: NOVA
|
| Posted: Mon May 19, 2025 8:54 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
Other than that picture, I didn't find a reference to a 2nd fuel line in the installation PDF. I spoke w/the maker and he confirmed that he uses a single line, no 2nd return fuel line from the engine bay to the tank.
https://splitsec.com/product/fis2-001-fuel-injection-system-type-1-vw
A little confusing to me to be honest. And pricey.
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!
'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!! |
|
| Back to top |
|
|
panel
Samba Member
Joined: December 02, 2001
Posts: 1179
Location: Victoria B.C. Canada
|
| Posted: Mon May 19, 2025 12:23 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|

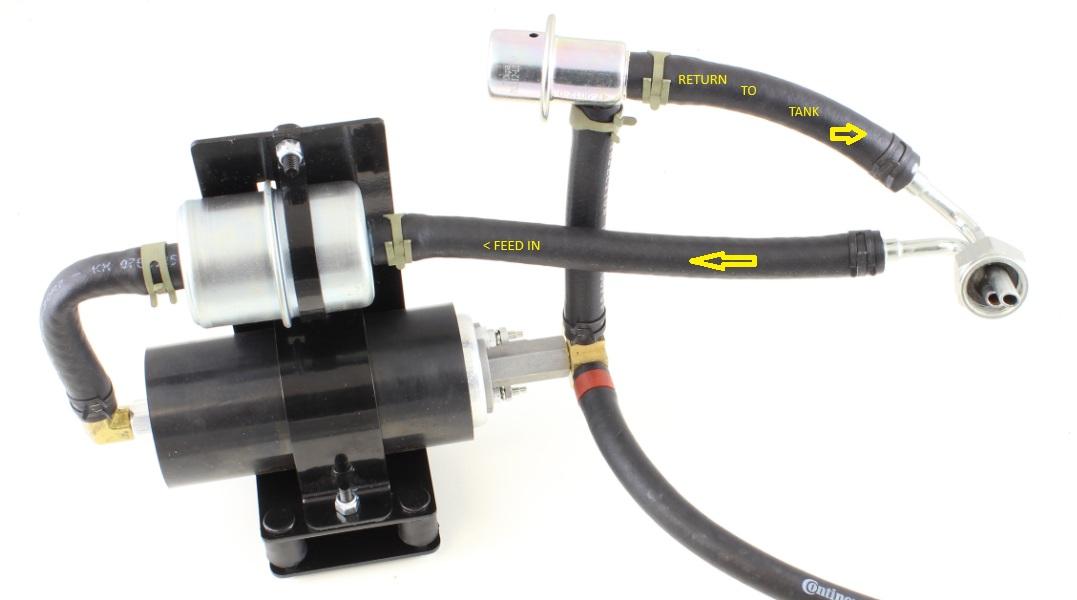

There is a return line in that link also. It's from the FPR and goes into the bottom of the tank right where main feed line to the filter > pump .
_________________
My '65-Subaru EJ20 Turbo conversion |
|
| Back to top |
|
|
mikedjames
Samba Member
Joined: July 02, 2012
Posts: 3262
Location: Hamble, Hampshire, UK
|
| Posted: Sun May 25, 2025 10:26 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| panel wrote: |
There is a return line in that link also. It's from the FPR and goes into the bottom of the tank right where main feed line to the filter > pump .
|
So that looks they dead- head the feed to the injectors, teeing the pressure regulator off the pump rather than cooling the fuel lines past the injectors by putting the pressure regulator on the far end of the fuel rail.. Interesting to find out what happens when things get hot.
_________________
Ancient vehicles and vessels
1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.
1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy |
|
| Back to top |
|
|
AMS_Dizz
Samba Member
Joined: December 15, 2022
Posts: 27
Location: Arizona
|
| Posted: Tue May 27, 2025 3:50 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| Oh i actually have this system in my 74 super rn. i am just re-tuning the map. |
|
| Back to top |
|
|
boxer74
Samba Member
Joined: July 03, 2011
Posts: 844
Location: Ontario, Canada
|
| Posted: Tue May 27, 2025 3:57 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| mikedjames wrote: |
| panel wrote: |
There is a return line in that link also. It's from the FPR and goes into the bottom of the tank right where main feed line to the filter > pump .
|
So that looks they dead- head the feed to the injectors, teeing the pressure regulator off the pump rather than cooling the fuel lines past the injectors by putting the pressure regulator on the far end of the fuel rail.. Interesting to find out what happens when things get hot. |
Same concept as an in-tank returnless pump such as those available from Holley for their EFI systems. I'm running one on my super right now and so far no issues.
_________________
74 Super
84 Westy |
|
| Back to top |
|
|
Dauz
Samba Member
Joined: January 05, 2010
Posts: 1861
|
| Posted: Tue May 27, 2025 1:45 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| Brian_e wrote: |
Looks like just another version of an electronic carburetor. |
uhhh.... aka throttle body/efi? |
|
| Back to top |
|
|
Max Welton
Samba Member
Joined: May 19, 2003
Posts: 10968
Location: Black Forest, CO
|
|
| Back to top |
|
|
AMS_Dizz
Samba Member
Joined: December 15, 2022
Posts: 27
Location: Arizona
|
| Posted: Tue May 27, 2025 4:38 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| I don't have a heater riser with this kit because icing doesn't occur with it. Icing typically happens at temperatures between 40°F and 60°F, but I rarely experience those conditions. Additionally, it requires humidity levels near or above 80%, which I also don't have. Furthermore, this TBI doesn't have a venturi and sprays a fine mist of gas, unless large droplets form from the carburetor, which can cause icing. |
|
| Back to top |
|
|
AMS_Dizz
Samba Member
Joined: December 15, 2022
Posts: 27
Location: Arizona
|
| Posted: Wed May 28, 2025 1:11 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
| Brian_e wrote: |
| This one doesn't appear do any programmable timing control either. At least there is nothing for reading crank degrees, unless they are using the stock distributor for that? Not sure how they would alter the timing then? |

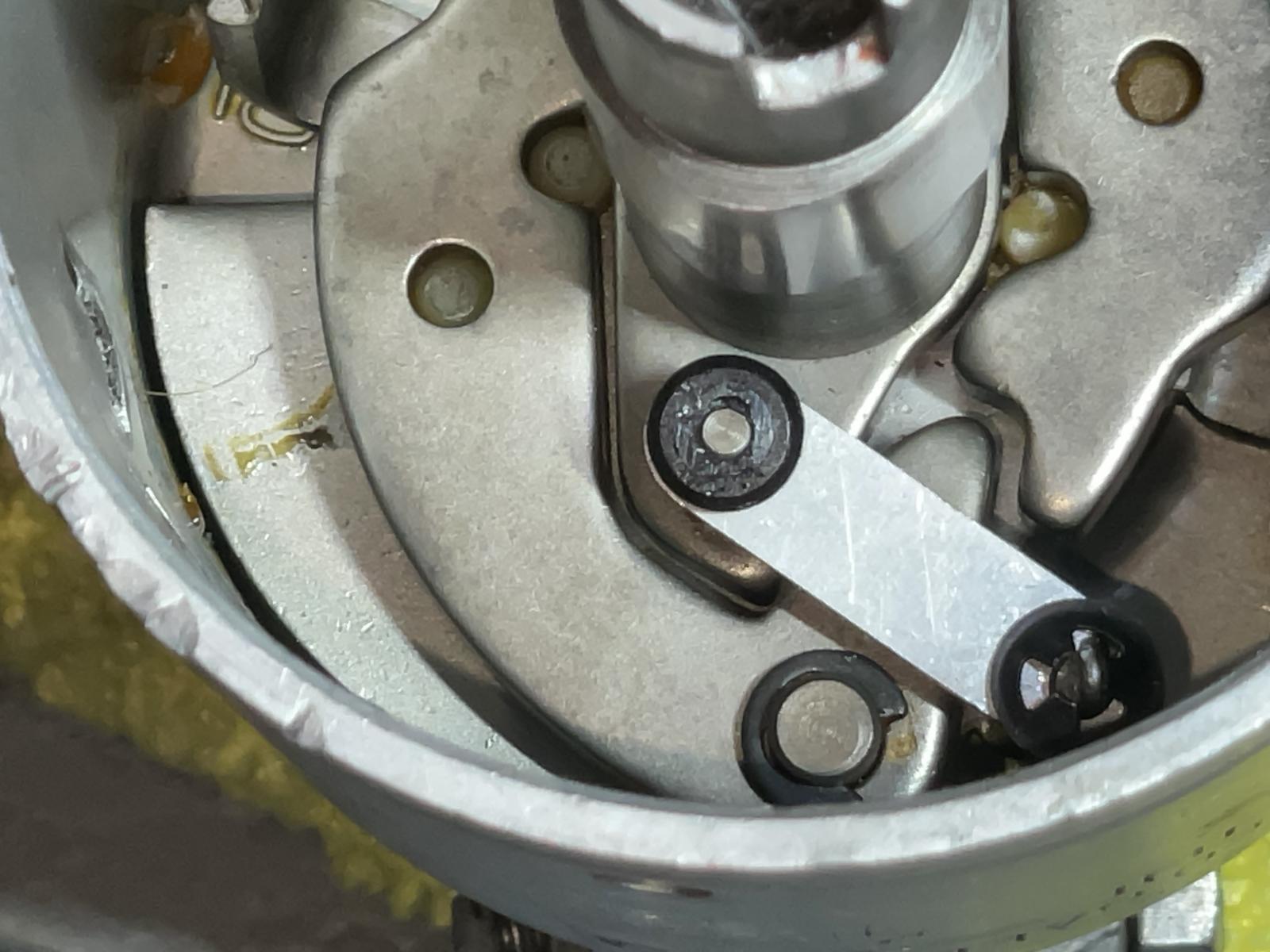

The distributor gets locked so it doesn't advance. The kit uses the existing PerTronix Ignitor Ignition for timing. The red wire provides power, and the black wire is used for the trigger. The MicroSquirt system will use the trigger wire to fire the spark plug for advance. The distributor needs to be set at 12 degrees, and the ECU will handle the rest. |
|
| Back to top |
|
|
oprn
Samba Member
Joined: November 13, 2016
Posts: 14552
Location: Western Canada
|
| Posted: Wed May 28, 2025 5:37 am Post subject: Re: Washburn EFI for 1600 Bug |
|
|
I Hope I don't offend you with this post, that is not my intension. I am not singling you out sir! Education and myth busting is the intent.
| AMS_Dizz wrote: |
| I don't have a heater riser with this kit because icing doesn't occur with it. Icing typically happens at temperatures between 40°F and 60°F, but I rarely experience those conditions. Additionally, it requires humidity levels near or above 80%, which I also don't have. Furthermore, this TBI doesn't have a venturi and sprays a fine mist of gas, unless large droplets form from the carburetor, which can cause icing. |
This right here is one of the biggest misunderstandings in the history of the infernal combustion engine. The intake manifold heat riser has absolutely nothing to do with carb icing! Never has and never will! The only thing that will prevent carb icing is heating the air BEFORE it gets to the carb! VW addressed that with the stovepipe system that took warm air off the cylinders and up to the air cleaner. Heat added after the carb never reaches the carb as long as the engine is still running! It's like trying to swim against the tide/current!
Case closed!
The sole purpose of the intake manifold heat riser is to prevent fuel drop out and pooling in the horizontal portion of the intake manifold. Fuel is lazy and the colder it is the lazier it wants to be. It has no intension of making the trip to the intake valve if it can help it. It would rather hang out on the walls and floor of the intake and go back to sleep (liquid form) than stay in a mist or a vapor. Heat and velocity are it's motivators. Anything above 90*F or about 1/3 to 1/2 throttle will keep it on the move.
This is the reason that any and all fuel systems that adds fuel BEFORE the horizontal portion of the intake manifold NEED a heat riser!
I hope this helps to dispel the confusion and misinformation!
_________________
Our cars get old, we get old but driving an old VW never gets old! |
|
| Back to top |
|
|
AMS_Dizz
Samba Member
Joined: December 15, 2022
Posts: 27
Location: Arizona
|
| Posted: Today 1:27 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|
Thanks for the detailed explanation your point about the heat riser preventing fuel dropout in the manifold horizontal sections rather than addressing carb icing is spot on.
I'm running a TBI system with an aftermarket Y-shaped manifold on my 1600in southern Arizona, where winters are mild (40-75F) and summers are hot (90-110 F+). With the stovepipe already installed and preheating intake air, I'm planning to rely on it year round instead of reinstalling the heat riser, which would require new exhaust gasket maker and a 24 hour cure time. The TBI finer fuel mist and the Y manifold smoother airflow should minimize dropout, especially in summer's heat and winter's mild temps. The stovepipe warm air should keep the mixture vaporized, even at low throttle in cooler winter mornings. Given Arizona warm climate and low humidity, do you think the stovepipe alone will be enough for both seasons, or would you recommend the heat riser for extra reliability in winter? |
|
| Back to top |
|
|
Alstrup
Samba Member
Joined: July 12, 2007
Posts: 7784
Location: Videbaek Denmark
|
| Posted: Today 1:51 pm Post subject: Re: Washburn EFI for 1600 Bug |
|
|
Depends on what you mean by winter.
If we are talking Canandian or Scandinavian winter, the ansswer is no.
Winter south of I40 mmmmhh. Probably yes.
