New Delrin Shift Rod Bushing

[DanM]

I've been sitting on a Washburn delrin shift rod bushing for a while - decided to rip out my WW bushing today to "upgrade" and as stated by others here, this new delrin one doesn't fit. I didn't look for feedback before buying but here we are - same problem as the others - not deep enough to "click" into place.
_________________
drive it. break it. fix it. repeat.

[MajorPIle]

I cannot get the shift rod through the Delrin bushing. 1970 Bug Standard.

Any tips or ideas? Even if I can get it through I'm worried it will be way too tight for the shift rod to even move.

I've sanded down the shift rod remove rust and dirt and I've tried spraying wd 40 while trying to push it through.

Any advice?

Update: I just used a caliper and the inside of the bushing when in the hanger is 21mm and the shift rod itself is 22mm even at the point closest to the shifter.

[jpaull]

[chrisflstf]

The bushing has a split in it, so you cant measure its ID in the bracket. The rod will expand the split, when installed. Just like a factory bushing

[clockworkbox]

The guy who sold the bronze bushing and switched to Delrin isn't selling either bushing now. I wonder why...

As of May 12, 2025 we have discontinued offering the Custom VW Shift Rod Bushing. Thank you to all of those who purchased and used our custom bushings.
_________________
'69 Beetle (pieces)
Learning the hard way is still learning...

[EVfun]

I think Washburns is still selling the snap in Delrin bushing and CIP is still selling the 2 piece bushing held in by one of the shifter bolts. (Likely other sources for both, that was a quick search.) The metal bushing being modified for a snap ring is a Hillman 882999. VW used a metal bushing until 1960.
_________________

[Cusser]

June 2025 Hot VWs magazine has an article on a new delrin shift bushing for 1960-on Beetles on page 70. Search Washburn's Metal.

https://washburnsmetal.com/shop/

https://washburnsmetal.com/product/high-quality-performance-delrin-shift-rod-bushing-usa-made/ $40

_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297

[vamram]

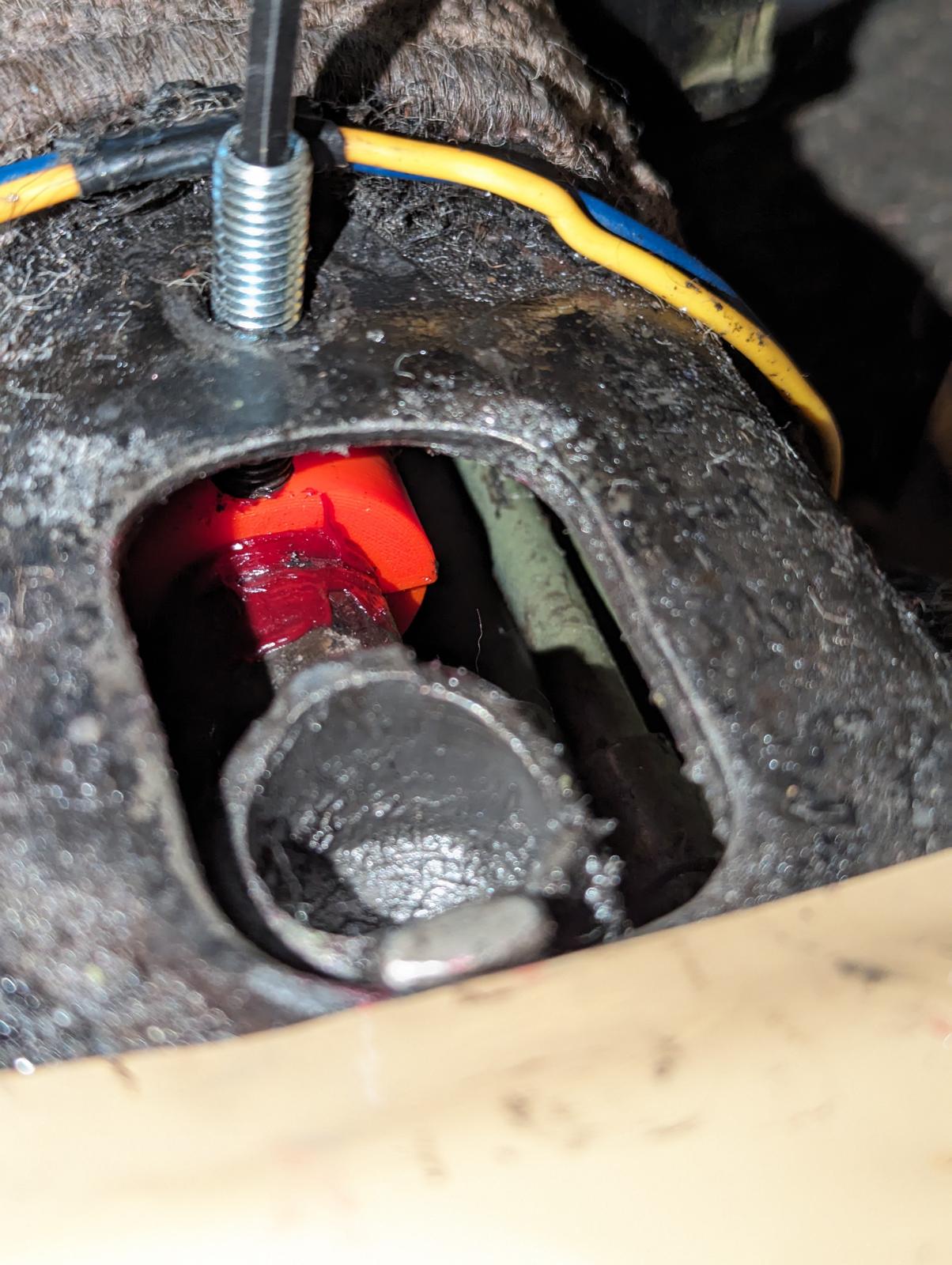

I've had the CIP1 split red one on my daily driver '73 Super for 18 months now. So far, so good, perfect feel to the shifter. And Super easy to install!

_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!

'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!!

[H2OSB]

I have the Washburn one. No issues.

H2OSB
