PostPosted: Fri Aug 09, 2024 2:23 pm    Post subject: Nerf Bars Reply with quote

Hey Y'all - Are you running nerf bars? If so what kind are you running, how'd you install them and would you do it again?

I'd love to hear what you think before I drill into the body of the baja.

Thanks all!
_________________
Adventures in owning a 66 beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Schepp
Samba Member


Joined: March 22, 2020
Posts: 381
Location: NorCal
Schepp is online now

PostPosted: Fri Aug 09, 2024 9:16 pm    Post subject: Re: Nerf Bars Reply with quote

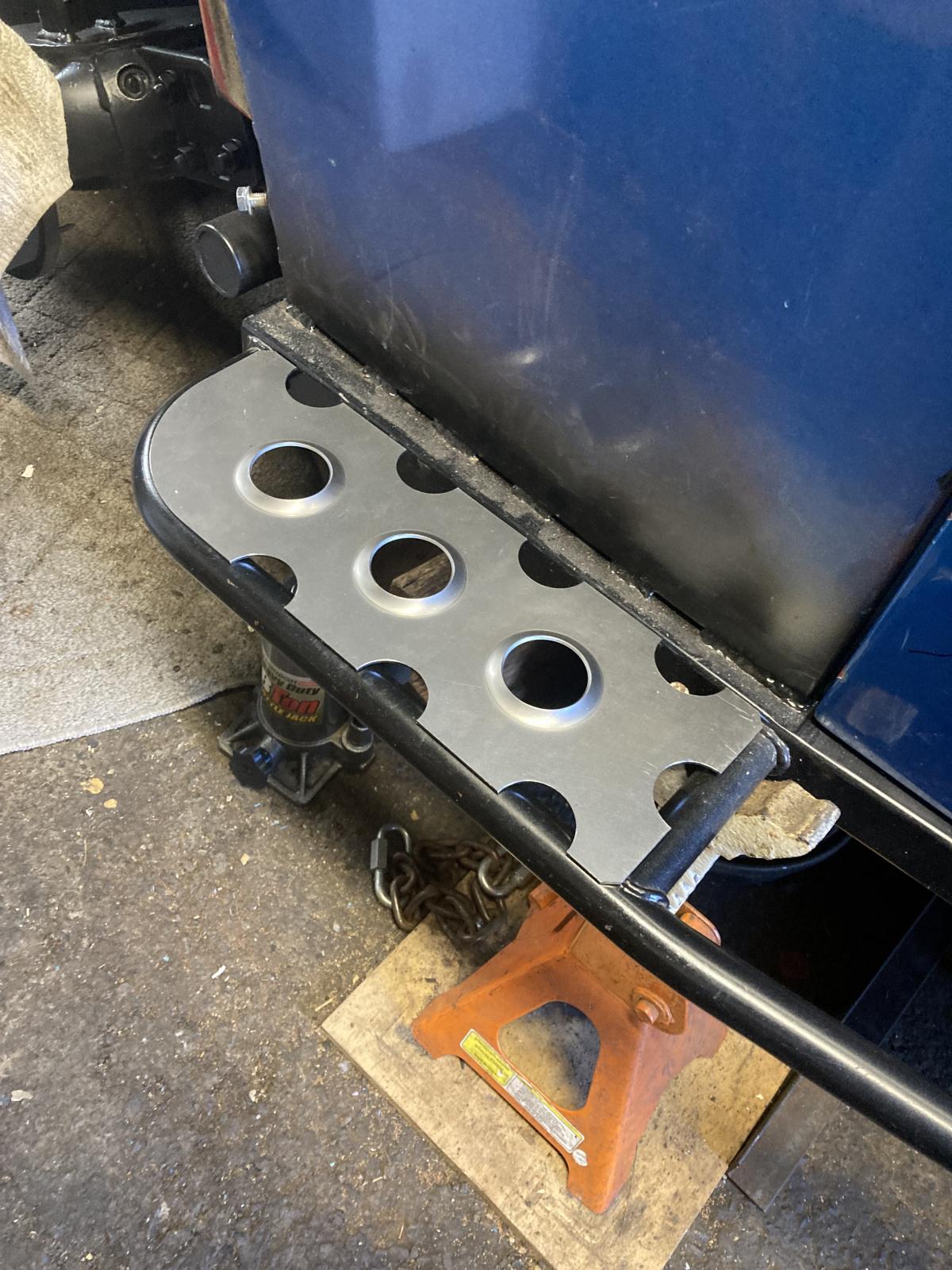

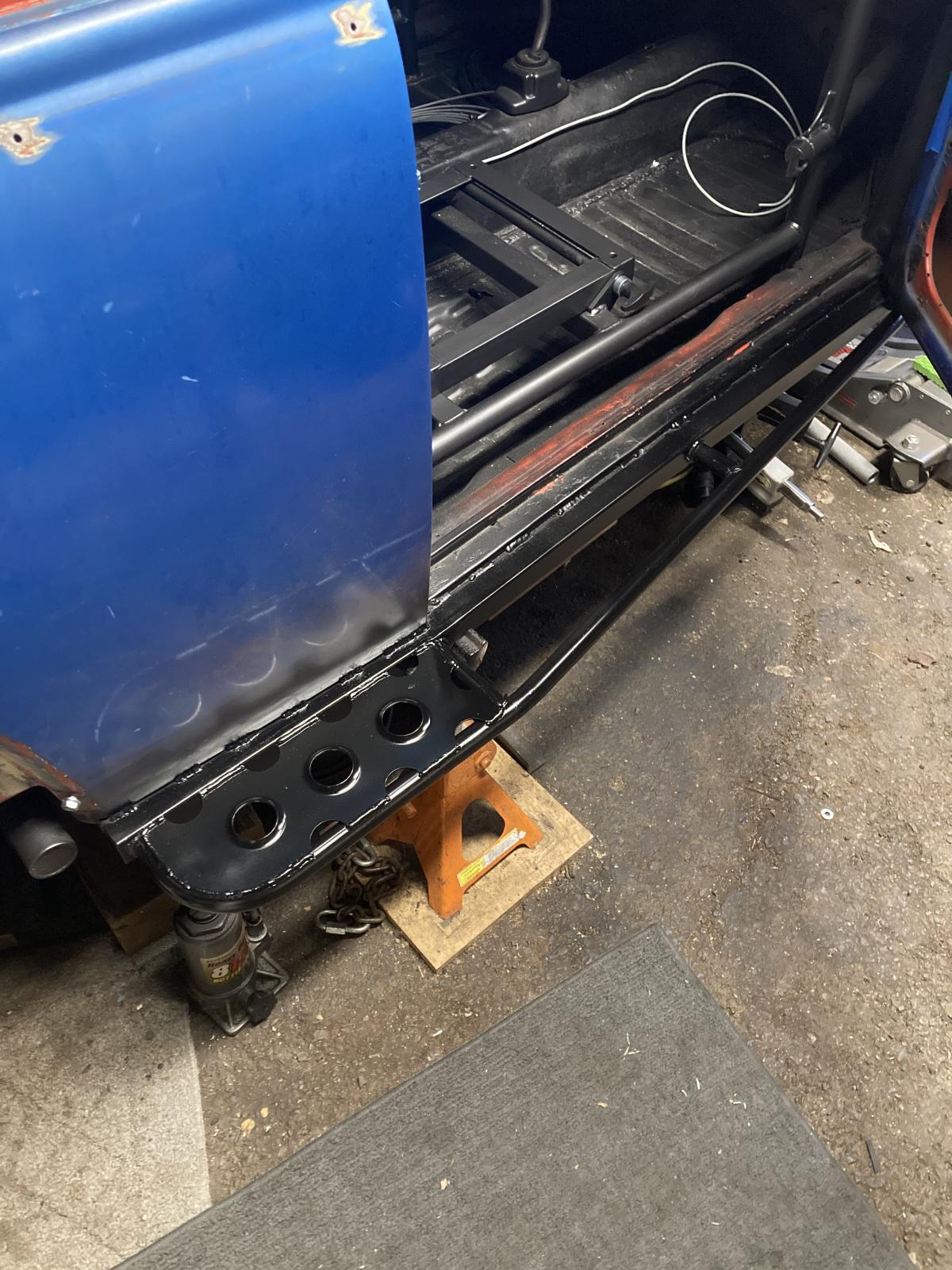

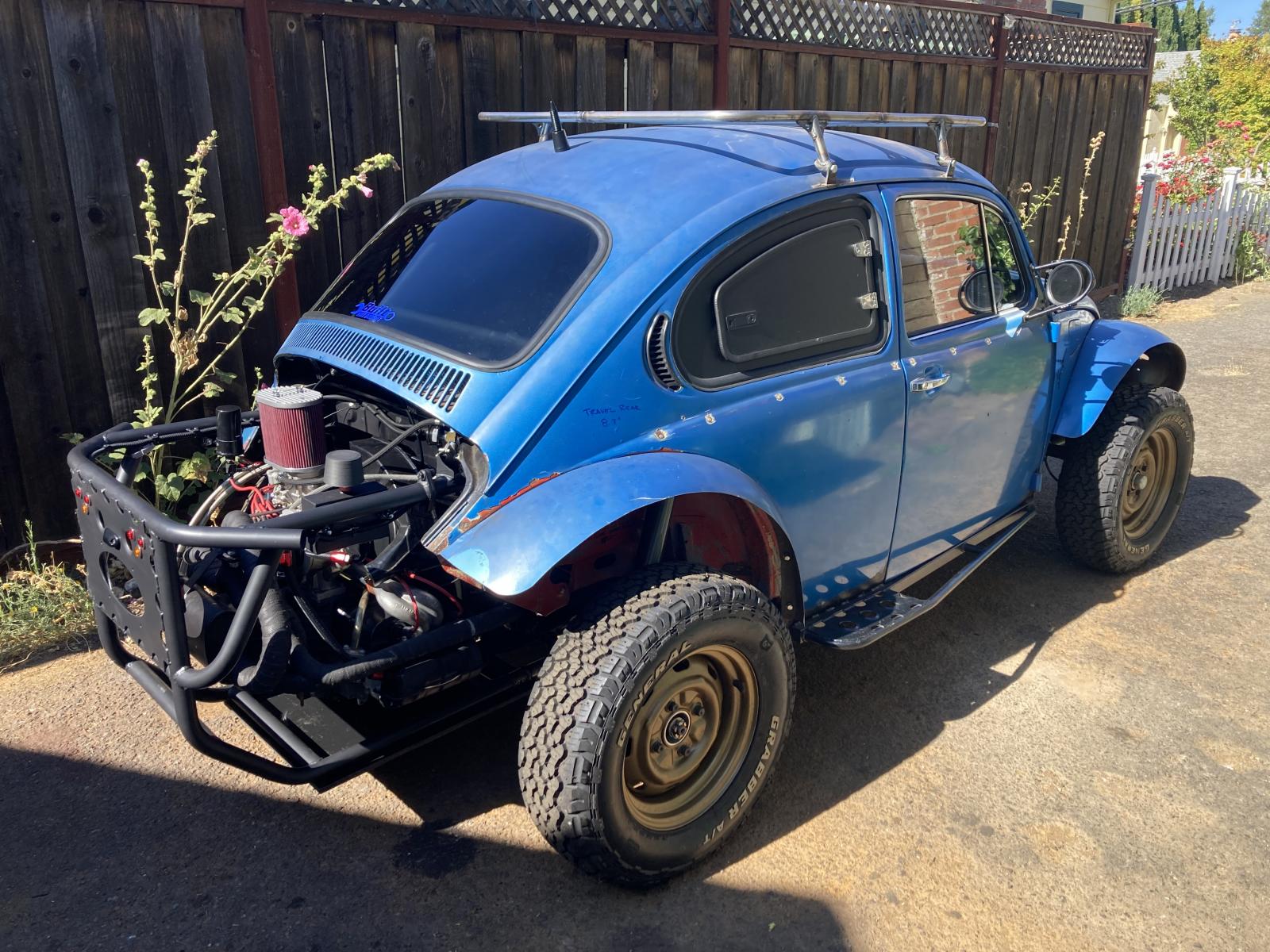

I made my own side rails. I really wanted them to be strong enough to stand on and used as a step for easier access to the roof rack. They also serve as a great easy jacking point along with adding protection.
I molded some square tubing along the body’s channel and welded it in place. The wall thickness of the tube is .120”
I bent some 1x.120” round tube for the railing and laser cut/dimpled the step plates out of .095” sheet.
I really like how they turned out and they’re way stronger than any off the shelf version.
I can post some detailed pics from the making of them if interested.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
indianpeaksjoe
Samba Member


Joined: July 27, 2017
Posts: 602
Location: Moab, UT
indianpeaksjoe is offline

PostPosted: Fri Aug 09, 2024 9:32 pm    Post subject: Re: Nerf Bars Reply with quote

Those are so nice! And beyond my skills to make, but wow, check out all your details.

-Joe
_________________
Adventures in owning a 66 beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dirtkeeper
Samba Member


Joined: February 19, 2008
Posts: 3251
Location: Left of everywhere
dirtkeeper is offline

PostPosted: Sat Aug 10, 2024 10:29 am    Post subject: Re: Nerf Bars Reply with quote

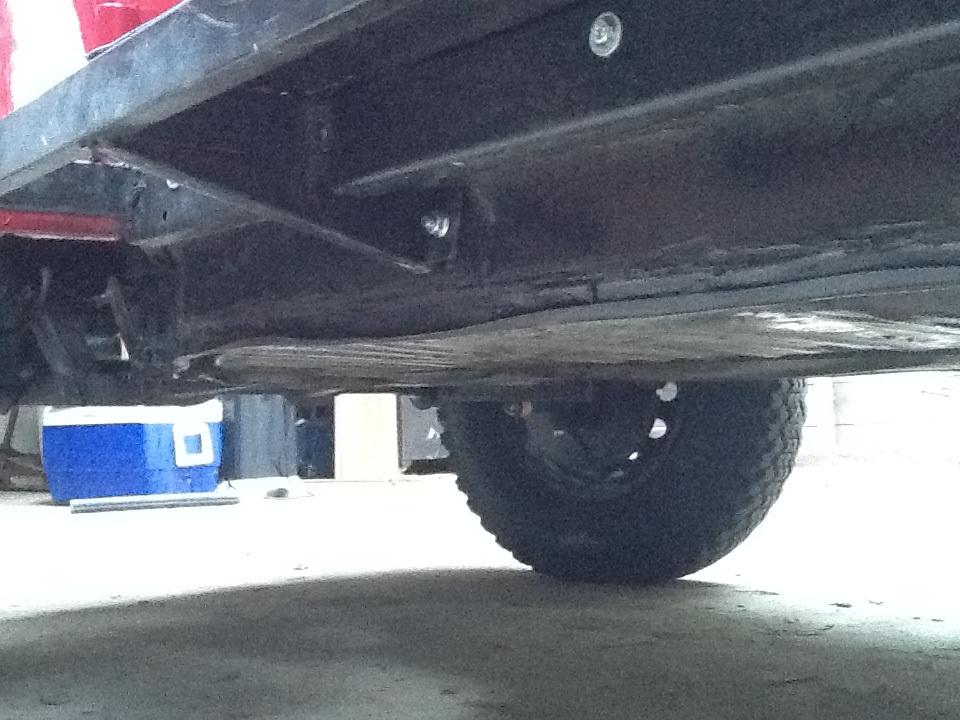

This is what I did

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.





I have a 3” body lift that I have braced to so no upper bar into the body.

Didn’t think it would be strong but it is. Have had several encounters with rocks and a tree stump, and a roll over and they have held up. I put a piece of rubber mat at the door location so that I can step out with bare feet.

Currently I have a metal bucket mount for the gas can instead of just a strap
Back to top
View user's profile Send private message Gallery Classifieds Feedback
indianpeaksjoe
Samba Member


Joined: July 27, 2017
Posts: 602
Location: Moab, UT
indianpeaksjoe is offline

PostPosted: Sun Aug 11, 2024 6:19 am    Post subject: Re: Nerf Bars Reply with quote

That is one great looking baja! Perfect stance, as they say.

-Joe
_________________
Adventures in owning a 66 beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
indianpeaksjoe
Samba Member


Joined: July 27, 2017
Posts: 602
Location: Moab, UT
indianpeaksjoe is offline

PostPosted: Sat May 17, 2025 8:22 pm    Post subject: Re: Nerf Bars Reply with quote

I saw these rock rails today, and really want a set. I assume they are home made, but if not, take my money.

Image may have been reduced in size. Click image to view fullscreen.

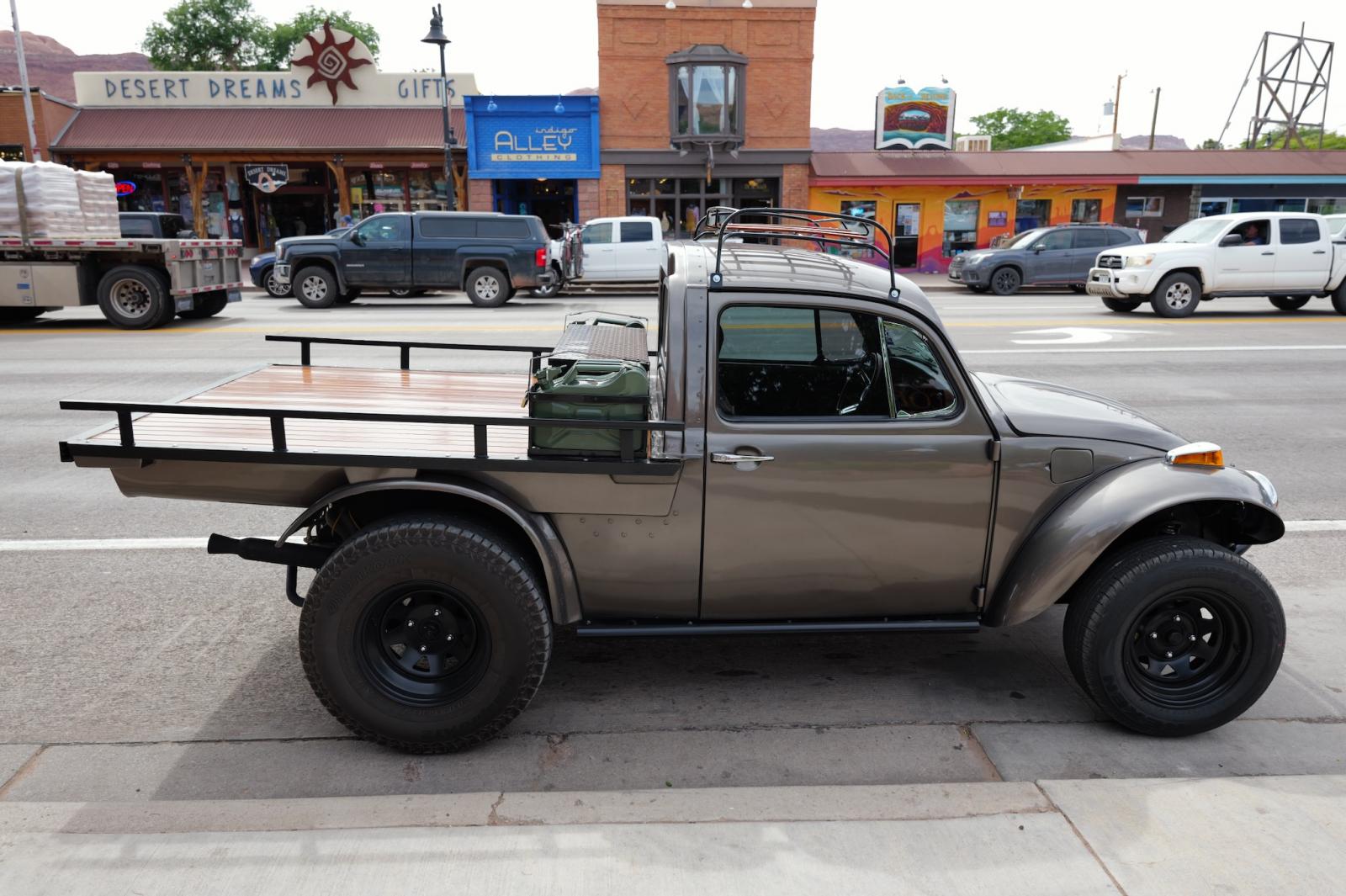

They were on this beaut.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


-Joe
_________________
Adventures in owning a 66 beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 3354
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Mon May 19, 2025 12:27 pm    Post subject: Re: Nerf Bars Reply with quote

I have the standard ones. The most common to see. They were on there when I bought which is good because I don't think I could drill the body either.

They are just tube. It was nice when I had a roof rack. You could stand on them and reach. Also when your waxing the hood.

I don't know if I will reuse them when I over haul it. I plan to do a 3" body lift and these will probably look funny. I can make my own though. I'll make my lift strong enough to support a flat nerf with out a strap going up higher too. Then when I do the body work I can 86 those holes.
_________________
Brian H.

OrangeCrushERBerrien Warrior-2.4L Quad4-2x3 arms-1.5Fox coilovers-094-930CVs
LAZY MARY1970 Baja 2110cc-82mm CB forged crank-AA pistons/cylinders-Grant rings-1.1 vw rockers-CB serpkit-CB chromoly PRs-CB maxiflow filter pump-wix51515 filter-Dual 44IDF-cut/turned front beam-AEM wideband-Auber CHT-Donaldson Dual PowerCore filters-custom AL air boxes
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ORANGECRUSHer
Samba Member


Joined: June 09, 2006
Posts: 3354
Location: West Coast (Michigan's)
ORANGECRUSHer is offline

PostPosted: Mon May 19, 2025 12:30 pm    Post subject: Re: Nerf Bars Reply with quote

indianpeaksjoe wrote:
I saw these rock rails today, and really want a set. I assume they are home made, but if not, take my money.

Image may have been reduced in size. Click image to view fullscreen.


They were on this beaut.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


-Joe


If you can fab a flatbed into a bug I'm sure those sliders were nothin to make.
_________________
Brian H.

OrangeCrushERBerrien Warrior-2.4L Quad4-2x3 arms-1.5Fox coilovers-094-930CVs
LAZY MARY1970 Baja 2110cc-82mm CB forged crank-AA pistons/cylinders-Grant rings-1.1 vw rockers-CB serpkit-CB chromoly PRs-CB maxiflow filter pump-wix51515 filter-Dual 44IDF-cut/turned front beam-AEM wideband-Auber CHT-Donaldson Dual PowerCore filters-custom AL air boxes
