 Posted: Wed May 21, 2025 7:20 pm Post subject: Steering wheel coupler bending when tightened down |
 |
|

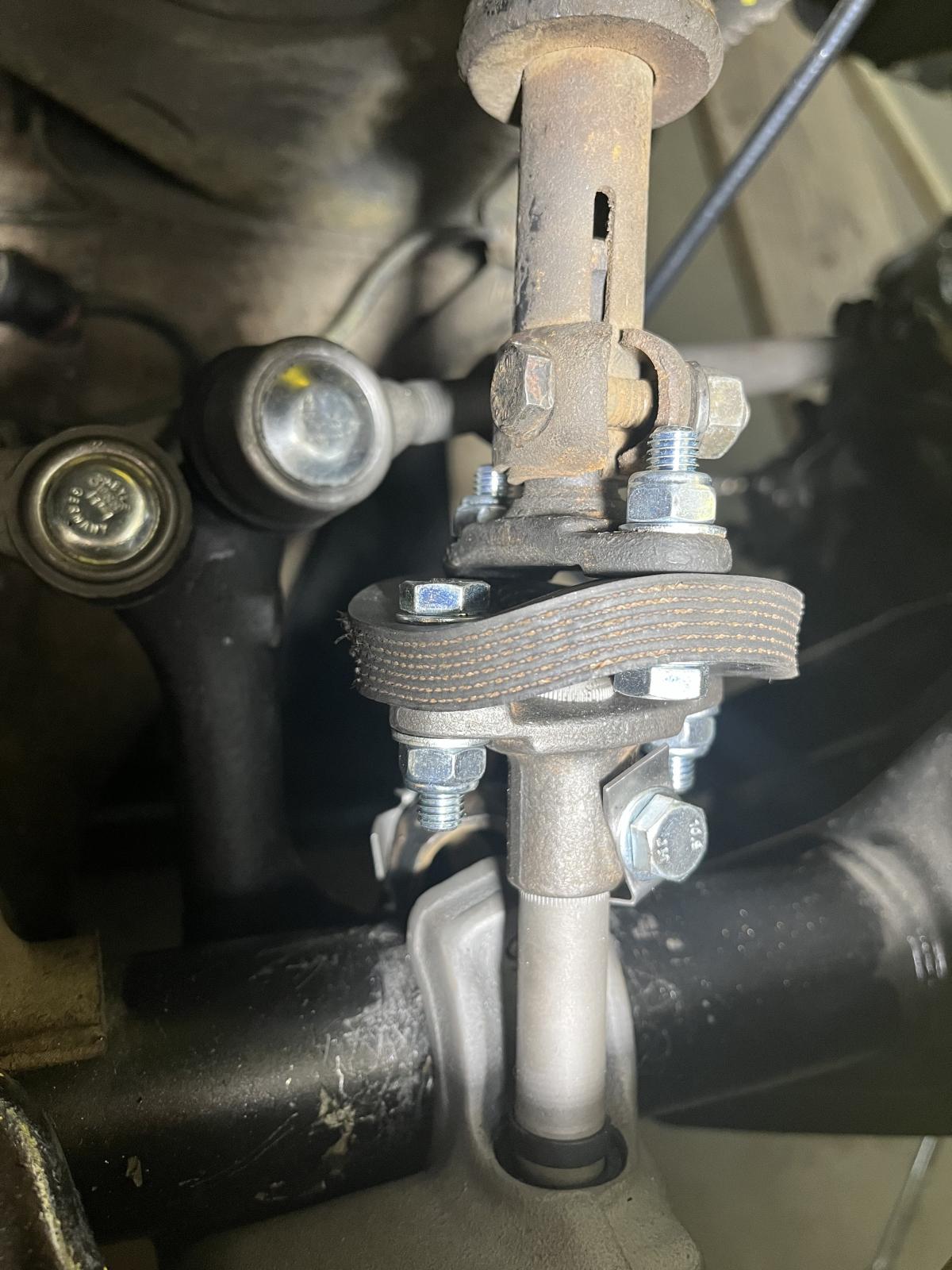

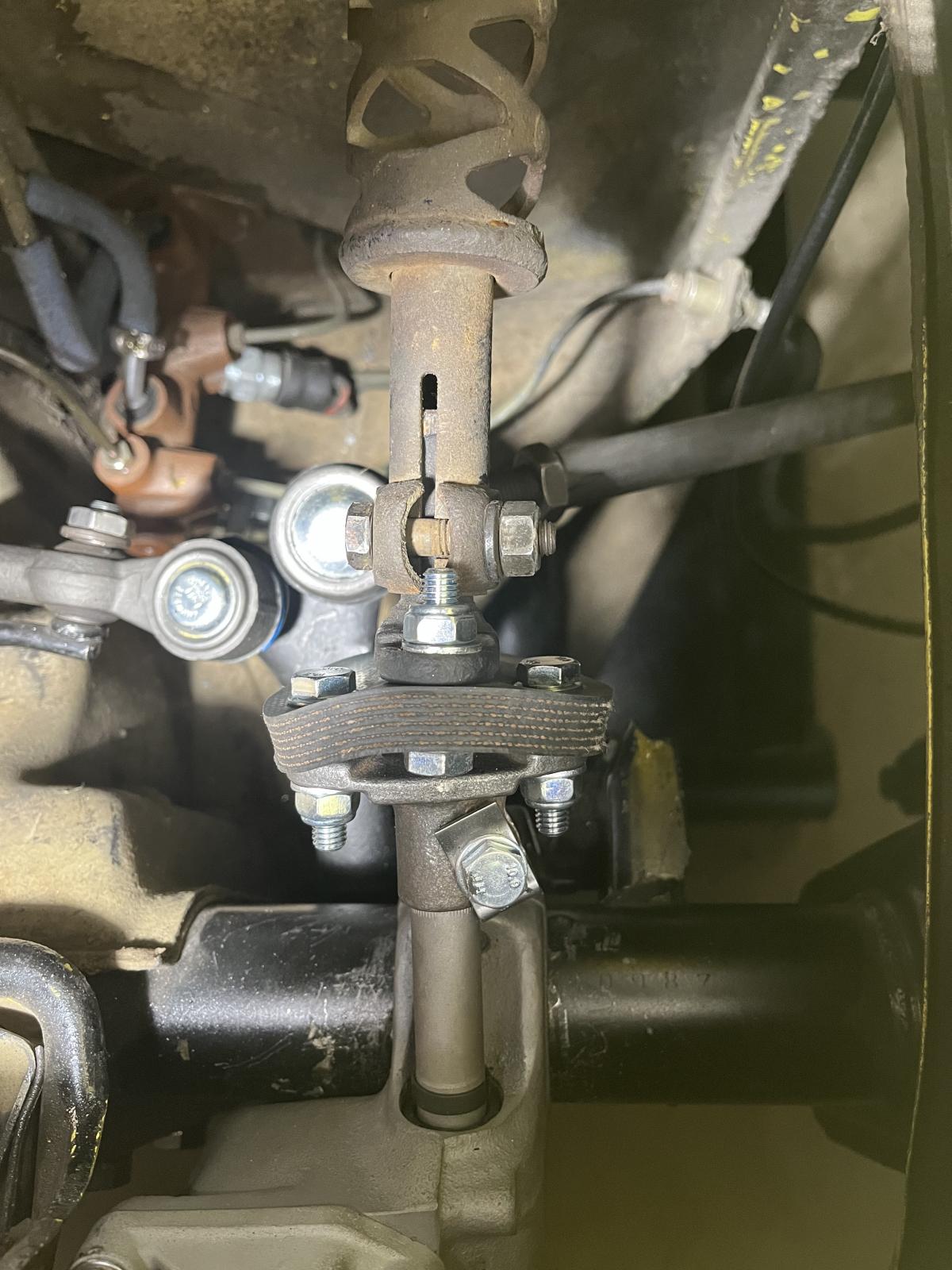

On my '74 ghia I replaced my steering box with a genuine VW rebuilt box, and after I replacing it the steering coupler is bending some when tightened down as you can see in the pics. I'm not sure if this is a really an issue or not but is there a fix for this? It seems to work fine just not sure if there is a fix for this or if it even needs fixed?
[/img]
_________________
'68 Bug
'74 Ghia |
|
| Back to top |
|
 |
bnam
Samba Member
Joined: July 02, 2006
Posts: 3436
Location: El Dorado Hills CA/ Bangalore, India
|
| Posted: Thu May 22, 2025 12:36 am Post subject: Re: Steering wheel coupler bending when tightened down |
|
|
Loosen the clamp bolt that holds the flange to the steering column. This should allow the flange to slide a bit forward and eliminate the bend. Then retighten the clamp.
Byas
_________________
1971 1302LS Convertible (RHD) owned since '74
Click to view image
1965 Karmann Ghia Coupe - under restoration
1966 Fiat 1500 Cabrio (with 1600 Twin cam)
1952 Citroen TA 11BL |
|
| Back to top |
|
|
flatfour
Samba Member
Joined: August 23, 2003
Posts: 693
|
| Posted: Thu May 22, 2025 8:40 am Post subject: Re: Steering wheel coupler bending when tightened down |
|
|
I was able to loosen the clamp and move the flange some. It is definitely better but not all the way flush but much better than before.
_________________
'68 Bug
'74 Ghia |
|
| Back to top |
|
|
runamoc
Samba Member
Joined: June 19, 2006
Posts: 6027
Location: 37.5N 77.1W
|
| Posted: Thu May 22, 2025 10:44 am Post subject: Re: Steering wheel coupler bending when tightened down |
|
|
if you were to mount the bolts the other way, and heaven forbid, if the joint breaks, the bolt ends will connect to the flanges and give you some steering control. The way you have it now the steering wheel end will just spin around. A Ford truck has this 'feature' and it worked for me, so I adapt my VWs the same. I use longer bolts too.
_________________
Daily driver: '69 Baja owned 45 yrs - Plan B: '72 Ghia
Yard Art: 2 Sandrails
Outback: '69 Ghia - '68,'69,'70,'72 Beetle - '84 Scirocco, GTI - Pair of '02 Golfs- '80 Rabbit Diesel
VW Wiring = It's just wires |
|
| Back to top |
|
|
flatfour
Samba Member
Joined: August 23, 2003
Posts: 693
|
| Posted: Thu May 22, 2025 11:21 am Post subject: Re: Steering wheel coupler bending when tightened down |
|
|
| runamoc wrote: |
| if you were to mount the bolts the other way, and heaven forbid, if the joint breaks, the bolt ends will connect to the flanges and give you some steering control. The way you have it now the steering wheel end will just spin around. A Ford truck has this 'feature' and it worked for me, so I adapt my VWs the same. I use longer bolts too. |
I could see where that would be beneficial. I will flip the bolts around.
_________________
'68 Bug
'74 Ghia |
|
