Tip for fixing early popouts

[Blue Baron]

The early small popout windows (pre-'65) used a thin plastic compression washer to hold the window open. These washers become brittle and disintegrate after 60 years. An easy fix is to substitute an oil drain plug compression washer, which is a perfect fit.

Most of us have some of these left over in our toolbox.
_________________
We are striving for perfection, to make our cars run forever, if possible.

Heinz Nordhoff

[67rustavenger]

Perfect, simple, elegant, and, everyone that has owned a VW for any length of time has one or more of those drain plug seals waiting to be put into service.

Thanks for posting this idea.
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!

[Jeff Geisen]

I can use this, thanks bud
_________________
I Corinthians 4: 1 thru 5

‘63 ragtop - ‘68 single cab

[heimlich]

I just had to deal with that. I wrapped a piece of twine around there and cut the ends off. A piece of plastic is much better to do.

How did you get the cap off to put that washer on? Did you just flex it around it?
_________________
www.vwnos.com sales@vwnos.com
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here)

[Blue Baron]

Just take it apart.

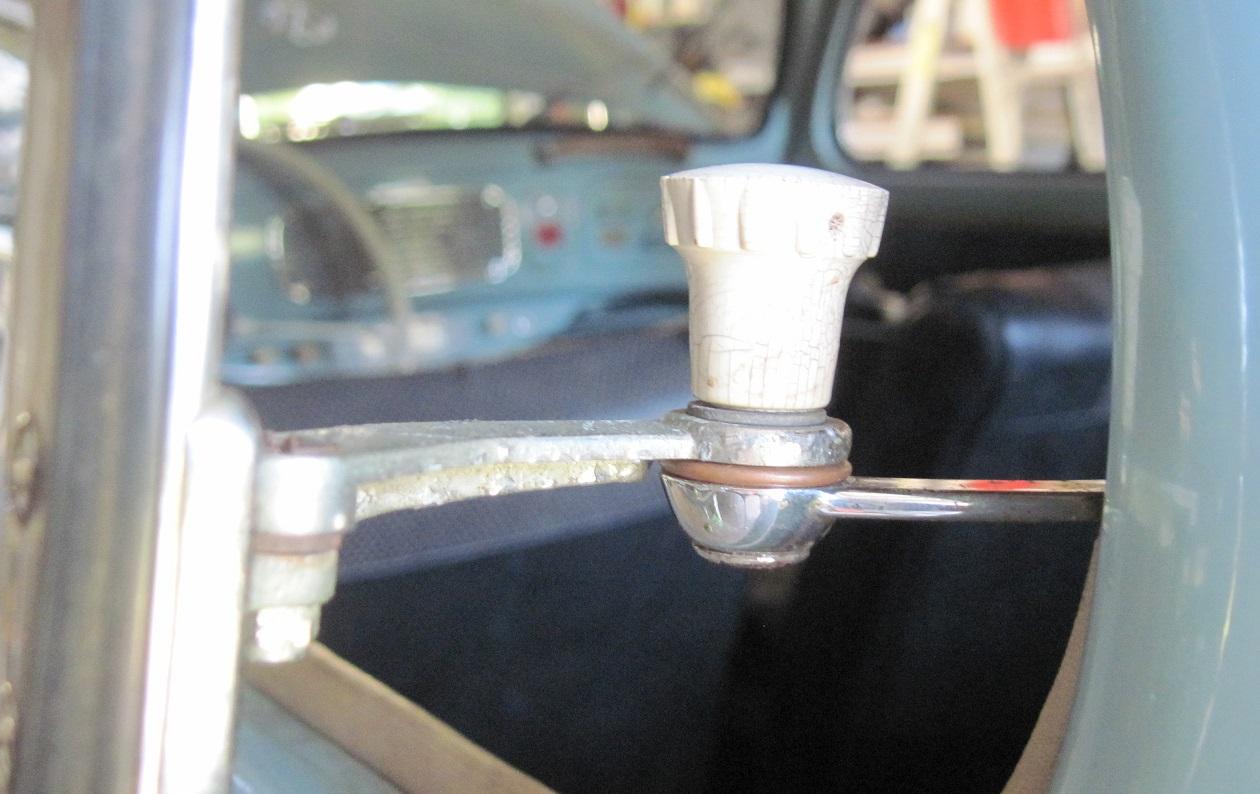

Loosen the small set screw on the knob, unscrew the knob completely off, and the whole elbow comes apart. The washer fits between the two arms, as you see in the photo. Normally this would be a narrow flat plastic washer, but they often break or are missing. Have a safe space to put the small parts as you work. Each side should take about five minuites to do.

This is more durable than the original equipment.
_________________
We are striving for perfection, to make our cars run forever, if possible.

Heinz Nordhoff

[heimlich]

[Blue Baron]

I call myself a genius.

There is a tiny screw in the knob. You use a jewelers flathead screwdriver to loosen it. You can then unscrew the knob entirely off and pry the whole thing apart. The central shaft fits through a cone-shaped eccentric that holds it all in place. it's a very simple arrangement. Good luck!
_________________
We are striving for perfection, to make our cars run forever, if possible.

Heinz Nordhoff

[heimlich]
