 Posted: Wed Apr 15, 2015 7:00 am Post subject: passenger seat mounts walk thru |
 |
|
Wanted to know the measurements for the location of the holes for the passenger seat in a walk thru
|
|
| Back to top |
|
 |
EDragnDean
Samba Member
Joined: July 13, 2005
Posts: 1151
Location: Vancouver, WA
|
|
| Back to top |
|
|
norcalbruce
Samba Member
Joined: September 16, 2004
Posts: 35
Location: Between Shasta an Sac..
|
| Posted: Sat Feb 08, 2025 5:32 pm Post subject: Re: passenger seat mounts walk thru |
|
|

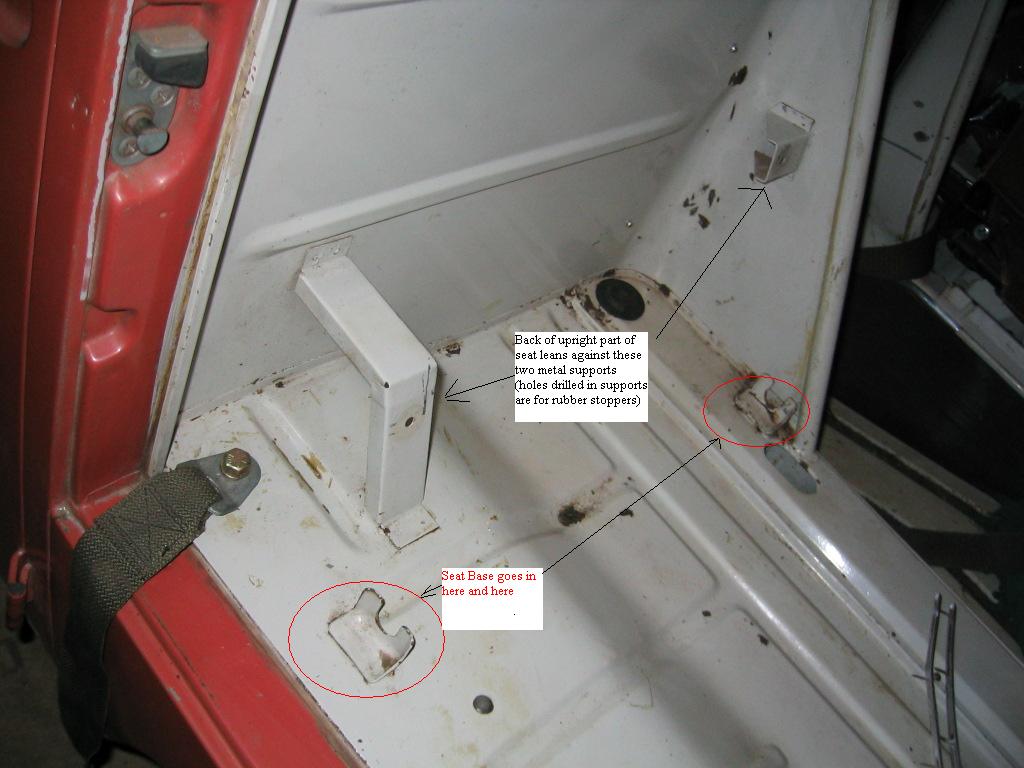

Can someone post a Pic of the seat mounts for a '65 walk thru for the Passenger seat?
I have nothing there for now, PO had mounted '68 hardware and matching seats.
What is on the base? Where are they located? And,
What is on the back area for the back support. Pictures if you can.
TIA, B
Yeah I did just search again and found
I'm getting closer.. thanks.

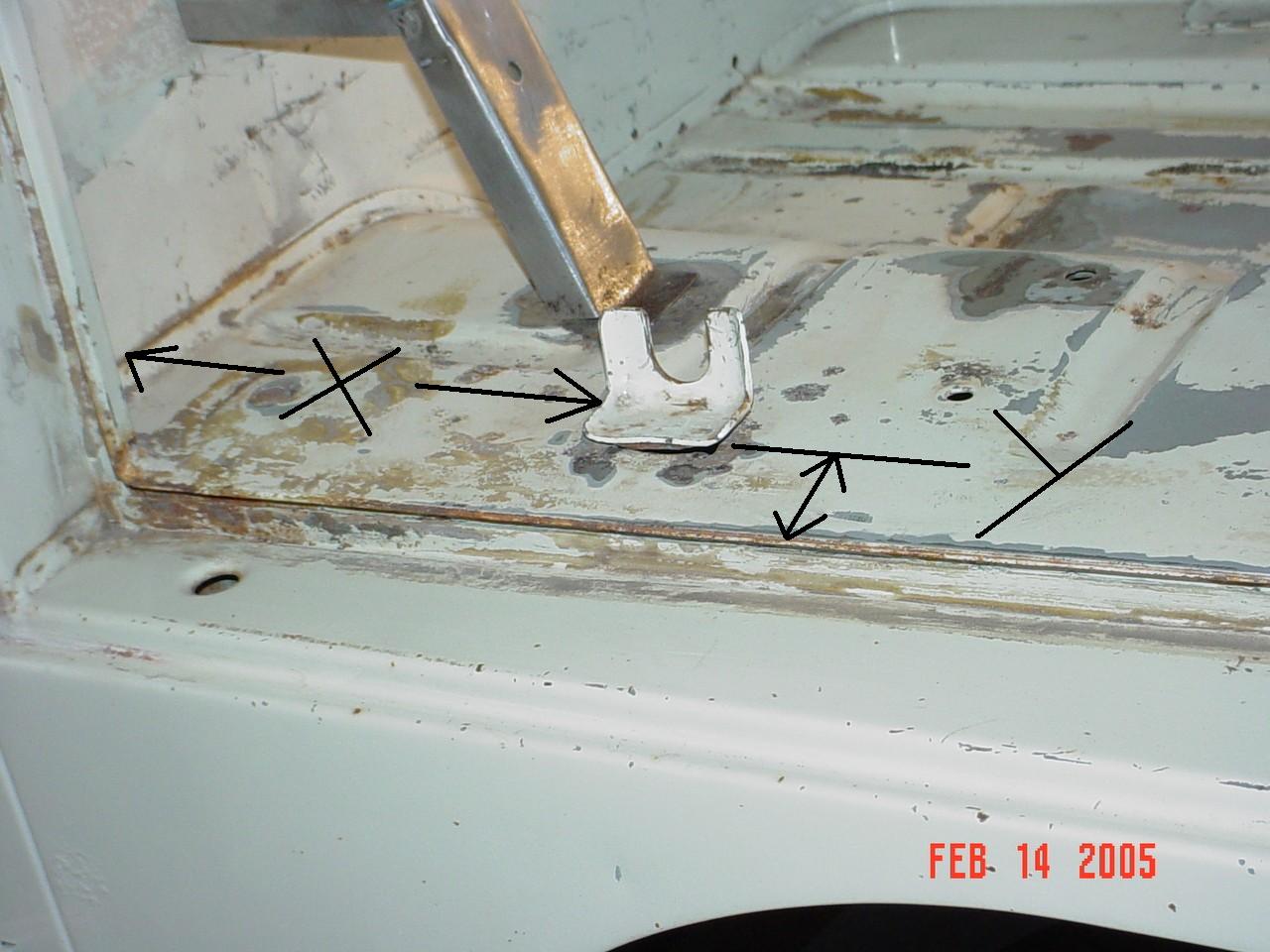

Here's a pic, I would like to know the measurements.
_________________
The bitterness of poor quality remains long after the sweetness of low price is forgotten. |
|
| Back to top |
|
|
Buskraut
Samba Member
Joined: March 22, 2011
Posts: 70
Location: San Jose, CA 95125
|
| Posted: Sat Feb 08, 2025 10:13 pm Post subject: Re: passenger seat mounts walk thru |
|
|
| Quote: |
Here's a pic, I would like to know the measurements.
|
In the photo, X=6-5/8", Y= 1-1/4"
The X measurement is made from the very bottom of the bulkhead wall, so it's from the lip/seam along the bottom.
_________________
Erik S
'65 Type 251 / Deluxe
'03 Eurovan MVWK |
|
| Back to top |
|
|
norcalbruce
Samba Member
Joined: September 16, 2004
Posts: 35
Location: Between Shasta an Sac..
|
| Posted: Fri Jun 06, 2025 2:33 pm Post subject: Re: passenger seat mounts walk thru |
|
|
| Buskraut wrote: |
| Quote: |
Here's a pic, I would like to know the measurements.
|
In the photo, X=6-5/8", Y= 1-1/4"
The X measurement is made from the very bottom of the bulkhead wall, so it's from the lip/seam along the bottom. |
Buskraut, Thank you very much, just what I needed tytyty
Bruce.
_________________
The bitterness of poor quality remains long after the sweetness of low price is forgotten. |
|
