| Author |
Message |
sharpstick
Samba Member
Joined: July 27, 2005
Posts: 456
Location: Amarillo, TX
|
 Posted: Thu Jun 19, 2025 7:59 am Post subject: 009 Question |
 |
|
| How do you tell a German 009 distributor from a Brazilian one? |
|
| Back to top |
|
 |
halfassleatherworks
Samba Member
Joined: December 09, 2018
Posts: 803
Location: Reno NV
|
| Posted: Thu Jun 19, 2025 8:23 am Post subject: Re: 009 Question |
|
|
AI answer probably close but take it for what its worth. Its a artificial opinion..
To differentiate between German and Brazilian Bosch 009 distributors, focus on visual cues and internal construction. German versions are generally smoother in appearance and have a single spring on the advance mechanism, while Brazilian versions may have a rougher surface and often feature two springs, though this isn't always a definitive indicator on eBay. Additionally, German-made distributors are stamped with "BOSCH" and often have a three-number date code, while Brazilian versions may be unmarked or have "BRAZIL" stamped on them according to the 912 BBS forum |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Thu Jun 19, 2025 9:22 am Post subject: Re: 009 Question |
|
|
One made in Germany will say BOSCH and GERMANY on the bottom.
Ones made in Brazil will say BOSCH and might say BRAZIL or nothing. Aftermarket ones say nothing.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
mikedjames
Samba Member
Joined: July 02, 2012
Posts: 3300
Location: Hamble, Hampshire, UK
|
| Posted: Thu Jun 19, 2025 9:44 am Post subject: Re: 009 Question |
|
|
And the Brazilian one looks like it was machined properly, and the German one looks like it was made by EMPI.
Seek out a manifold vacuum tee and fit a 123Tune...
_________________
Ancient vehicles and vessels
1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.
1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy |
|
| Back to top |
|
|
Cusser
Samba Member
Joined: October 02, 2006
Posts: 33019
Location: Hot Arizona
|
| Posted: Thu Jun 19, 2025 2:24 pm Post subject: Re: 009 Question |
|
|
| Glenn wrote: |
| One made in Germany will say BOSCH and GERMANY on the bottom. |
Glenn is - as usual - correct.
Both of mine state Germany on the underside.
_________________
1970 VW (owned since 1972) and 1971 VW Convertible (owned since 1976), second owner of each. The '71 now has the 1835 engine, swapped from the '70. Second owner of each. 1988 Mazda B2200 truck, 1998 Frontier, 2014 Yukon, 2004 Frontier King Cab. All manual transmission except for the Yukon. http://www.thesamba.com/vw/forum/album_page.php?pic_id=335294 http://www.thesamba.com/vw/forum/album_page.php?pic_id=335297 |
|
| Back to top |
|
|
sharpstick
Samba Member
Joined: July 27, 2005
Posts: 456
Location: Amarillo, TX
|
| Posted: Thu Jun 19, 2025 4:37 pm Post subject: Re: 009 Question |
|
|
| Are the Brazilian ones decent quality or should I look for something else? |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Thu Jun 19, 2025 5:49 pm Post subject: Re: 009 Question |
|
|
| sharpstick wrote: |
| Are the Brazilian ones decent quality or should I look for something else? |
Better than the Chinese ones.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
slalombuggy
Samba Member
Joined: July 17, 2010
Posts: 9327
Location: Canada
|
| Posted: Thu Jun 19, 2025 6:55 pm Post subject: Re: 009 Question |
|
|
| The Brazillian ones are as good as the German ones. If properly maintained thay will last for decades |
|
| Back to top |
|
|
Wolfgangdieter
Samba Member
Joined: June 25, 2008
Posts: 1994
Location: FL Panhandle
|
| Posted: Fri Jun 20, 2025 7:30 am Post subject: Re: 009 Question |
|
|
Are all the German ones cast iron? And all the Brazilian and Chinese ones aluminum? I have 2 cast ones from a car where the engine caught fire but distributors survived . Can they be used and what might have to be replaced in them - springs? bearing? insulator? The German ones I have are 40 years old.
_________________
CMC '57 Porsche Speedster Replica and Dolphin boat tailed full pan VW MOD-T Street Buggy |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Fri Jun 20, 2025 8:43 am Post subject: Re: 009 Question |
|
|
All are aluminum.
Cast iron are Volvo, look at the arrow.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Alstrup
Samba Member
Joined: July 12, 2007
Posts: 7819
Location: Videbaek Denmark
|
| Posted: Fri Jun 20, 2025 8:52 am Post subject: Re: 009 Question |
|
|
If the engine compartment has to look classic there is of course an incentive. If not, there are several better solutions today over a 009. These distributors were the shiat back inm the days, but today they have sort of outlived themselves.
I can´t even remember when I used a 009 last, apart from on an Okrasa engine.
_________________
https://www.thesamba.com/vw/forum/viewtopic.php?t=435993 |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Fri Jun 20, 2025 9:03 am Post subject: Re: 009 Question |
|
|
| Alstrup wrote: |
| apart from on an Okrasa engine. |
Should of use a 010.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 7461
Location: Houston, Texas
|
| Posted: Sat Jun 21, 2025 8:17 am Post subject: Re: 009 Question |
|
|
| sharpstick wrote: |
| How do you tell a German 009 distributor from a Brazilian one? |

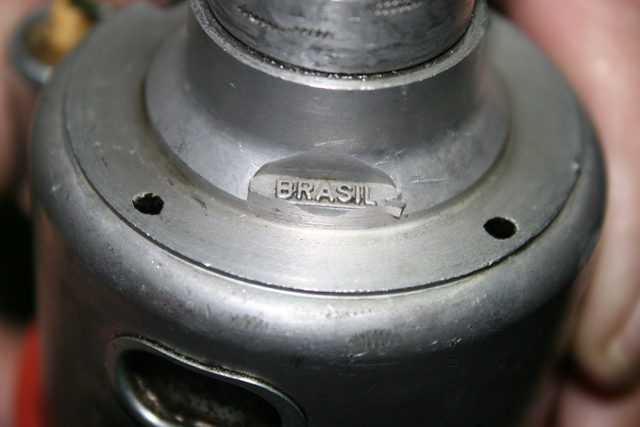

The German one will say Germany. The Brazilian one will say Brazil or nothing. Many of the Brazilian ones are not marked with any country of origin but you will find the standard Bosch markings on them along with the Bosch logo.
There's not much if any difference in the quality between the two especially if they are used. Once they are used and rebuilt there is no discernable difference other than the Germany stamp on the bottom.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Sat Jun 21, 2025 8:38 am Post subject: Re: 009 Question |
|
|
| heimlich wrote: |
| The German one will say Germany. The Brazilian one will say Brazil or nothing. Many of the Brazilian ones are not marked with any country of origin but you will find the standard Bosch markings on them along with the Bosch logo. |
Look at 3rd post.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
chrisflstf
Samba Member
Joined: February 10, 2004
Posts: 4019
Location: San Diego
|
| Posted: Mon Jun 23, 2025 6:10 pm Post subject: Re: 009 Question |
|
|
| Are all the internal parts (not points, cond, rotor), interchangeable between german and brazil 009's? |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79417
Location: Sneaking up behind you
|
| Posted: Mon Jun 23, 2025 6:30 pm Post subject: Re: 009 Question |
|
|
| chrisflstf wrote: |
| Are all the internal parts (not points, cond, rotor), interchangeable between german and brazil 009's? |
I've never done it, but they sure look identical.
Personally, I like reusing the same parts, as long as they are within the wear limits.
I have replaced badly worn/rusted parts on the cast iron models with no problems.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
jimmyhoffa
Samba Member
Joined: February 16, 2014
Posts: 1175
Location: St. Louis
|
| Posted: Tue Jun 24, 2025 6:54 am Post subject: Re: 009 Question |
|
|
| chrisflstf wrote: |
| Are all the internal parts (not points, cond, rotor), interchangeable between german and brazil 009's? |
I have done it, and it works. They appear to be the same. I had two semi-roached ones so I scrambled the parts together and it was okay. I made a distributor testing machine to check it (and other distributors) and after some tweaking of the stops and spring perches it performs as original. Why, you ask? because I have a Compu-Fire DIS-IX I want to play with so I need the ability to carefully recurve 009s even though they're terrible. Just terrible enough to get class wins in the Baja 1000 dozens of times.
_________________
1974 Chenowth 2RL #1244 Street Legal
My other car isn't ridiculous. |
|
| Back to top |
|
|
heimlich
VWNOS.com
Joined: November 20, 2016
Posts: 7461
Location: Houston, Texas
|
| Posted: Tue Jun 24, 2025 7:03 am Post subject: Re: 009 Question |
|
|
| chrisflstf wrote: |
| Are all the internal parts (not points, cond, rotor), interchangeable between german and brazil 009's? |
Yes, everything is interchangeable. It's near impossible to tell the difference between the two.
_________________
www.vwnos.com [email protected]
Classic Brands. Classic Quality.
Not all parts are made the same. NOS OE/OEM parts made mainly in West Germany, Early Germany, and Early Brazil are where VW produced the best quality parts and best fitting products.
5% Off your order with coupon code: 5%OFF
Restored Distributors Available (<--Click here) |
|
| Back to top |
|
|
mikedjames
Samba Member
Joined: July 02, 2012
Posts: 3300
Location: Hamble, Hampshire, UK
|
| Posted: Wed Jun 25, 2025 4:40 am Post subject: Re: 009 Question |
|
|
| jimmyhoffa wrote: |
| chrisflstf wrote: |
| Are all the internal parts (not points, cond, rotor), interchangeable between german and brazil 009's? |
I have done it, and it works. They appear to be the same. I had two semi-roached ones so I scrambled the parts together and it was okay. I made a distributor testing machine to check it (and other distributors) and after some tweaking of the stops and spring perches it performs as original. Why, you ask? because I have a Compu-Fire DIS-IX I want to play with so I need the ability to carefully recurve 009s even though they're terrible. Just terrible enough to get class wins in the Baja 1000 dozens of times. |
And did you drive at 28mph in 3rd gear for more than 0.01 of a second at a time in the Baja 1000?
The SVDA and vacuum advance is for street driveability with small engines..
_________________
Ancient vehicles and vessels
1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.
1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy |
|
| Back to top |
|
|
jimmyhoffa
Samba Member
Joined: February 16, 2014
Posts: 1175
Location: St. Louis
|
| Posted: Wed Jun 25, 2025 6:07 am Post subject: Re: 009 Question |
|
|
| mikedjames wrote: |
And did you drive at 28mph in 3rd gear for more than 0.01 of a second at a time in the Baja 1000? |
Of course not. It barely idles, has a giant flat spot under 3000, and probably won't last that long in general. That didn't keep it off the top of the SCORE lites podium in 2019.
