electrical connector

[SGKent]

anyone know where to get the electrical connector that is a push on for the fuel pump? It is designed to slide over a stud rather than a blade.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[busdaddy]

60's/70's Ford products used a push on round terminal on the starter solenoid studs (as well as other places), maybe a vintage Mustang supplier?
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!

[SGKent]

thanks Mark. I remember seeing those on starter solenoids, senders, and gauges. Drawing blanks trying to find one.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[dodger tom]

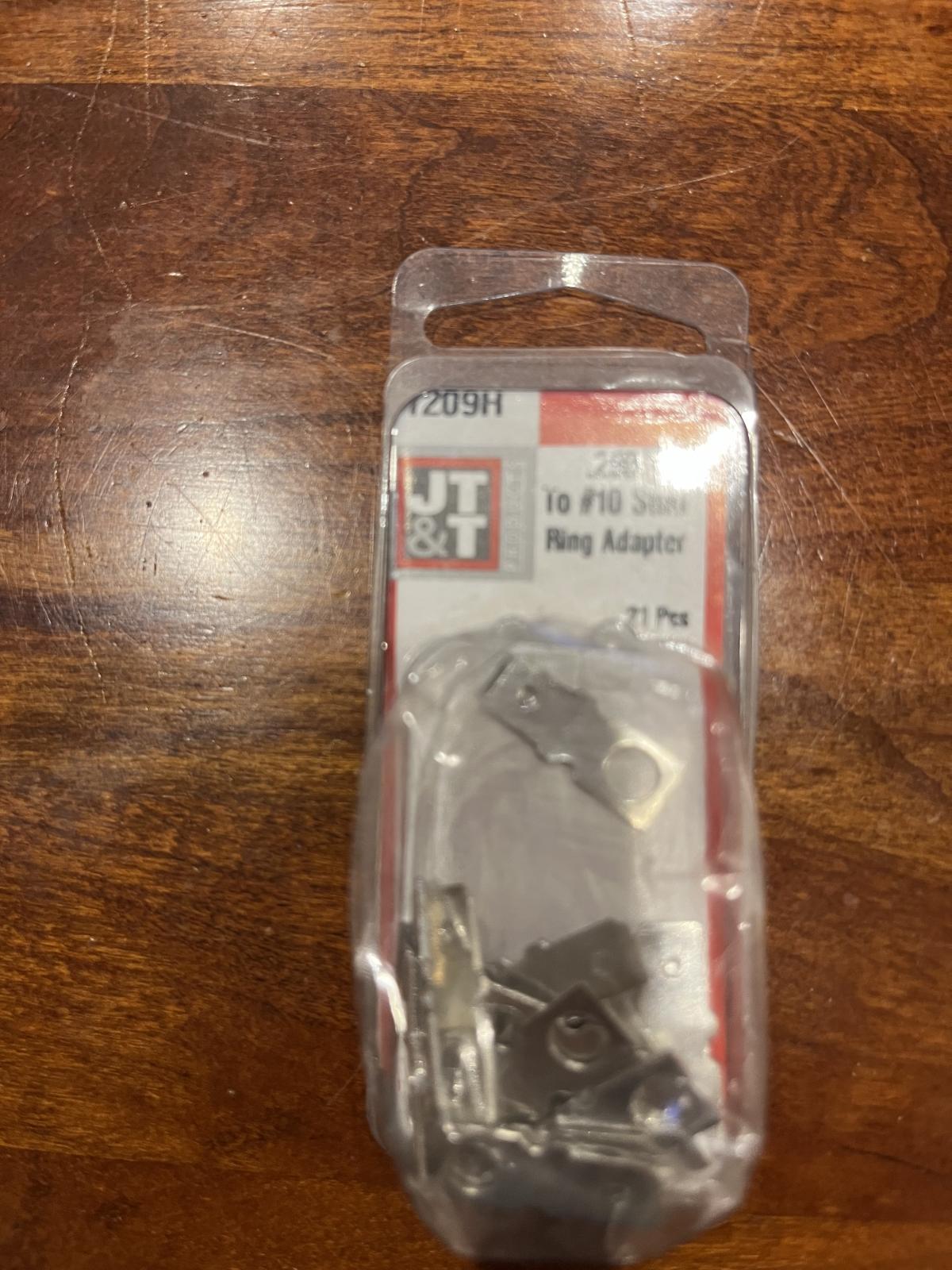

or, if you still have the female spade on your wire, this connector?

_________________
1978 Champaign Edition 2 Westfalia
Would never find the time to keep up another classic air-cooled.

[SGKent]

Thanks Tom.

Maybe can use a female bullet connector. Will have to decide tomorrow. Was trying to avoid a ring terminal but that may be the easiest solution at this point.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[Willin]

you can get those female, and male, bullet connectors at ACE or flaps.
They will be the "hardware store" crimp style.
_________________
73 bus. Org. 1700 with dual Weber 40 idfs, bus header with Empi qp muffler, CB magnaspark 2 " ready to run kit".

[raygreenwood]

So, does your fuel pump have simple 2-3mm threaded studs sticking out with a couple of thin nuts on them?

If so then the absolute most correct connectors to use are in order:

1. a crimp on ring terminal on each wire with small washer between nut and terminal so it does not twist as you tighten it down.

2. The tab that Dodger Tom showed you but in the proper size and usually with a 90° angle in it if necessary.

These two are the best because the linkage to fuel pumps should be tight and anti-vibration. The pumps pull a few amps too so all of this has a little heat at times. The looser the electrical connection, the more chance for corrosion growth and high resistance.

But....if you do have the threaded studs on your fuel pump, by chance are these the type of connectors you are looking for?

https://www.autozone.com/electrical-and-lighting/c...lsrc=aw.ds

They have to be gotten in the right thread diameter size to fit tight. They are not as good as the two options above but their claim to fame is that they rotate on the thread to make it easy to move the wires around.

Ray

[SGKent]

Hi Ray. Yes, except the bus uses the same rubber part as the horn, however the horn has a spade lug.

Thank Willin - I will check that out. Have to measure the post. A standard bullet connector is 4mm. Bosch does make a 5mm bullet female also.
_________________
"Most people don't know what they're doing, and a lot of them are really good at it." - George Carlin

[raygreenwood]

[SGKent]

[SGKent]

Just closing this out. Pulled the boot off and there was nothing in it but a wire and discolored rubber. Turns out that the connector that broke off was a spade connector that just looked like a bullet connector - except on close inspection there was nothing but rubber there. Just like the horn, same setup. Good to go. Adding a new more flexible wire and connector then done. Painted a white stripe on a red wire to it matches.
