 Posted: Wed Dec 27, 2023 12:24 pm Post subject: BLAZE CUT fire system |
 |
|

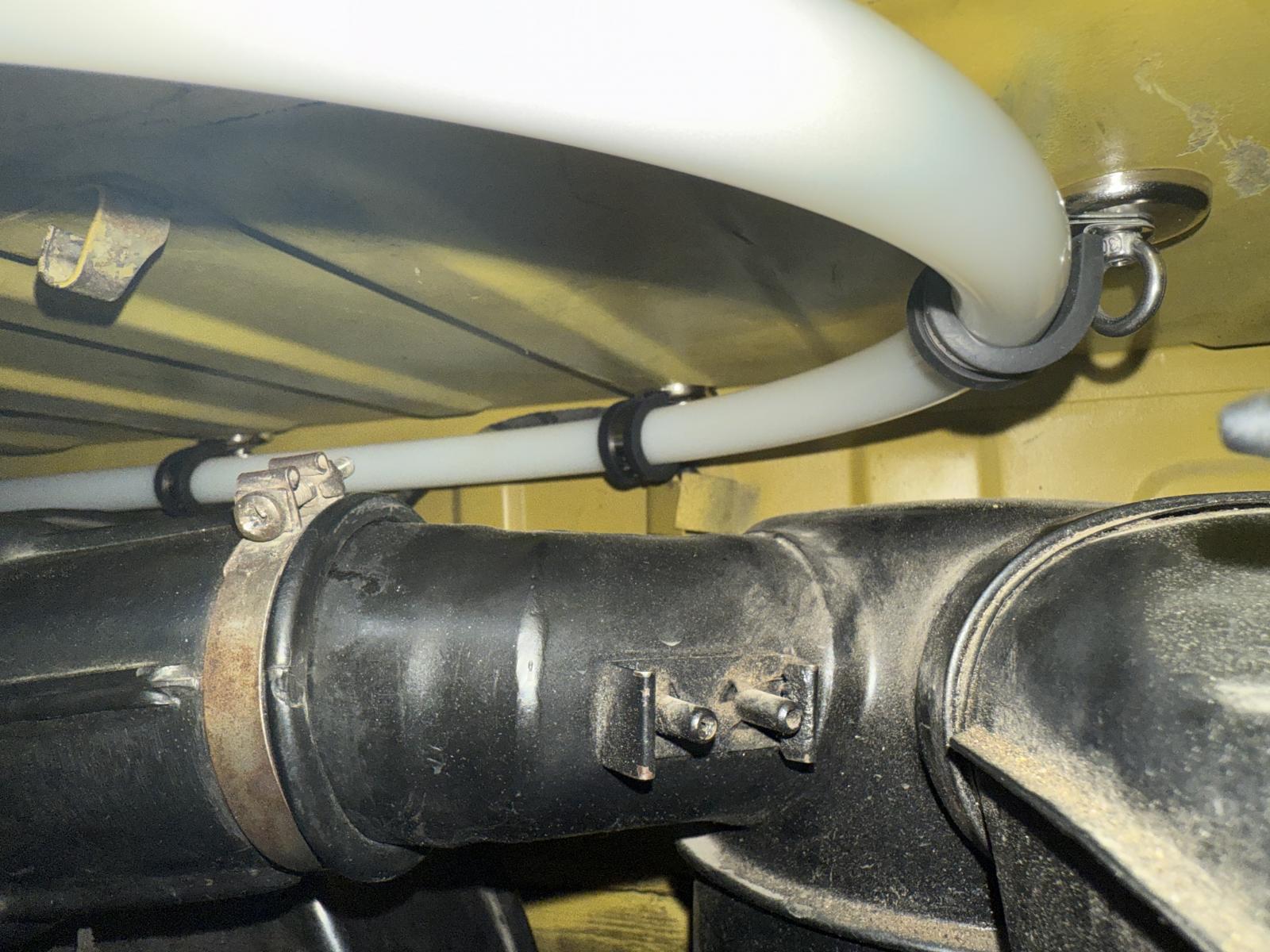

I finally installed a fire suppression system from Blaze Cut. It was a bit tricky to get the hangers in place, but I think it turned out pretty clean.
I hope it works if I ever need it. |
|
| Back to top |
|
 |
77kafer
Samba Member
Joined: April 08, 2008
Posts: 843
Location: New Windsor, NY
|
| Posted: Wed Dec 27, 2023 12:27 pm Post subject: Re: BLAZE CUT fire system |
|
|
LOOKS GOOD.
_________________
Supposed to be 77käfer, but there are no umlauts on an american keyboard
Overheard on 27 June 07, one lady to another when they saw my Harli in a parking lot at West Point, "maybe he found it on the clearance aisle at the Volkswagen dealer" |
|
| Back to top |
|
|
Semper_Dad
Samba Member
Joined: May 14, 2005
Posts: 3533
Location: Indiana
|
| Posted: Wed Dec 27, 2023 4:11 pm Post subject: Re: BLAZE CUT fire system |
|
|
Nice install. But did it require drilling holes in the sheetmetal?
I'd like to see some design that mounts to the decklid that utilizes the slots in the decklid reinforcement panel. But then again, I'd worry about setting the thing off by slamming the decklid too hard.
_________________
Walküre Restoration Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=737492 |
|
| Back to top |
|
|
yel-mel
Samba Member
Joined: May 07, 2015
Posts: 446
Location: Tampa Florida
|
| Posted: Wed Dec 27, 2023 6:10 pm Post subject: Re: BLAZE CUT fire system |
|
|
| Yes Semper it did require drilling into the sheet metal for the clamps, however I feel this is the best location. I basically followed how Gene Kisler set his up. Gene has a top notch Thing and some very good knowledge on the subject ( good guy too). A alternative mounting idea could use magnets if you did not want to drill. The problem is the BlazeCut tube is not very flexible and takes something strong to hold it in place once you bend. |
|
| Back to top |
|
|
Hot Rod Harp
Samba Member
Joined: March 02, 2008
Posts: 197
Location: Englewood, New Jersey
|
| Posted: Sun Dec 31, 2023 2:06 pm Post subject: Re: BLAZE CUT fire system |
|
|
yel-mel
What size did you buy? 44" or 6 foot ?
Thank you
_________________
74 Thing 1600DP
76 Westfalia 2.0L FI
69 Beetle 1500SP sold
88 Goldwing GL1500/6 sold
RinTinTin in Waldorf Astoria 1956 |
|
| Back to top |
|
|
yel-mel
Samba Member
Joined: May 07, 2015
Posts: 446
Location: Tampa Florida
|
| Posted: Tue Jan 02, 2024 8:48 am Post subject: Re: BLAZE CUT fire system |
|
|
| 6 foot fits perfect |
|
| Back to top |
|
|
colin_peggy
Samba Member
Joined: August 31, 2011
Posts: 21
|
| Posted: Wed Jan 03, 2024 10:28 am Post subject: Re: BLAZE CUT fire system |
|
|
| FYI , I used eight rare earth magnets ( 100 # ) to hold my system in place 2000 miles and 18 months later it hasn’t moved. Plus no drilling. |
|
| Back to top |
|
|
yel-mel
Samba Member
Joined: May 07, 2015
Posts: 446
Location: Tampa Florida
|
| Posted: Wed Jan 03, 2024 1:26 pm Post subject: Re: BLAZE CUT fire system |
|
|
| Wow....that's a strong magnet |
|
| Back to top |
|
|
colin_peggy
Samba Member
Joined: August 31, 2011
Posts: 21
|
| Posted: Wed Jan 03, 2024 3:05 pm Post subject: Re: BLAZE CUT fire system |
|
|
| I think the rating is excessive for what it actually is but don’t get your skin between the magnet and the metal |
|
| Back to top |
|
|
phillything
Samba Member
Joined: April 11, 2024
Posts: 16
Location: Philadelphia, PA
|
| Posted: Fri Jun 20, 2025 10:19 am Post subject: Re: BLAZE CUT fire system |
|
|

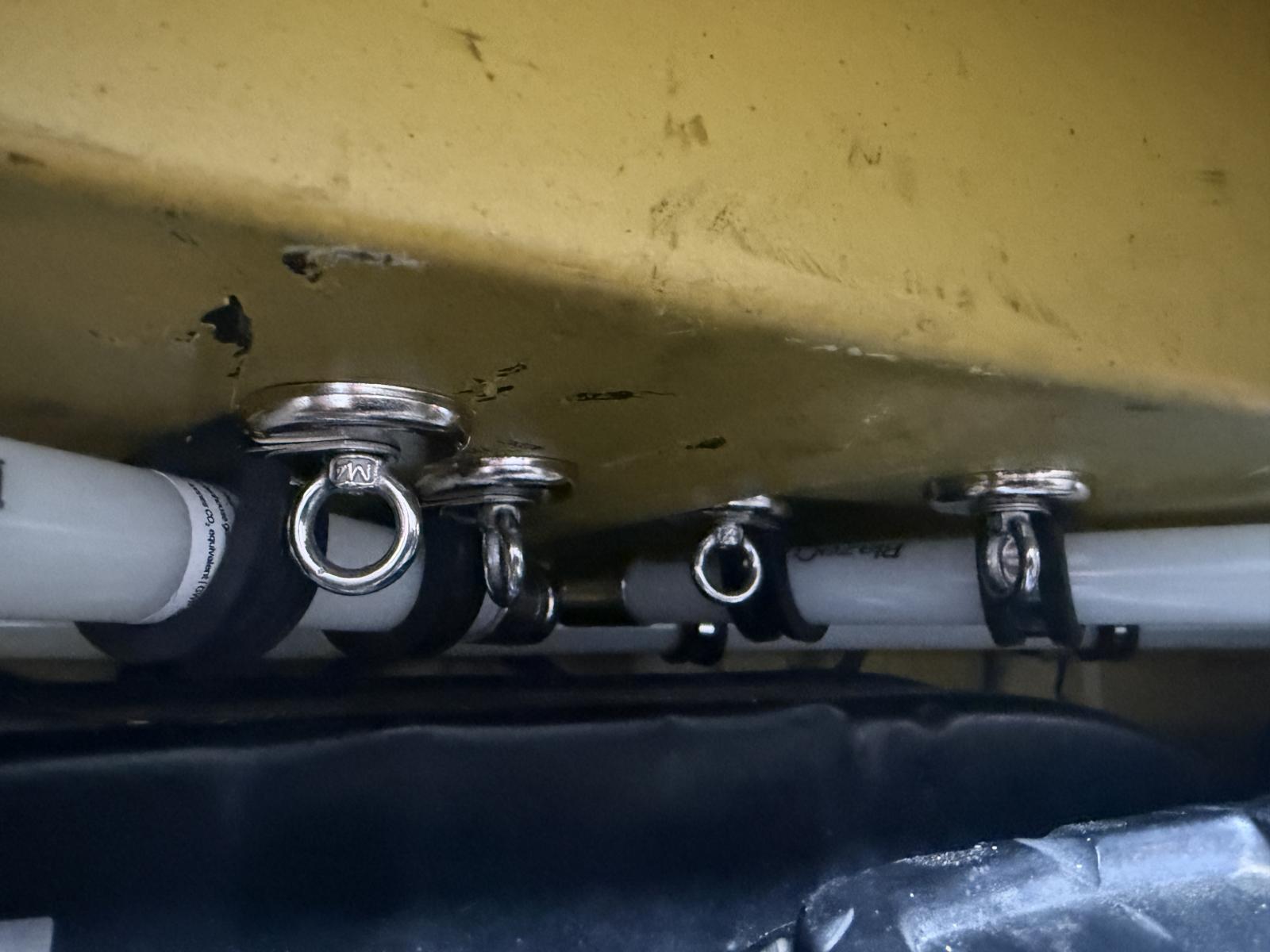

Hey colin_peggy (and others), I just put in my blaze cut using 100# rare earth magnets and clamps.. seems pretty solid and required no drilling through the car. It's pretty close to the fan shroud (but not touching)..
Anyone see any reason why I SHOULD NOT run like this?
Thanks
|
|
| Back to top |
|
|
colin_peggy
Samba Member
Joined: August 31, 2011
Posts: 21
|
| Posted: Fri Jun 20, 2025 7:02 pm Post subject: Re: BLAZE CUT fire system |
|
|
| Looks almost exactly like my installation and it’s been in place for several years and 5,000 miles . Haven’t moved with those magnets . As you said “ no drilling” . |
|
| Back to top |
|
|
doublecanister
Samba Member
Joined: September 23, 2008
Posts: 1214
Location: Richmond, Va
|
| Posted: Wed Jun 25, 2025 5:58 am Post subject: Re: BLAZE CUT fire system |
|
|
| Semper_Dad wrote: |
Nice install. But did it require drilling holes in the sheetmetal?
I'd like to see some design that mounts to the decklid that utilizes the slots in the decklid reinforcement panel. But then again, I'd worry about setting the thing off by slamming the decklid too hard. |
I did the decklid mount with magnets back in 2021, at the time I had hand surgery and was no way I could do this easily uncoiled, these blazecuts are rather stiff items, but this is "right outta the box" mounted. So far so good.
There was some questions about it where it was mounted but I believe a fire in the engine compartment with this on the lid or the 'roof' should still melt and do it's job.
Used magnets with 'gorilla tape' on the back to avoid paint scratches, and used 2 of the existing bolt/nuts for the license plate light I believe as extra mounts. It's sturdy, even slamming the lid with my phone recording video inside engine compartment showed it missing everything so - so far so good.
And I angled the gauge for easy read with lid open and it's fairly easy to remove if needed.
Hope this helps,
T
