Speaker Bracket Install
Page: Previous  1, 2
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 15194
Location: Casa de Oro, California
BarryL is offline

PostPosted: Fri Dec 08, 2023 7:02 pm    Post subject: Re: Speaker Bracket Install Reply with quote

BarryL wrote:

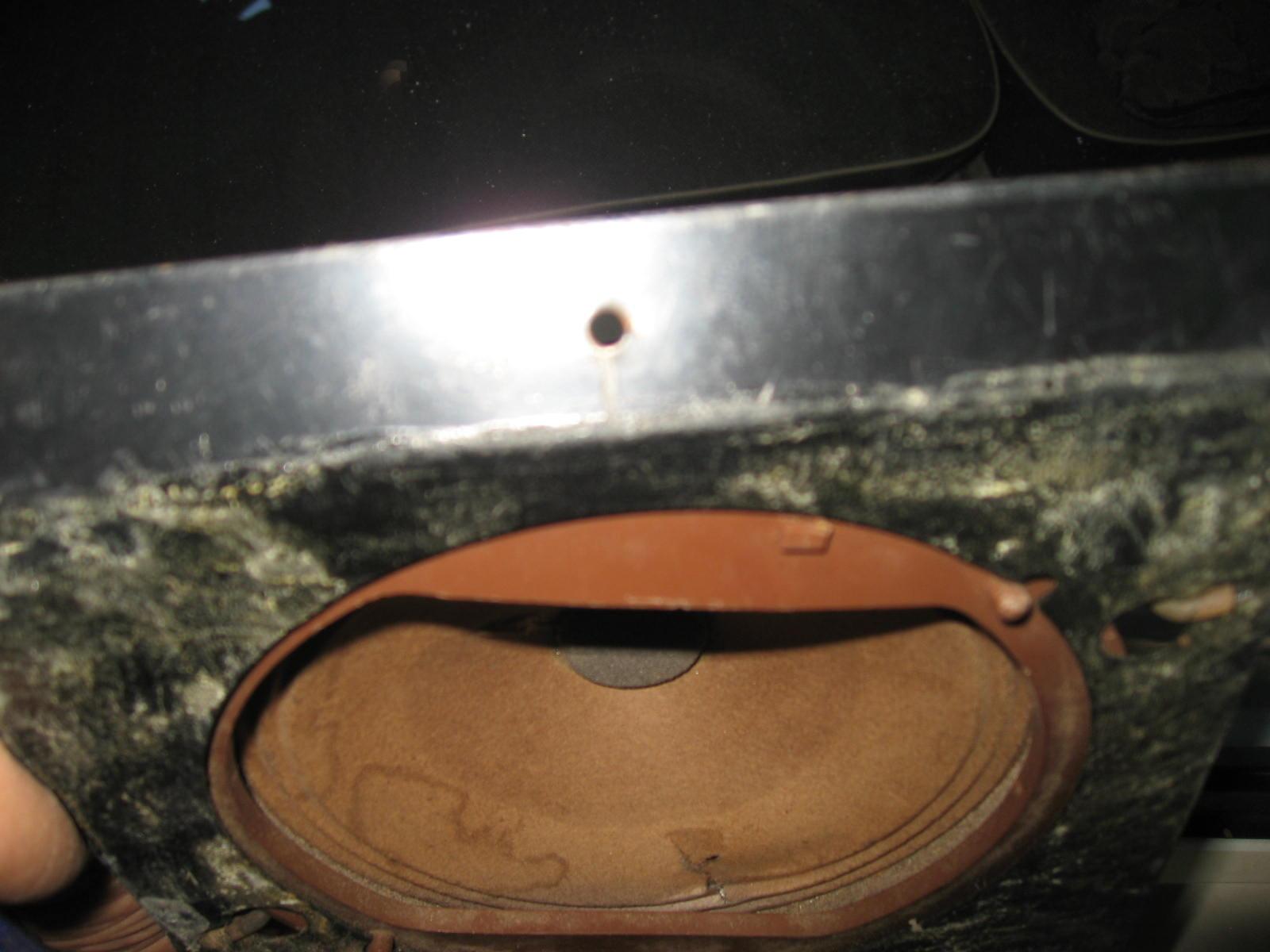

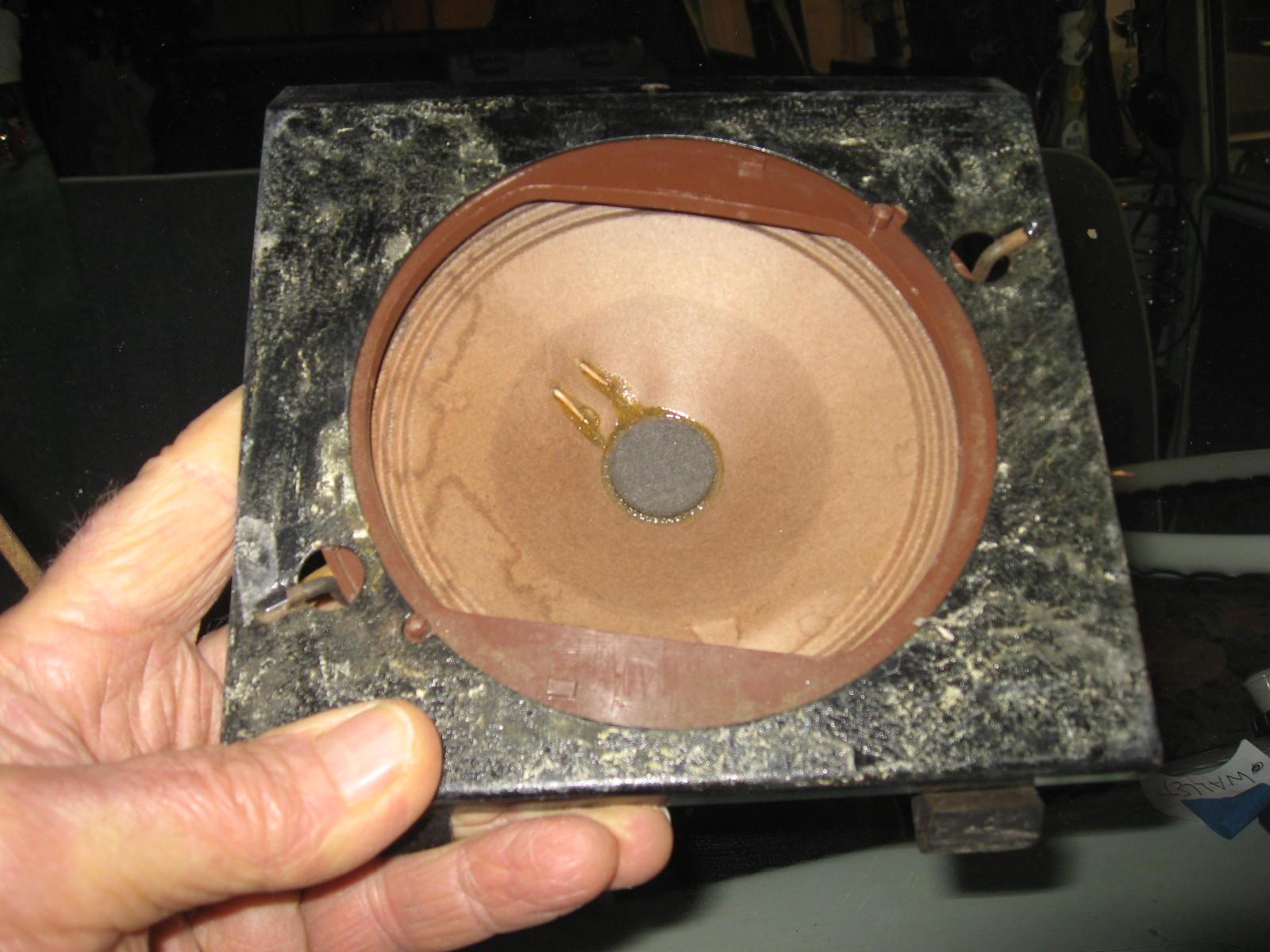

This is the High Fidelity Long-Travel-Cone Heavy Magnet Speaker and Bracket with Mounting Screw.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.


I added the thicker nylon washer. Original from Westfalia was a whitish thin fiber washer. Also the original dash screw was cadmium plated Pan Slot.




srfndoc wrote:
BarryL wrote:
This is the High Fidelity Long-Travel-Cone Heavy Magnet Speaker and Bracket with Mounting Screw.
Image may have been reduced in size. Click image to view fullscreen.

I added the thicker nylon washer. Original from Westfalia was a whitish thin fiber washer. Also the original dash screw was cadmium plated Pan Slot.

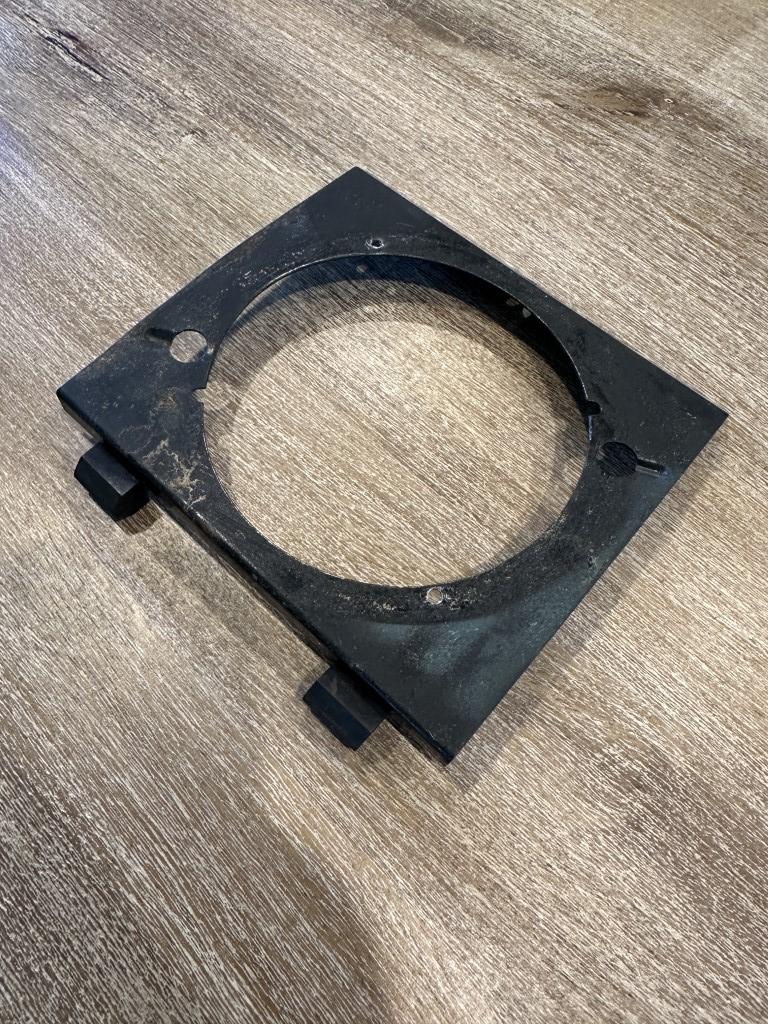

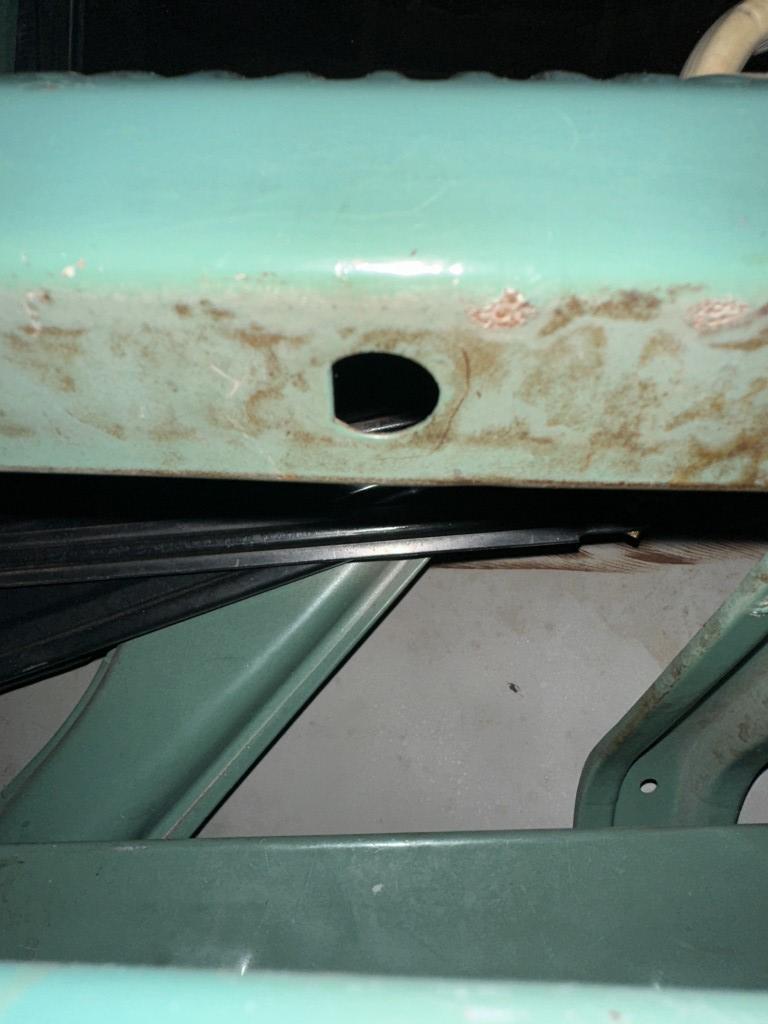

Was this offered by Westfalia? Any documentation or other examples? I had the same setup in my 67 SO42 but assumed it was just some PO hack that didn't care about drilling a hole in his dash. The speaker in mine was long gone (replaced by a Kraco) but the bracket remained.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.




srfndoc wrote:
Was this offered by Westfalia? Any documentation or other examples?


Dunno. The Blaupunkt and Emden radios with the piggy-back amplifier were supposed to use the high-watt heavy-magnet long-travel cone speaker or it would blow out the windings of the speaker. I've seen a radio brochure with the speaker and bracket but I have no idea where to find that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nlorntson
Crazy VW Lady


Joined: March 13, 2004
Posts: 3855
Location: Twin Cities, MN
nlorntson is offline

PostPosted: Fri Dec 08, 2023 8:47 pm    Post subject: Re: Speaker Bracket Install Reply with quote

I can't bring myself to drill a hole in the face of the dash. I think I'll pursue the usual bottom lip mount. That's two holes but both are mostly not visible.


Thank you for the great info!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bastardbus
Samba Member


Joined: July 13, 2000
Posts: 1784
Location: Toledo, Ohio
bastardbus is offline

PostPosted: Fri Jul 04, 2025 2:04 pm    Post subject: Re: Speaker Bracket Install Reply with quote

[quote="BarryL"]
BarryL wrote:
This is the High Fidelity Long-Travel-Cone Heavy Magnet Speaker and Bracket with Mounting Screw.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.
Image may have been reduced in size. Click image to view fullscreen.



That sure looks like a bay window speaker mount. Are you 100% sure that came original to a 67 bus?
_________________
Samba Member #95
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 15194
Location: Casa de Oro, California
BarryL is offline

PostPosted: Fri Jul 04, 2025 6:21 pm    Post subject: Re: Speaker Bracket Install Reply with quote

Came original in this Westy from Tourist Delivery Germany.

Can you post a Bay mount?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
