 Posted: Sun Jul 06, 2025 4:30 pm Post subject: 1963 beetle rear seat back and bottom Dia? |
 |
|
| does anyone know the dia. of the back and bottom seats frames for a 63 beetle. Ive looked on this site everywhere and I still cant find the answer. my bottom is 19" approx from the back to the front of the top. I think I have the wrong back as when I try to bolt in in place its takes like 3 guys to force everything together and I know that cant be right. anyone have photos of top and back frame you could share? |
|
| Back to top |
|
 |
shano63
Samba Member
Joined: October 06, 2006
Posts: 3634
Location: Stormville NY
|
| Posted: Mon Jul 07, 2025 8:23 am Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|

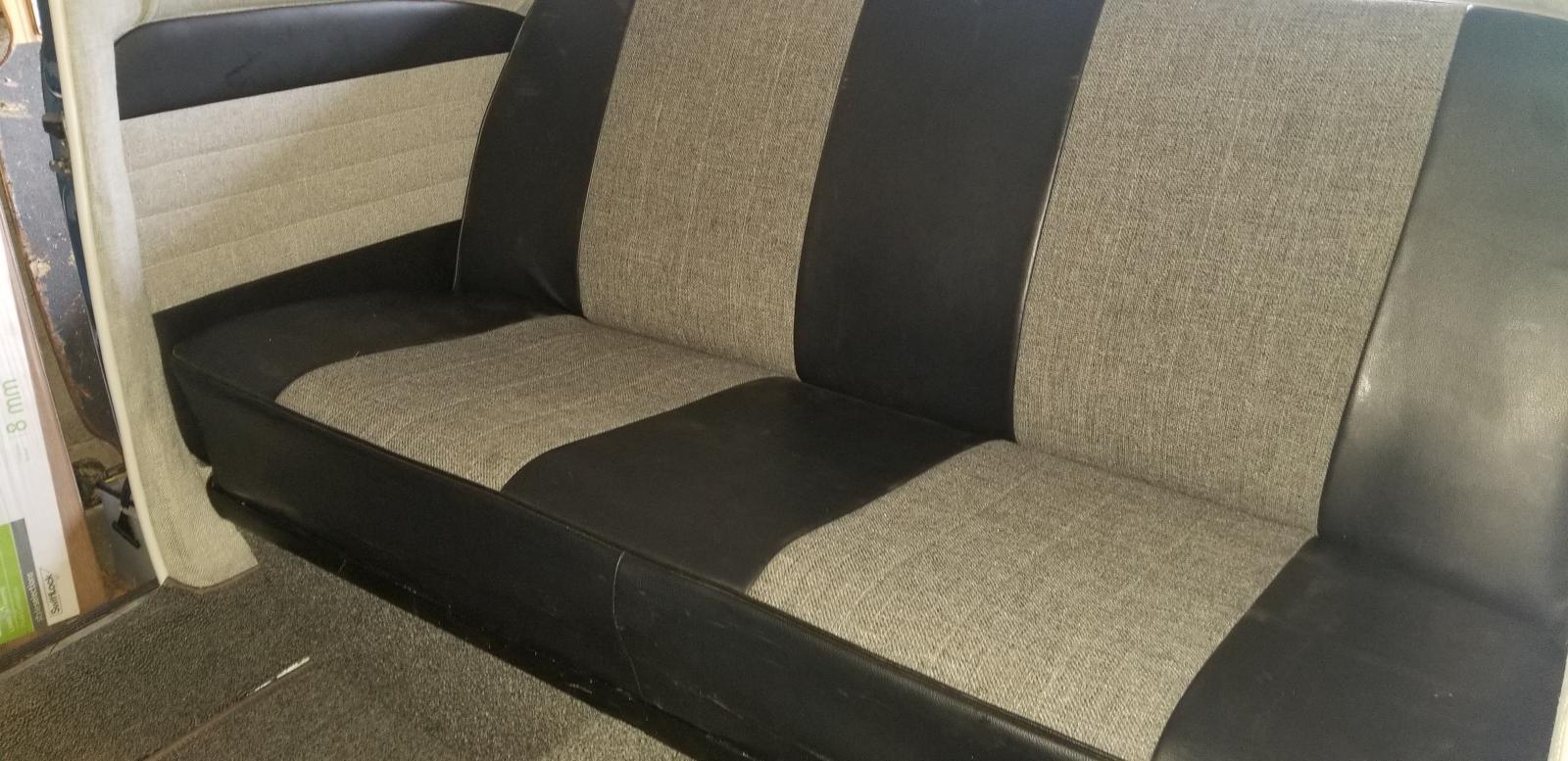

I don't know if you want pics of a bare frame or not, but this is my 63. Hope it helps.
_________________
63 T1 Ragtop Gulf Blue
20 Toyota Corolla 6spd
22 Wrangler 6spd
78 F250 4x4 4spd
Chris
Take it as it comes-- Morrison |
|
| Back to top |
|
|
finster
Samba Member
Joined: May 26, 2012
Posts: 9965
Location: not far from the madding crowd
|
| Posted: Mon Jul 07, 2025 9:21 am Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|
| bobnorman wrote: |

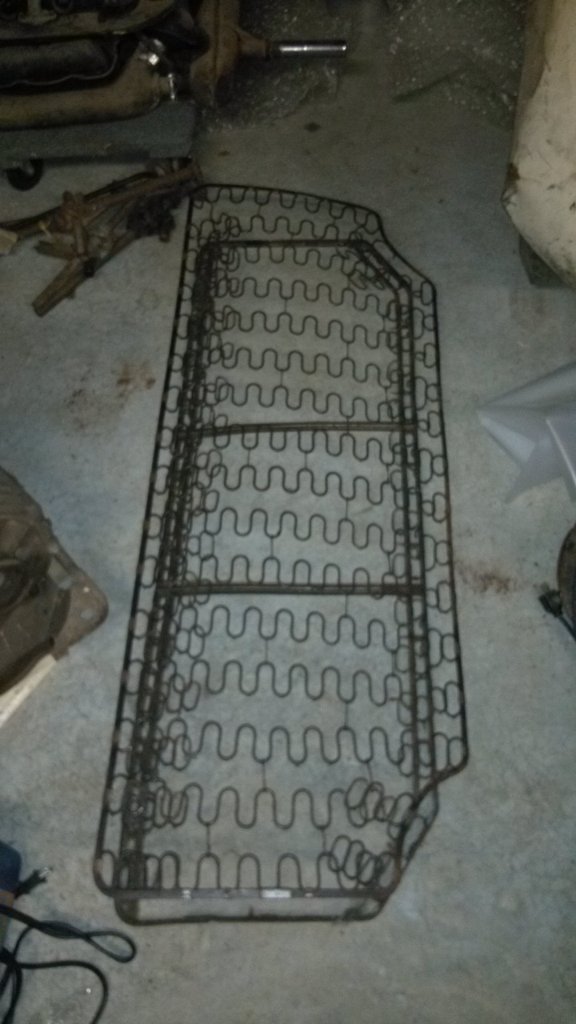

I have an original '63. The top of the bench portion of the rear seat is 19 inches, not 17 3/4. It has two support bars on the bottom. Old thread, but it may help someone else down the road.
|
_________________
"we're here on Earth to fart around" kurt vonnegut
nothing lasts, nothing is finished, and nothing is perfect... |
|
| Back to top |
|
|
finster
Samba Member
Joined: May 26, 2012
Posts: 9965
Location: not far from the madding crowd
|
| Posted: Mon Jul 07, 2025 9:28 am Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|
| Aynthm wrote: |
Top image is 56-64
Bottom image is 65-77
Note the difference in the shape of the backs. |
both these quotes are from https://www.thesamba.com/vw/forum/viewtopic.php?p=5719600
_________________
"we're here on Earth to fart around" kurt vonnegut
nothing lasts, nothing is finished, and nothing is perfect... |
|
| Back to top |
|
|
Käfer2
Samba Member
Joined: December 30, 2019
Posts: 72
Location: Germany
|
| Posted: Mon Jul 07, 2025 1:06 pm Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|

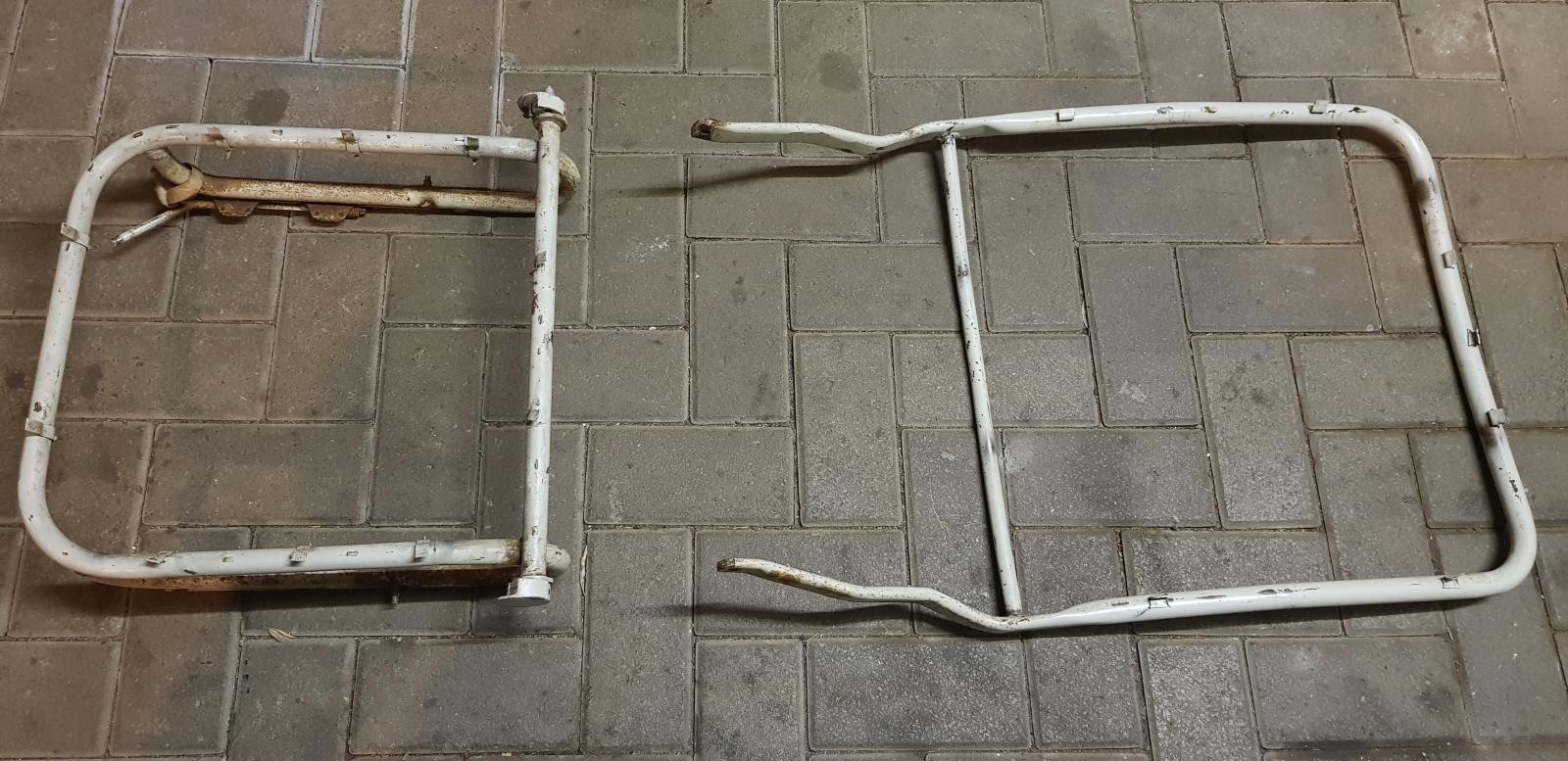

can only serve this purpose:
front seat 1963
pipe diameter seat frame 20 mm
pipe diameter backrest 22 mm |
|
| Back to top |
|
|
jonreed98
Samba Member
Joined: March 09, 2020
Posts: 26
Location: CA
|
| Posted: Mon Jul 07, 2025 3:10 pm Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|
| Thanks everyone, the photos of the back seat help as well as confirmation of the seat dia at 19" seems like my bottom is correct. Just not sure of the back dia. |
|
| Back to top |
|
|
Bielakt13
Samba Member
Joined: August 11, 2024
Posts: 41
Location: Chicago
|
| Posted: Mon Jul 14, 2025 10:38 am Post subject: Re: 1963 beetle rear seat back and bottom Dia? |
|
|
| I Had a similar issue, after adding new padding, I could not get the seat bottom in to save my life. I ended up adding a piece of aluminum flat stock with holes to the back where they bolt into the body. This extended the seat back up high enough to slide the bottom into place. Once the bottom is in you cannot see the "aluminum extensions". Still even after they were added the seat back wanted to come forward. After some time and my kids sitting in there it worked itself into place. |
|
