toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
 Posted: Tue Jul 28, 2020 8:58 pm Post subject: Re: Thermostat/flaps parts question |
 |
|
| bugguy1967 Helped me out with a ton of new parts to rebuild my flaps. I also picked up a recondition thermostat from him. It is more compressed than the thermostat I already have. I will post pics later. |
|
| Back to top |
|
 |
sb001
Samba Member
Joined: May 19, 2011
Posts: 10459
Location: NW Arkansas
|
| Posted: Thu Aug 06, 2020 4:14 pm Post subject: Re: Thermostat/flaps parts question |
|
|
Speaking of which...
is this thermostat toast? (This is after the car was sitting for 3 days.)
_________________
I'm the humblest guy on this board.
1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79633
Location: Sneaking up behind you
|
| Posted: Thu Aug 06, 2020 4:23 pm Post subject: Re: Thermostat/flaps parts question |
|
|
Looks OK to me.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Thu Aug 06, 2020 4:36 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| sb001 wrote: |
Speaking of which...
is this thermostat toast? (This is after the car was sitting for 3 days.)
|
Looks good. |
|
| Back to top |
|
|
EverettB
Administrator
Joined: April 11, 2000
Posts: 71592
Location: Phoenix 602
|
| Posted: Thu Aug 06, 2020 5:05 pm Post subject: Re: Thermostat/flaps parts question |
|
|
It looks open a little to me but that could be the ambient air temp.
Is that dirt/grease on it? You could clean it up a little or put it in some boiling water and try to scrub it a little.
Maybe there is grease in the crevices preventing it from closing a bit more.
I know you know this but for anyone reading:
Leave it in the bracket so it doesn't over expand in hot water or with a heat gun
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
sb001
Samba Member
Joined: May 19, 2011
Posts: 10459
Location: NW Arkansas
|
| Posted: Thu Aug 06, 2020 5:37 pm Post subject: Re: Thermostat/flaps parts question |
|
|
I mean, yes there is room for it to open a bit until it hits the top of the bracket, but if installed correctly with that point having the flaps fully open, wouldn't that mean it can't really pull the flaps back closed at its most retracted position? (BTW I've had that one stored indoors with the AC on for the last few days, so it's at its most retracted position. I suppose it may have some crud in it though that is keeping it from fully closing.)
_________________
I'm the humblest guy on this board.
1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor |
|
| Back to top |
|
|
sb001
Samba Member
Joined: May 19, 2011
Posts: 10459
Location: NW Arkansas
|
| Posted: Thu Aug 06, 2020 5:43 pm Post subject: Re: Thermostat/flaps parts question |
|
|

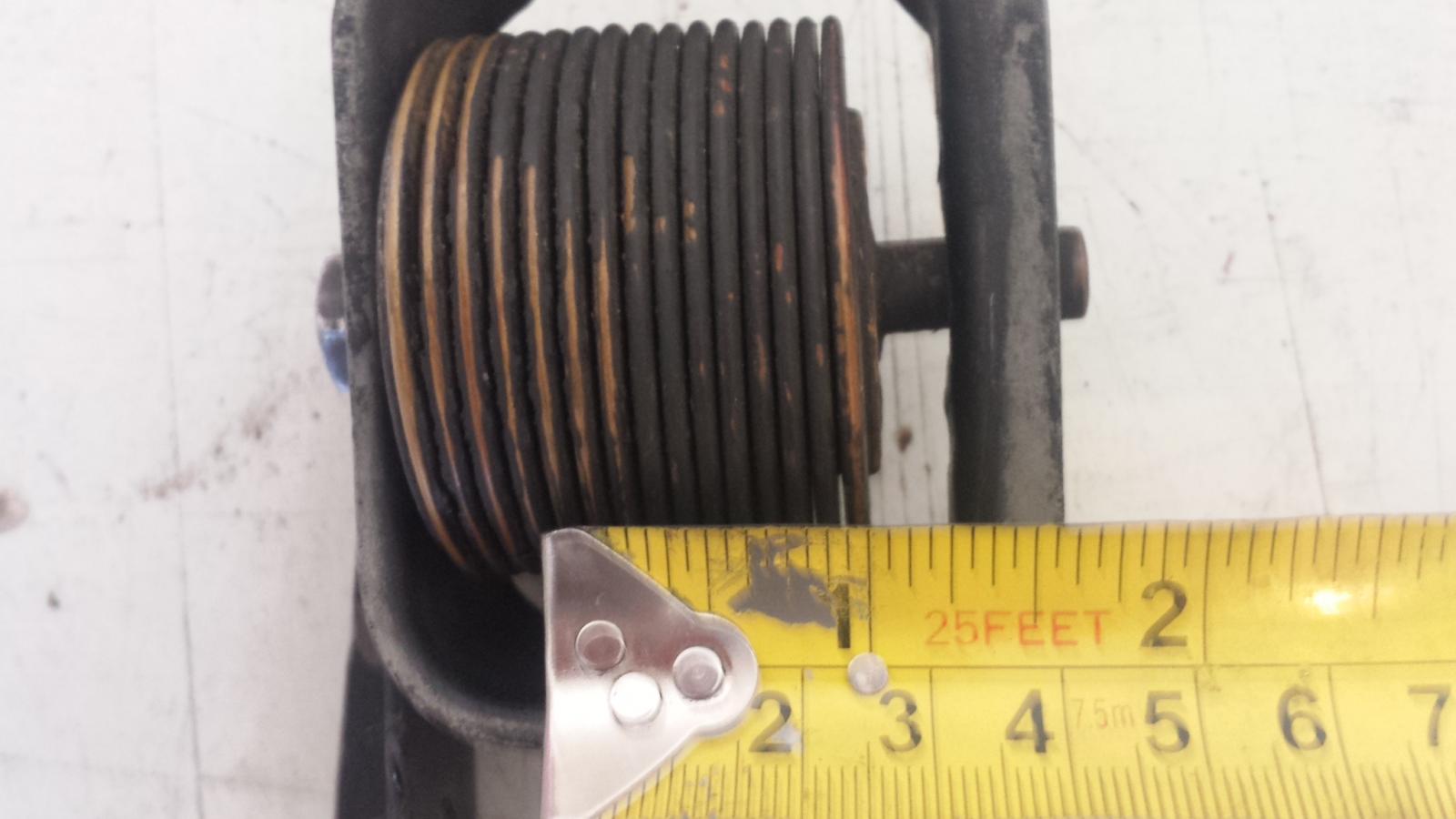

Hmmm-- here's a second thermostat I forgot I had that's WAY more compressed when cold:
Bad camera angle but when looked at dead on this one meets the "5/8 rule" discussed earlier in the thread. The first one clearly does not.
_________________
I'm the humblest guy on this board.
1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79633
Location: Sneaking up behind you
|
| Posted: Thu Aug 06, 2020 5:46 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| EverettB wrote: |
| Is that dirt/grease on it? You could clean it up a little or put it in some boiling water and try to scrub it a little. |
A heated ultrasonic cleaner does a great job.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52856
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Thu Aug 06, 2020 6:04 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| Glenn wrote: |
| EverettB wrote: |
| Is that dirt/grease on it? You could clean it up a little or put it in some boiling water and try to scrub it a little. |
A heated ultrasonic cleaner does a great job. |
Agreed, but brake kleen and compressed air is nearly the same, if it's really stuck down in there floss it with some string or thin cardboard. You can bend the thermostat slightly to one side to expose the bottoms of the pleats, but be careful, go slow and do a little at a time.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Thu Aug 13, 2020 10:04 am Post subject: Re: Thermostat/flaps parts question |
|
|

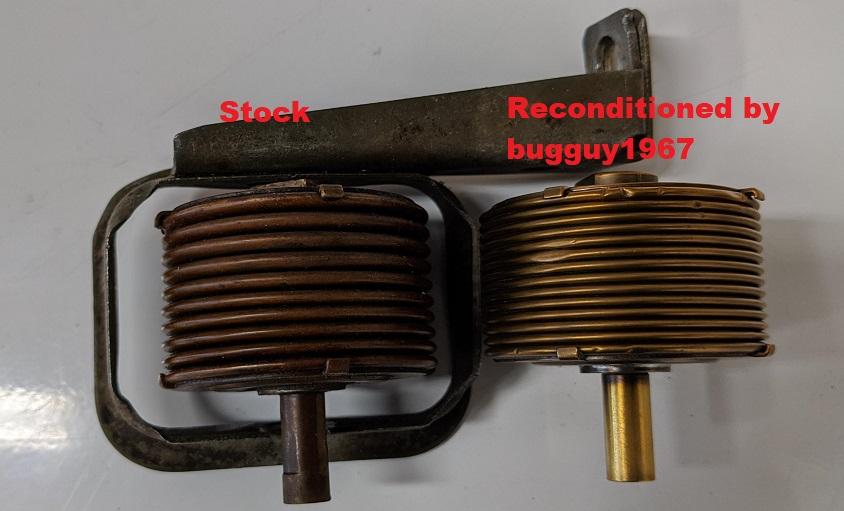

A little bit of an update. Here is a pic of the reconditioned thermostat I got in from bugguy1967. It looks a lot better than what I have. I also purchased all new hardware from him also. Since I am working with a car without the flaps/thermostat I am trying to reinstall it.
|
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26049
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Aug 13, 2020 10:51 am Post subject: Re: Thermostat/flaps parts question |
|
|
What is the thermo range of the old thermostat?
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Thu Aug 13, 2020 1:34 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| Eric&Barb wrote: |
| What is the thermo range of the old thermostat? |
80 - 85. It is one I got used off of the classifieds here. Does that change the style of the thermostat vanes? |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26049
Location: Olympia Wash Rinse & Repeat
|
| Posted: Thu Aug 13, 2020 2:05 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| toxicavenger70 wrote: |
| Eric&Barb wrote: |
| What is the thermo range of the old thermostat? |
80 - 85. It is one I got used off of the classifieds here. Does that change the style of the thermostat vanes? |
No, just means early type that the engine runs a bit cooler in cold weather. The higher opening temp is better.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
vamram
Samba Member
Joined: March 08, 2012
Posts: 8054
Location: NOVA
|
| Posted: Thu Aug 13, 2020 7:27 pm Post subject: Re: Thermostat/flaps parts question |
|
|
Isn't 80-85 for fuel injection engines?
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke
“If something cannot go on forever, it will stop.”
Stop Russian-Soviet Aggression!!
'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...languishing since 2022.
Click to view image
Save the Supers!! |
|
| Back to top |
|
|
Rome
Samba Member
Joined: June 02, 2004
Posts: 10577
Location: Pearl River, NY
|
| Posted: Thu Aug 13, 2020 7:58 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| You can easily see the differences between the two t'stats above. The left one has less bellows fins, but each one is thicker with a rounded edge. The right one has more fins, but each one is thinner with a sharp edge. I don't know if each style is indicative of a specific temperature range... |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 26049
Location: Olympia Wash Rinse & Repeat
|
|
| Back to top |
|
|
baldessariclan
Samba Member
Joined: October 14, 2016
Posts: 2084
Location: Wichita, KS
|
| Posted: Fri Aug 14, 2020 4:59 am Post subject: Re: Thermostat/flaps parts question |
|
|
| Rome wrote: |
| I don't know if each style is indicative of a specific temperature range... |
The physical “style” of thermostat (i.e. number of ridges/bellows) doesn’t determine its operating temperature range. It’s the “working fluid” inside which does that.
I think that in the 65°-70°C temp. range thermostats, there is a small amount of methanol (boiling point approx. 65°C) based mixture inside. While in the 80°-85°C temp. range ones, suspect that the working fluid is small amount of ethanol (boiling point approx. 80°C) based mixture inside.
In any case, the operating temperature range for those thermostats is usually stamped somewhere on the top or bottom sides.
_________________
1971 Standard Beetle — fairly stock / driver
baldessariclan -- often in error, never in doubt... |
|
| Back to top |
|
|
toxicavenger70
Samba Member
Joined: July 28, 2019
Posts: 882
Location: CO
|
| Posted: Sat Aug 15, 2020 9:17 pm Post subject: Re: Thermostat/flaps parts question |
|
|

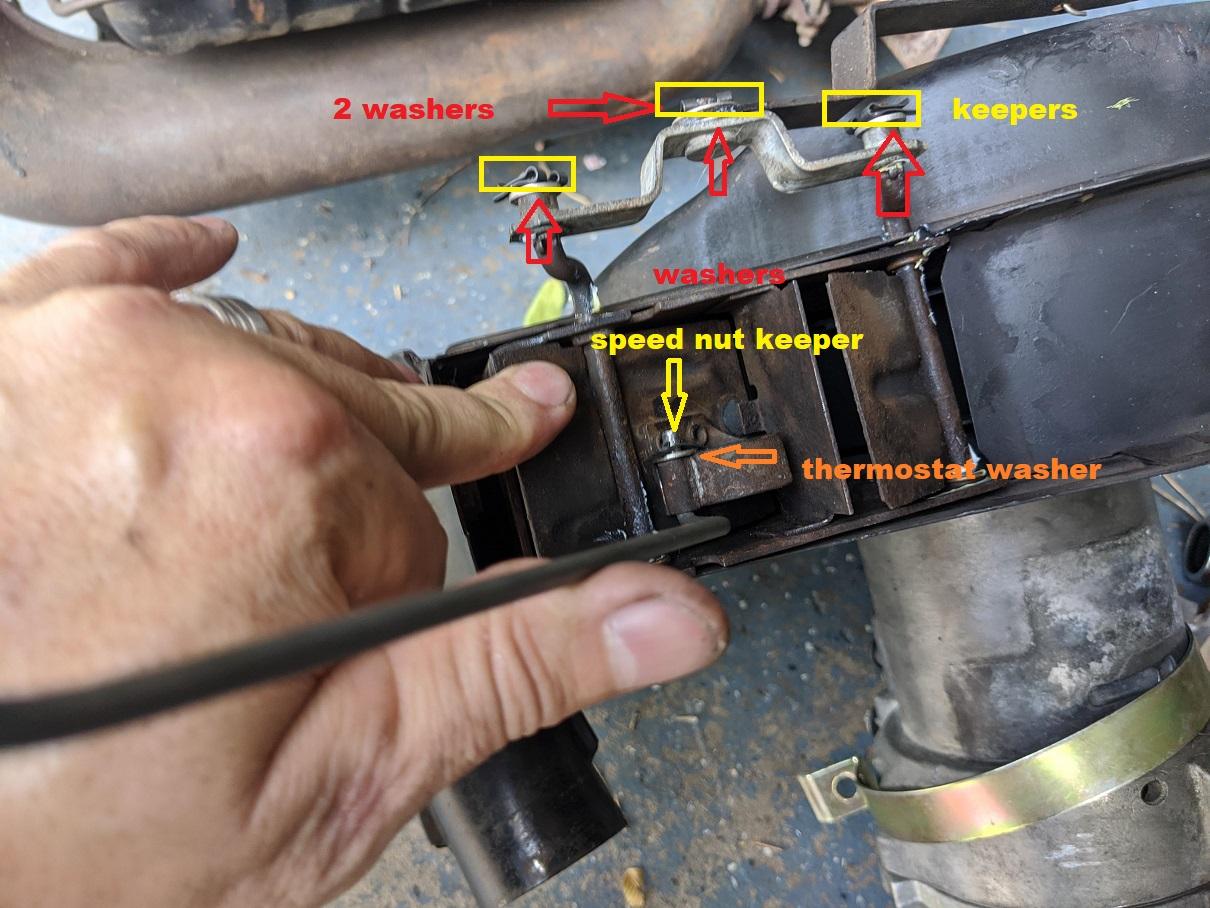

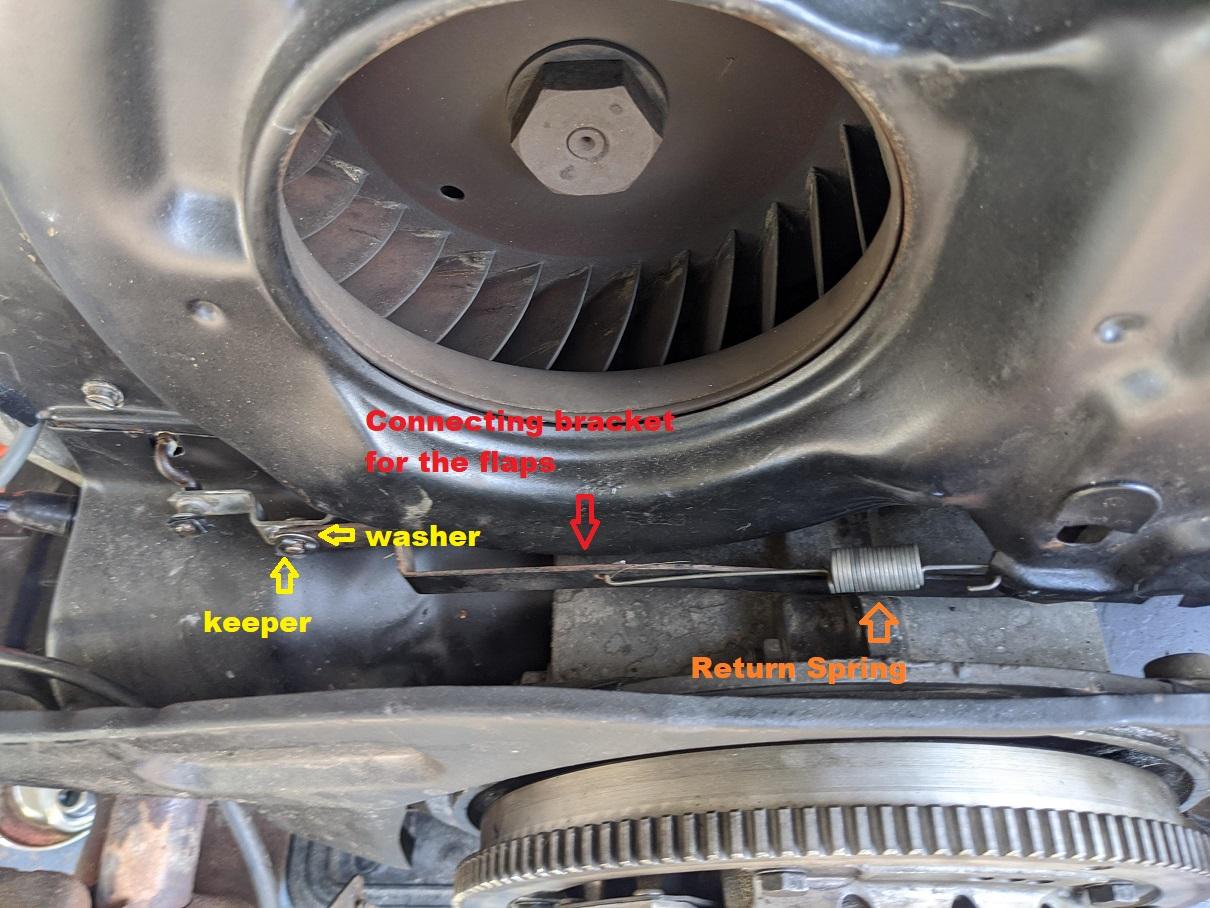

I did a dry run of the installation of the flaps before I put the doghouse on the engine. You have to install the flaps connecting bracket after the doghouse is on the engine. When installing the dog house with the flaps installed you have to line up the thermostat rod to go between the second set of cylinder fins (towards the engine).
Here are some pics.
|
|
| Back to top |
|
|
Ry-dog
Samba Member
Joined: May 31, 2003
Posts: 481
Location: Lunenburg, MA
|
| Posted: Tue Jul 15, 2025 6:34 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| Eric&Barb wrote: |
Just a shot into the dark here:
The end of the arm on the RH set of flaps, that the top of the rod that is connected to the thermostat below, needs to be checked that it has not been bent to end up closer to the flap. Should be about 3/8" between that flap arm and the flap itself. If bent closer, the flaps will not fully open. |
Wanted to be sure I am understanding the reference for the 3/8" between the flap arm (thermostat rod?) and flap itself. Wanted to be sure my flap is in spec prior to installing. Can anyone confirm my understanding as shown in the photo here or have any comments/observations on my flap 'C' clip condition? Thanks!
_________________
'70 Westy
'14 Jeep Grand Cherokee EcoDiesel |
|
| Back to top |
|
|
bsairhead
Samba Member
Joined: October 08, 2008
Posts: 4503
Location: viroqua wi.
|
| Posted: Tue Jul 15, 2025 8:00 pm Post subject: Re: Thermostat/flaps parts question |
|
|
| You can use a heat gun or run it up to temperature to properly adjust the bracket. |
|
