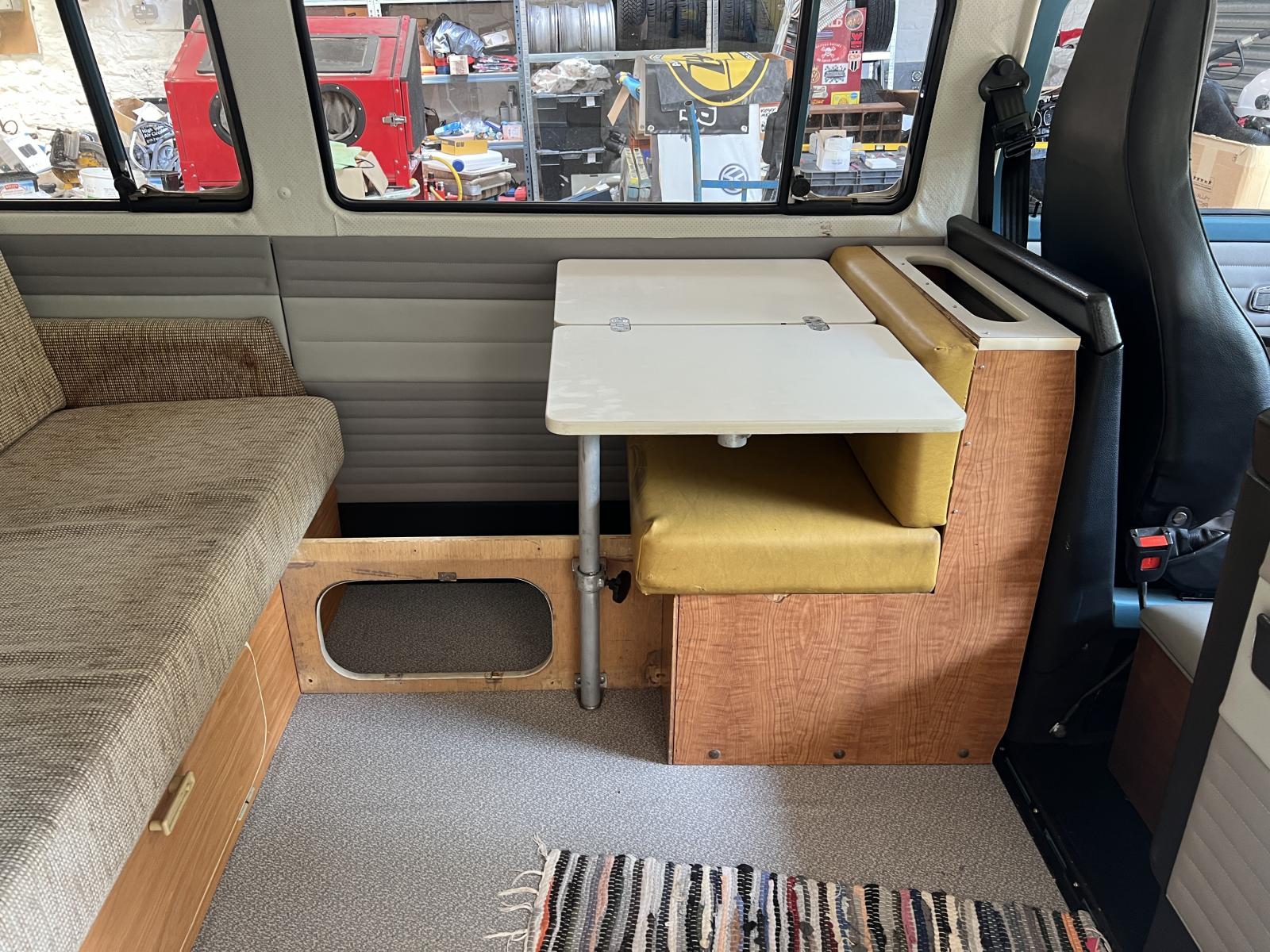

I'm trying to fit a side facing seat/storage box with the swivel table attached.
Can anybody help with how the cushion base is supported please?
Pics will be very helpful, and also some of the bottom of the cushion base as well.
Thanks.
|
|
| Back to top |
|
 |
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3206
Location: South Benfleet, Essex, UK
|
| Posted: Sat Jul 26, 2025 11:55 am Post subject: Re: Westfalia side facing seat/storage box questions |
|
|
If it's meant to be anything like the set-up in the Westfalia Continental, there should probably be a an up-side-down U-section steel support front to rear between the front-facing & rear-facing seats you illustrate.
Why do you wish to retro-fit a low-level side-facing seat, which will probably be too low for dining at the swivel-table and which should NOT be used whilst the vehicle is in motion, as emphatically stated in English & German on the sticker in the Westfalia Continental models!
_________________
Regards.
Nigel A. Skeet
Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.
Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper
Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)
https://vwt2oc.co.uk
Last edited by NASkeet on Sat Jul 26, 2025 12:04 pm; edited 1 time in total |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52857
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Sat Jul 26, 2025 12:00 pm Post subject: Re: Westfalia side facing seat/storage box questions |
|
|
That's a slightly odd layout, but I'll bet the side seat is similar to that rear facing jump seat, you are missing a board screwed to the wall for the cushion to perch on.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
virusdoc
Samba Member
Joined: August 13, 2018
Posts: 643
Location: Alton, IL, USA
|
| Posted: Sat Jul 26, 2025 12:27 pm Post subject: Re: Westfalia side facing seat/storage box questions |
|
|
My Westy has that seat and I can post some pics of the support later today. Not at home right now.
_________________
1976 Convertible Super Beetle, "June Bug".
Self-rebuilt 1904
1976 Campmobile 2.0L FI, "Kermit" |
|
| Back to top |
|
|
sparkywig
Samba Member
Joined: July 26, 2008
Posts: 178
Location: Bristol, England
|
| Posted: Sun Jul 27, 2025 6:28 am Post subject: Re: Westfalia side facing seat/storage box questions |
|
|
| NASkeet wrote: |
If it's meant to be anything like the set-up in the Westfalia Continental, there should probably be a an up-side-down U-section steel support front to rear between the front-facing & rear-facing seats you illustrate.
Why do you wish to retro-fit a low-level side-facing seat, which will probably be too low for dining at the swivel-table and which should NOT be used whilst the vehicle is in motion, as emphatically stated in English & German on the sticker in the Westfalia Continental models! |
I've got the steel section that fits on the top of the board.
Why would it be too low, it's the same height as the bed and buddy seat.
| busdaddy wrote: |
| That's a slightly odd layout, but I'll bet the side seat is similar to that rear facing jump seat, you are missing a board screwed to the wall for the cushion to perch on. |
Any pics of the board please?
| virusdoc wrote: |
| My Westy has that seat and I can post some pics of the support later today. Not at home right now. |
Thanks very much |
|
| Back to top |
|
|
virusdoc
Samba Member
Joined: August 13, 2018
Posts: 643
Location: Alton, IL, USA
|
| Posted: Sun Jul 27, 2025 6:42 am Post subject: Re: Westfalia side facing seat/storage box questions |
|
|

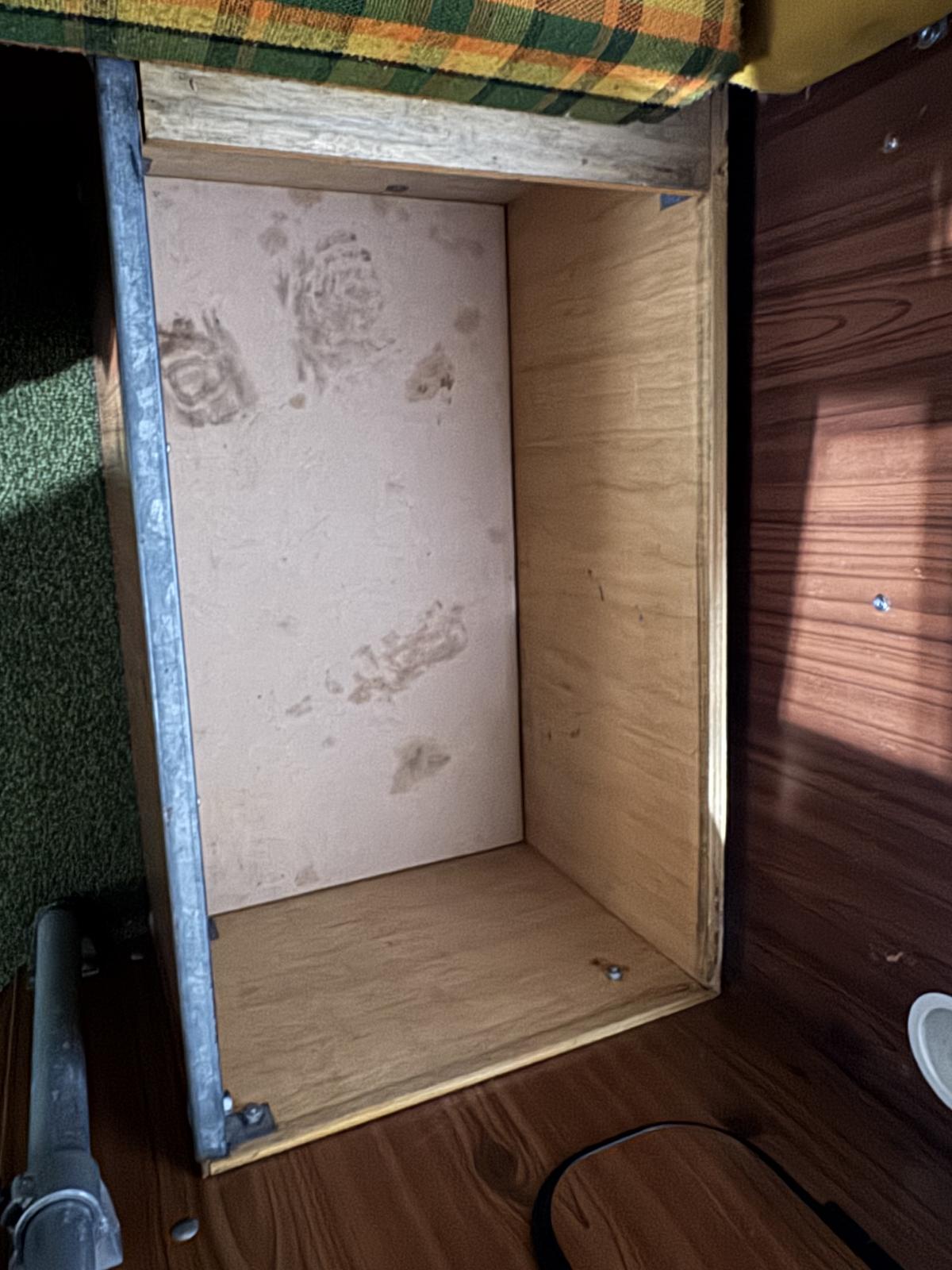

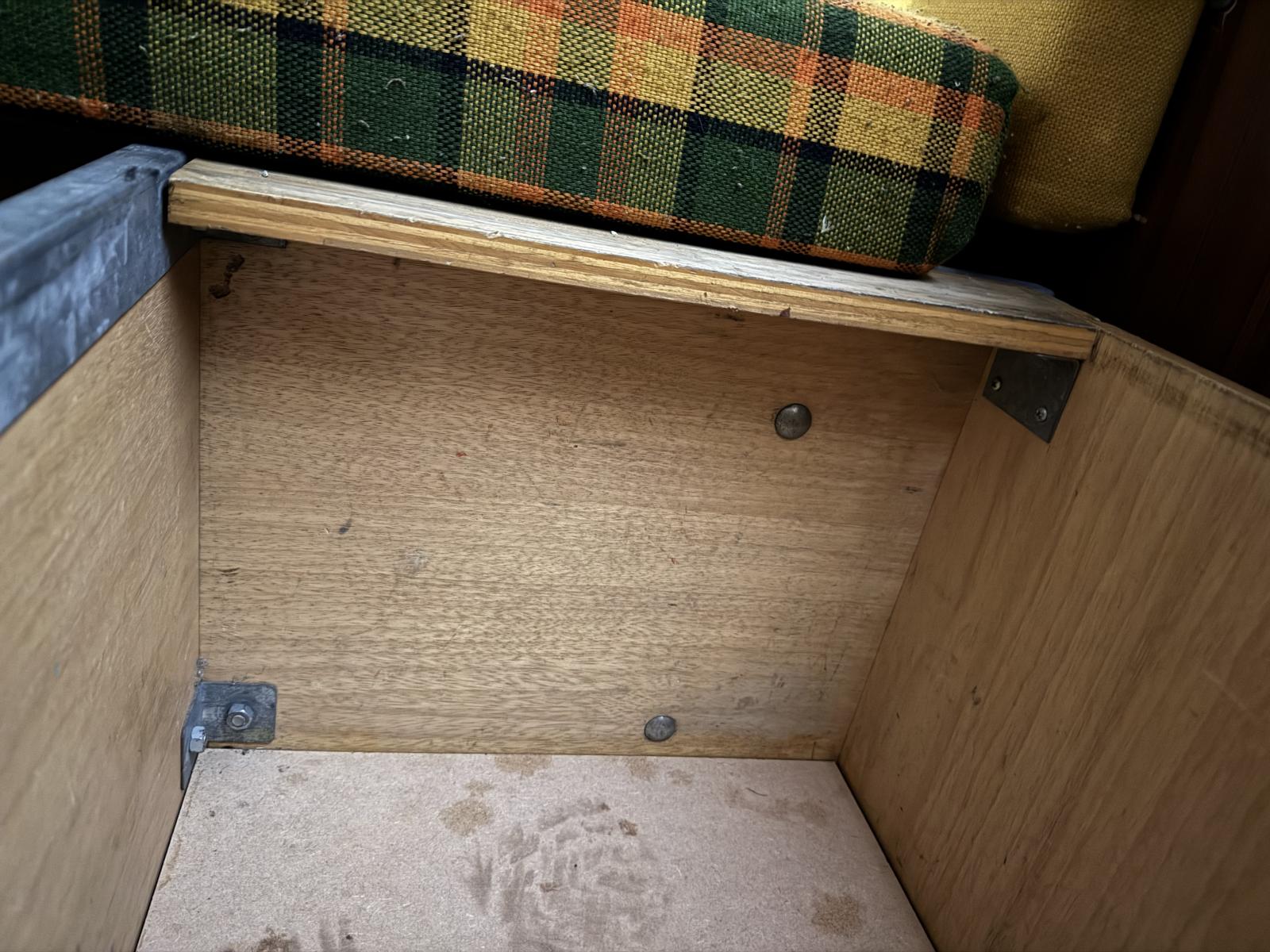

Here you go. 1976 French market Westy.
