PostPosted: Mon Jun 03, 2019 7:36 pm    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

McintoshType2 wrote:

So my thinking is if I can put one there and it would also seal the leak it would be a win win?


oh my Shocked

ok, my opinion....

get those black plastic button headed zip tie type mounts out of there! they LOVE to "saw" thru the tubes and fins...causing a leak.

what is that radiator from? I would try and mount it better. as noted, that big silver plug is either for a temp sensor, or a cooler port (tell me what year/make/model the rad is from and I can tell you exactly what it is)

you would add coolant under that cap....here is the rub...you may not want that tank full to the top. if it is, the coolant expands when hot and will probably piss out of the overflow tube...which should go to an overflow bottle.

as to your temp sensor question....yes, no, maybe. the coolant may not get hot enough at that location to cool the engine properly. 98% of the cars have a coolant temp sensor at the thermostat housing to control the temp gauge and electric fan. that is the area I would focus on in terms of a temp switch, not a radiator.

most of the time a temp sensor in the radiator (depending on the car) will only knock out A/C in severe temps (usually on domestic iron, but some euro's use that idea too...notably Volvo, MB, etc)

that radiator looks tiny for a V6...and looking again...seems to be one for an early watercooled VW (rabbit/jetta)
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clementine79
Samba Member


Joined: May 14, 2019
Posts: 380
Location: WA
Clementine79 is offline

PostPosted: Mon Jun 03, 2019 7:59 pm    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

No idea what the radiator is from it’s just what the previous owner had intended to install so we figured we would try it out, I know larger and all aluminum is ideal. Any recommendations of a good sized one I can find online that would be adequate to cool the v6? We also live in fairly hot climate and summer temps reach 100+ and it will be mainly driven in a city environment, flat ground, lots of stop and go traffic.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2727
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Tue Jun 04, 2019 5:31 am    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

That is an MK3 VW radiator like for a 1996 Jetta with a 2.0. Just buy the radiator fan switch for that car and wire that up to turn your fan on like it should have been done. Wiring it up to a switch on the dash is just sloppy work.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Clementine79
Samba Member


Joined: May 14, 2019
Posts: 380
Location: WA
Clementine79 is offline

PostPosted: Tue Jun 04, 2019 7:10 am    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

The previous owner got back to me and said the radiator was made for a Scirocco.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
xoo00oox
Samba Member


Joined: February 11, 2010
Posts: 2727
Location: East Nassau, NY
xoo00oox is offline

PostPosted: Tue Jun 04, 2019 8:00 am    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

McintoshType2 wrote:
The previous owner got back to me and said the radiator was made for a Scirocco.



It's not a Scirocco radiator, its MK3 Jetta/Golf/cabrio. Scirocco had different type of mounts.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Clementine79
Samba Member


Joined: May 14, 2019
Posts: 380
Location: WA
Clementine79 is offline

PostPosted: Tue Jun 04, 2019 8:05 am    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

OK thanks for the info, hopefully I can get this thing rolling down the road again.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
alexbeatle
Samba Member


Joined: July 06, 2020
Posts: 213
Location: NorCal
alexbeatle is offline

PostPosted: Sun Aug 03, 2025 12:40 pm    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

69BahamaYellow wrote:

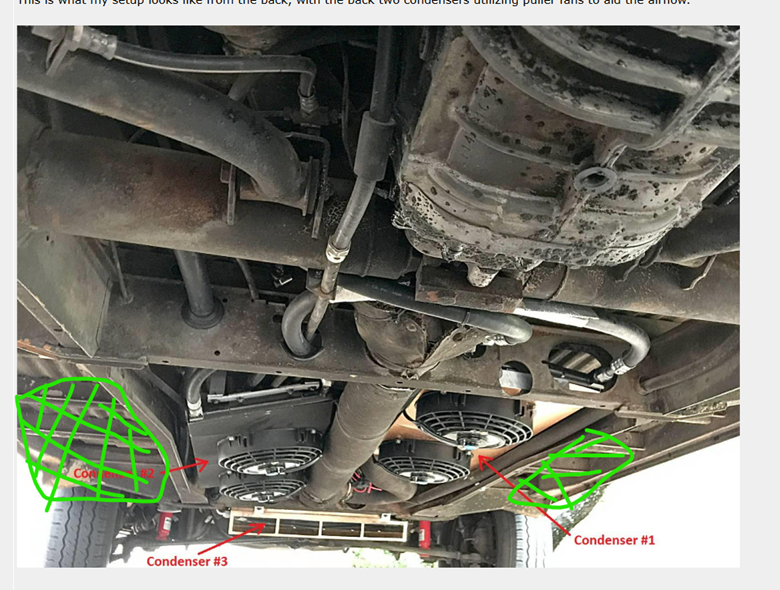

Using 69BahamaYellow's picture, since I don't have mine at the moment.

Any issue mounting radiators on the sides - marked in green? Reduced airflow or same?

Also, is it better to mount radiator with inlet/outlet facing up or down? (radiator fins lower than the inlet/outlet vs. radiator fins higher than the inlet/outlet respectively)

Thanks in advance.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
skills@eurocarsplus
Samba Peckerhead


Joined: January 01, 2007
Posts: 17876
Location: sticksville, ct.
skills@eurocarsplus is offline

PostPosted: Sun Aug 03, 2025 2:10 pm    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

if you want rocks and road debris from the tires to hit them, then it would be a great place to mount them
_________________
gprudenciop wrote:

my reason for switching to subaru is my german car was turning chinese so i said fuck it and went japanese.......
[email protected] wrote:
most VW enthusiasts are stuck in 80's price land.

Jake Raby wrote:
Thanks for the correction. I used to be a nice guy, then I ruined it by exposing myself to the public.

Brian wrote:
Also the fact that people are agreeing with Skills, it's a turn of events for samba history
Back to top
View user's profile Send private message Gallery Classifieds Feedback
alexbeatle
Samba Member


Joined: July 06, 2020
Posts: 213
Location: NorCal
alexbeatle is offline

PostPosted: Sun Aug 03, 2025 2:44 pm    Post subject: Re: Need Your Help- Underbelly Radiator Design Reply with quote

skills@eurocarsplus wrote:
if you want rocks and road debris from the tires to hit them, then it would be a great place to mount them

Noted
