removing old bed liner with a needle gun
Forum Index -> Body/Paint Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
jtauxe Premium Member
Samba Member


Joined: September 30, 2004
Posts: 5976
Location: Los Alamos, New Mexico, USA
jtauxe is offline

PostPosted: Fri Jul 11, 2025 4:53 pm    Post subject: removing old bed liner with a needle gun Reply with quote

I have a 1975 Type 2 pickup. The previous owner took it upon himself to give the bed and the inner sides of the gates a coat of bedliner. It has not aged well.

I have tried several methods to remove it down to metal. Wire wheel, aircraft paint stripper, scraping, and now needle gunning, are all time-consuming.

Fortunately, the bedliner is now quite brittle and all these methods worked, but had their own advantages and disadvantages. One disadvantage of many was getting into corners and seams. Needle gunning does that well.

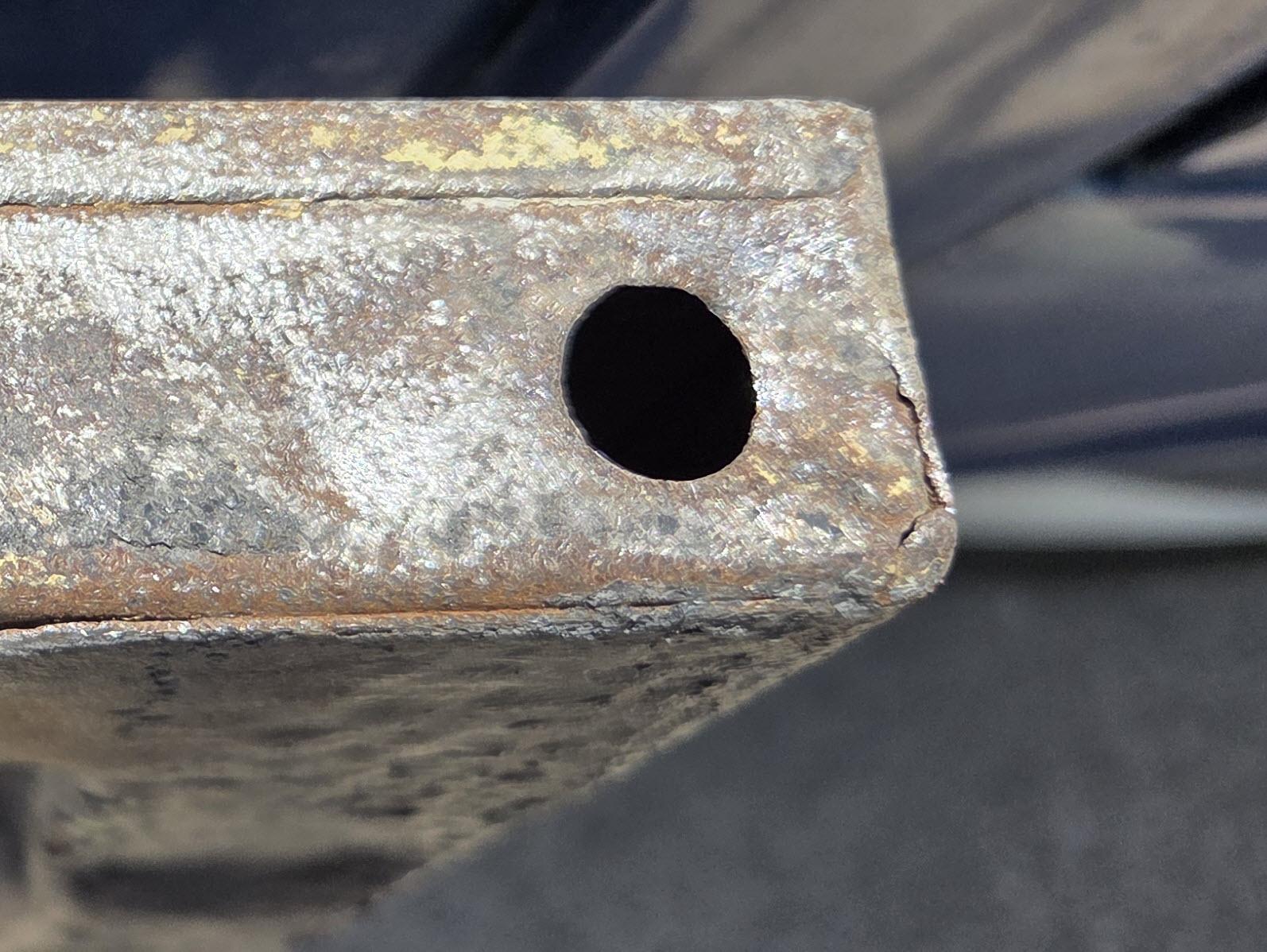

My only concern is the condition of the metal left behind, which will of course get painted. The bed itself is thick metal, but now has small pits in it. This detail shows the cleaned lower track of the corrugated bed.

Image may have been reduced in size. Click image to view fullscreen.


The needle gun is good for getting into hard-to-reach places:

Image may have been reduced in size. Click image to view fullscreen.


But again I am curious about this finely-pitted finish.

Image may have been reduced in size. Click image to view fullscreen.


Is this something to avoid?
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus
, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
germansupplyscott
Samba Member


Joined: May 22, 2004
Posts: 7272
Location: toronto
germansupplyscott is offline

PostPosted: Sun Jul 13, 2025 8:41 pm    Post subject: Re: removing old bed liner with a needle gun Reply with quote

I don't love the teeny pits. You could probably get rid of them with high build primer but the needle gun is a pretty brutal tool to use on sheet metal.

Have you considered media blasting or dry ice blasting?
_________________
SL
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jtauxe Premium Member
Samba Member


Joined: September 30, 2004
Posts: 5976
Location: Los Alamos, New Mexico, USA
jtauxe is offline

PostPosted: Sun Jul 27, 2025 10:12 am    Post subject: Re: removing old bed liner with a needle gun Reply with quote

germansupplyscott wrote:
I don't love the teeny pits. You could probably get rid of them with high build primer but the needle gun is a pretty brutal tool to use on sheet metal.

Have you considered media blasting or dry ice blasting?

Yes. I just got a quote from a mobile sandblaster. Their day rate is $3000. Ouch!

I also got a quote from our local equipment rental place, and they will rent a full sandblaster setup, with the 300-lb compressor for just $250/day. That sounds much more doable.

Any thoughts on media to use?
_________________
John
"Travelling in a fried-out Kombi, on a hippie trail, head full of zombie..." - Colin Hay and Ron Strykert
http://vw.tauxe.net
1969 Transporter, 1971 Westfalia, 1976, 1977, 1976, 1977, 1971, 1973, 1977 Westfalias,
1979 Champagne Sunroof, 1974 Westfalia Automatic, 1979 Transporter, 1972 Sportsmobile, 1973 Transporter Wild Westerner, 1974 Westfalia parts bus
, 1975 Mexican single cab *FOR SALE*, 1978 Irish 4-door double cab RHD
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Zwitter
Samba Member


Joined: November 01, 2003
Posts: 227
Location: Las Vegas
Zwitter is offline

PostPosted: Mon Aug 04, 2025 8:14 pm    Post subject: Re: removing old bed liner with a needle gun Reply with quote

I saw a shop video that showed them using dry ice. Small chunks laid on the surface. That seemed to make the undercoat brittle and it lifted off with a putty knife.
