 Posted: Mon Sep 22, 2025 3:34 am Post subject: Remote cooler for type 1 in a 356 |
 |
|
So my 356 has its "correct" engine (not matching numbers) but I want to keep it as it is and not ruin it so I have a ready build type 1 engine. It has porsche style cooling so needs a remote oil cooler.
What is the best place to mount a remote cooler? I have seen a couple of kits but nothing that looks right? |
|
| Back to top |
|
 |
Starbucket
Samba Member
Joined: April 30, 2007
Posts: 4215
Location: WA
|
| Posted: Wed Sep 24, 2025 2:35 pm Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| They sell 36hp style fan shrouds with a dog house oil cooler which would be your best bet but they also sell a thin sump that bolts to the oil strainer and it ads extra oil capacity and sits in the air stream to aid in cooling. |
|
| Back to top |
|
|
dpetteng
Samba Member
Joined: November 14, 2006
Posts: 397
|
| Posted: Fri Sep 26, 2025 2:22 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|

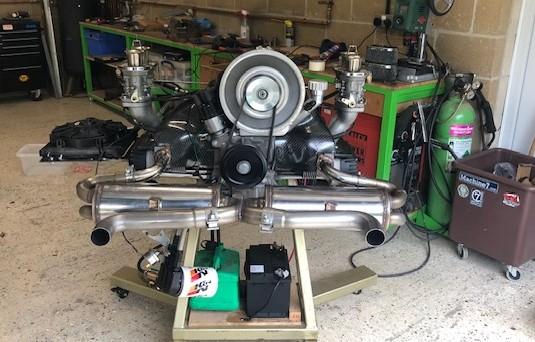

understood. Already have an extended sump but I cant use a doghouse cooler as I am using porsche style cooling see pic |
|
| Back to top |
|
|
Starbucket
Samba Member
Joined: April 30, 2007
Posts: 4215
Location: WA
|
| Posted: Fri Sep 26, 2025 8:00 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| 911 style fan shroud, OK so do you have room to mount a cooler to the underside of the engine compartment hood grill? |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 80348
Location: Sneaking up behind you
|
| Posted: Fri Sep 26, 2025 8:05 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| dpetteng wrote: |
| I want to keep it as it is and not ruin |
Ruin it how... by using it?
I hope you moth balled it correctly or you'll have problems with the valve springs and the seals will dry up.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
wagen19
Samba Member
Joined: November 16, 2007
Posts: 854
Location: germany
|
| Posted: Fri Sep 26, 2025 8:56 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| Glenn wrote: |
| dpetteng wrote: |
| I want to keep it as it is and not ruin |
Ruin it how... by using it?
I hope you moth balled it correctly or you'll have problems with the valve springs and the seals will dry up. |
Boots are made for walking...
You have full flow? Thermostat?
But if money makes or plays no rolex, you can think about an adapted original 356 Carrera-style oil cooling system, including dry sump.
Side question: how do or did you connect the 356 throttle rod system with your carbs? Pics? |
|
| Back to top |
|
|
dpetteng
Samba Member
Joined: November 14, 2006
Posts: 397
|
| Posted: Fri Sep 26, 2025 9:06 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| Starbucket wrote: |
| 911 style fan shroud, OK so do you have room to mount a cooler to the underside of the engine compartment hood grill? |
Interesting, I had not thought of mounting there. will have a look |
|
| Back to top |
|
|
dpetteng
Samba Member
Joined: November 14, 2006
Posts: 397
|
| Posted: Fri Sep 26, 2025 9:07 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| Glenn wrote: |
| dpetteng wrote: |
| I want to keep it as it is and not ruin |
Ruin it how... by using it?
I hope you moth balled it correctly or you'll have problems with the valve springs and the seals will dry up. |
quite simply, I will use both engines and wearing out the Type 1 is a lot cheaper than wearing out a 356 engine!
Thanks for the tips on mothballing. I don't really mothball, I will put on my engine running stand and run the engine weekly |
|
| Back to top |
|
|
dpetteng
Samba Member
Joined: November 14, 2006
Posts: 397
|
| Posted: Fri Sep 26, 2025 9:09 am Post subject: Re: Remote cooler for type 1 in a 356 |
|
|
| wagen19 wrote: |
| Glenn wrote: |
| dpetteng wrote: |
| I want to keep it as it is and not ruin |
Ruin it how... by using it?
I hope you moth balled it correctly or you'll have problems with the valve springs and the seals will dry up. |
Boots are made for walking...
You have full flow? Thermostat?
But if money makes or plays no rolex, you can think about an adapted original 356 Carrera-style oil cooling system, including dry sump.
Side question: how do or did you connect the 356 throttle rod system with your carbs? Pics? |
So I already figured the throttle would be a problem so I have a spare throttle pivit that I can convert to turn the rod action into a cable action and run to the throttle linkage.
Got thermostat and full flow |
|
