 Posted: Sun Oct 05, 2025 9:25 am Post subject: Mystery spacers(?) fell from dash |
 |
|
1969 bus...during dash removal, these two bits fell out of the works at different times during the process. I have no idea where they fell from, but it seems like they were more on the passenger side of center.
Notthing else in there is rusty like that. Do they belong anywhere or are they just random bits that were needed for something once and then left behind? Any ideas?
_________________
John
...in a 1969 Bus, morphing into a weekender |
|
| Back to top |
|
 |
timvw7476
Samba Member
Joined: June 03, 2013
Posts: 2503
Location: seattle
|
| Posted: Sun Oct 05, 2025 12:03 pm Post subject: Re: Mystery spacers(?) fell from dash |
|
|
| Never pulled a '69 dash but if I had to guess I'd say some kind of stand-offs for a windshield wiper motor gearcase. |
|
| Back to top |
|
|
KTPhil
Samba Member
Joined: April 06, 2006
Posts: 36115
Location: Conejo Valley, CA
|
| Posted: Mon Oct 06, 2025 8:56 am Post subject: Re: Mystery spacers(?) fell from dash |
|
|
Did you disassemble the e-brake parts? I don't know Buses but maybe a pivot bushing for the pull handle mechanism?
_________________
Current Fleet:
- '71 Fastback
- '69 Westfalia
Retired:
- '67 Beetle
- '65 Beetle (x2)
- '65 Bus
- '71 Squareback |
|
| Back to top |
|
|
kreemoweet
Samba Member
Joined: March 13, 2008
Posts: 4113
Location: Seattle, WA
|
| Posted: Mon Oct 06, 2025 10:25 am Post subject: Re: Mystery spacers(?) fell from dash |
|
|
The only similar parts I could find in my VW Type 2 parts manual in the front dash area was (6) #211-959-225, bush/bearing, for mounting optional ventilation fans (M121, up to chassis #219098974) in the heater ducts down below the dash.
_________________
'67 bug: seized by the authorities
'68 bug: seized by the authorities
'71 kombi: not yet seized by the authorities
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
StanDahl
Samba Member
Joined: August 25, 2024
Posts: 93
Location: Orange Co. SoCal
|
| Posted: Mon Oct 06, 2025 2:38 pm Post subject: Re: Mystery spacers(?) fell from dash |
|
|
Thank you for your diligence, my body number is 229 xxx xxx, so too new! I didn't mess with the e-brake, but I'm about to remove all of the windshield wiper parts to refurbish them because they work very slowly.

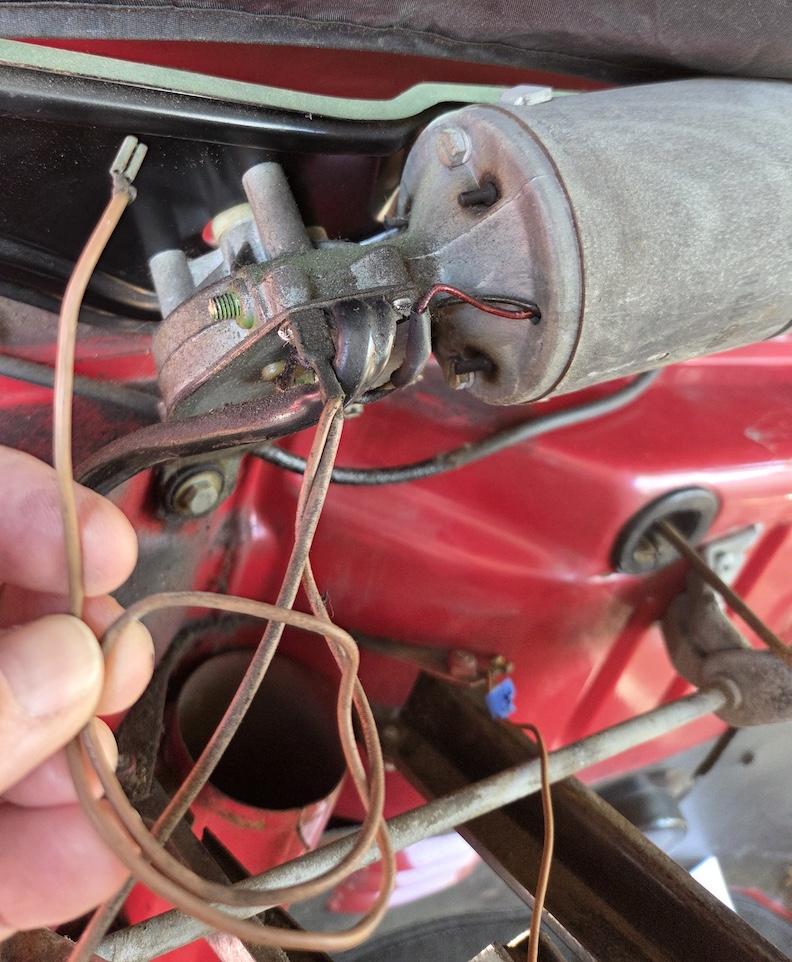

I did find an unconnected wire with a little bitty spade connector hanging off of the motor, not sure where it goes or if it's essential:
_________________
John
...in a 1969 Bus, morphing into a weekender |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1583
Location: P.O.
|
| Posted: Mon Oct 06, 2025 3:15 pm Post subject: Re: Mystery spacers(?) fell from dash |
|
|
Ground; either to frame tab just under and left of left arm of air box Y, or your wiper switch.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
StanDahl
Samba Member
Joined: August 25, 2024
Posts: 93
Location: Orange Co. SoCal
|
| Posted: Mon Oct 06, 2025 3:20 pm Post subject: Re: Mystery spacers(?) fell from dash |
|
|
Yes, this looks like a situation where my wiring matches the 1970 electrical diagram better then the 1969. It seems to go to some common ground on the frame or something. It's odd because there's a larger ground right alongside it.
_________________
John
...in a 1969 Bus, morphing into a weekender |
|
| Back to top |
|
|
NASkeet
Samba Member
Joined: April 29, 2006
Posts: 3232
Location: South Benfleet, Essex, UK
|
| Posted: Tue Oct 07, 2025 12:53 pm Post subject: Re: Mystery spacers(?) fell from dash |
|
|
| StanDahl wrote: |
1969 bus...during dash removal, these two bits fell out of the works at different times during the process. I have no idea where they fell from, but it seems like they were more on the passenger side of center.
Nothing else in there is rusty like that. Do they belong anywhere or are they just random bits that were needed for something once and then left behind? Any ideas? |
| kreemoweet wrote: |
| The only similar parts I could find in my VW Type 2 parts manual in the front dash area was (6) #211-959-225, bush/bearing, for mounting optional ventilation fans (M121, up to chassis #219098974) in the heater ducts down below the dash. |
In the past, I have acquired both early & late type intra-duct ventilation booster fans for 1968~79 VW Type 2s, which just slide inside the ventilation duct and have no metal mounting bushes like those you illustrated.
These intra-duct, two-speed, ventilation booster-fans (VW Part No. 211 959 113 E), known to some in North America as "ambulance fans", fit behind the inspection plates, inside the ventilation ducts, in the cab, above the kickboards and beneath the dashboard.
This is the dashboard-mounted, double-throw, rotary switch (VW Part No. 211 959 511 A) associated with the pair of two-speed, intra-duct ventilation fans (VW Part No. 211 959 113 E) which fit inside the 1968~79 VW Type 2, ventilation ducts, behind the inspection covers, beneath the dashboard, in the cab.
1968~72 VW Type 2, dashboard, twin ventilation control-lever assembly, substituted in place of the single ventilation control-lever assembly, in my British specification, 1973 VW "1600" Type 2 campervan. This allows me to independently control the opening, of the left-hand and right-hand, ventilation flaps.
Also shown, are two white nylon spacers, with ΒΌ inch ground terminal, on the dashboard, ventilation control-lever, spindle bracket, which fits behind the instrument panel. These provide the ground, for my intra-duct ventilation fans, so the fans will only operate, when the front ventilation flaps are open.
