Syncro - need measurements of the hole locations for rear heater

[onefred]

Hello everyone,
Need some help.

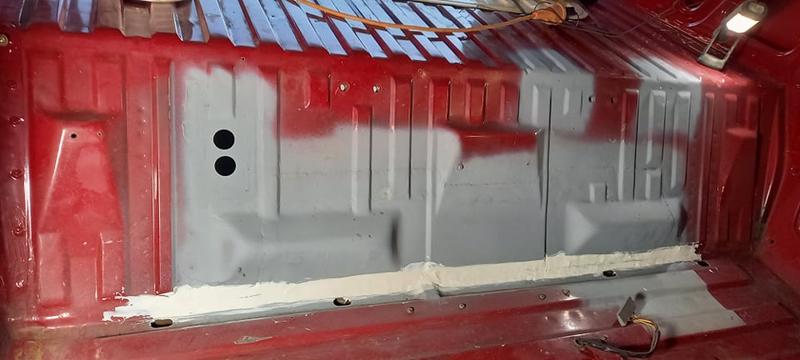

I want to install an additional rear heater (under the rear seat) on my Syncro, which doesn't have one.

I'm referring to the VW auxiliary rear heater that uses engine coolant.

I need to know the exact locations of the holes for the coolant hoses that come from the engine and connect to this heater.

Thanks for your help.

PS: This photo isn't of my van.

[Wildthings]

I would move the heater over to the right (passenger side) as far as you can get it, so gear that you throw under the seat doesn't block the flow of air. You could also install it between the front seats blowing backwards so its blowing towards the passengers and is unlikely to be blocked, at least while the middle seat is in use.

FWIW I added 90° hoses to the otherwise stock system on my Syncro to cut down on the force against the heater valve which cause the o-ring to leak.

[E1]

I like this ^ thinking regarding putting the heater where it’s best.

The stock location really limits storage flexibility…

I’m all about moving weight to the right and rear on Westys, so with heavy stuff under the bench I’d personally move the heater all the way to the left as it’s fairly light per size when compared to lots of other stuff to be stored under the bench.

But that also depends on what you carry.

I realize this isn’t what you’d asked, but perhaps food for thought regardless.
_________________
If ever twice as rich, we’re gettin’ a double-wide
’84 “Westfailure”/2.1 Digijet/5.43 Ring & Pinion/Peloquin/D-rated BFG KO2s

AI has spoken to further illiteracy, to steal, to cheat, and to replace humans
The caveman’s first question to the headhunter: “Hey, you got any coffee?”

[onefred]

[onefred]

[onefred]

Hello,

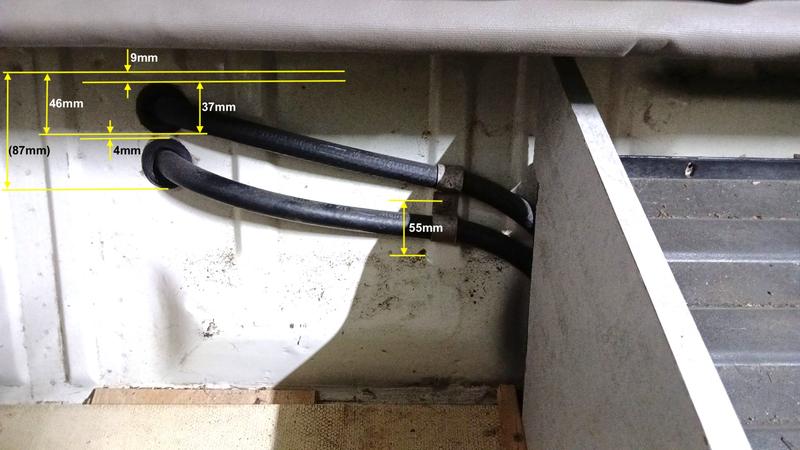

I got some information from a friend, so I managed to do this.
