 Posted: Tue Sep 23, 2008 9:33 pm Post subject: Stove Burner Disassembly / Stove Wrench |
 |
|
Well, first off... thanks to you all for the info you've contributed to this board. I purchased an '86 westy about two months ago and this board has been invaluable!
So... my stove burners don't seem to be up to snuff and I've hit the wall for ideas so I thought I'd lay down my first post. One of them increases flame to the "low" setting and then immediately starts to dim the flame until it reaches the simmer just pass the "high" setting. The other one also works ok up until the low setting but when you pass that it blows out sometimes blowing some flame out the hole above the burner knob.
I'm pretty certain the tank is full as I've had it done twice. I was suspicious the guy didnt fill it properly the first time so I went back and made sure they filled it till it came out the bleeder. I took some compressed air and blew in the lines where they exit the tank and go up to the stove, and also in the holes above the knobs.. but to no avail!
Any suggestions?
Thanks!
wayne |
|
| Back to top |
|
 |
Alan Brase
Samba Member
Joined: March 28, 2004
Posts: 4570
Location: Cedar Falls, Iowa
|
| Posted: Tue Sep 23, 2008 9:42 pm Post subject: |
|
|
I've actually found tiny spider webs in the air mixing area after the valves. Pretty easy to find if you are looking for it. (I've found it on furnace burners too, so it was no surprise.)
Al
_________________
Al Brase
Projects: 67 sunroof bug, 67 Porsche 912 Targa, 70 Westy
Dec 1955 Single Cab pickup WANT 15" BUS RIMS dated 8/55, thru 12/55
To New owners: 1969 doublecab, 1971 Dormobile
Vanagons:
80 P27 Westy JUL 1979, 3rd oldest known US
83 1.6TD Vanagon, 87 Wolfie Westy daily driver, swap meet home |
|
| Back to top |
|
|
Perales
Samba Member
Joined: May 07, 2007
Posts: 2046
Location: Nova Scotia
|
| Posted: Wed Sep 24, 2008 4:55 am Post subject: |
|
|
You can look inside the burners by rotating the metal cover disk. They are keyed in, so rotate them until they lift off. Now you can look inside the burner itself. I agree with Al, spiders can be a real problem here. If you need to take it apart even further you will need the stove wrench, or something like it. Hopefully you or a PO didn't throw it out thinking it was just detritus.
Stove Wrench
_________________
-- 1987 Westfalia automatic (Captain Vino) |
|
| Back to top |
|
|
rubberdonkeyeye
Samba Member
Joined: August 10, 2008
Posts: 2
Location: Portland
|
| Posted: Wed Sep 24, 2008 7:56 am Post subject: |
|
|
| Perales wrote: |
You can look inside the burners by rotating the metal cover disk. They are keyed in, so rotate them until they lift off. Now you can look inside the burner itself. I agree with Al, spiders can be a real problem here. If you need to take it apart even further you will need the stove wrench, or something like it. Hopefully you or a PO didn't throw it out thinking it was just detritus.
Stove Wrench |
Thanks for the input guys! I took off the metal covers and blew that out too. Its still not working properly so I guess I'll have to dig a little deeper. Unfortunately the key is long gone... but I'm sure I can rig something.
wayne |
|
| Back to top |
|
|
Perales
Samba Member
Joined: May 07, 2007
Posts: 2046
Location: Nova Scotia
|
| Posted: Wed Sep 24, 2008 8:00 am Post subject: |
|
|
The image file is scanned full size at 72 dpi Just print it out and you have a template to cut one out of some thick sheet metal.
_________________
-- 1987 Westfalia automatic (Captain Vino) |
|
| Back to top |
|
|
markz2004
Samba Member
Joined: November 13, 2007
Posts: 947
Location: Portland, OR
|
| Posted: Wed Sep 24, 2008 8:45 am Post subject: |
|
|
maybe I am confused by your description, but it sounds like your knob is set on the valve post incorrectly so when you turn to low you are actually making the valve open wider and getting a larger flame?
_________________
87 Westy, 250k GW 2.4 - 2.0  , 16" wheels |
|
| Back to top |
|
|
ak_runner
Samba Member
Joined: August 16, 2007
Posts: 231
Location: Anchorage, Alaska
|
| Posted: Wed Sep 24, 2008 12:53 pm Post subject: |
|
|
Thanks for the photo of the wrench, I was wondering what that was for.
_________________
AK_Runner
`87 Westy Syncro |
|
| Back to top |
|
|
MootPoint
Samba Member
Joined: September 16, 2006
Posts: 862
Location: ABQ, NM
|
| Posted: Wed Sep 24, 2008 9:44 pm Post subject: |
|
|
If you don't have a wrench, it looks as if you could do the same thing with a pair of needlenose pliers, no?
Haven't tried it, tho.
_________________
1984 Westy with tencentlife power! |
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32988
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
djkeev
Samba Moderator
Joined: September 30, 2007
Posts: 32988
Location: Reading Pennsylvania
|
|
| Back to top |
|
|
kamzcab86
Samba Moderator
Joined: July 26, 2008
Posts: 8601
Location: Arizona
|
| Posted: Sat Oct 07, 2023 11:17 am Post subject: Re: stove burner funkiness / Stove Wrench |
|
|
| djkeev wrote: |

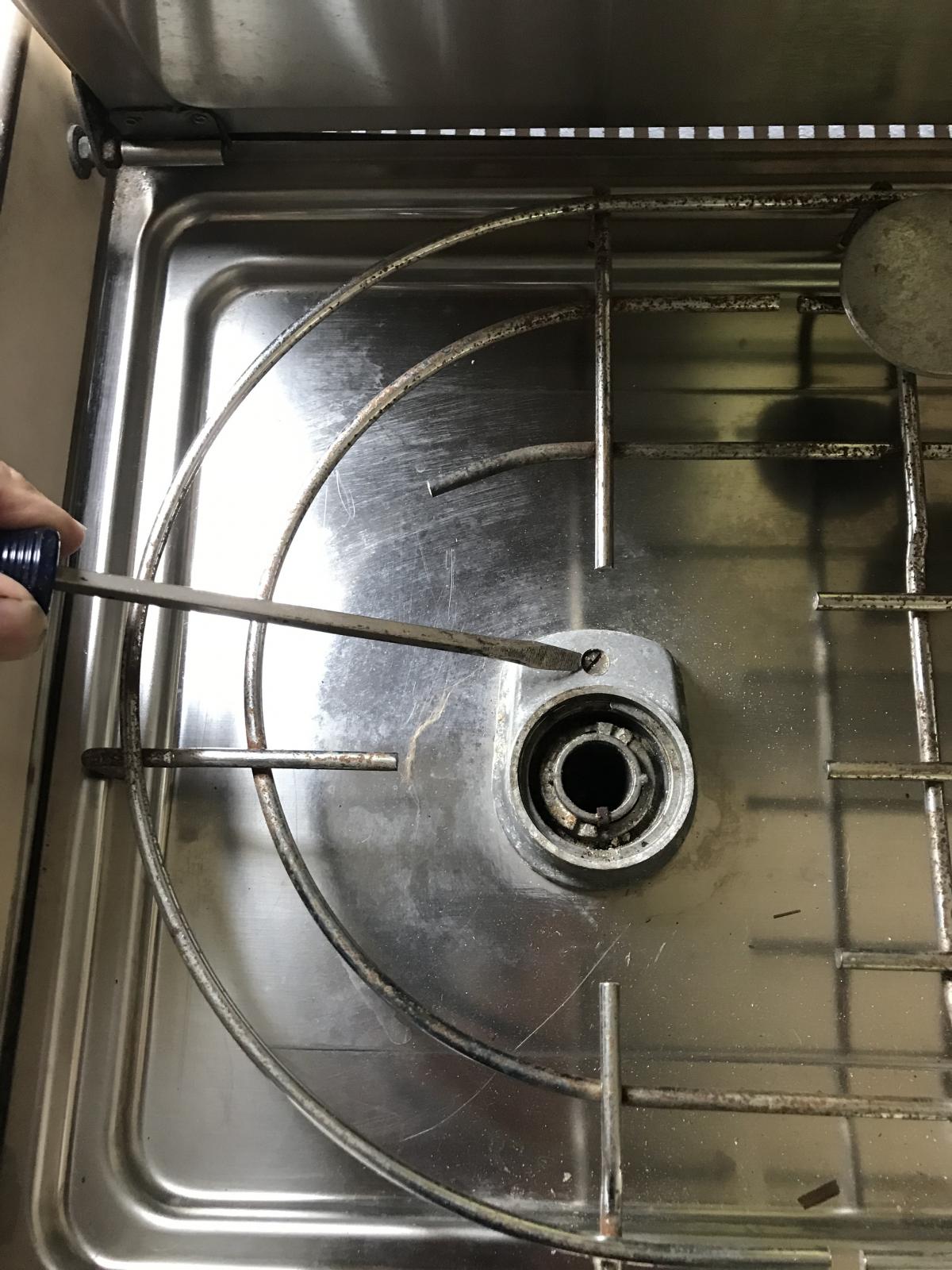

Here is the burner inside, there are two slots, obviously the wrench fits in these slots........
But turning it?
No Go......... the wrench tabs began to bend.
I was turning counter-clockwise.......... that is normal in most mechanical construction items. |
IIRC from when I removed the pots to polish them, the lock pin at 6:00 needs to be removed first. Or, does it move with the assembly up to the 3:00 position, then gets pulled out?  Can't remember.
| djkeev wrote: |
| Meanwhile...... what is this screw for? |
Mounts pot to stove base.
_________________
1986 Cabriolet: www.Cabby-Info.com
 1990 Vanagon Westfalia: Old Blue's Blog
2016 Golf GTI S
"Real knowledge is to know the extent of one's ignorance." - 孔子
Last edited by kamzcab86 on Sat Oct 07, 2023 11:27 am; edited 1 time in total |
|
| Back to top |
|
|
MsTaboo
Samba Member
Joined: June 02, 2006
Posts: 4624
Location: East Kootenay, British Columbia
|
| Posted: Sat Oct 07, 2023 11:20 am Post subject: Re: stove burner funkiness / Stove Wrench |
|
|

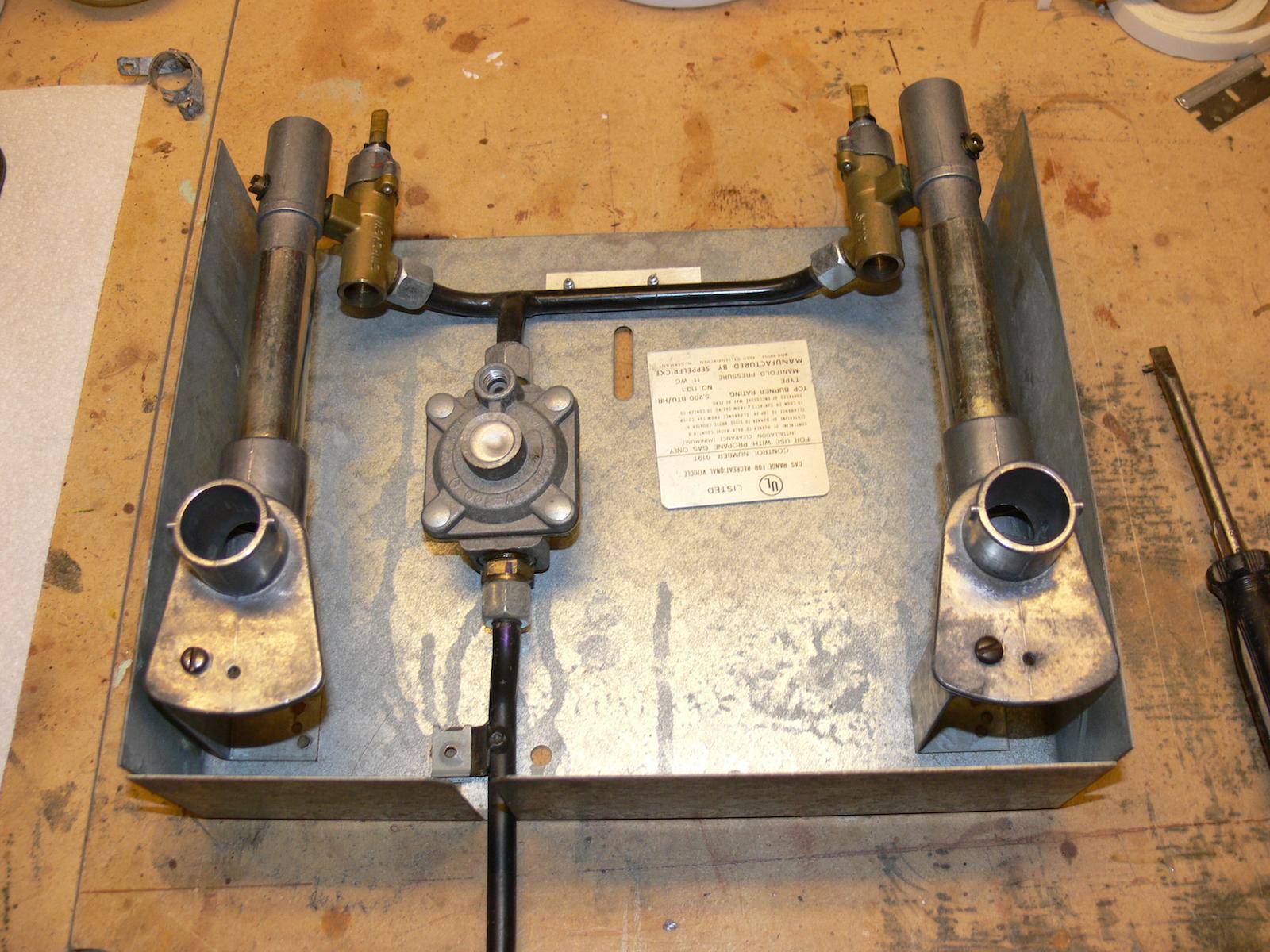

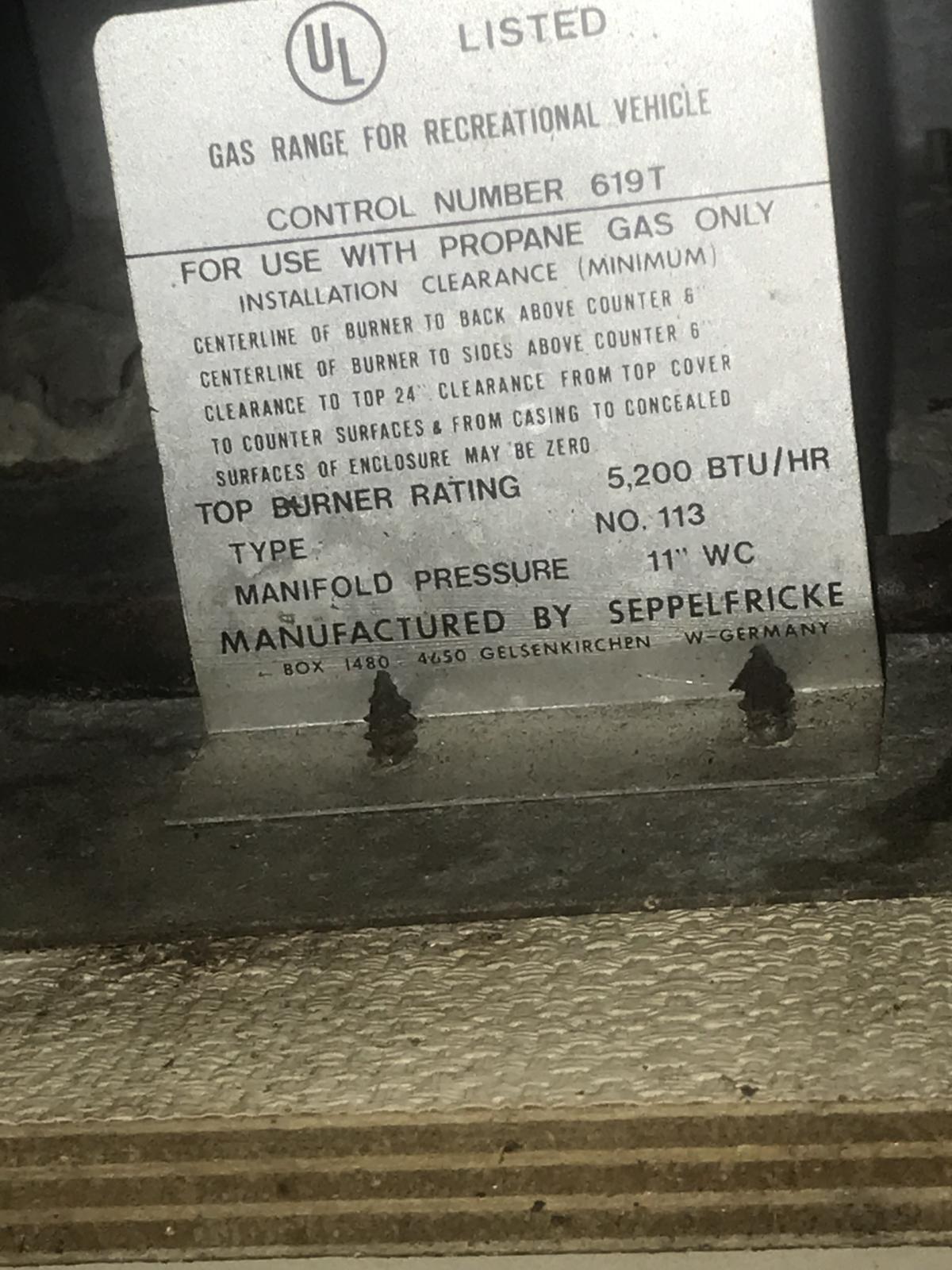

It's been a few years since I rebuilt the stove on mine, but here are a couple pics I have on hand.
