| Last Triumph wrote: |
The problem with the felt seal is that it is intrinsically a poor design for this purpose - sooner or later it is going to leak.
If these new seals I've bought actually fit and work when they arrive, I'll sell the remaining items and we can go from there.
Let's see that they are suitable before we get too excited. |
Ok, I'll just simmer down and wait for the verdict. What type of seal is used to seal the bottom of the main shaft by the pitman arm? |
|
| Back to top |
|
 |
Last Triumph
Samba Member
Joined: October 10, 2006
Posts: 915
Location: Wirral, United Kingdom
|
| Posted: Sat Jan 22, 2011 10:38 am Post subject: |
|
|
| 3foldfolly wrote: |
| Last Triumph wrote: |
The problem with the felt seal is that it is intrinsically a poor design for this purpose - sooner or later it is going to leak.
If these new seals I've bought actually fit and work when they arrive, I'll sell the remaining items and we can go from there.
Let's see that they are suitable before we get too excited. |
Ok, I'll just simmer down and wait for the verdict. What type of seal is used to seal the bottom of the main shaft by the pitman arm? |
A proper lip seal...
The bag of seals arrived and I was duly impressed with them so headed on out to the garage with success on my mind...
It was a nice but not overly tight press fit in the shaft and only needed a drift for the final stage of insertion. I used some Curil K2 engine sealant as a belt and braces approach.
18mm Socket was a perfect diameter 'press' to get it in.
There is a perfect 'shelf' for the seal to sit against a little further in than the original seal which makes sure that it is sitting square.
You can see the sealant squishing out from the rear view picture.
After giving the input shaft a good polish to help the seal do it;s job, I greased everything up and slid the adjustment sleeve into position.
I then drained the remaining fluid out of the box, remounted the top cover with sealant and added exactly 125ml as per the manual which amazingly filled it to precisely the bottom of the filler plug threads.
And there it is, all done....
Once I'd adjusted the shaft clearance I turned it lock to lock many times and waited to see what happened. two hours later and it was still bone dry...
Result  |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13687
Location: Arizona
|
| Posted: Sat Jan 22, 2011 12:31 pm Post subject: |
|
|
Very nice LT!
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
flyertim
Samba Member
Joined: September 17, 2009
Posts: 554
Location: medina, ohio
|
| Posted: Sun Jan 23, 2011 5:05 am Post subject: seal of approval |
|
|
get it?...."seal" of approval:)
what's the part number...or measurements of the seal?
i have books of seals and oilite bearings here at work...should be able to find it.
_________________
"Broadsword calling Dannyboy"
my '57 rebuild:
http://www.thesamba.com/vw/forum/viewtopic.php?t=369883 |
|
| Back to top |
|
|
Last Triumph
Samba Member
Joined: October 10, 2006
Posts: 915
Location: Wirral, United Kingdom
|
| Posted: Sun Jan 23, 2011 5:26 am Post subject: Re: seal of approval |
|
|
| flyertim wrote: |
get it?...."seal" of approval:)
what's the part number...or measurements of the seal?
i have books of seals and oilite bearings here at work...should be able to find it. |
Hey, that's my picture - come back to haunt me!  |
|
| Back to top |
|
|
Last Triumph
Samba Member
Joined: October 10, 2006
Posts: 915
Location: Wirral, United Kingdom
|
| Posted: Sun Jan 23, 2011 12:21 pm Post subject: |
|
|
Whilst Alex has been beavering away on the king and link pins, I've been busy myself....
Today I decided to get the rear end finished off....
First up was another NOS treasure of goodness - some ATE hoses.
A good while ago I ordered as a matter of course, a set of new stainless brake hose clips which look nice and shiny...
Especially next to my crusty originals...
Want to guess what happened next?
Did I use the new ones?
Nope - cleaned up the originals..... it's the only way!
It was then just a case of fitting the fexi's and the original solids I'd cleaned up...
And then came a job I'd been looking forward to for a long time - fitting the NOS rear shocks! Cleaned the mounting bolts and washers first...
The fitted them up and coated them in the wax sealer, hence they look shiny as it's still wet in the picture.
I reckon they look fantastic!
And finally..... as some of you who've been following all this from day one will know, I've saved and collected absolutely every single item I've removed from the car, catalogued and stored safely.
And if you want to know just how serious I am, here's all the dirt I've removed and collected from day one!
The men in white coats are coming, I can feel it...! |
|
| Back to top |
|
|
nick696
Samba Member
Joined: June 25, 2009
Posts: 198
Location: Belgium
|
| Posted: Sun Jan 23, 2011 2:02 pm Post subject: |
|
|
I just wonder what will be the next step to insanity
Lovely job you are doing m8 ! |
|
| Back to top |
|
|
GüteAndTite
Early Convertible Güru
Joined: June 16, 2005
Posts: 2144
Location: Low So Cal
|
|
| Back to top |
|
|
lemonlib
Samba Member
Joined: November 15, 2010
Posts: 196
Location: Inland Empire
|
| Posted: Sun Jan 23, 2011 3:50 pm Post subject: |
|
|
| Just Think of the added gas milage. |
|
| Back to top |
|
|
Last Triumph
Samba Member
Joined: October 10, 2006
Posts: 915
Location: Wirral, United Kingdom
|
| Posted: Sun Jan 23, 2011 4:18 pm Post subject: |
|
|
| lemonlib wrote: |
| Just Think of the added gas milage. |
That's no joke - we're currently at the equivalent of $7.56 a gallon.... |
|
| Back to top |
|
|
MODIFIER
Samba Member
Joined: December 09, 2006
Posts: 1560
Location: Summerville SC
|
| Posted: Sun Jan 23, 2011 5:47 pm Post subject: |
|
|
With his attention to every detail, he wont be climbing back under this rig for a long time.
except maybe just to visit his handiwork.
outstanding job LT.
_________________
Happyasshell
USC USMC DAD OORAH!
ASE MASTER TECH BODY/PAINT and MECHANICAL
62 Beetle
63 Vert
64 Beetle
https://www.facebook.com/SmartFarmServices |
|
| Back to top |
|
|
Bad Hammer
Samba Member
Joined: June 02, 2010
Posts: 4
Location: Florida
|
| Posted: Sun Jan 23, 2011 6:34 pm Post subject: |
|
|
| nick696 wrote: |
| ........Lovely job you are doing m8 ! |
| MODIFIER wrote: |
| .......outstanding job LT. |
What they said!! I'm really taken by this thread and that car!
Anxiously awaiting every update.
You are to be commended sir. |
|
| Back to top |
|
|
Seb67
Samba Member
Joined: December 02, 2003
Posts: 1012
Location: New England
|
| Posted: Sun Jan 23, 2011 6:56 pm Post subject: |
|
|
Can you ship this back to Portugal?
_________________
1964 Type 1 |
|
| Back to top |
|
|
sunroof
Samba Member
Joined: October 06, 2006
Posts: 2045
Location: Winnipeg
|
| Posted: Sun Jan 23, 2011 7:07 pm Post subject: |
|
|
| Quote: |
With his attention to every detail, he wont be climbing back under this rig for a long time.
except maybe just to visit his handiwork. |
I have a little bit of work to do to my '59 Canadian Custom sunroof this winter. The Brazillian master cylinder I installed 5 years ago failed this summer and warped some brake drums. No big deal really and I should have known better. This is the only work I've had to do since I assembled the car in 2005. The TR6 OTOH, I am disassembling again. I have had to take the engine apart every year since I assembled it in 2002. This year it broke an exhaust valve and lunched the cam. One of the wonders of old VWs is that you fix them once and they stay fixed as opposed to the British stuff which you fix and fix and fix... I thought I was a pretty good mechanic because of my success with beetles but if you want to know how good you really are buy a Triumph; it will test you to your limits.
BTW I thought LT meant Last Triumph as in that is the Last fucking Triumph I will ever own.
Beautiful, beautiful beetle:

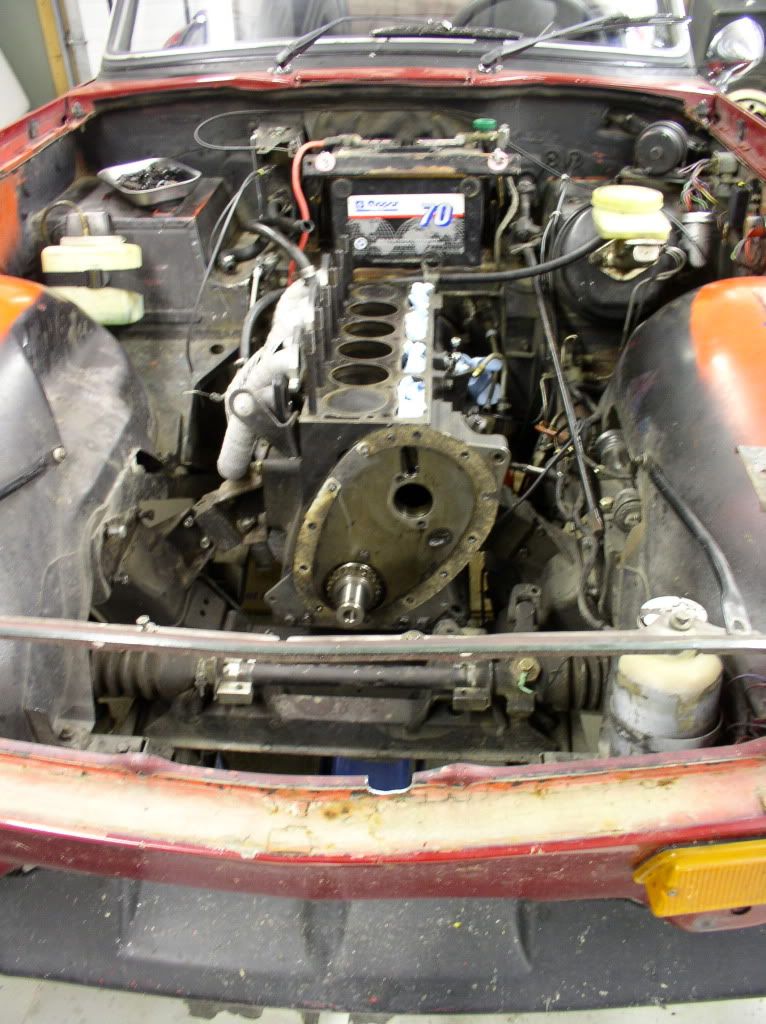

Nasty expensive bitch that I can't seem to live without:
