codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
 Posted: Tue Feb 01, 2011 7:44 pm Post subject: Super Baja Project *Pictures* |
 |
|
Alright.
So here is my latest and greatest. Im only 17 and i already have an addiction to these darn vws...
Im not sure if youve seen my other build around. I accually just am finishing it up. Anyways here is a link to that build page. http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
I really wasnt a big fan of not having a roof on my yellow car so I had been looking around to see if i could find a good deal on a new shell. While in the search i came across a super beetle shell and pan that had already been cut in the rear for a baja. I jumped on the deal for $120. It came with all windows, doors, and rear arms. Orignially my plan was to just swap the body onto the standerd pan i have now after a nice coat of paint.
Well in the process i decided i will build this car bigger and better then my previous and then sell it for money for a tranny and motor.
The way i plan on getting away with making a super into a baja bug is by putting a full cage in it and set it up for a beam in the front.in order to get away from those damn struts.
So what ive got is a '74 super. and i long list of what i want to do.
Here is what ive got in mind. Let me know what you think.
1.Strip and paint both pan and Shell
(plan on painting the shell a nice gloss white)
2.Full cage, build the front out about 6inchs and set it up for a beam
3.3x3s in the rear with bi-passes
4.Coil-overs up front with 6" or 8" over beam.
The list goes on and on but this is the just of it.
Anyways here are some pictures!
First Site
In my "shop"
I need a real jack! Lifting the shell with 2 people isnt easy.
Lifted onto saw horses.

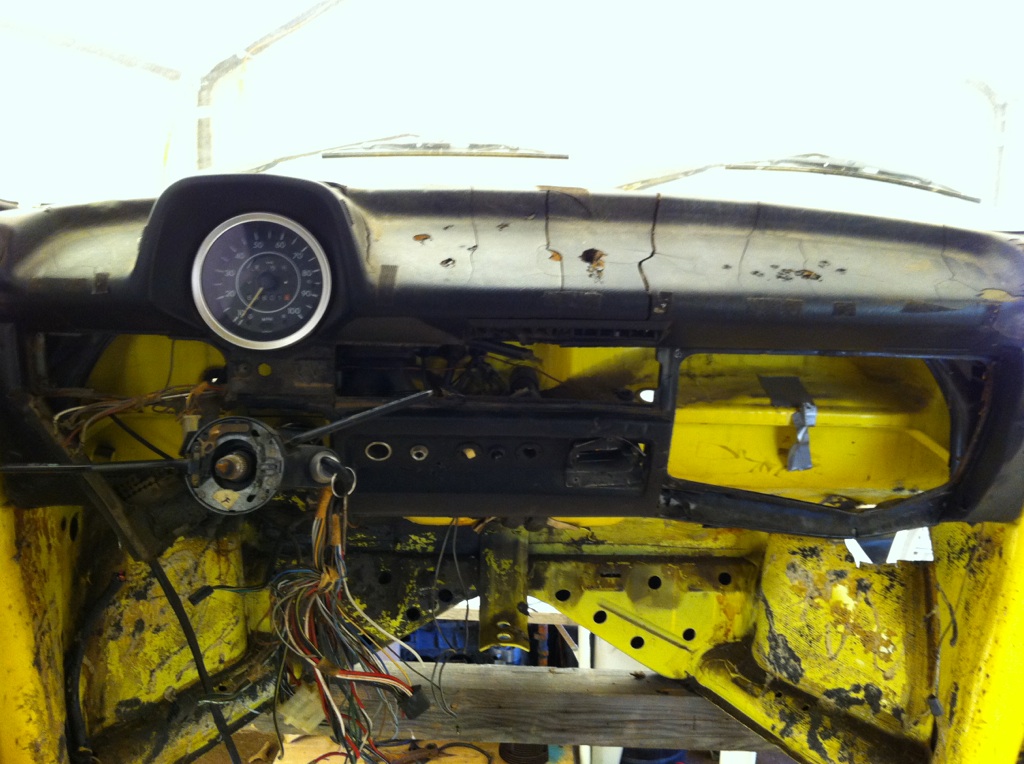

Dash is a mess. Bye Bye.
End of first day of work. Not bad.
Let me know what you guys think! Good or bad!
Will have more picture tomorrow after I do some work to it.
_________________
'69 Baja Build http://codysmith123456.blogspot.com/
http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
'74 Super Baja
http://www.thesamba.com/vw/forum/viewtopic.php?p=5108216&highlight=#5108216 |
|
| Back to top |
|
 |
thext94
Samba Member
Joined: April 11, 2010
Posts: 1003
Location: Manhattan Beach, CA
|
| Posted: Tue Feb 01, 2011 7:53 pm Post subject: |
|
|
Two bajas deep and no floor jack?? I'm jealous...I'm 16 and addicted as well. Next project will be a squareback restoration and hopefully another baja to add to the family
Looks like a great start, keep us updated!
Tyler |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
|
| Back to top |
|
|
STOICH
Samba Member
Joined: November 26, 2004
Posts: 1101
Location: Fallbrook
|
| Posted: Wed Feb 02, 2011 12:09 am Post subject: |
|
|
well guys... I have similar pics of when I was 16... some 18 years ago...  keep it up!! you will achieve it!!!
only advice I have... make em bigger and badder than you can dream of, cause by the time they are done... well....
_________________
My classifieds
https://www.thesamba.com/vw/classifieds/search.php?username=stoich |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
| Posted: Thu Feb 03, 2011 10:53 pm Post subject: |
|
|
Got quite a bit more work done on the car yesterday and today.
My damn camera didn't work so i dont have pictures of the frame after i stripped the pan all the way down.

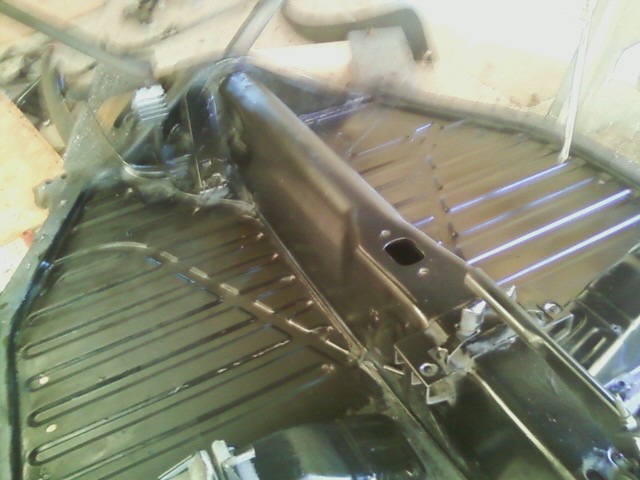

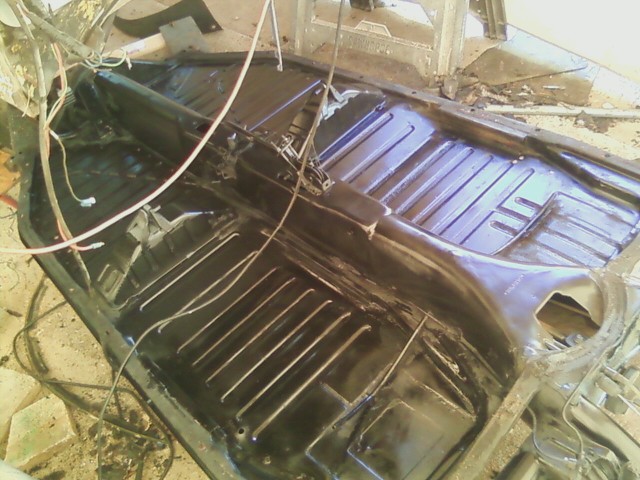

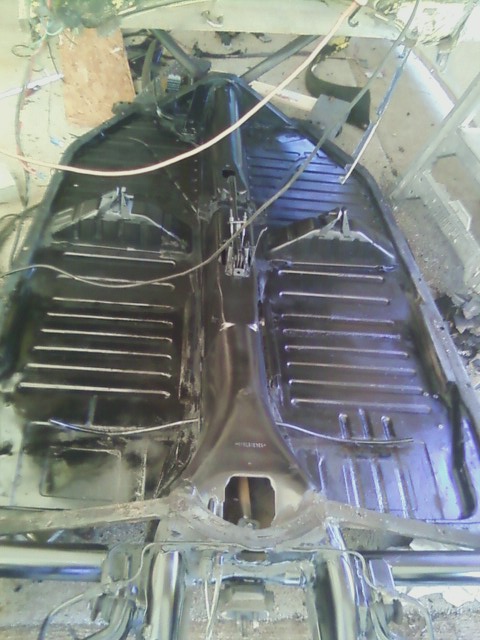

So I striped off all the insulation and nasty glue. and got rid of the little bit of the surface rust at the battery tray. Rattle canned satin black for now once its almost done and is i get more funds i plan on doing truck bed liner. But this will get me by.Anyways here are picture of the finished product!
Let me know what you think
Sorry about the quality. These are off my phone until i can fix the camera.
Dash is also all ripped out. It was a pain to get to all the mounts. I plan on doing something nice and simple once i get the cage put in.
_________________
'69 Baja Build http://codysmith123456.blogspot.com/
http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
'74 Super Baja
http://www.thesamba.com/vw/forum/viewtopic.php?p=5108216&highlight=#5108216 |
|
| Back to top |
|
|
Dave24
Samba Hack Purist
Joined: April 14, 2004
Posts: 7442
Location: Hablamos Ingles, So. Cal.
|
| Posted: Fri Feb 04, 2011 10:04 am Post subject: |
|
|
That looks safe.  . |
|
| Back to top |
|
|
BugMan114
Samba Member
Joined: March 22, 2007
Posts: 3744
Location: Ellenwood, GA
|
| Posted: Fri Feb 04, 2011 8:53 pm Post subject: |
|
|
the tires are still on the ground, so its cool
_________________
1974 Super Beetle: Custom resto in progress
1972 Super Beetle: Daily Driver
1971 Std. Beetle w/ 1929 Mercedes Benz Gazelle kit
1960 Baja Bug
1969 Baja Bug
Sand Rail- Homemade
Sand Rail- FUBAR
Aircooled Airheads
Why the hell do they call it a gland nut. its obviously a big fat bolt!!! |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
| Posted: Fri Feb 04, 2011 11:32 pm Post subject: |
|
|
Today i was able to get alot more work done on the car after i got out of school. I had an extra hand so we were able to get alot more than usual done. We started on the body work scince the pan is all painted and ready to go.

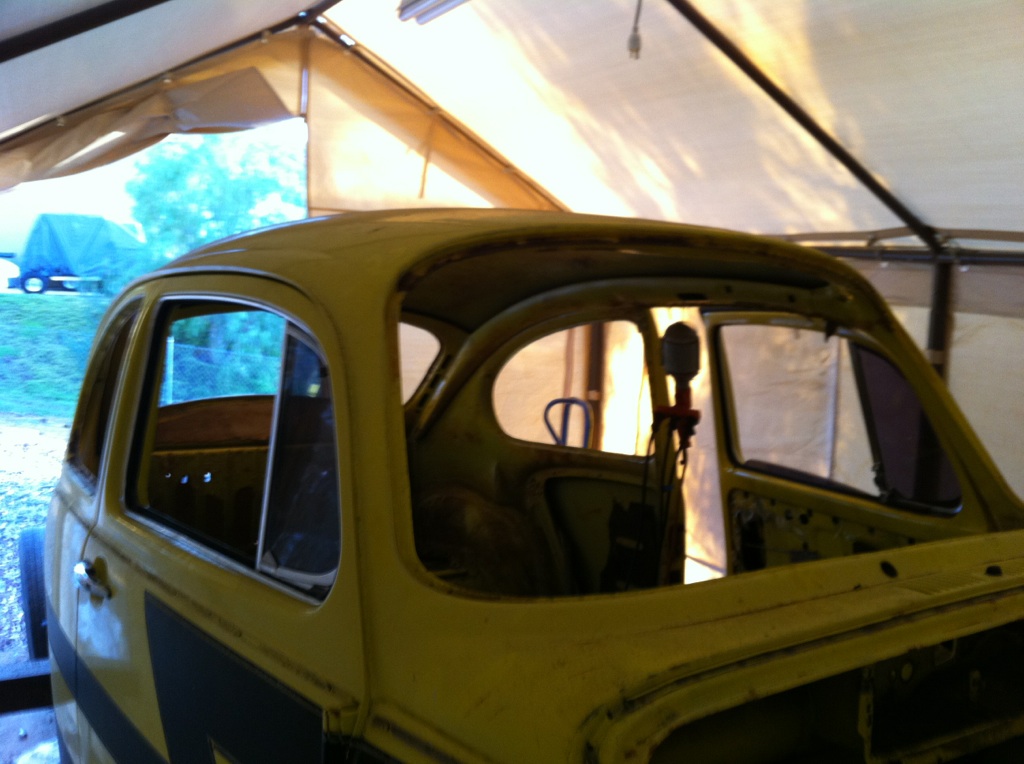

First we carefully took out all the windows starting with the rear quarter panels and working our way up to the Windshield. Luckily we too them all out with out any cracks or messups. I was very happy with that. When first figuring wether to try to save the seals or not I figured that id rather have to buy new seals then chancing on buying the windows. So all the seals are shot but it no biggie.
After popping out the windows we went ahead and removed the windshield wipers and the motor and anything else that was remaining such as the rubber seals for the doors and any other thing that wasn't sand able and paintable. So we just started doing body work and cleaning every thing we could out.
Anyways looking forward to another half day of work tomorrow on the bug.
Actually making some process. Surprising.
Pictures!
I hate taking this stuff out!!
Both the '69 and the '74.

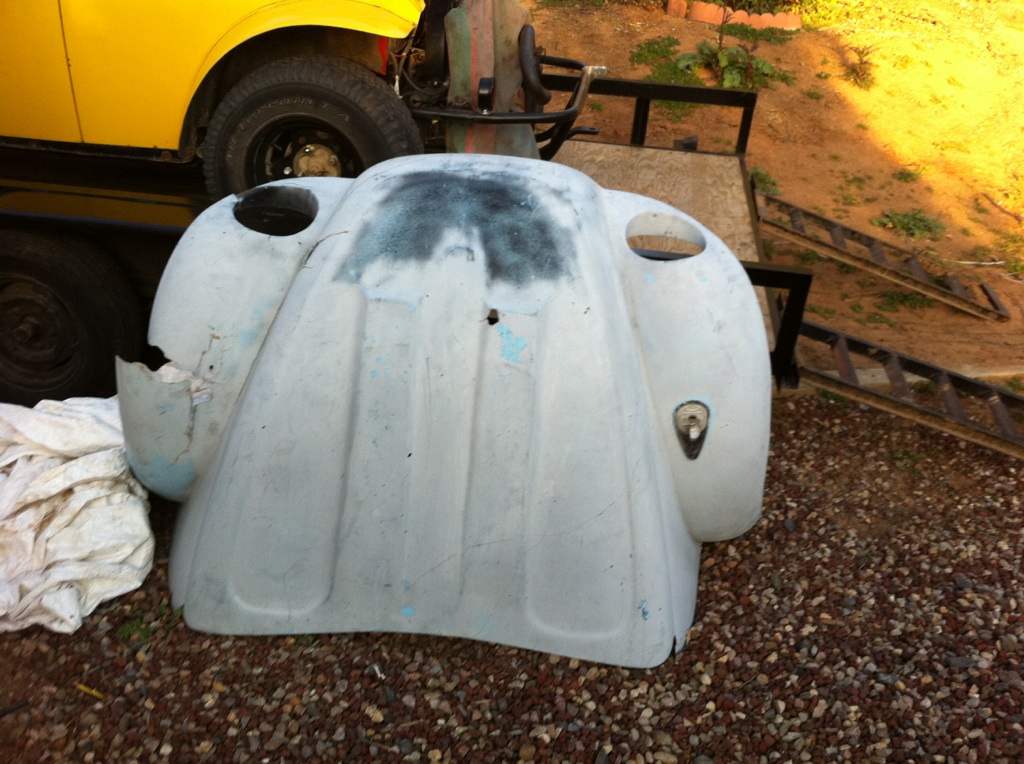

Right here is the one piece front end that the person i bought the car thru in for free. Its pretty beat up. Especially the left fender. Im not sure if im going to Get my friend to fiberglass it for me or if im just going to toss it and buy a used one..
What do you think i should do?
Here it is.

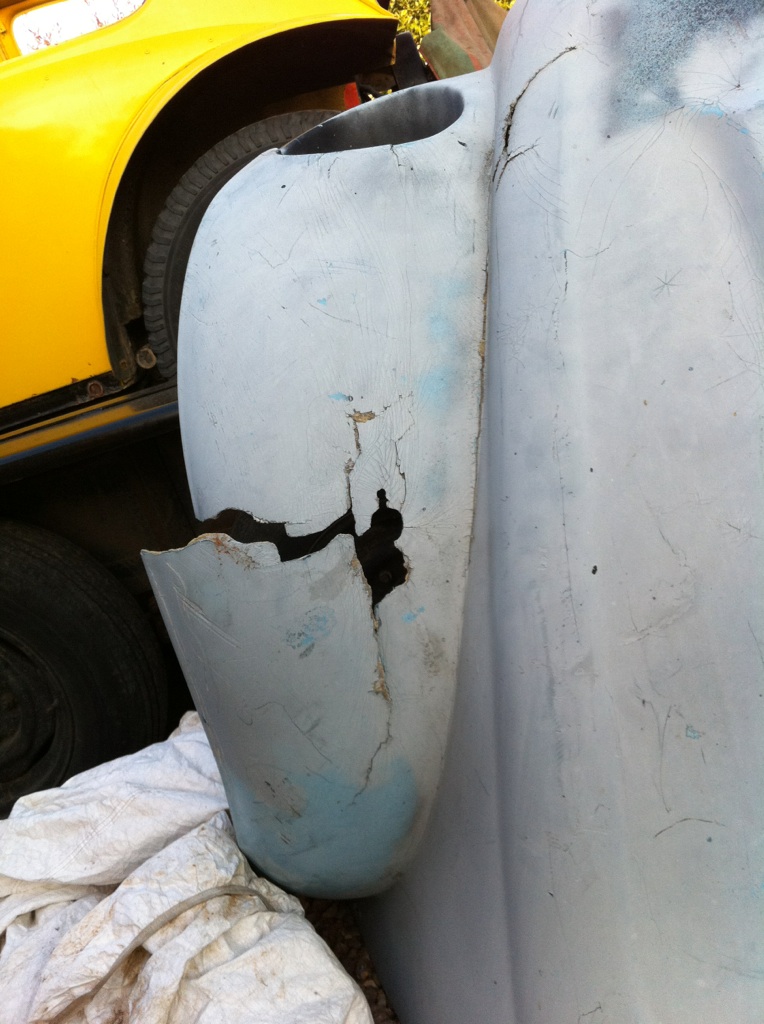

The damage
Let me know what you guys think!
_________________
'69 Baja Build http://codysmith123456.blogspot.com/
http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
'74 Super Baja
http://www.thesamba.com/vw/forum/viewtopic.php?p=5108216&highlight=#5108216 |
|
| Back to top |
|
|
vpogv
Samba Member
Joined: August 14, 2008
Posts: 230
|
| Posted: Sat Feb 05, 2011 5:44 am Post subject: |
|
|
| It's beat up but fixable. Should be able to fix it for less than a new one for sure. |
|
| Back to top |
|
|
larryvance66
Samba Member
Joined: January 27, 2009
Posts: 731
Location: Virginia
|
| Posted: Sat Feb 05, 2011 8:14 am Post subject: |
|
|
IMO fiberglass work is the simplest body work you will ever do. Clean it, stick it, sand it, fill it, sand it, done! Projects look great! You gotta lotta gumption for someone your age. Keep it up, we will be watching. (and drooling  )
_________________
I got a Volkswagen for my wife....Best trade I ever made! |
|
| Back to top |
|
|
rubsterob
Samba Member
Joined: December 31, 2009
Posts: 755
Location: Boise Idaho
|
| Posted: Sat Feb 05, 2011 11:15 am Post subject: |
|
|
If you do fix it take off the other blinker and fill in the hole under that. To me it looks like the blincker is what caused it to break to begin with
_________________
First car orange '72 class 11 lookalike |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
| Posted: Mon Feb 07, 2011 11:18 pm Post subject: |
|
|
Finnaly got some more work done today. I wasnt feeling so good over the weekend so i didnt work on it at all. But after a day of school i worked on it this afternoon. Anyways straight to the pictures!
My friend let me borrow his grinder because mine broke a couple of weeks ago. So i used it for most of the work i needed to cut off and clean up.

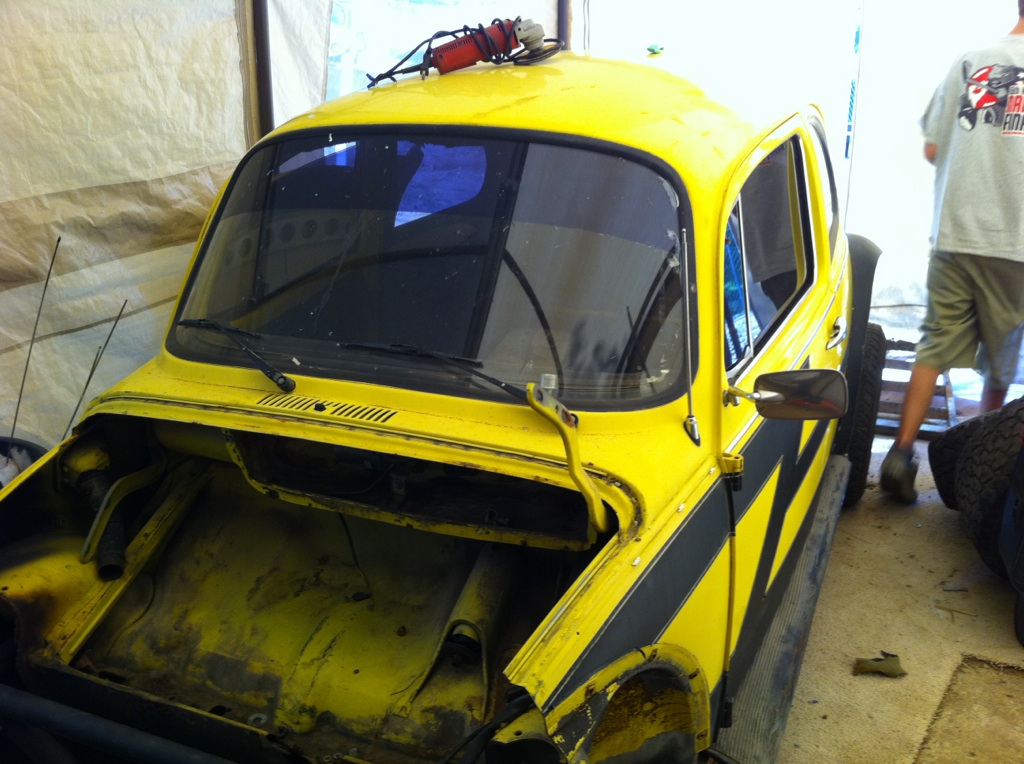

First i cut off the remains of the front end off the super beetle.
This is what it looked like first.
Sure gave me a fight! but i finnaly managed to get it off.
Top veiw

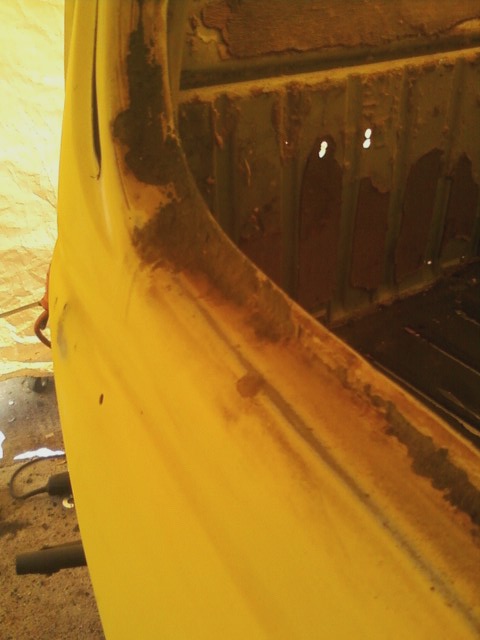

After cutting that off i moved to start stripping the outside paint on the two quarter panels. And i stumbled across some nasty rust that i hadnt already seen. Right in the rear passenger side window seal. take a look.
Anyone know best way of fixing it? or does it just look like surface rust that i can sand down?
Anyways this is the next spot that im going to strip down, right under the dash. Its a mess.
Also i was looking at the spot where the stock gas tank cap goes and was wondering what a good way to fill this spot would be.
Should i just pull it off and weld a little sheet over it? Or would it be easier and better to just bondo the cracks? I havnt bondoed before but im up for learning.
Here are some pictures of it.
Thanks for looking!
_________________
'69 Baja Build http://codysmith123456.blogspot.com/
http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
'74 Super Baja
http://www.thesamba.com/vw/forum/viewtopic.php?p=5108216&highlight=#5108216 |
|
| Back to top |
|
|
joez
Samba Member
Joined: July 22, 2009
Posts: 21
Location: Milton, WA
|
| Posted: Tue Feb 08, 2011 4:28 am Post subject: |
|
|
| The rust in the window channel doesn't look too bad. Just sand it and go from there, but from the pics it looks to be surface. As far as the gas door is concerned, you can just weld up the door or cut some sheet metal to fit and weld that in (just tack welds around the edges spacing them out and allowing cooling in between to prevent warping the panel). Just bondoing it in will not last at all. Looking like a pretty solid start though. Keep it up! |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
|
| Back to top |
|
|
thesatelliteguy
Samba Member
Joined: January 06, 2007
Posts: 1515
Location: Santa Rosa CA
|
| Posted: Mon Feb 14, 2011 12:47 am Post subject: |
|
|
you need an impact screw driver. You hit it with a hammer and it presses down and turns at the same time. You can find them at kragens for like $15.
_________________
Toyotas are so bumpy it makes me sick, literally.
My build Page http://www.thesamba.com/vw/forum/viewtopic.php?t=383878 |
|
| Back to top |
|
|
BugMan114
Samba Member
Joined: March 22, 2007
Posts: 3744
Location: Ellenwood, GA
|
| Posted: Mon Feb 14, 2011 7:28 pm Post subject: |
|
|
retty much any FLAPS has them instock (advance auto, auto zone, napa, etc.). I found a old never used impact kit once at an army base recycling center . pretty wild. I've used the hell out of it since then, lol. its the only tool i've found to get doors off, as well as the oil pressure piston caps.
_________________
1974 Super Beetle: Custom resto in progress
1972 Super Beetle: Daily Driver
1971 Std. Beetle w/ 1929 Mercedes Benz Gazelle kit
1960 Baja Bug
1969 Baja Bug
Sand Rail- Homemade
Sand Rail- FUBAR
Aircooled Airheads
Why the hell do they call it a gland nut. its obviously a big fat bolt!!! |
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
|
| Back to top |
|
|
chubby53
Samba Member
Joined: February 17, 2005
Posts: 2106
Location: Eugene, Oregon
|
|
| Back to top |
|
|
codysmith123456
Samba Member
Joined: April 27, 2010
Posts: 169
Location: SD, CA
|
| Posted: Wed Feb 16, 2011 7:27 pm Post subject: |
|
|

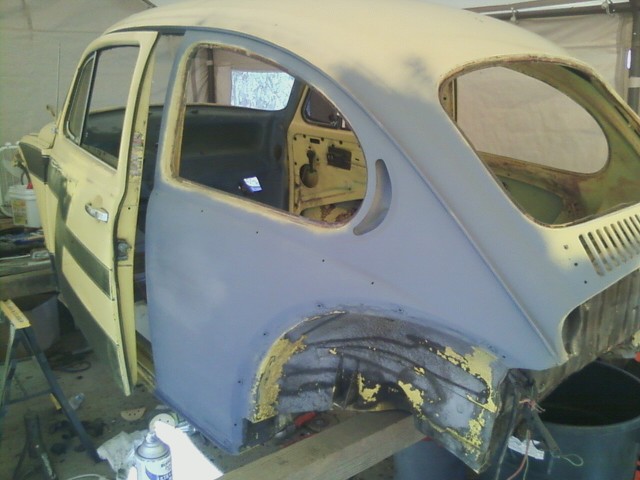

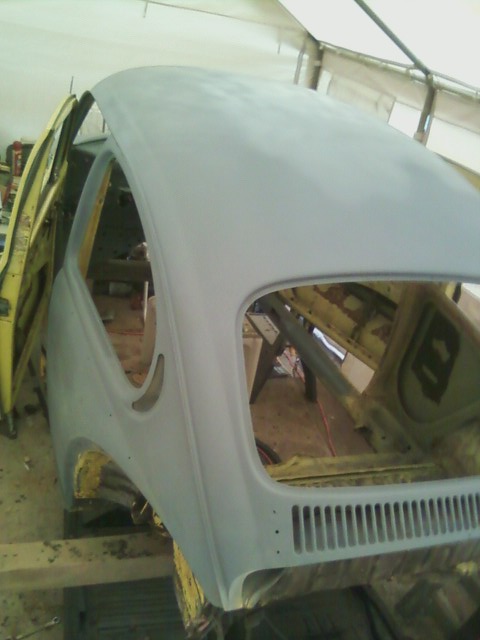

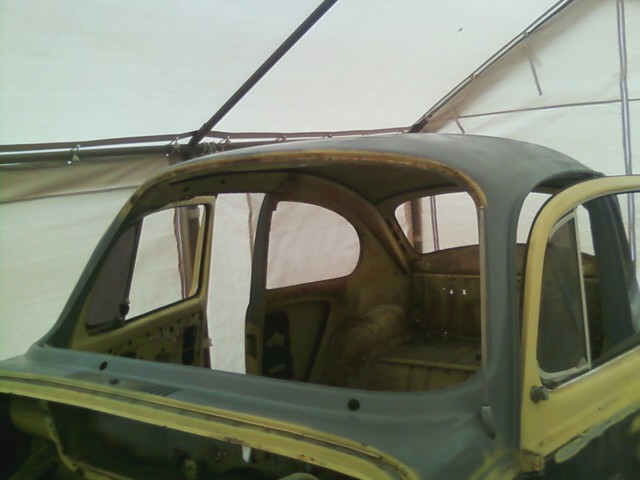

I went ahead and got some work done today after all. I got some more primer so i was able to paint all the rest of the areas i had cleaned off the other day with the sander..
So straight to the pictures of the progress.
As you can see the intire thing isnt done yet.. here are some picture of the places i still need to clean before primering..
back seat area

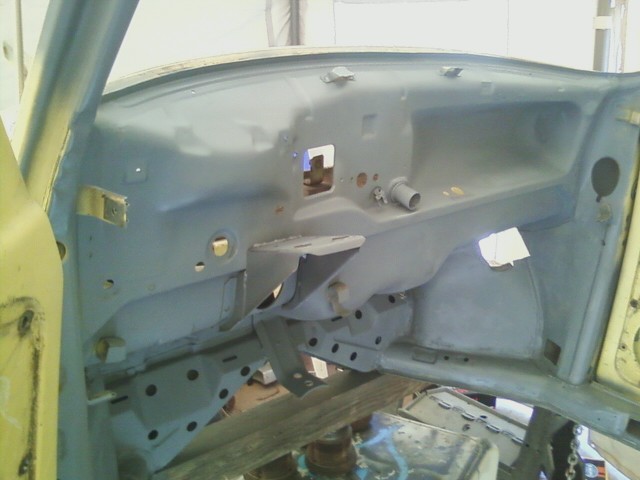

Outside dash

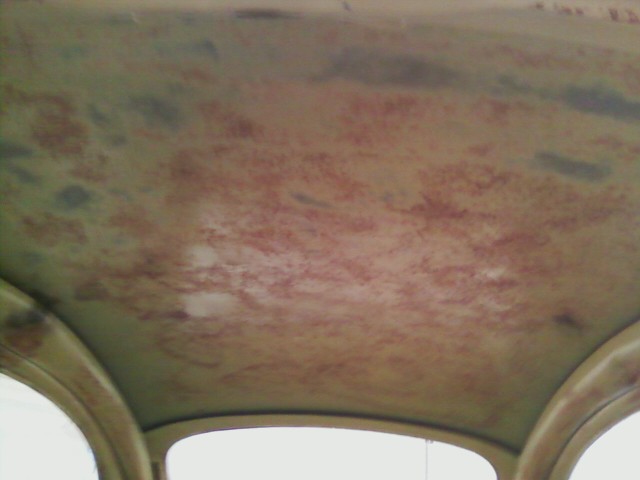

Inside roof
Also here is a list with some questions i was curious about.
Front end
6" over front beam. (planning on using stock arms for starters.)
thru rod
coil overs(not sure size yet)
6 point class 11 cage.(going to build off of it.)
bushings/spacers
Questions...
6" over or 8" over? Im going to run the stock arms for starters. but will eventually go to longer/wider ones. Also for rims im going to use the steel 5 spoke till i can afford better.
What rack and pinion should i go with? looking to not spend the most but not get some shit.
What tie rods?
What steering shaft should i get? Planning on quick release with the grant 3 spoke wheel.
Will i need a dampner?
planning on running 29" tires till can afford bigger.
What am i missing for the front end?
I plan on getting all of my stuff from pasific customs so if you could give me links thatll do me good.
http://www.pacificcustoms.com/
Thanks.
_________________
_________________
'69 Baja Build http://codysmith123456.blogspot.com/
http://www.thesamba.com/vw/forum/viewtopic.php?t=419396&highlight=
'74 Super Baja
http://www.thesamba.com/vw/forum/viewtopic.php?p=5108216&highlight=#5108216 |
|
| Back to top |
|
|
codysmith123456
Samba Member
