 Posted: Wed Aug 10, 2011 3:46 pm Post subject: Carb fuel inlet aint in. PICS |
 |
|
searched and found nothing.

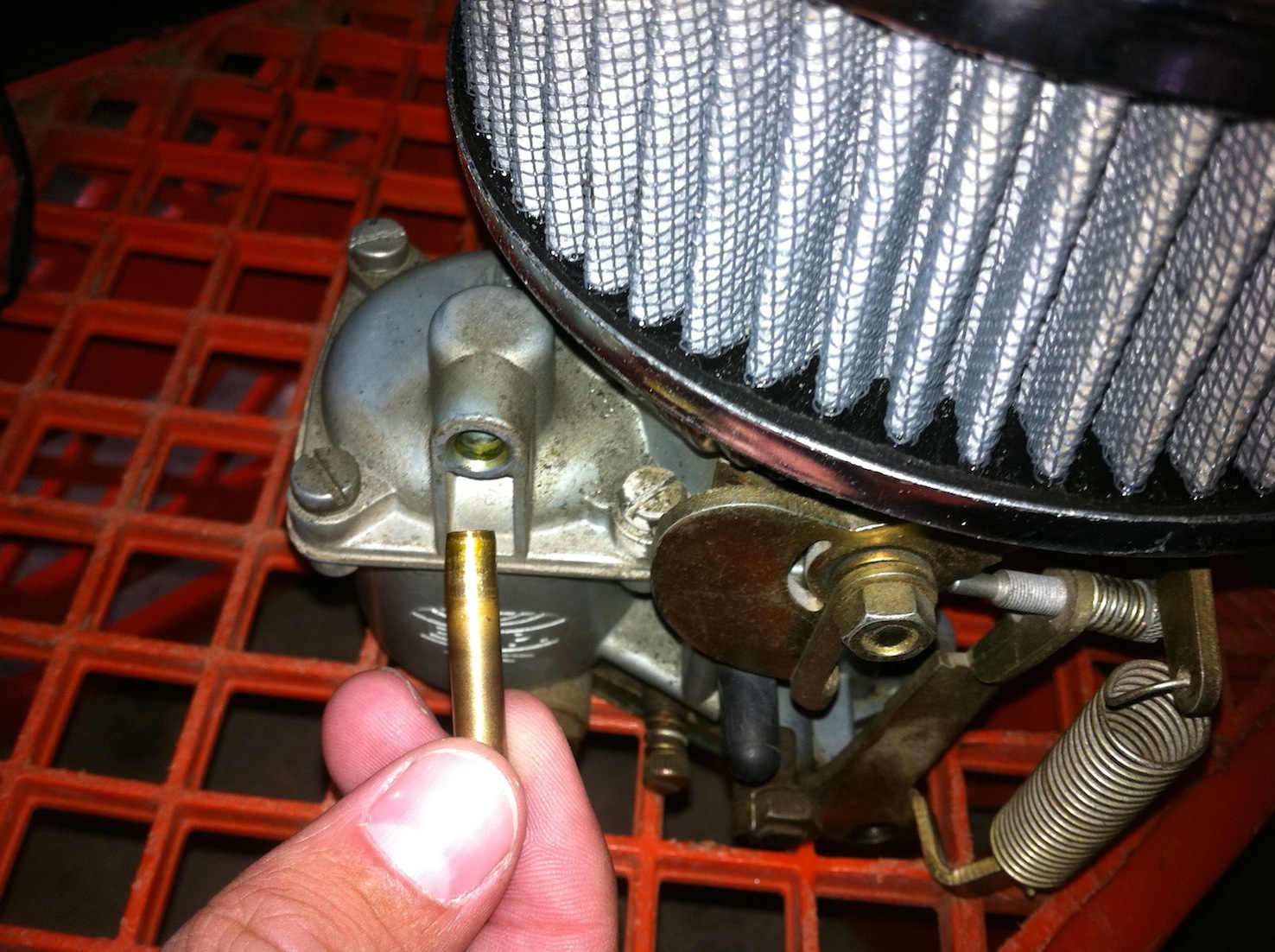

so, i was driving the other day blah blah blah, got home and lifted the engine door to let her cool off, then i smelled STRONG gasoline and thought, oh crap. so i looked at my fuel lines and the inlet to the carb was soaked. so i played with it and it just slid right out!
so i plugged the line and am trying to figure out the best way to fix the carb.
should i get some kind of gas resitsant sealant? and switch ends and press in the good end? gimme yo ideas! thanks.
|
|
| Back to top |
|
 |
Lionhart94010
Samba Member
Joined: January 04, 2005
Posts: 1418
Location: SF Bay Area / Silicon Valley / So Cal
|
| Posted: Wed Aug 10, 2011 4:00 pm Post subject: |
|
|
You’re lucky you found it when you did; the thing to do is thread in a brass pipe fitting as they do on Formula V prepped Solex carbs…
_________________
Current VWs 71 T2 Westy SO-72/6(Miami), 71 Crew Cab, 2015 GSW TDI
Other owned VW’s 59, 68 1500s, 69 & 71 Bug’s; 72 & 73 S-Bug’s; 67 Westy, 67 Deluxe, Other 71 DC, 72 KG GT that now lives in Australia, 12 JSW TDI, 2015 GSW TDI, 2023 Tiguan
VW technical information sights
thesamba - www.ratwell.com - www.shoptalkforums.com/ - www.vw-resource.com - http://www.type2.com/
http://bobhooversblog.blogspot.com/ - www.aircooled.net/gnrlsite/resource/articles.htm |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 52943
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Wed Aug 10, 2011 4:02 pm Post subject: |
|
|
Yep, 1/16" NPT IIRC, hard to find but available online, there's a link in one of the many fuel line threads.
Now go buy yourself a lottery ticket
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
Lionhart94010
Samba Member
Joined: January 04, 2005
Posts: 1418
Location: SF Bay Area / Silicon Valley / So Cal
|
| Posted: Wed Aug 10, 2011 4:38 pm Post subject: |
|
|
Thanks for the spec BD-
FYI, Found a samba post with links where to buy parts :0)
http://www.thesamba.com/vw/forum/viewtopic.php?t=420661
1/4 x 1/16 Hose Barb X Male Adapter ( $4.35)
http://www.fastfittings.com/product/32301
1/16"-27 NPT National Pipe Taper High Speed Steel Pipe Tap ($5.90)
http://www.amazon.com/National-Pipe-Taper-Speed-Steel/dp/B000U7LSPO
_________________
Current VWs 71 T2 Westy SO-72/6(Miami), 71 Crew Cab, 2015 GSW TDI
Other owned VW’s 59, 68 1500s, 69 & 71 Bug’s; 72 & 73 S-Bug’s; 67 Westy, 67 Deluxe, Other 71 DC, 72 KG GT that now lives in Australia, 12 JSW TDI, 2015 GSW TDI, 2023 Tiguan
VW technical information sights
thesamba - www.ratwell.com - www.shoptalkforums.com/ - www.vw-resource.com - http://www.type2.com/
http://bobhooversblog.blogspot.com/ - www.aircooled.net/gnrlsite/resource/articles.htm |
|
| Back to top |
|
|
myfresh70
Samba Member
Joined: February 27, 2011
Posts: 117
Location: Bowling Green, KY
|
| Posted: Wed Aug 10, 2011 6:26 pm Post subject: |
|
|
HUGE help. thank you guys.
ill let you know how it works. |
|
