| Author |
Message |
BjornTore
Samba Member
Joined: August 21, 2011
Posts: 97
Location: Norway
|
 Posted: Mon Aug 29, 2011 2:25 pm Post subject: Luftfilter / Air filter VW what year? |
 |
|

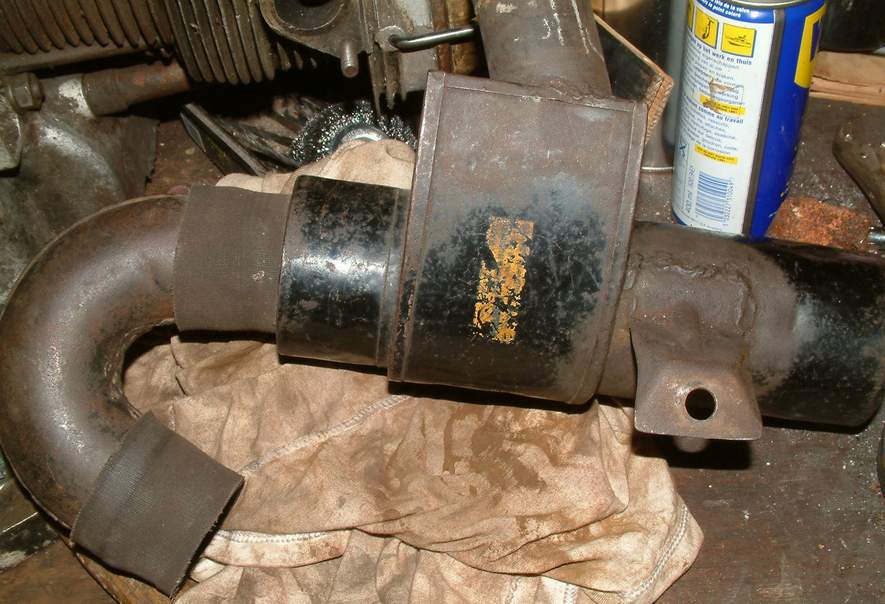

| Hi. Anyone knows what year VW used thiis type of Luftfiler/Airfilter? I have in for my 1949 std. mod VW. But the engine is from 1952?! the pic is in the gallery on this forum!! BT, Norway |
|
| Back to top |
|
 |
kdf38
Samba Member
Joined: March 07, 2002
Posts: 896
|
| Posted: Mon Aug 29, 2011 2:34 pm Post subject: Re: Luftfilter/Airfilter VW what year? |
|
|
| BjornTore wrote: |
| Hi. Anyone knows what year VW used thiis type of Luftfiler/Airfilter? I have in for my 1949 std. mod VW. But the engine is from 1952?! the pic is in the gallery on this forum!! BT, Norway |
|
|
| Back to top |
|
|
janerick3
Samba Member
Joined: June 04, 2006
Posts: 1879
Location: Colorado
|
| Posted: Mon Aug 29, 2011 9:35 pm Post subject: |
|
|
This is the "Cyclonic" air filter, referred to as "Kübelwagen" air cleaners by some of the VW old-timers. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034
_________________
Thanks,
Jan K.
Last edited by janerick3 on Wed Aug 31, 2011 12:02 am; edited 1 time in total |
|
| Back to top |
|
|
Gustav Petri
Samba Member
Joined: December 26, 2004
Posts: 140
Location: NORWAY
|
| Posted: Tue Aug 30, 2011 9:39 am Post subject: |
|
|
| janerick3 wrote: |
This is the Mann "Cyclonic" felt cone air filter, first used on VWs (Type 11A) in July 1949, at Chassis No. 1-0114186, according to Progressive Refinements. However, some old-timers refer to these as "Kübelwagen" air cleaners. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034 |
I have seen a cupple of these filters but dont think I have seen the MANN version, all I have seen would be KNECHT. Some say they would be a better solution for dusty roads. They would allso be used on the dual carb Express kit. The filter could be a dealer and not customer option, anyone know? |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4094
|
| Posted: Tue Aug 30, 2011 10:59 am Post subject: |
|
|
| Gustav Petri wrote: |
| janerick3 wrote: |
This is the Mann "Cyclonic" felt cone air filter, first used on VWs (Type 11A) in July 1949, at Chassis No. 1-0114186, according to Progressive Refinements. However, some old-timers refer to these as "Kübelwagen" air cleaners. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034 |
I have seen a cupple of these filters but dont think I have seen the MANN version, all I have seen would be KNECHT. Some say they would be a better solution for dusty roads. They would allso be used on the dual carb Express kit. The filter could be a dealer and not customer option, anyone know? |

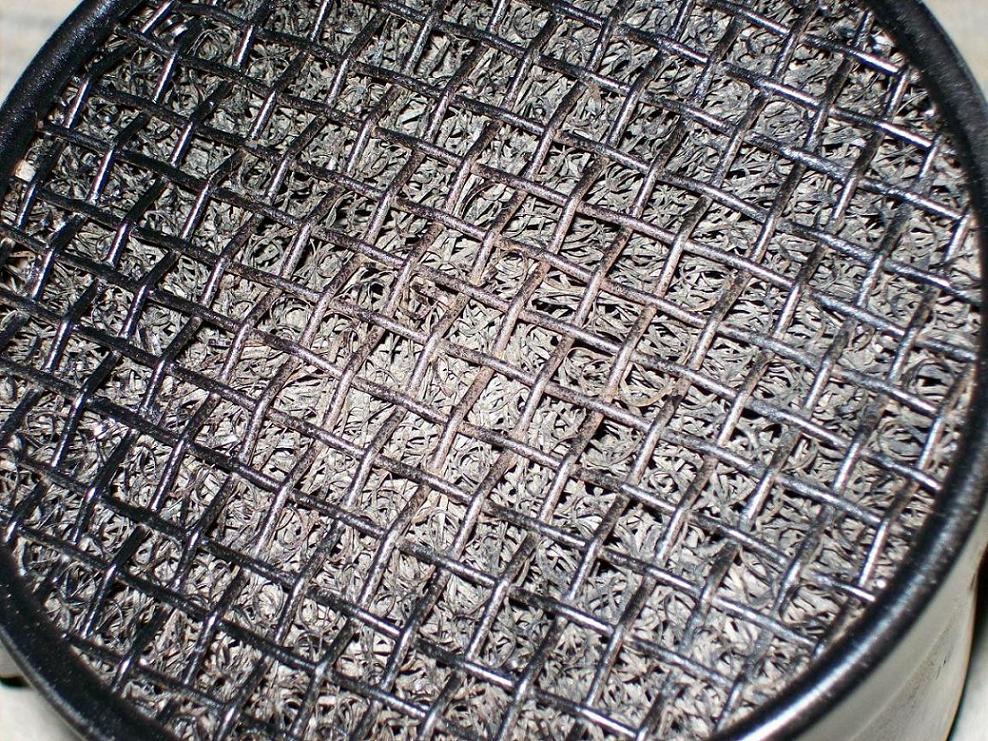

I believe you are correct about this version being made by KNECHT. It is also not a felt element. The filter element is sort of like those old copper pot scrubbers.
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
BjornTore
Samba Member
Joined: August 21, 2011
Posts: 97
Location: Norway
|
| Posted: Tue Aug 30, 2011 1:52 pm Post subject: Re: Luftfilter/Airfilter VW what year? |
|
|
| [email protected] wrote: |
| BjornTore wrote: |
| Hi. Anyone knows what year VW used thiis type of Luftfiler/Airfilter? I have in for my 1949 std. mod VW. But the engine is from 1952?! the pic is in the gallery on this forum!! BT, Norway |
|
I forgot to write, its a Knecht filter. |
|
| Back to top |
|
|
Kjell Roar
Samba Member
Joined: December 08, 2008
Posts: 1326
Location: Norway
|
| Posted: Tue Aug 30, 2011 2:15 pm Post subject: |
|
|
Its maybe original to your car. They put it over when they put a newer engine in it. Factory rebuild engine maybe? Is your car Møller import?
_________________
I got a historic car, every scratch got a history...
My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438 |
|
| Back to top |
|
|
Kapt. Q
Samba Member
Joined: May 28, 2011
Posts: 256
Location: UK
|
| Posted: Tue Aug 30, 2011 3:32 pm Post subject: |
|
|
| janerick3 wrote: |
This is the Mann "Cyclonic" felt cone air filter, first used on VWs (Type 11A) in July 1949, at Chassis No. 1-0114186, according to Progressive Refinements. However, some old-timers refer to these as "Kübelwagen" air cleaners. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034 |

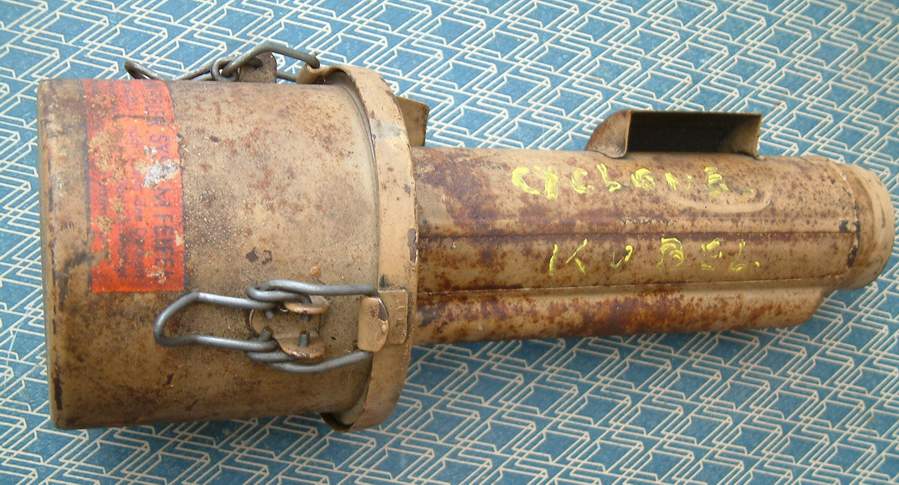

The oldtimers probably refered to it as a kubel filter because it is very similar in appearance to this, note how the clamps are identical (could well be from the same manufacturer):
The cyclone first appeared during the war to address the dusty conditions of N. Africa and Russia in the summer. The above one is quite rare, this is the more common version, sorry it's not a better picture:
Cheers. |
|
| Back to top |
|
|
splitjunkie
Samba Member
Joined: April 04, 2006
Posts: 4094
|
| Posted: Tue Aug 30, 2011 5:47 pm Post subject: |
|
|
| janerick3 wrote: |
This is the Mann "Cyclonic" felt cone air filter, first used on VWs (Type 11A) in July 1949, at Chassis No. 1-0114186, according to Progressive Refinements. However, some old-timers refer to these as "Kübelwagen" air cleaners. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034 |
I don't believe this is correct.
There are only three entries about air filters in PR during the 25hp years.
Jan 14, '49 Chassis No 092 918 Air Cleaner, Now: mushroom shape, Formerly: pot shape.
July '49 Chassis No 1-0 114 186 Felt cone filter, Now: for engines in vehicles of type 11A
Aug 20, '52 Chassis No 1-0 382 029 Oil bath air cleaner, Now: fitted in a number of cases
The felt cone filter is the T filter or coffee can filter that we see on most 25hp engines. It has a felt cone inside. I don't see any mention of the word "Cyclonic". This filter continued until the introduction of the strap type oil bath filter (that had three variations in and of itself)
_________________
Chris
You know, a lot of these scratches will buff right out... Jerry Seinfeld |
|
| Back to top |
|
|
janerick3
Samba Member
Joined: June 04, 2006
Posts: 1879
Location: Colorado
|
| Posted: Wed Aug 31, 2011 12:00 am Post subject: |
|
|
| splitjunkie wrote: |
| janerick3 wrote: |
This is the Mann "Cyclonic" felt cone air filter, first used on VWs (Type 11A) in July 1949, at Chassis No. 1-0114186, according to Progressive Refinements. However, some old-timers refer to these as "Kübelwagen" air cleaners. In any case, these were commonly found on Hoffman-imported, U.S.-market splits. There is a discussion on them in this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=325034 |
I don't believe this is correct.
There are only three entries about air filters in PR during the 25hp years.
Jan 14, '49 Chassis No 092 918 Air Cleaner, Now: mushroom shape, Formerly: pot shape.
July '49 Chassis No 1-0 114 186 Felt cone filter, Now: for engines in vehicles of type 11A
Aug 20, '52 Chassis No 1-0 382 029 Oil bath air cleaner, Now: fitted in a number of cases
The felt cone filter is the T filter or coffee can filter that we see on most 25hp engines. It has a felt cone inside. I don't see any mention of the word "Cyclonic". This filter continued until the introduction of the strap type oil bath filter (that had three variations in and of itself) |
I agree--original post edited. To answer the original poster, I would say the cyclonic filter was discontinued when the oil bath filter was introduced (20 Aug 52). Garwood mentions (pp. 38, 92) that either the Mann "mushroom" or the Knecht "sock" filter was used 1945-48. I cannot find a picture of the Knecht "sock" filter in the gallery, but I saw one several years ago and thought it looked very similar to the cyclonic filter, but with a felt sock in place of the mesh filter element.
However, either the wing nut oil bath air cleaner or the coffee can filter was installed between 20 Aug and the end of 1952, when the first type of "strap" air cleaner was introduced. The coffee can continued to be available until the introduction of the 36hp engine, when the oil bath cleaner became standard equipment. Both change points are documented in PR.
_________________
Thanks,
Jan K. |
|
| Back to top |
|
|
Bengt H
Samba Member
Joined: September 11, 2005
Posts: 332
Location: Sweden
|
| Posted: Wed Aug 31, 2011 12:28 am Post subject: |
|
|
In Sweden the cyclone filter was installed from 1 jan -52, I have paper on that from the Swedish VW importer  |
|
| Back to top |
|
|
virtanen
Samba Member
Joined: January 08, 2006
Posts: 1461
Location: Finland
|
|
| Back to top |
|
|
Hebster52
Samba Member
Joined: March 14, 2003
Posts: 1773
Location: Finland, Jakobstad
|
|
| Back to top |
|
|
BjornTore
Samba Member
Joined: August 21, 2011
Posts: 97
Location: Norway
|
| Posted: Tue Oct 07, 2014 10:19 am Post subject: airfilter knecht |
|
|
| Kjell Roar wrote: |
| Its maybe original to your car. They put it over when they put a newer engine in it. Factory rebuild engine maybe? Is your car Møller import? |
hello. No my car is delivered first time in Germany. It came to Norway in early 70 s. Bt |
|
