PostPosted: Mon Apr 01, 2013 9:10 am    Post subject: Reply with quote

hans j wrote:
How about MPG? Notice any increase with them?


No.

Robyn
_________________
1984 FrankenSyncro Westy. EJ25 RMW kit
1971 Super Beetle with an EJ22. Oh yes. Daily driver
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Phishman068
Samba Member


Joined: February 19, 2007
Posts: 1604
Location: Pittsburgh PA (ish)
Phishman068 is offline

PostPosted: Mon Apr 01, 2013 11:31 am    Post subject: Reply with quote

To clarify, i am "pissed off" because of what the salt is doing to the cars, and the rate at which it is doing it.
The van in question was purchased as a parts bus but recommissioned. It is not that rusty body wise. During the recommisioning, we replaced the entire exhaust system.
That was last January.
This Feb, I needed a new muffler already, and the bulk of the exhaust is already looking extremely crusty.
That's one year and 2000 miles. Not acceptable.
Yes, the first muffler failed prematurely, but it certainly failed due to rust, and having a dedicated winter bus makes you think a bit differently about what the road crap really is capable of.

I wll be doing some extensive and hopefully creative means of reducing future corrosion soon, the idea of wheel well liners is just one of the first steps.

I'm glad to hear some people are running them, but the fitment issues have me concerned. Photos would be nice, as well as some input from the man behind the supplier.

Shy of covering the whole car in axle grease, I'm open to anything.
_________________
http://www.thesamba.com/vw/forum/viewtopic.php?t=559766&highlight=winter+rust
http://www.thesamba.com/vw/forum/viewtopic.php?t=482402&highlight=sunroof+syncro
http://www.thesamba.com/vw/forum/viewtopic.php?t=569774
http://www.thesamba.com/vw/forum/viewtopic.php?p=6864936#6864936

"Along with the ability to go fast, one looses the desire to hurry."
Back to top
View user's profile Send private message AIM Address Classifieds Feedback
1vw4x4
Banned


Joined: June 22, 2005
Posts: 472
Location: Pgh. PA
1vw4x4 is offline

PostPosted: Mon Apr 01, 2013 6:35 pm    Post subject: Reply with quote

Craig,
First great thread. As you know I've given up the fight on my
City Syncro. With out yearly cleaning, sanding, and rust proofing, every vehicle is doomed. Its just a matter of time. You can slow the rust but you can't stop it. A lift in your new garage would be best, but I know how that is....
You think your pissed off... try 30 year of it!
Eric


Phishman068 wrote:
To clarify, i am "pissed off" because of what the salt is doing to the cars, and the rate at which it is doing it.
The van in question was purchased as a parts bus but recommissioned. It is not that rusty body wise. During the recommisioning, we replaced the entire exhaust system.
That was last January.
This Feb, I needed a new muffler already, and the bulk of the exhaust is already looking extremely crusty.
That's one year and 2000 miles. Not acceptable.
Yes, the first muffler failed prematurely, but it certainly failed due to rust, and having a dedicated winter bus makes you think a bit differently about what the road crap really is capable of.

I wll be doing some extensive and hopefully creative means of reducing future corrosion soon, the idea of wheel well liners is just one of the first steps.

I'm glad to hear some people are running them, but the fitment issues have me concerned. Photos would be nice, as well as some input from the man behind the supplier.

Shy of covering the whole car in axle grease, I'm open to anything.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
svenakela
Samba Member


Joined: July 19, 2006
Posts: 776
Location: Ekerö
svenakela is offline

PostPosted: Mon Apr 01, 2013 11:14 pm    Post subject: Reply with quote

I have successfully rust protected several cars with zincing. It is an industrial method where the surface is sand blasted and then coated with zinc. The zinc applicator looks like a mix between a paint gun and a welder. The wire is fed to the tip where it is electrified and melts. Air is blowing the 500 celcius degrees hot metal onto the surface.
One of the companies here that makes this kind of galvanizing use a HVLP sand blaster and they can clean any metal sheet without warping. They have an Alfa Romeo standing in the parking lot, unpainted. It has been there the last 25 years or so.

It is not needed to make it over the entire car, only the sensitive areas like wheel archs etc. Why not the entire exhaust? I'm pretty sure you can find a similar company in your hoods. I have three in my little area.
Back to top
View user's profile Send private message Visit poster's website MSN Messenger Gallery Classifieds Feedback
kipkohl
Samba Member


Joined: May 21, 2012
Posts: 91
Location: Olympia, WA
kipkohl is offline

PostPosted: Tue Apr 02, 2013 12:14 pm    Post subject: Reply with quote

Gee, I don't know....maybe I'm doing something wrong but these don't seem to fit very well on my '91 Gl. The passenger side front went in OK, but there seems to be gaps around the lip of the well where water and mud could get in. The others could be trimmed to fit (and BD does state they might need to be) but even if correctly fitted I'm wondering if they're going to trap moisture around the edge of the wheel well. And, will trimming effect the tension needed to keep them in. Is there more to installing these than pushing them in and tucking the edge in?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tarandusVDub
Samba Member


Joined: August 27, 2010
Posts: 1526
Location: Between Here and There
tarandusVDub is offline

PostPosted: Tue Apr 02, 2013 3:10 pm    Post subject: Reply with quote

Phishman068 wrote:
Shy of covering the whole car in axle grease, I'm open to anything.


Another full-body option!

http://www.thesamba.com/vw/forum/viewtopic.php?t=548839
_________________
1984 Westy, base model, 2WD. Plus some goodies.
________________________
Sold: 1972 Bay Campmobile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JPrato
Samba Member


Joined: December 15, 2006
Posts: 775
Location: Livonia, NY
JPrato is offline

PostPosted: Tue Apr 02, 2013 5:14 pm    Post subject: Reply with quote

Phishman068 wrote:
Shy of covering the whole car in axle grease, I'm open to anything.


That is about the only thing that will stop the salt from eating your car alive. I have plenty of experience. While driving, the salt water get flung everywhere and will wick into every seam and crevise if it can. There it sits, rusting away. It is not uncommon after many washing and driving in the rain to crawl under the car and see white spots where salt is still wicking out of joints in the early summer here in upstate NY. To protect a non rusted vehicle every cavity, boxed section and inner panel has to be coated with a thin rust proofer and then the outside panels covered with heaver bodied coating to both keep in the thinner stuff and keep out the salt water. Reapplication/touch up would need to be done before every winter. Don't forget under the window seals as the pinch welds there start rusting pretty easily.

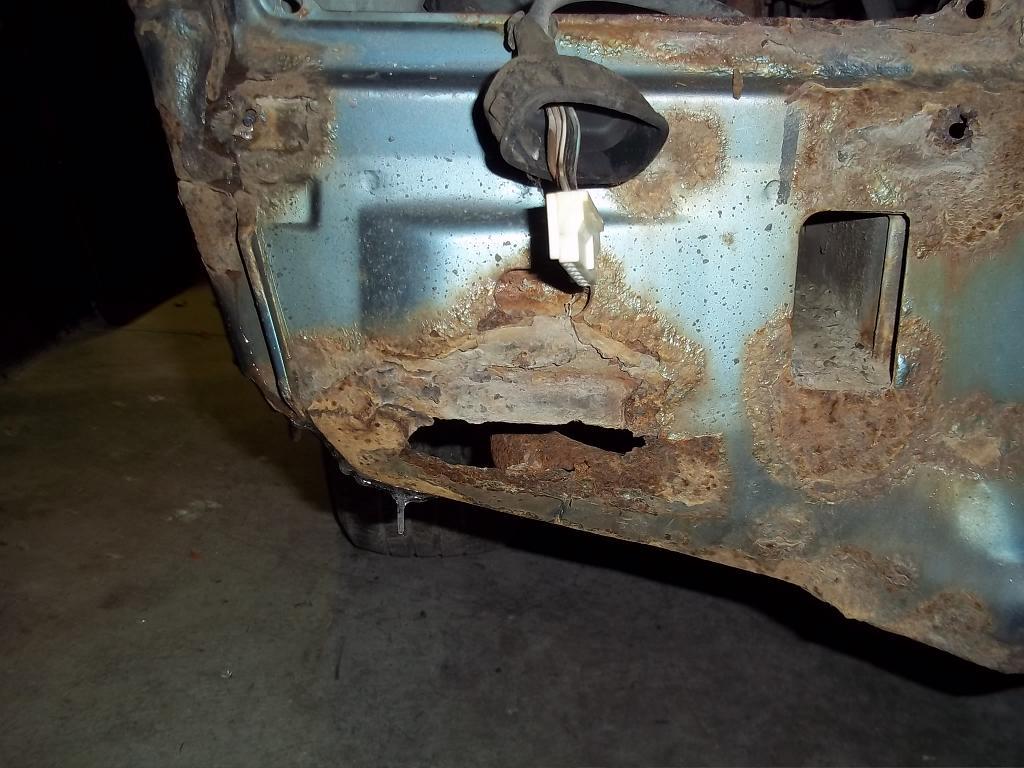

Here is the back end of a 88 van. Twenty five years of salty winters and it was shot. In all honesty that is a pretty good accomplishment. I doubt many vehicles could do that.
Image may have been reduced in size. Click image to view fullscreen.

Here the salt water got to the front, side seat belt attachment point on a 88 van. I just pull the belt up and this is what I saw.
Image may have been reduced in size. Click image to view fullscreen.

It is a lot of work to "rust proof" a vehicle every square inch inside and out needs to be protected. It can be done but not with out a lot of effort. Non salt belt areas of the country might not have as tough as a time.
_________________
Joe

06 Subaru Legacy turbo (how am I gonna fit this sucker into the Westy....)
87 Syncro Tin Top project
84 Westy, 2.5L Subaru power
46 Cessna 140
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
terence wilson
Samba Member


Joined: March 16, 2013
Posts: 3
Location: Honeoye Falls,N.Y.
terence wilson is offline

PostPosted: Wed Apr 03, 2013 1:28 pm    Post subject: Reply with quote

Hello jprato,i live in Honeoye Falls ,i have an 87 wolfsburg weekender i bought in november. It is in gc,and i have been washing salt off of it all winter.What kind of under coating are you using?thanks Terence
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Cdub!
Samba Member


Joined: May 06, 2017
Posts: 33
Location: San Diego
Cdub! is offline

PostPosted: Sat Jun 24, 2017 8:13 pm    Post subject: Re: Inner Fender Liners. Reply with quote

Anyone have any recent experience with these??? Thinking of buying them; but would hope the fit issue with the right rear has been addressed.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
dgbeatty
Samba Member


Joined: October 26, 2006
Posts: 427
Location: Sacramento
dgbeatty is offline

PostPosted: Sat Jun 24, 2017 10:25 pm    Post subject: Re: Inner Fender Liners. Reply with quote

The old maintenance schedule called for a through inspection and reapplication of waxoil every fall. Very few owners in the states do that. Our 1987 had the optional additional undercoating and waxoil application performed at the factory when new. It spent the first 13 years in the midwest rust belt before we moved to California. It was treated yearly with waxoil, it is still rest free, seams included. BTW although it rarely see salty roads these days we still touch it up every fall with waxoil.
We tried a set of the liners. The fit was awful. FWIW I believe they are made in Poland. I would happily twice the price for good quality well fitting liners.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MsTaboo
Samba Member


Joined: June 02, 2006
Posts: 3138
Location: East Kootenay, British Columbia
MsTaboo is offline

PostPosted: Sun Jun 25, 2017 11:37 am    Post subject: Re: Inner Fender Liners. Reply with quote

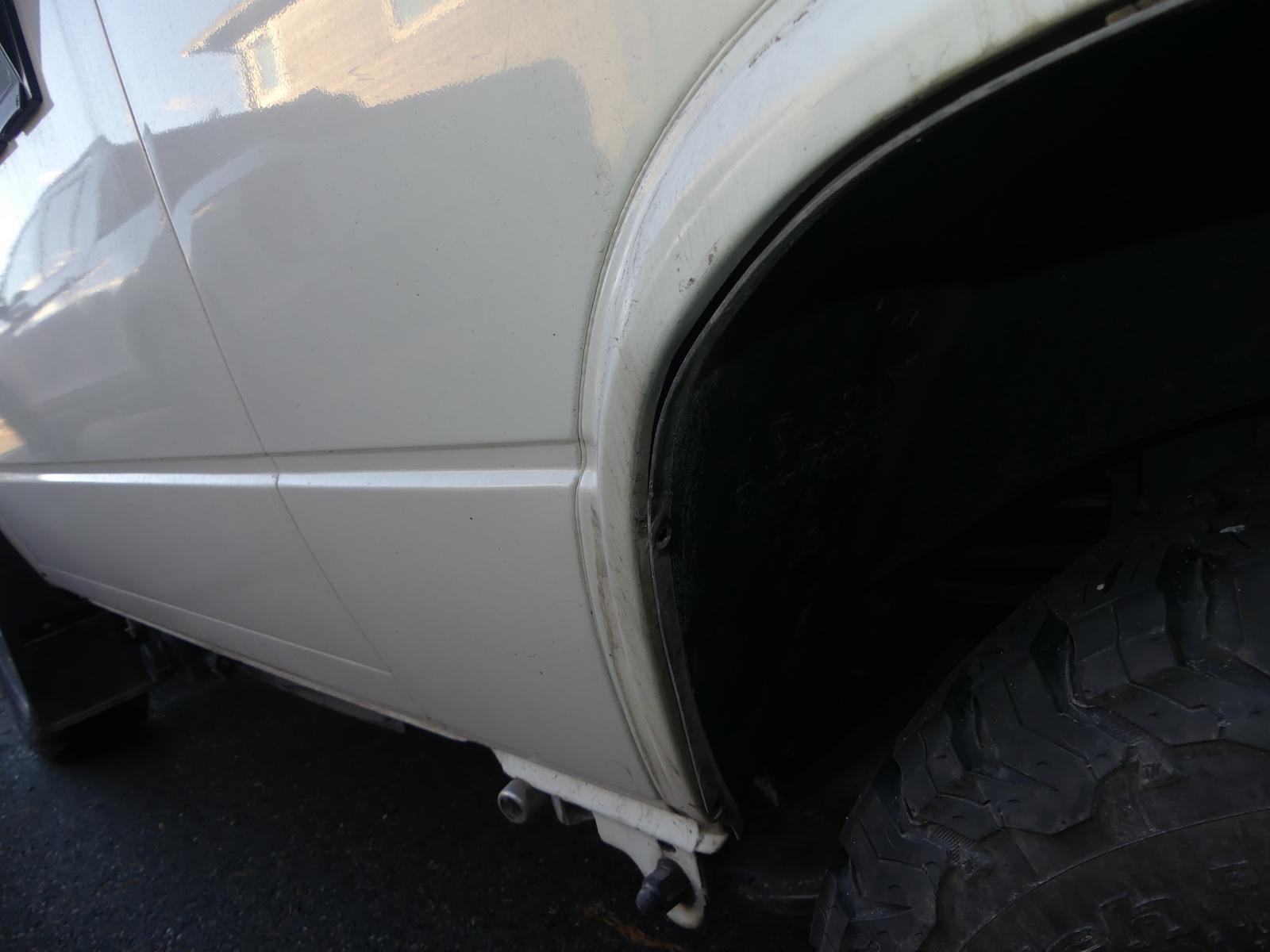

The fitment problems with these liners has to do with trying to tuck them under the outer wheel well lip.
If installed outside the wheel well outer lip they fit fine, but look like crap!

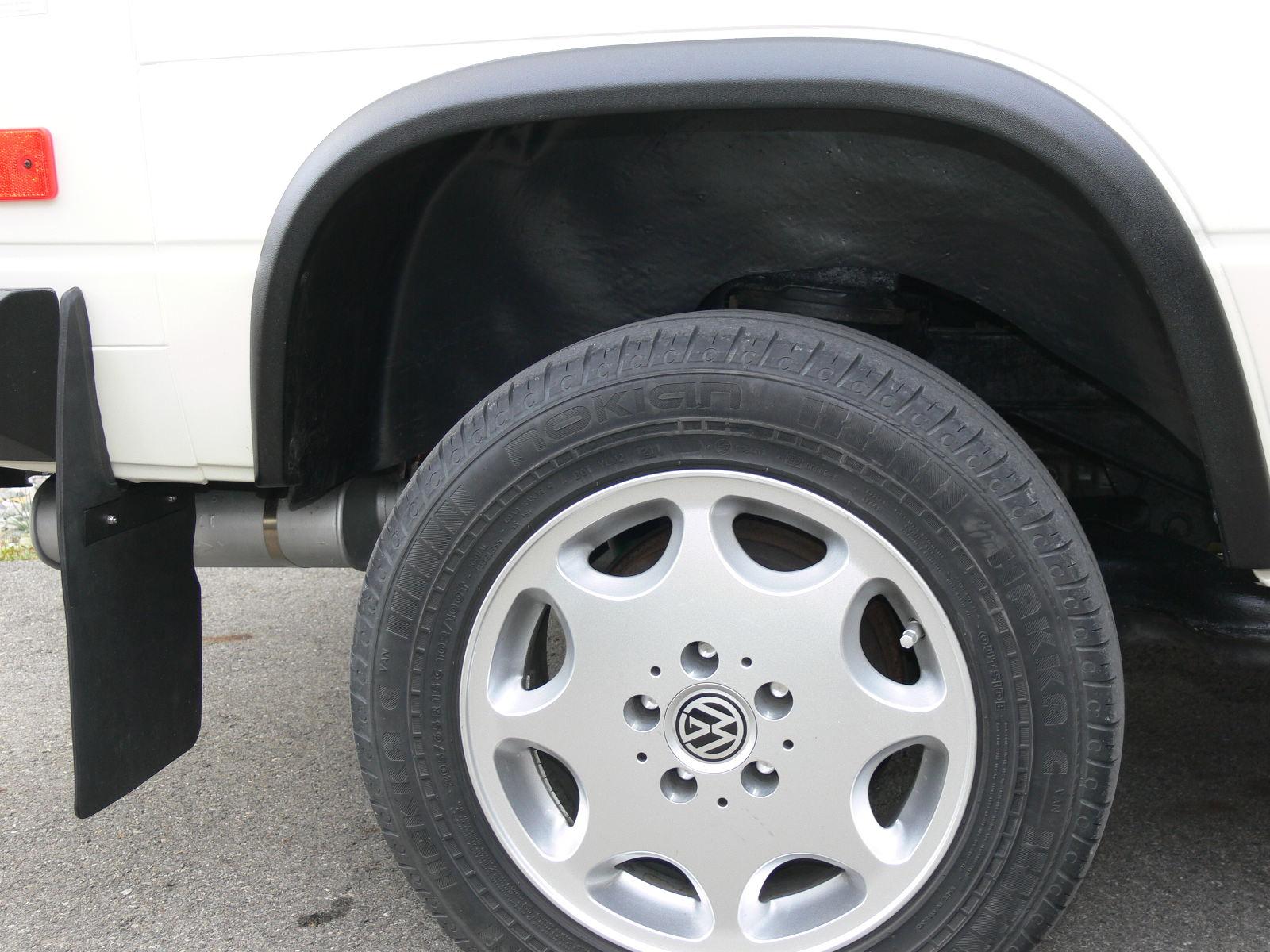

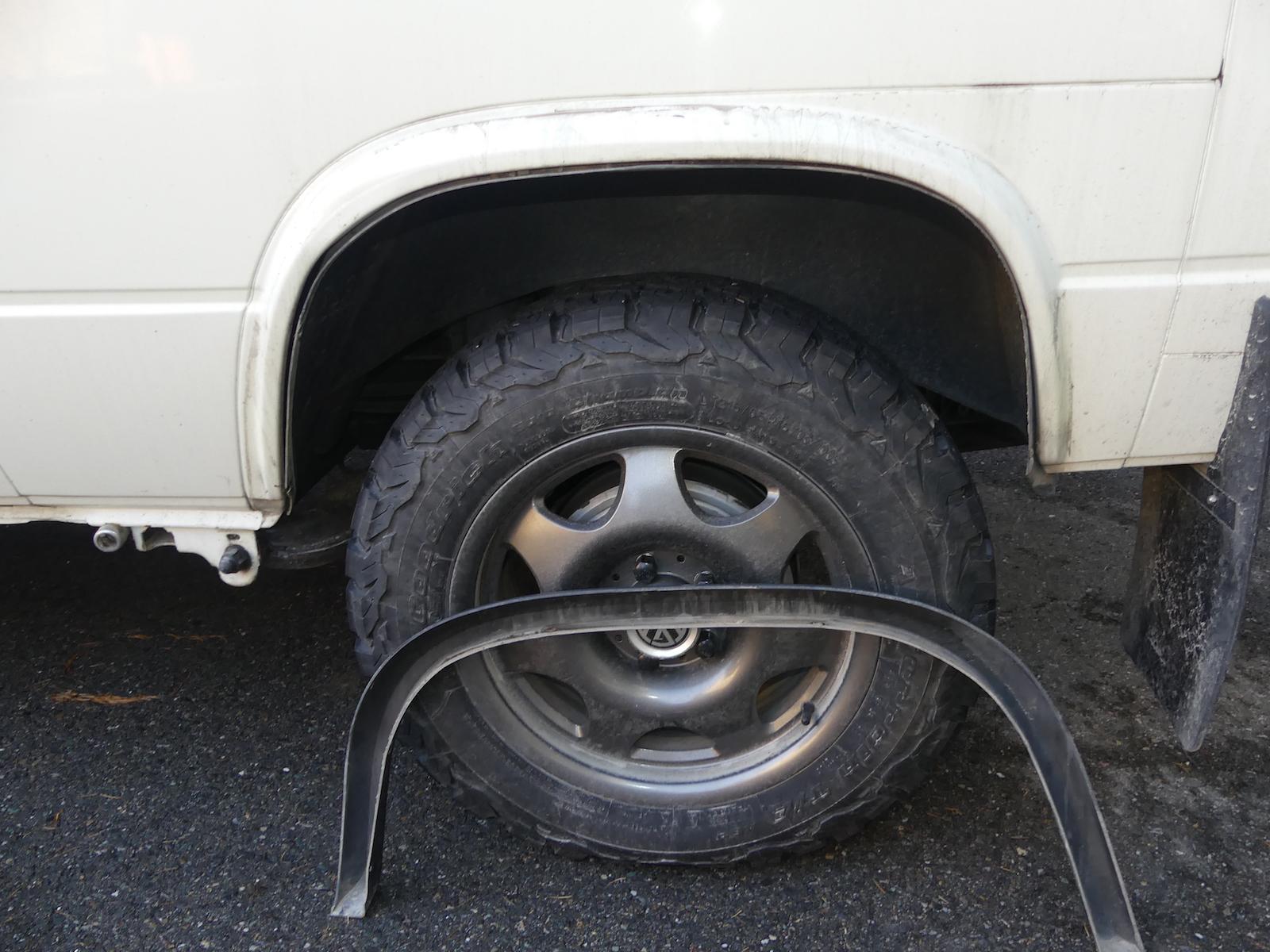

For the rears at least, using fender flares (Terrawagen) to cover up this join works great. Unfortunately because the front flares attach to the door this trick won't work for the front liners, so I'm running only the rears.
Looks good and works.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Been using since last summer. Happy with result. I do plan to take off both the flares and the liners every year or so to clean and wax underneath to protect against rust. So far the liners have kept the area protected by them very clean.
Of course I did a thorough cleaning and rust protection regime before installation. Just putting the liners on over a rust problem won't help any!

(edit) I got to thinking about the front liners again. Since the front flares do cover the wheel well lip when the door is closed maybe I will try fitting the front liners. The front flares are split between the portion which fits to the door and the small section that is attached to the body, this may present a problem but a little trimming may help. The edge of the wheel well liner will show when the door is open but that might be a small price to pay for added protection and maybe a little less road noise.
I'll play around with it when I have time (trying to finish the house this summer) and report back with pics.
_________________
Currently:
90 Syncro Westy/Zetec
-Syncro, not just a sticker-

The information age has morphed into the age of disinformation and willful ignorance.
You can lead a person to reason but you can't make them think.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
timichango
Samba Member


Joined: April 07, 2012
Posts: 858
Location: Squamish, BC, Canada
timichango is offline

PostPosted: Sun Jun 25, 2017 4:22 pm    Post subject: Re: Inner Fender Liners. Reply with quote

Subscribing. I think I need a little of this magic plastic protection — the salt around here in the winter is brutal, and unfortunately I need to run my van in the winter for at least another season until we can afford to pick up a beater truck for the salt season.
_________________
. . . . . . . . . . . . . . . . . . .
Vroomhilde-San: Our 1991 Silver Vanagon Westy automatic + Subie EJ25
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Cdub!
Samba Member


Joined: May 06, 2017
Posts: 33
Location: San Diego
Cdub! is offline

PostPosted: Sun Jun 25, 2017 6:29 pm    Post subject: Re: Inner Fender Liners. Reply with quote

Thanks for the replies. The van's in Southern California so no salt or corrosives; just wanting to be proactive in keeping the inner fenders free of debris and anything that would promote rust.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
timichango
Samba Member


Joined: April 07, 2012
Posts: 858
Location: Squamish, BC, Canada
timichango is offline

PostPosted: Tue Jun 27, 2017 10:00 am    Post subject: Re: Inner Fender Liners. Reply with quote

I'm assuming that those things are probably vacuum-formed — anyone try using a heat-gun to reform them slightly to resolve any fitment issues?
_________________
. . . . . . . . . . . . . . . . . . .
Vroomhilde-San: Our 1991 Silver Vanagon Westy automatic + Subie EJ25
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MsTaboo
Samba Member


Joined: June 02, 2006
Posts: 3138
Location: East Kootenay, British Columbia
MsTaboo is offline

PostPosted: Tue Jun 27, 2017 10:36 am    Post subject: Re: Inner Fender Liners. Reply with quote

timichango wrote:
I'm assuming that those things are probably vacuum-formed — anyone try using a heat-gun to reform them slightly to resolve any fitment issues?

Yep, I used a heat gun to form a pocket around the upper right rear shock mount. As for trimming, I only needed to cut a little off around the spring perch.
_________________
Currently:
90 Syncro Westy/Zetec
-Syncro, not just a sticker-

The information age has morphed into the age of disinformation and willful ignorance.
You can lead a person to reason but you can't make them think.
